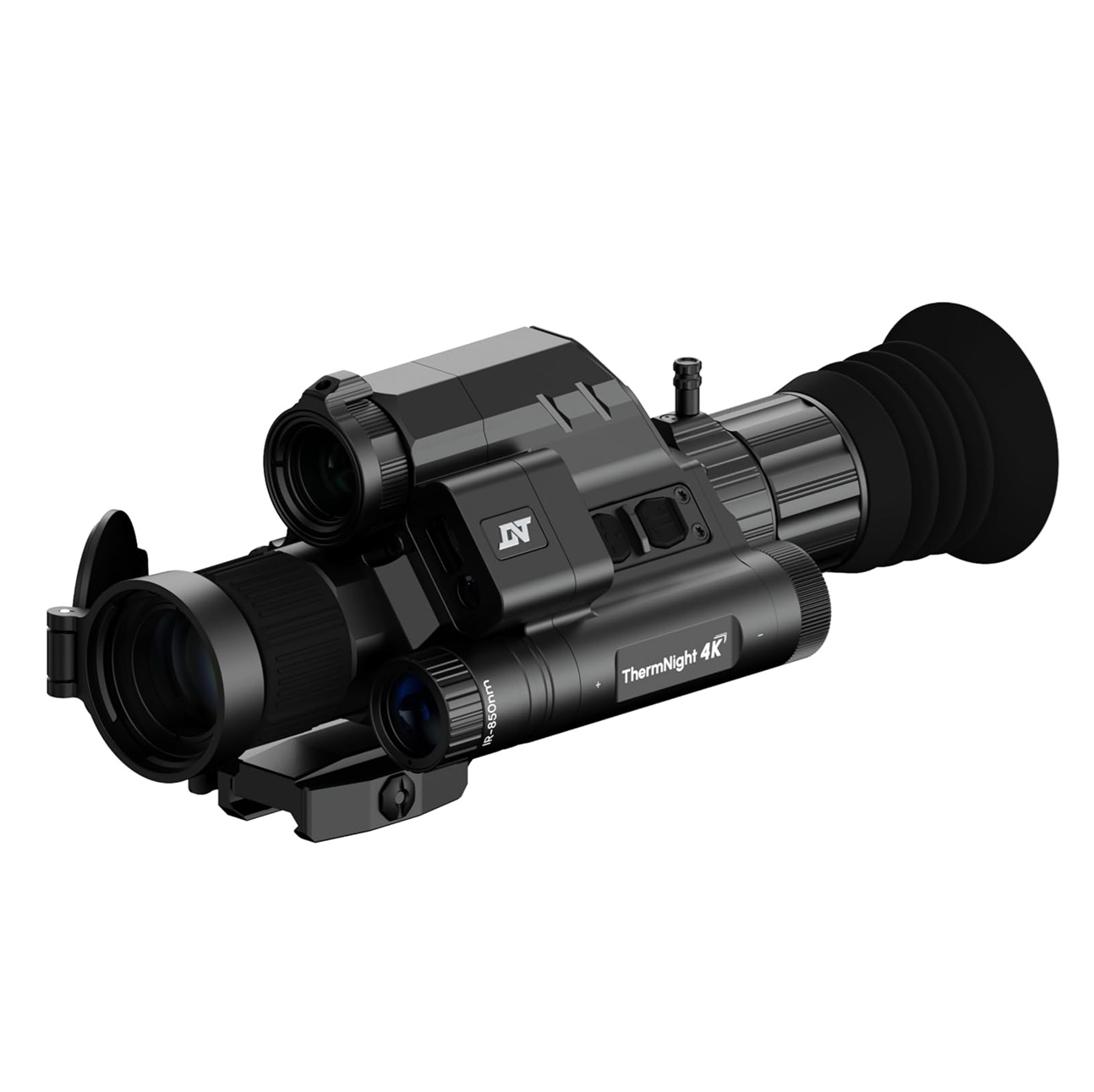

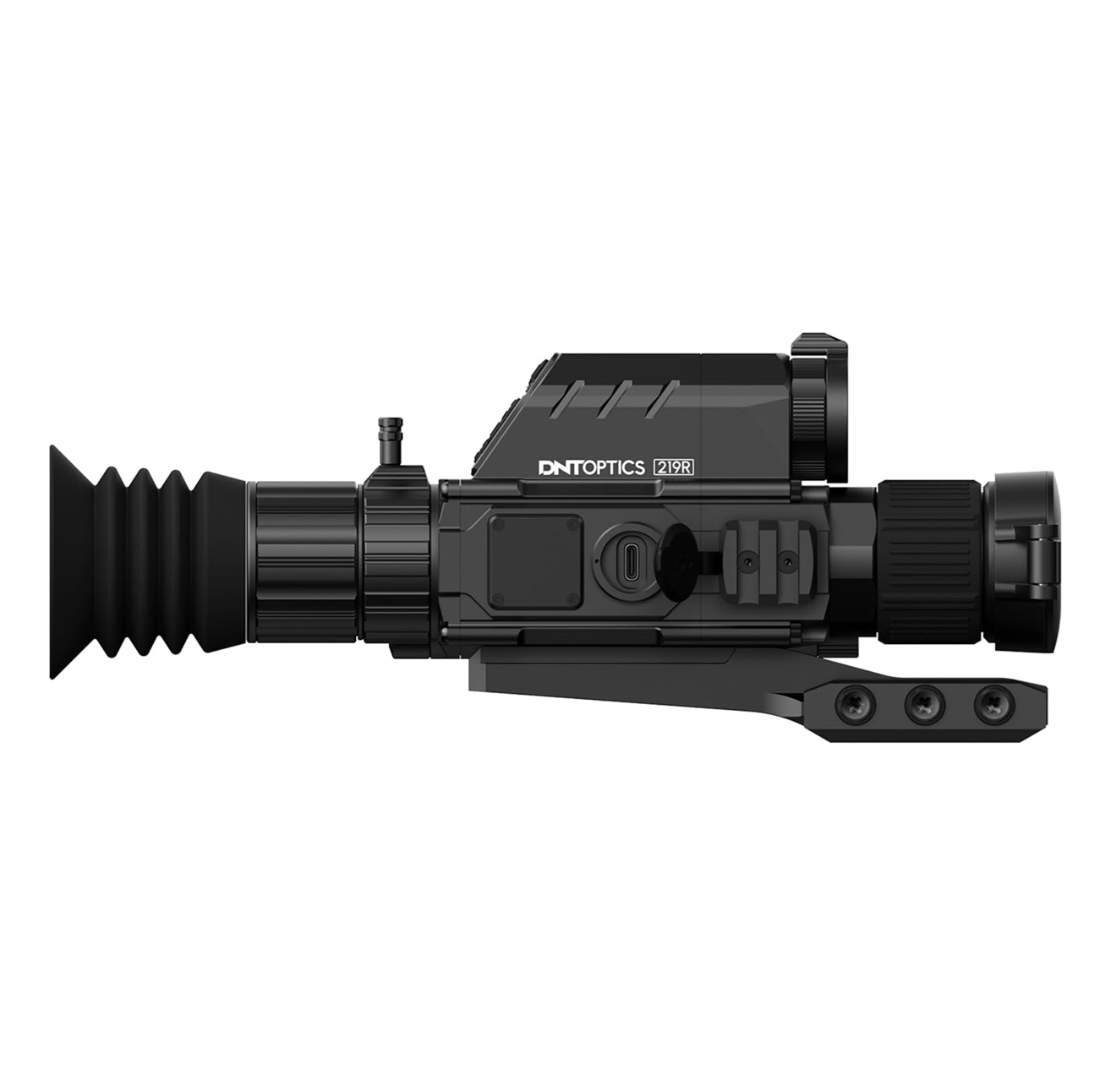

DNT ThermNight 4K TNC4K219R LRF Multispectral Scope

The DNT Optics TNC4K219R ThermNight combines thermal imaging, 4K digital day and night vision, a laser rangefinder and a ballistic calculator in one compact rifle scope. As a result, you can detect and identify targets across a wide range of light and weather conditions.

Designed for versatility, the ThermNight TNC4K219R combines two advanced imaging systems. It also includes intelligent shooting features, onboard recording and Wi-Fi connectivity.

High-Sensitivity Thermal Imaging

The TNC4K219R features a 256 × 192 thermal sensor with a 12 μm pixel pitch. In addition, its ≤18 mK NETD thermal sensitivity helps reveal subtle temperature differences.

The 19 mm thermal objective provides a wide 9.2° × 6.9° field of view. Therefore, it is well suited to scanning close and medium-range environments.

Thermal magnification ranges from 2x to 8x. Furthermore, Thermal Zoom Lock can keep the thermal image at a wider magnification while the digital channel zooms in.

4K Digital Day & Night Vision

A 3840 × 2160 4K CMOS sensor provides excellent image detail during both daytime and night-time use. The 50 mm f/1.8 objective also helps maximise available light.

Digital magnification ranges from 3x to 24x. Meanwhile, the 3–6x lossless zoom provides additional detail with minimal loss of image quality.

For night use, a detachable IR illuminator is included. It offers an illumination range of up to 450 yards.

Full HD Micro-OLED Display

Images are displayed through a 1920 × 1080 Micro-OLED display. Its 60 Hz refresh rate provides smooth viewing and tracking.

In addition, the generous 65 mm eye relief helps provide a comfortable viewing position.

2,100-Yard Laser Rangefinder

The integrated laser rangefinder measures distances from 5 to 2,100 yards. Therefore, you can quickly establish an accurate target distance without using a separate rangefinder.

The rangefinder also works with the built-in DNT Ballistic Engine. This provides real-time ballistic solutions based on your selected profile.

Custom ballistic profiles can be created and synchronised through the DNT App.

Thermal Auto Zeroing

Setting up both imaging channels is made easier with Thermal Auto Zeroing. Once the digital channel has been zeroed, the zero can be transferred to the thermal channel.

In addition, one-shot zeroing helps simplify initial setup and adjustment.

Recoil-Activated Recording

The TNC4K219R includes 64 GB of internal storage for recording footage. Recoil-activated recording can automatically capture key moments when a shot is taken.

Wi-Fi connectivity also allows the scope to connect with the DNT App. As a result, you can manage settings, ballistic profiles and supported firmware updates.

Built for Demanding Conditions

The rugged housing carries an IP67 waterproof and dustproof rating. Therefore, the scope is designed for dependable outdoor use in challenging conditions.

It is also rated to withstand 800G recoil and .50 BMG platforms. Operating temperatures range from -20°C to 50°C.

Despite its extensive feature set, the scope measures only 196 × 82 × 78 mm and weighs 737 g.

Rechargeable 21700 Battery

Power comes from a rechargeable flat-top 21700 Li-ion battery. This provides up to 5 hours 45 minutes of operating time.

Alternatively, external power can be supplied through the 5 V USB-C connection.

Quick Detach Mount Included

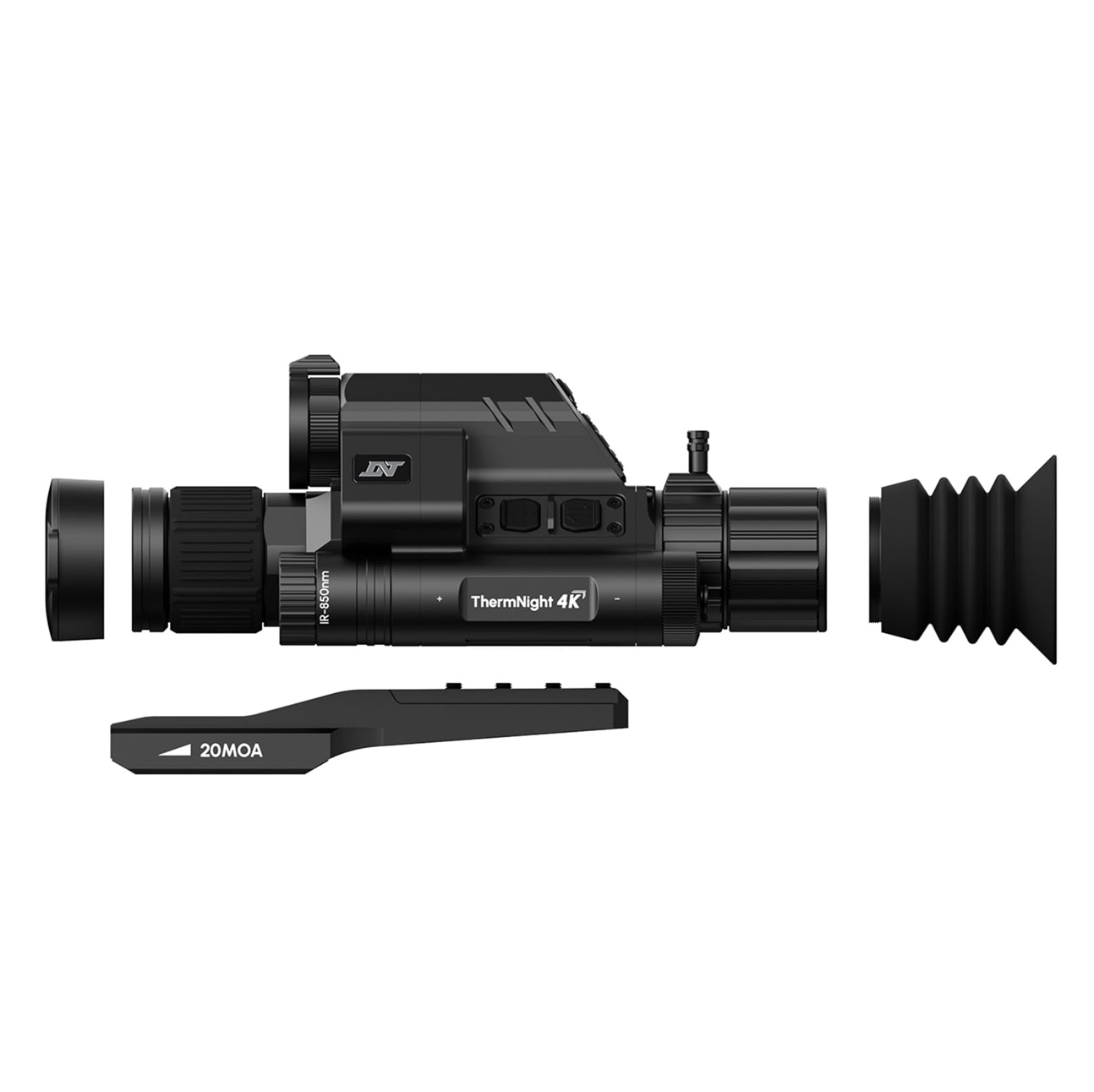

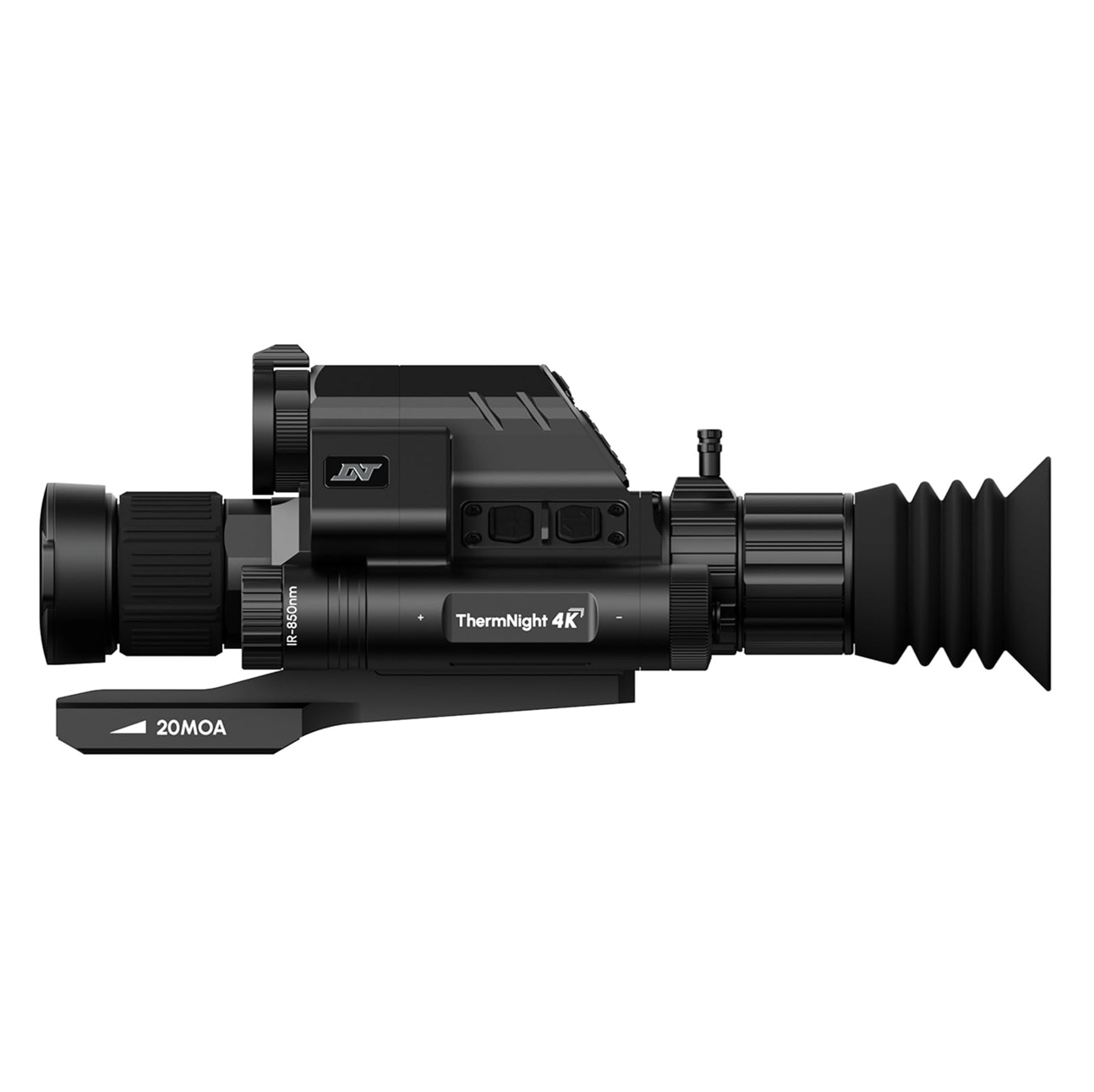

The DNT Optics TNC4K219R comes with a QDS150 Quick Detach Mount and PM20L Picatinny 20 MOA L Mount. Therefore, you have flexible mounting options straight out of the box.

A two-year warranty is included as standard. Moreover, this can be extended to three years following product registration.

Key Features

4K 3840 × 2160 digital day and night vision sensor

256 × 192 thermal imaging sensor

≤18 mK NETD thermal sensitivity

12 μm thermal pixel pitch

19 mm thermal objective lens

50 mm f/1.8 digital objective lens

3–24x digital magnification

2–8x thermal magnification

3–6x lossless digital zoom

Thermal Zoom Lock

Detachable IR illuminator with up to 450-yard range

Integrated 5–2,100-yard laser rangefinder

DNT Ballistic Engine

Thermal Auto Zeroing

One-shot zeroing

1920 × 1080 Micro-OLED display

Recoil-activated recording

64 GB internal storage

Nine reticle styles and five reticle colours

Wi-Fi and DNT App connectivity

IP67 waterproof and dustproof construction

800G / .50 BMG recoil rating

Up to 5 hours 45 minutes battery life

QDS150 Quick Detach Mount included

PM20L Picatinny 20 MOA L Mount included

Technical Specifications

Digital Sensor: 3840 × 2160 CMOS
Digital Frame Rate: 30 fps
Digital Objective: 50 mm f/1.8
Digital Base Magnification: 3x
Digital Magnification: 3x, 4.5x, 6x, 9x, 12x, 18x and 24x
Lossless Digital Zoom: 3–6x
Digital Field of View: 8.8° × 4.9°; 10.1° diagonal
Digital Linear Field of View: 15.4 × 8.6 yd at 100 yd; 17.6 m at 100 m
IR Illuminator: Detachable
IR Range: Up to 450 yards

Thermal Sensor: Uncooled thermal detector
Thermal Resolution: 256 × 192 pixels
Thermal Frame Rate: 40 fps
Thermal Pixel Pitch: 12 μm
Thermal Sensitivity: ≤18 mK NETD at 25°C
Thermal Objective: 19 mm
Thermal Base Magnification: 2x
Thermal Magnification: 2x, 3x, 4x, 5x, 6x, 7x and 8x
Thermal Field of View: 9.2° × 6.9°; 11.5° diagonal
Thermal Linear Field of View: 16.2 × 12.1 yd at 100 yd; 20.2 m at 100 m

Laser Rangefinder: 5–2,100 yards
Ballistic Calculator: DNT Ballistic Engine
Display: 0.49-inch Micro-OLED
Display Resolution: 1920 × 1080 pixels
Display Refresh Rate: 60 Hz
Eye Relief: 65 mm
Reticles: Nine styles
Reticle Colours: Five
Internal Storage: 64 GB
Connectivity: Wi-Fi and DNT App
Battery: Rechargeable flat-top 21700 Li-ion
Operating Time: Up to 5 hours 45 minutes
External Power: 5 V USB-C
Ingress Protection: IP67
Recoil Rating: 800G / .50 BMG
Operating Temperature: -20°C to 50°C
Dimensions: 196 × 82 × 78 mm
Weight: 737 g
Mounting System: Picatinny
Included Mounts: QDS150 Quick Detach Mount and PM20L Picatinny 20 MOA L Mount

Warranty: Two years, extendable to three years after product registration
