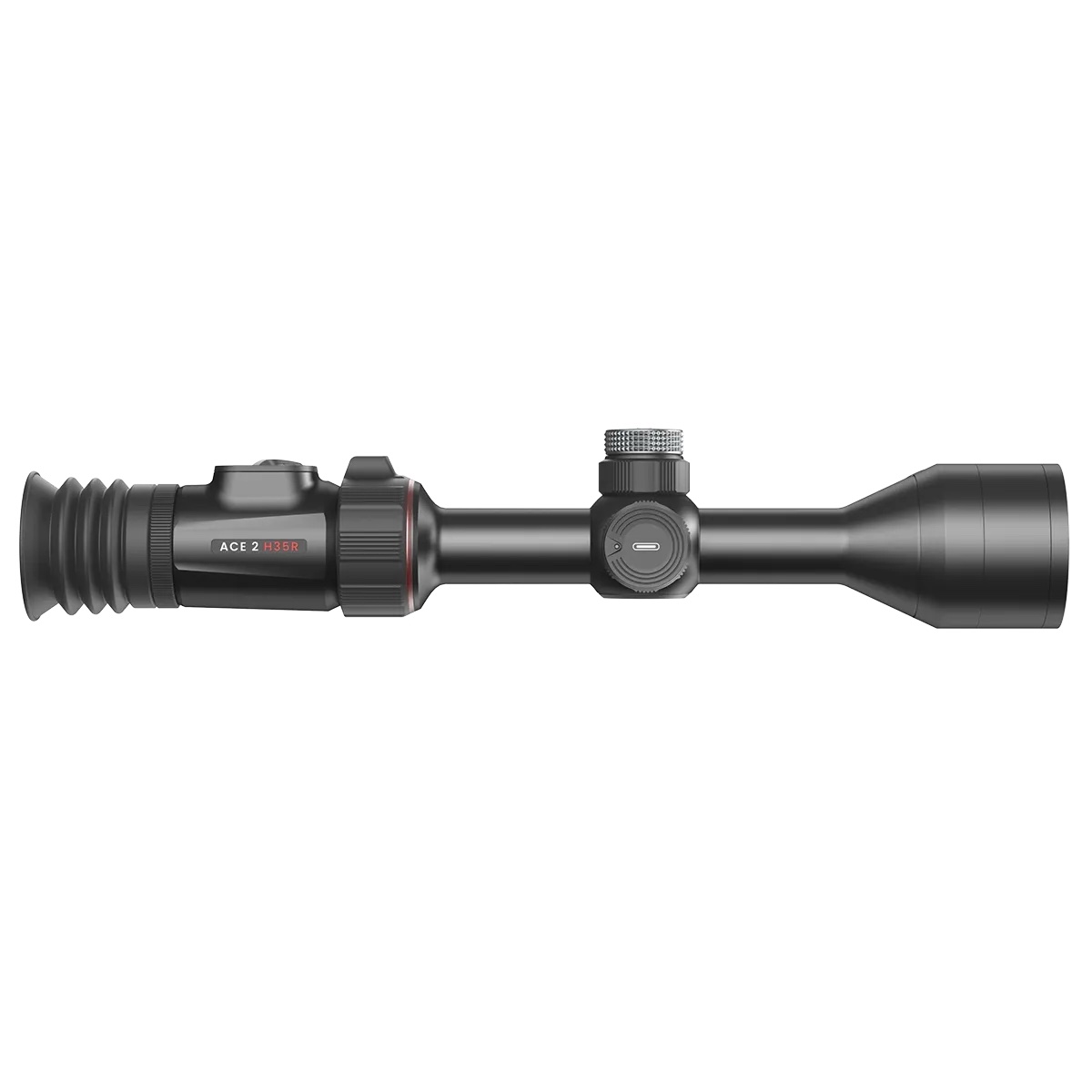

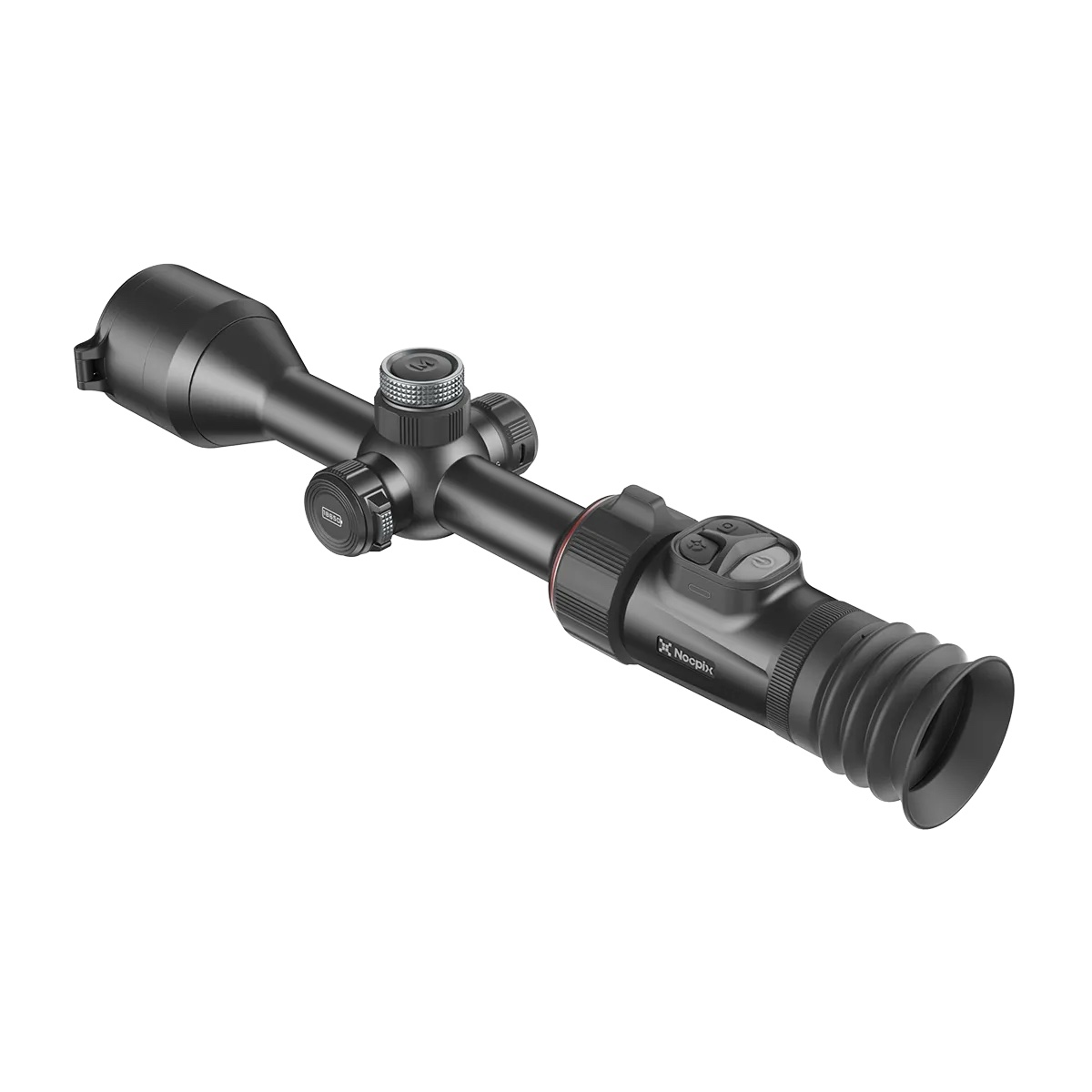

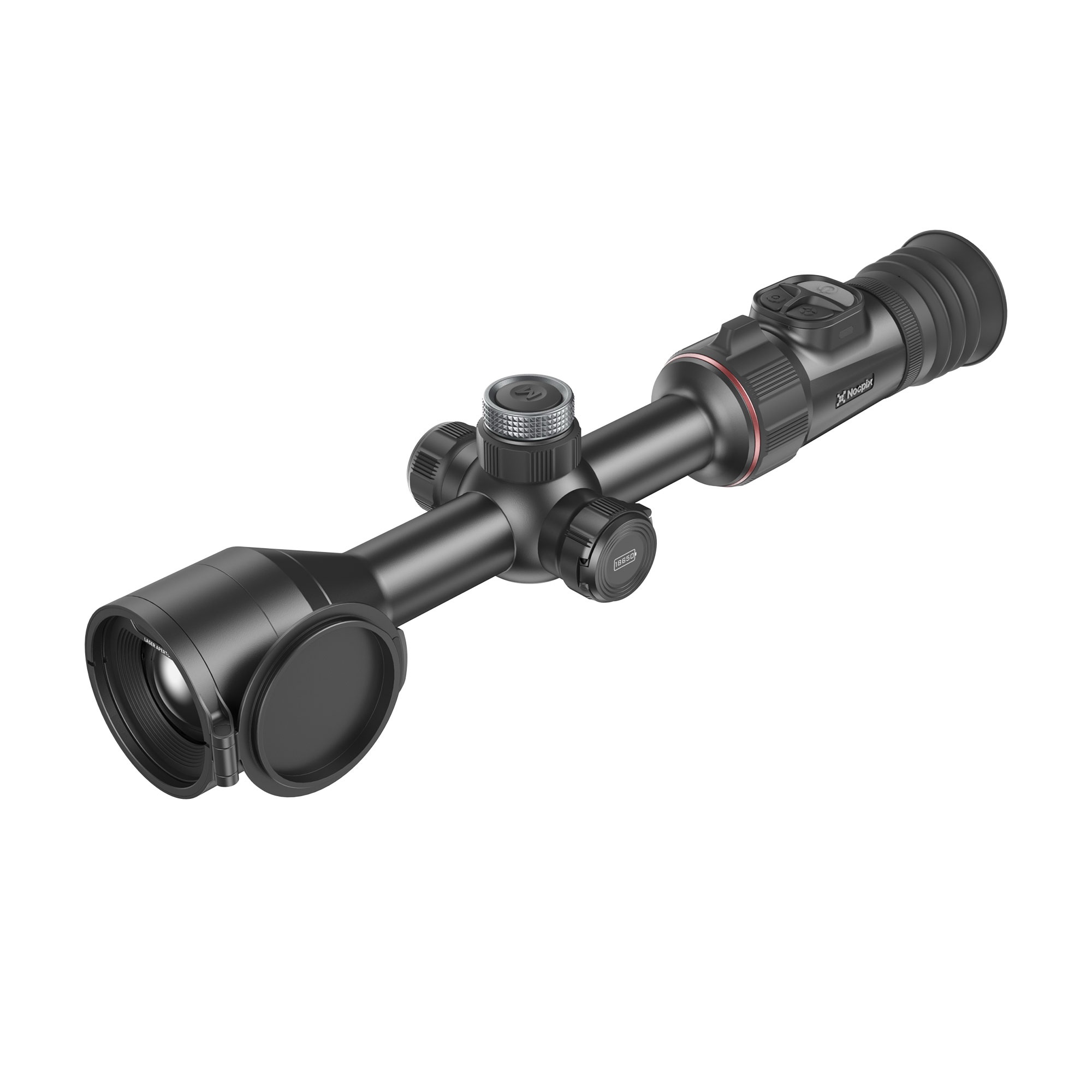

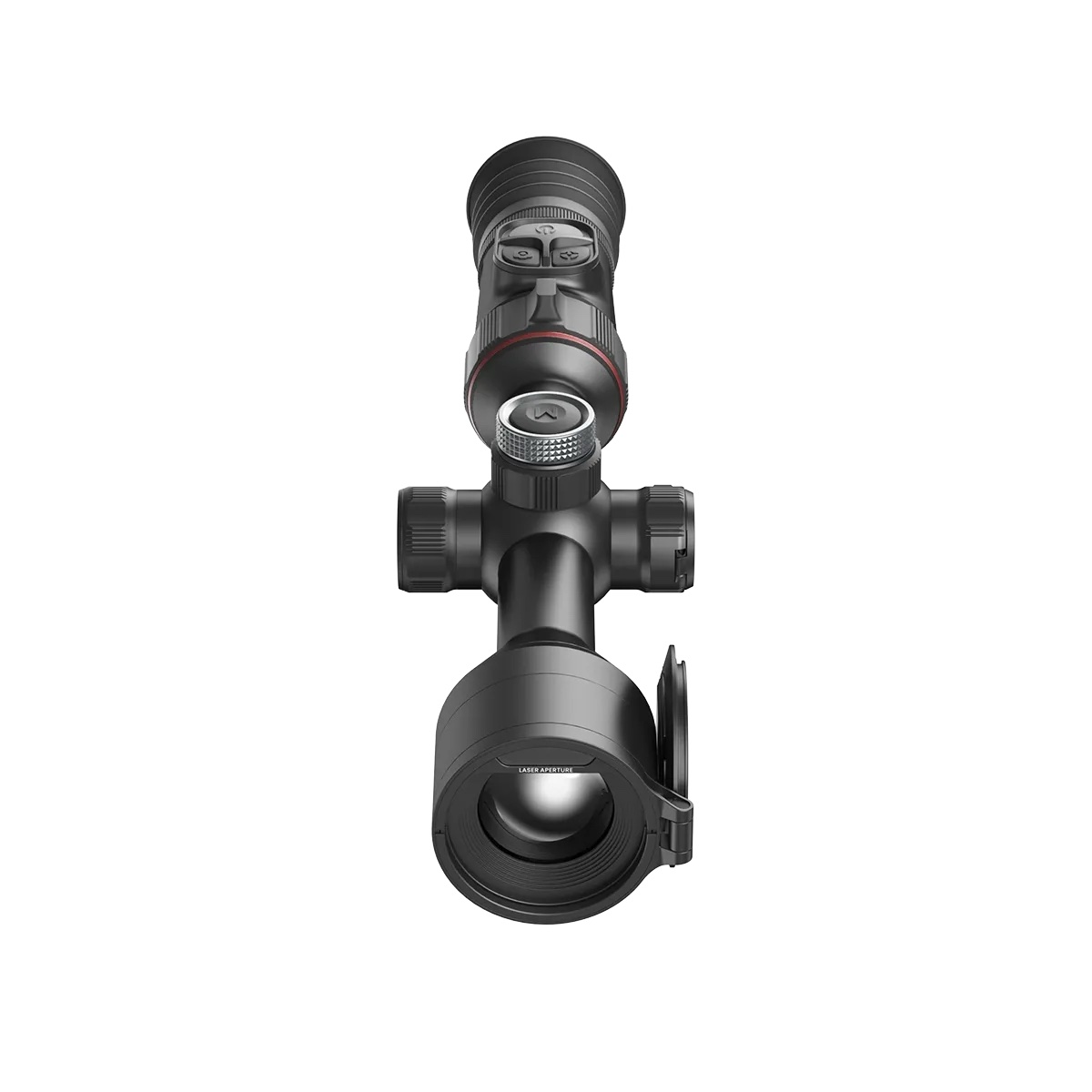

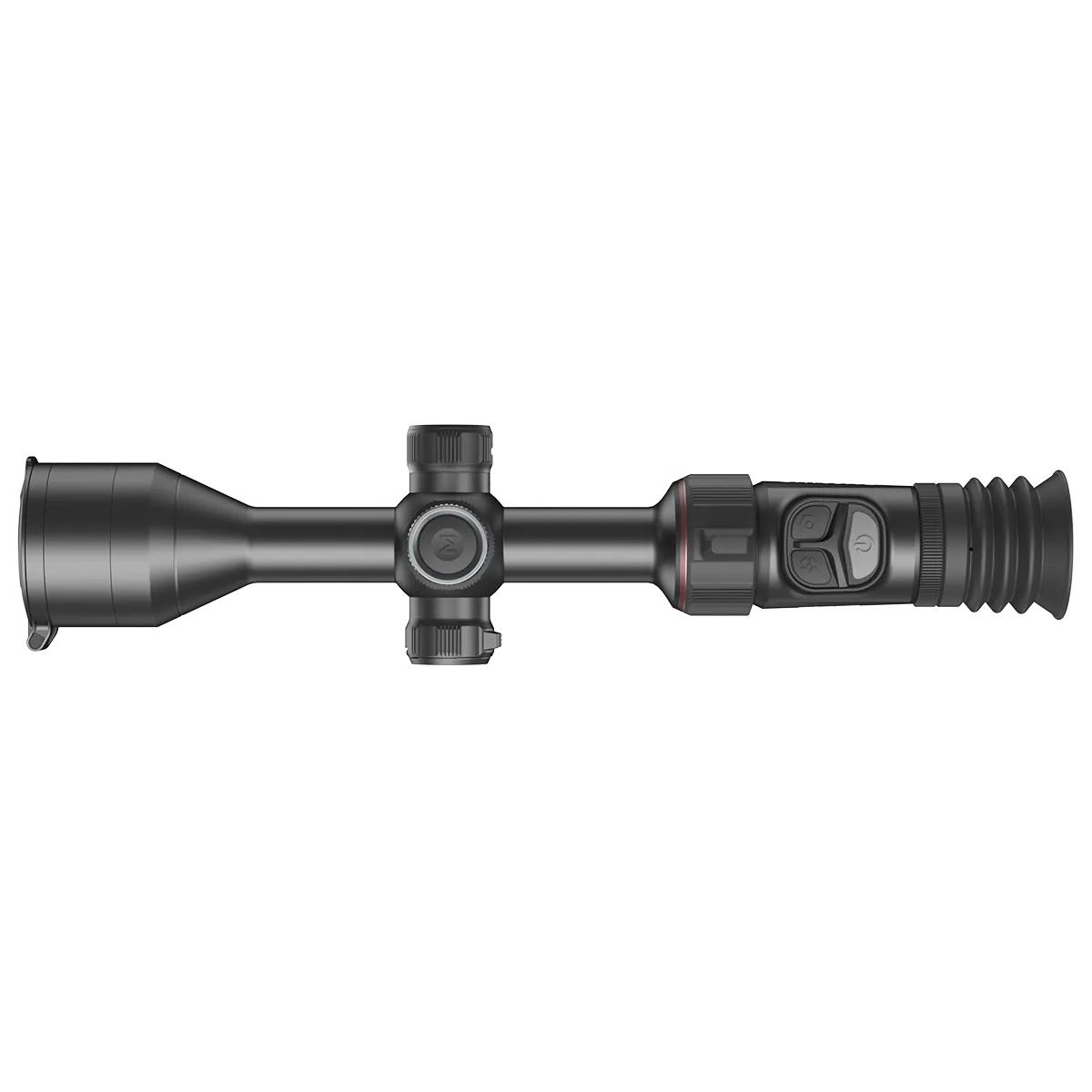

Nocpix ACE 2 H35R Thermal Scope

The Nocpix ACE 2 H35R Thermal Scope combines a high-sensitivity 640 x 512 Gen 3 thermal sensor with a 35mm f/0.9 objective lens and fast 60Hz frame rate. With a 12mK NETD, it is designed to detect subtle temperature differences and produce a detailed thermal image, even when environmental conditions provide limited thermal contrast.

With a stated detection range of up to 1,800 metres, integrated laser rangefinder, ballistic calculation, target tracking and recoil-activated recording, the ACE 2 H35R brings a wide range of observation and shooting features together in a durable magnesium alloy riflescope.

640 x 512 Gen 3 Thermal Sensor

At the heart of the ACE 2 H35R is a 640 x 512 Gen 3 thermal sensor with a 12μm pixel pitch and 12mK NETD sensitivity. This high thermal sensitivity helps reveal small temperature differences within the scene, providing greater separation between the target and its surroundings.

The 60Hz frame rate delivers smooth image movement when scanning or following moving targets, while the 35mm f/0.9 objective lens allows a high level of thermal energy to reach the sensor.

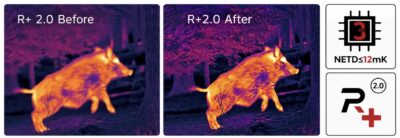

R+ 2.0 Image Processing

Nocpix R+ 2.0 and Reality+ image processing are designed to reduce environmental temperature noise while improving contrast, detail and overall image clarity.

This processing helps produce a cleaner and more defined thermal image, making subtle details within targets, vegetation and surrounding terrain easier to distinguish.

Dual Clarity Motion & Still Modes

Dual Clarity Mode provides dedicated Motion and Still viewing settings. This allows the image to be optimised for different situations.

Motion mode is designed for tracking fast-moving targets while reducing ghosting and image lag. Still mode places greater emphasis on fine detail, particularly within foliage and surrounding terrain, helping with careful observation and species identification.

Vision+ AMOLED Display

The Vision+ System features a high-resolution 2560 x 2560 round AMOLED display, providing a detailed and immersive view of the thermal image.

A long eye-relief design helps keep the full display visible during use, with 60mm eye relief and a 10mm exit pupil providing a comfortable viewing position. Magnification ranges from 3x to 20x for observing targets across varying distances.

Central Focus System & Ocular Zoom 2.0

The Central Focus System places focus adjustment within easy reach. This allows the image to be quickly refined without having to reach forward to the objective lens.

Ocular Zoom 2.0 provides additional control over the viewing experience, complementing the high-resolution display and thermal imaging system.

Integrated 1,200m Laser Rangefinder

An integrated LRF 2.0 laser rangefinder provides distance measurements out to 1,200 metres. This allows target distance to be established directly through the scope.

Its integrated design keeps the ACE 2 H35R streamlined while providing ranging information without requiring a separate handheld rangefinder.

Ballistic Calculation 2.0

Ballistic Calculation 2.0 works alongside the integrated rangefinder. This provides calculated shooting solutions. The system incorporates both inclination and wind-drift calculations, providing additional information when assessing a shot at varying distances and angles.

Target Tracking & Recoil Activated Video

Target Tracking allows a selected heat source to be followed within the thermal image, helping the user maintain awareness of a target as it moves through the scene.

Recoil Activated Video can automatically record footage when a shot is taken. This helps capture key moments without requiring recording to be manually started beforehand.

With 64GB of built-in storage, the ACE 2 H35R provides plenty of internal space for saved recordings.

Up To 1,800m Detection Range

The ACE 2 H35R has a stated thermal detection range of up to 1,800 metres. Its combination of a 640 x 512 sensor, 12mK NETD, 60Hz refresh rate and 35mm f/0.9 objective provides a versatile balance between detection distance, image detail and field of view.

Built-In & Replaceable Battery System

A combination of built-in and replaceable battery power provides approximately 7–8 hours of stated operating time.

The replaceable battery system also makes it possible to carry additional charged batteries for extended sessions in the field. Two 18650 rechargeable batteries and a dedicated battery charger are included.

Full Magnesium Alloy Construction

The Nocpix ACE 2 H35R uses a full magnesium alloy body, providing a strong and durable construction while keeping overall weight to 850g.

Ace 2H35R scope is rated for impact resistance up to 7,000J. This provides the durability required for use on compatible centrefire rifle platforms.

3 year Warranty
