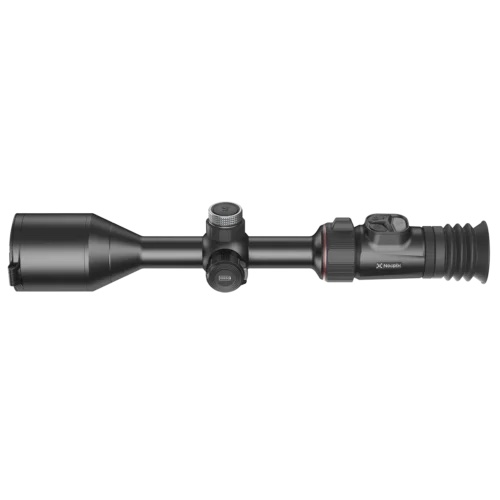

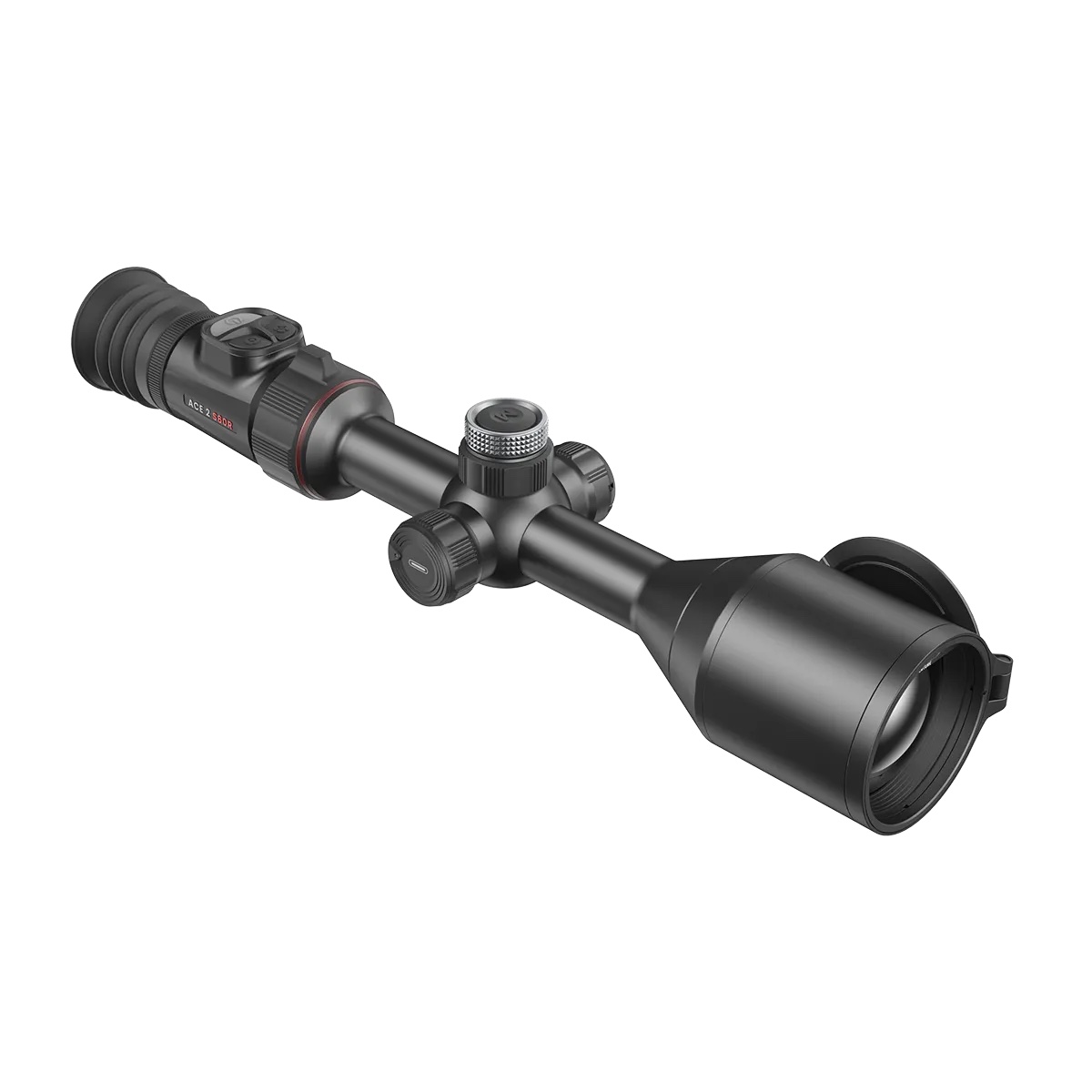

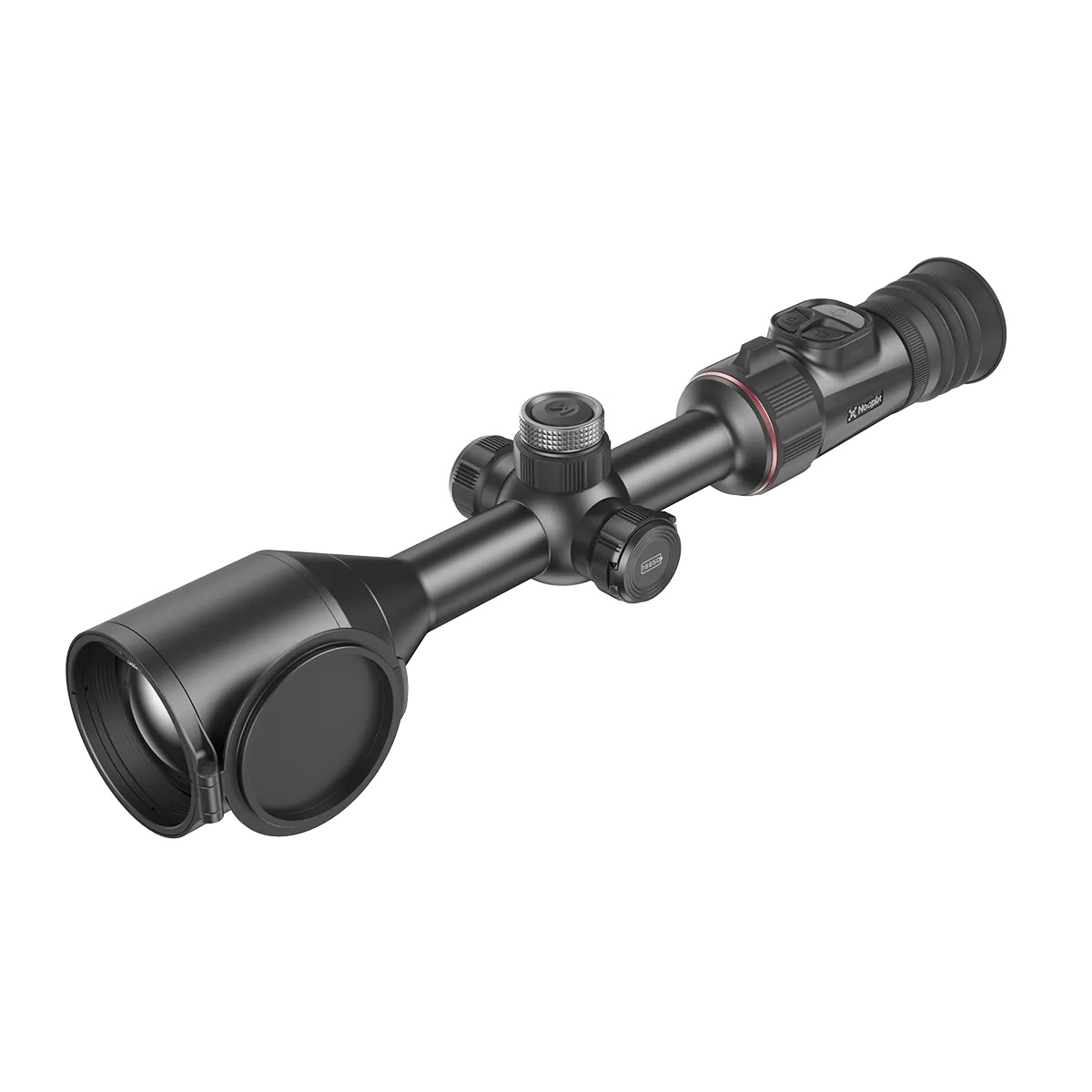

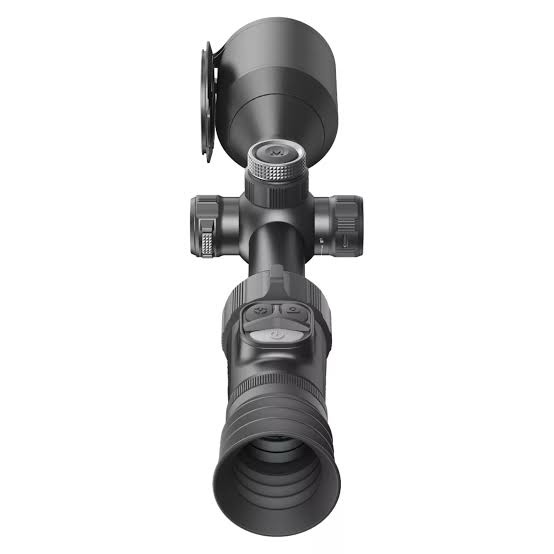

NOCPIX ACE 2 S60R Thermal Scope

The NOCPIX ACE 2 S60R combines a high-resolution 1280 × 1024 thermal sensor, a 60 mm F1.0 objective lens, and an integrated 1,200 m laser rangefinder. As a result, it delivers detailed thermal imaging with practical ranging and ballistic tools built directly into the scope. With NETD ≤12 mK, the ACE 2 S60R can reveal subtle temperature differences in challenging conditions. Meanwhile, Dual Clarity lets you quickly choose between smooth movement and maximum image detail.

High-Resolution 1280 × 1024 Thermal Sensor

At the heart of the ACE 2 S60R is a 1280 × 1024 VOx detector with a 12 µm pixel pitch. In addition, its NETD ≤12 mK thermal sensitivity helps retain detail when thermal contrast is low.

The 60 mm F1.0 objective lens provides a field of view of 14.7° × 11.7°, or 25.6 × 20.5 m at 100 m. Therefore, you get strong target detail while still retaining useful awareness of the surrounding scene.The specified detection range reaches 3,100 m for a 1.7 × 0.5 m target at P(n) = 99%.

Dual Clarity Image Modes

NOCPIX Dual Clarity gives you two selectable viewing modes. Motion mode prioritises smooth movement while searching or tracking. In contrast, Still mode prioritises fine image detail when examining a stationary scene or target.

Both modes are available through the shortcut menu. Furthermore, R+ 2.0 image processing and Ultra-Clear mode provide additional control over the thermal image.

Seven colour palettes are available. These include White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson and Viridian.

You can also adjust screen brightness, image sharpness and contrast across 10 levels. Plus, warm and cool image hues allow further personalisation.

2560 × 2560 AMOLED Display

A high-resolution 2560 × 2560 AMOLED display presents a clear and detailed sight picture.

The eyepiece provides 60 mm eye relief and a 10 mm exit pupil. Additionally, the −5 to +4 D dioptre adjustment allows the display symbols to be focused independently.

Ocular Zoom 2.0

The ACE 2 S60R provides 2–4× optical magnification. However, its Ocular Zoom 2.0 system makes changing magnification particularly intuitive.

When Hybrid Zoom is enabled, turning the ocular ring controls optical and electronic magnification together. Alternatively, Hybrid Zoom can be disabled so the ring controls optical magnification alone.

Electronic zoom is also available independently through the turret controller. Maximum magnification can be limited to 20×, 24× or 28×.

Meanwhile, the central turret focus keeps scene focusing conveniently positioned on the main body of the scope.

Integrated 1,200 m Laser Rangefinder

An integrated Class 1 laser rangefinder provides both single and continuous ranging.

It offers a specified maximum range of 1,200 m with ±1 m accuracy. Therefore, distance information is available without requiring a separate rangefinder.

You can also choose how long the range information and ranging reticle remain visible. This helps keep the sight picture as clean as required.

Built-In Ballistic Calculation

Ballistic parameters can be configured directly on the ACE 2 S60R or through the NOCPIX app.

Up to eight profiles can be stored. Consequently, different rifle and ammunition configurations can remain organised within the same scope.

Preset calculation distances are also available. These are particularly useful when heavy rain or snow reduces laser ranging performance.

Additionally, the built-in compass and motion sensor support app-based tracking. Following compass calibration, coordinates from recent ranging measurements can be used to display direction and distance to a recorded position.

Reticle Customisation

The ACE 2 S60R includes seven reticle types, nine reticle colours and six brightness settings.

Further reticle customisation is available through the NOCPIX app. Picture-in-picture is also supported for an enlarged view of the aiming area while retaining the wider thermal scene.

Photo & Video Recording

The scope includes 64 GB of internal storage for photos and videos. A built-in microphone can also capture audio.

Recordings can be reviewed using the integrated gallery. Alternatively, files can be transferred to a computer through USB.

Recoil-activated recording helps capture important moments automatically. You can select 5 or 10 seconds of pre-recoil footage. Then, post-recoil recording can continue for 5, 10, 20, 30 or 60 seconds.

Dual Battery System

Power comes from a built-in 3,650 mAh battery together with a replaceable 3,650 mAh 18650 battery.

Maximum operating time is rated at up to 7 hours at 22°C. However, actual runtime will vary depending on features such as Wi-Fi, laser ranging and video recording.

The internal battery charges through USB-C. Meanwhile, the removable 18650 cell is charged separately.

Built for Outdoor Conditions

The ACE 2 S60R has an IP67-rated housing and operates between −20°C and +50°C.

It is also rated for a maximum recoil energy of 7,000 J on a rifled weapon.

Automatic standby can help conserve power when enabled. The scope can enter standby when vertical tilt exceeds 70° or horizontal tilt exceeds 30°.

Key Features

1280 × 1024 VOx thermal sensor

12 µm pixel pitch

NETD ≤12 mK thermal sensitivity

60 mm F1.0 objective lens

30/60 Hz frame rate

2560 × 2560 AMOLED display

2–4× optical magnification

Up to 28× maximum magnification

Ocular Zoom 2.0

Dual Clarity Motion and Still modes

R+ 2.0 image processing

Ultra-Clear mode

3,100 m specified detection range

Integrated 1,200 m laser rangefinder

Built-in ballistic calculation

Up to 8 profiles

7 reticle types and 9 reticle colours

Picture-in-picture

Wi-Fi and NOCPIX app support

64 GB internal storage

Photo and video recording

Recoil-activated recording

Dual 3,650 mAh battery system

Up to 7 hours operating time

IP67 protection

3-year manufacturer’s warranty
