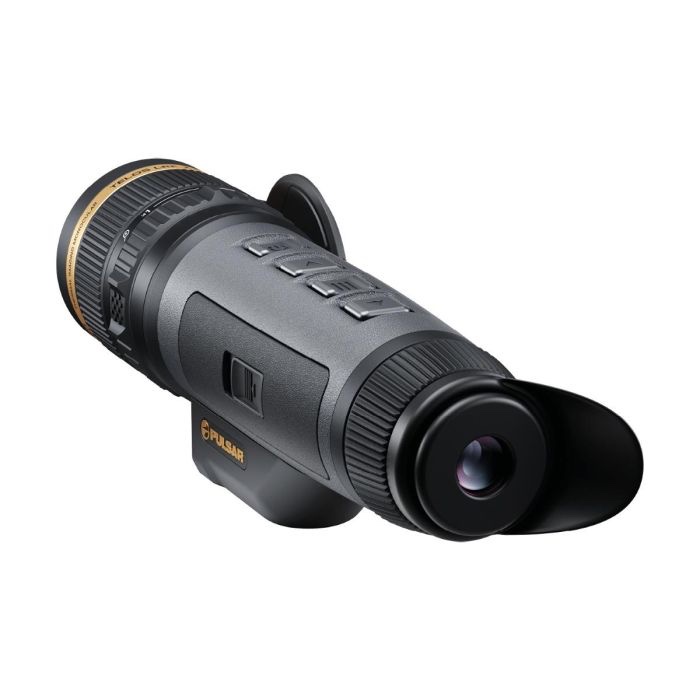

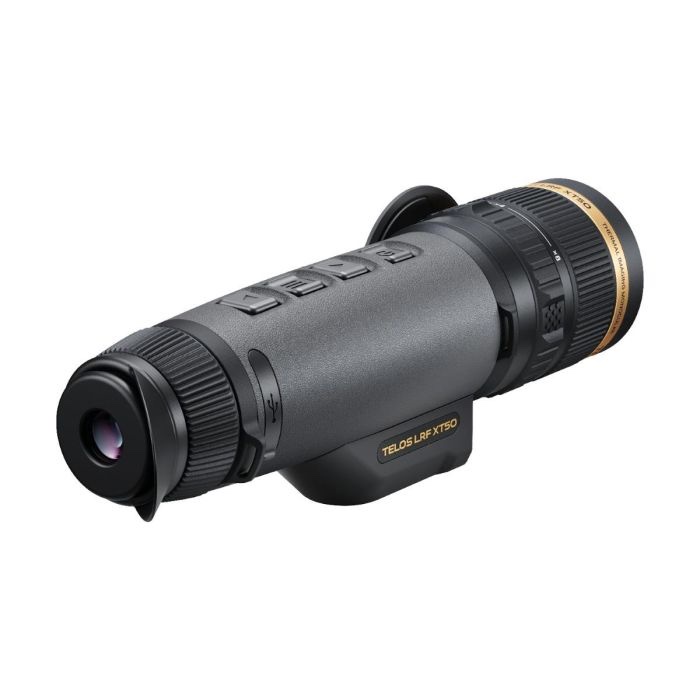

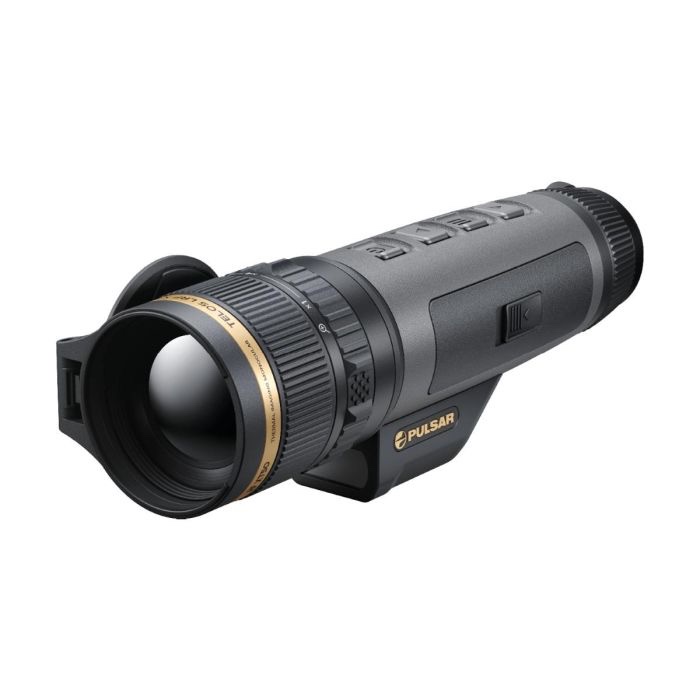

Pulsar Telos LRF XT50 Thermal Imaging Monocular

The Pulsar Telos LRF XT50 is a premium high-resolution thermal imaging monocular designed for long-range observation, detection and identification.

Featuring Pulsar’s flagship 1280 × 1024 XT thermal sensor, a powerful 50 mm f/1.0 objective lens and an integrated 1,200 m laser rangefinder, the Telos LRF XT50 combines exceptional thermal detail with impressive long-range performance.

1280 × 1024 XT Thermal Sensor

At the heart of the Telos LRF XT50 is a high-resolution 1280 × 1024, 12 µm thermal sensor with <20 mK sNETD sensitivity.

The high-resolution XT sensor delivers exceptional image detail and helps reveal subtle temperature differences, particularly in challenging weather and low thermal contrast conditions.

1920 × 1080 AMOLED HD Display

A high-resolution 1920 × 1080 AMOLED display provides excellent image clarity, contrast and detail.

Combined with the XT thermal sensor, the HD display provides a highly detailed viewing experience throughout the magnification range.

50 mm F1.0 Objective Lens

The powerful 50 mm f/1.0 objective lens provides excellent thermal transmission and long-range performance.

With a wide 17.5° field of view and detection range of up to 2,300 metres, the Telos LRF XT50 provides an excellent balance between scanning large areas and observing distant heat sources.

2-16x Magnification & 24x Zoom Boost

The Telos LRF XT50 offers 2-16x magnification, with Zoom Boost extending magnification up to 24x when additional detail is required.

An updated zoom ring provides improved grip and precise control when adjusting magnification.

Integrated 1,200 m Laser Rangefinder

The redesigned slimline laser rangefinder measures distances up to 1,200 metres with ±1 metre accuracy.

Integrated directly into the monocular, it provides fast and accurate distance measurement without the need to carry a separate rangefinder.

Electronic Image Stabilisation

Electronic image stabilisation helps reduce camera shake and unwanted movement, providing a steadier image when viewing distant subjects or operating at higher magnification.

Rugged IP67 Construction

Built for demanding outdoor conditions, the Telos LRF XT50 features a durable rubber-coated composite housing with IP67 protection against dust and moisture.

It is designed to operate in temperatures ranging from -25°C to +40°C and also features a built-in tripod adaptor for stable extended observation.

LPS7i Rechargeable Battery

The supplied LPS7i rechargeable battery provides up to 8 hours of operation.

Wireless charging is also supported, providing a convenient additional way to keep the device powered.

Wi-Fi, NFC & Stream Vision 2

Built-in Wi-Fi and NFC connectivity allows quick connection to compatible mobile devices and the Stream Vision 2 app.

Stream Vision 2 provides access to compatible features including remote operation, live viewing and firmware updates.

The Telos LRF XT50 is also compatible with Stream Vision Ballistics for access to ballistic profiles, data and calculator settings.

Key Features

• 1280 × 1024 XT thermal sensor
• 12 µm pixel pitch
• <20 mK sNETD thermal sensitivity
• 50 mm f/1.0 objective lens
• 17.5° field of view
• Up to 2,300 m detection range
• 2-16x magnification
• Zoom Boost up to 24x
• 1920 × 1080 AMOLED HD display
• Integrated 1,200 m laser rangefinder
• ±1 m rangefinder accuracy
• Electronic image stabilisation
• Updated precision zoom ring
• LPS7i rechargeable battery
• Up to 8 hours battery life
• Wireless charging support
• Wi-Fi & NFC connectivity
• Stream Vision 2 compatible
• Stream Vision Ballistics compatible
• Built-in tripod adaptor
• IP67 protection
• Operating temperature: -25°C to +40°C
• Weight: 730 g
• Dimensions: 243 × 72 × 77 mm
• Pulsar 3-year manufacturer’s warranty

Technical Specifications

Sensor: 1280 × 1024, 12 µm
Thermal Sensitivity: <20 mK sNETD
Objective Lens: 50 mm f/1.0
Magnification: 2-16x
Zoom Boost: Up to 24x
Field of View: 17.5°
Detection Range: Up to 2,300 m
Display: 1920 × 1080 AMOLED HD
Laser Rangefinder: Up to 1,200 m
Rangefinder Accuracy: ±1 m
Image Stabilisation: Electronic
Battery: Pulsar LPS7i rechargeable battery
Battery Life: Up to 8 hours
Wireless Charging: Yes
Wi-Fi: Yes
NFC: Yes
Protection Rating: IP67
Operating Temperature: -25°C to +40°C
Dimensions: 243 × 72 × 77 mm
Weight: 730 g
Warranty: Pulsar 3-year manufacturer’s warranty
