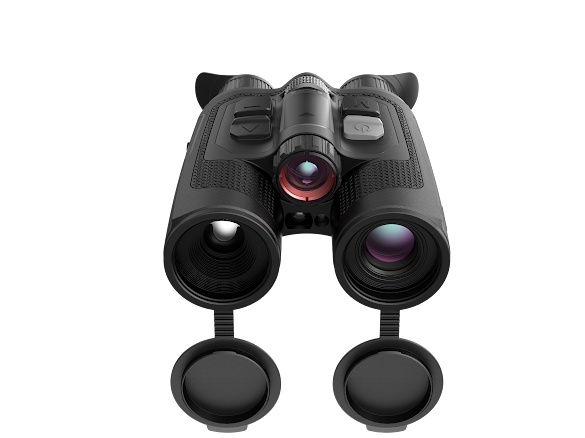

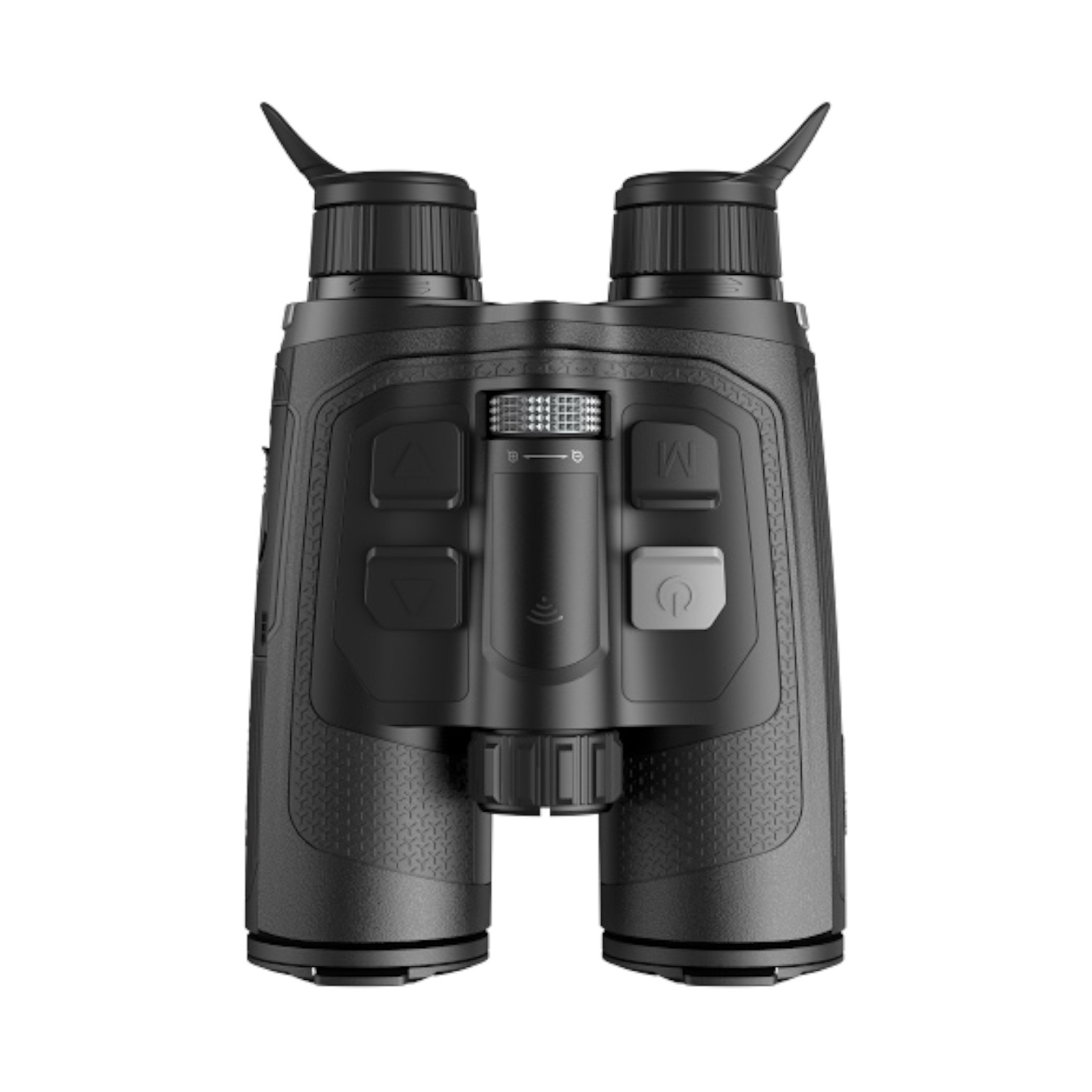

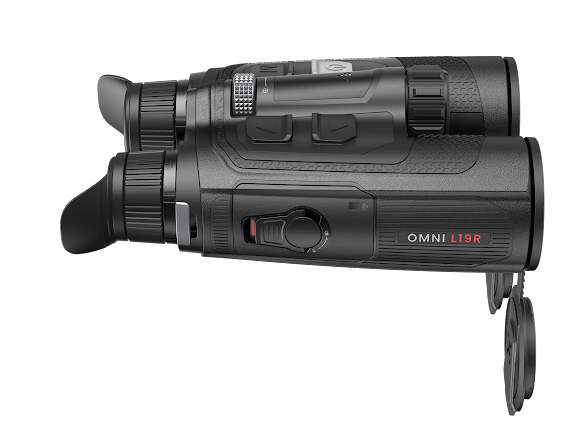

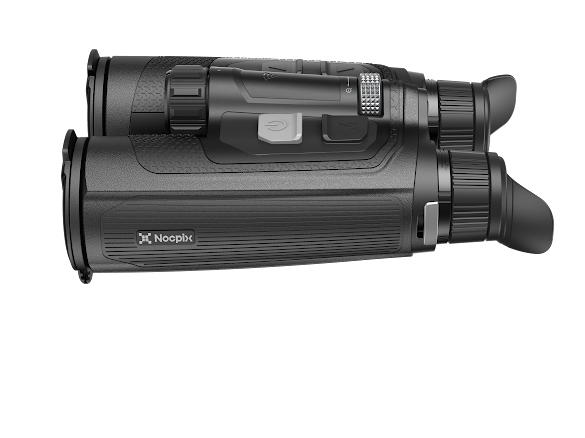

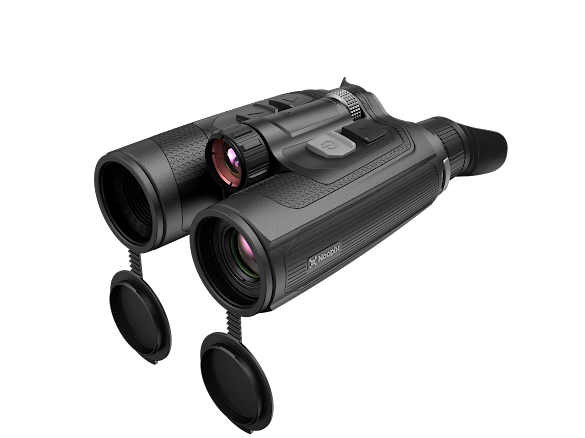

Nocpix OMNI L19R Multispectral Binocular

The Nocpix OMNI L19R Multispectral Binocular combines high-resolution 8K digital day/night imaging with advanced 384 × 288 thermal imaging in one powerful and ergonomic observation system. Featuring a highly sensitive 384 × 288, 12μm thermal sensor with NETD ≤15mK, paired with a fast 19mm F0.9 objective lens, the OMNI L19R delivers detailed thermal imaging and excellent sensitivity in challenging environmental conditions.

The digital channel incorporates advanced 8K sensing technology with three scene-specific image optimisation algorithms, providing excellent detail across varying light conditions.

Integrated 1000m Laser Rangefinder

The OMNI L19R features an integrated laser rangefinder with a measuring distance of up to 1000 metres, allowing fast and accurate distance measurement while observing.

Integrated ballistic calculation further expands the capabilities of this advanced multispectral binocular.

Advanced Thermal Imaging

The 384 × 288, 12μm thermal sensor operates at a smooth 50Hz frame rate and offers a detection range of up to 1800 metres.

With an impressive NETD of ≤15mK, the OMNI L19R can reveal subtle temperature differences, helping provide greater environmental and target detail even in difficult conditions.

Seven distinct thermal colour palettes allow the image to be adapted to different environments and viewing preferences.

8K Digital Day & Night Vision

Alongside its thermal channel, the OMNI L19R incorporates an 8K digital sensor for detailed daytime and low-light observation.

Three scene-specific digital image algorithms optimise image quality for different conditions, while the supplied 850nm replaceable IR illuminator provides additional illumination when operating in darkness.

Electronic Image Stabilisation

Built-in Electronic Image Stabilisation (EIS) helps maintain a steadier image during handheld observation, particularly at higher magnification. With a magnification range of 1.5× to 18× and fine 0.5× zoom adjustment, the OMNI L19R allows you to move smoothly between wide-area searching and detailed observation.

Ergonomic Binocular Design

Designed for comfortable extended observation, the OMNI L19R features an intuitive scroll-wheel control, simple four-button interface and ergonomic binocular configuration.

The controls provide quick access to essential functions while keeping operation straightforward in the field.

Flexible Battery System

The OMNI L19R combines a built-in rechargeable battery with replaceable 18650 batteries, providing additional flexibility for extended periods of use.

Polarity-free battery operation makes battery replacement quick and straightforward.

Recording & Connectivity

Capture your observations directly with built-in photo and video recording, supported by a generous 64GB of internal storage.

Wi-Fi, Bluetooth, microphone functionality and N-Link connectivity provide additional options for recording, sharing and device integration.

Key Features

8K digital day/night imaging

384 × 288 thermal sensor

12μm thermal pixel pitch

NETD ≤15mK

19mm F0.9 objective lens

50Hz thermal frame rate

Up to 1800m detection range

Integrated laser rangefinder up to 1000m

Integrated ballistic calculation

Electronic Image Stabilisation (EIS)

1.5×–18× magnification

Fine 0.5× zoom adjustment

3 scene-specific digital image algorithms

7 thermal colour palettes

Replaceable 850nm IR illuminator

Built-in battery plus replaceable 18650 batteries

Polarity-free battery operation

1600 × 1200 display resolution

Built-in photo and video recording

Built-in microphone

64GB internal storage

Wi-Fi and Bluetooth

N-Link connectivity

¼”-20 UNC threaded tripod connection

IP67 weather protection

Operating temperature: -20°C to +50°C

Technical Specifications

Model: OMNI L19R
Thermal Sensor: 384 × 288
Pixel Pitch: 12μm
NETD: ≤15mK
Frame Rate: 50Hz
Objective Lens: 19mm F0.9
Magnification: 1.5×–18×
Detection Range: Up to 1800m
Laser Rangefinder: Up to 1000m
Display Resolution: 1600 × 1200
Internal Storage: 64GB
Battery: Built-in rechargeable battery + replaceable 18650 batteries
IR Illuminator: Replaceable 850nm
Photo & Video Recording: Yes
Ingress Protection: IP67
Operating Temperature: -20°C to +50°C
Tripod Connection: ¼”-20 UNC

3 Year Warranty
