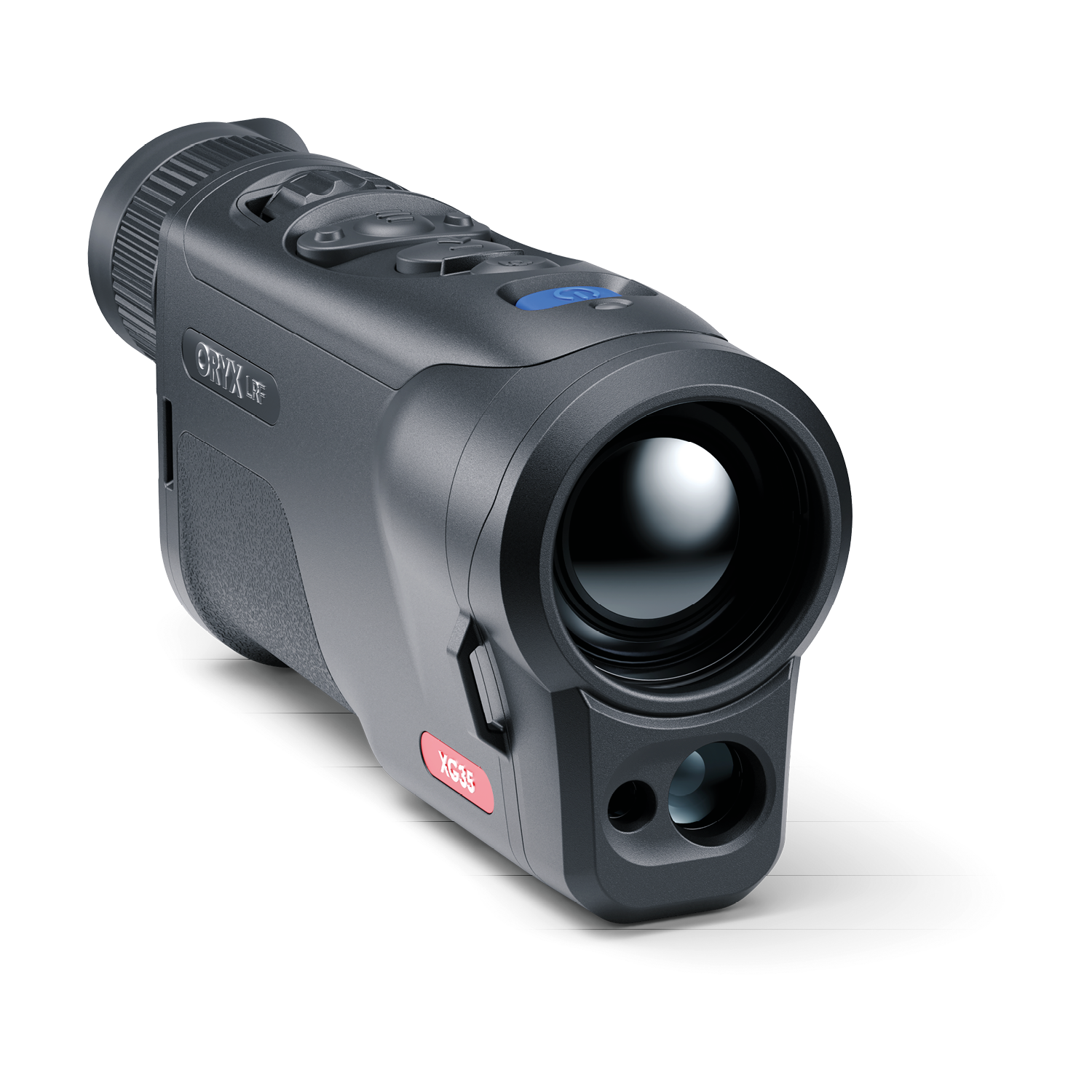

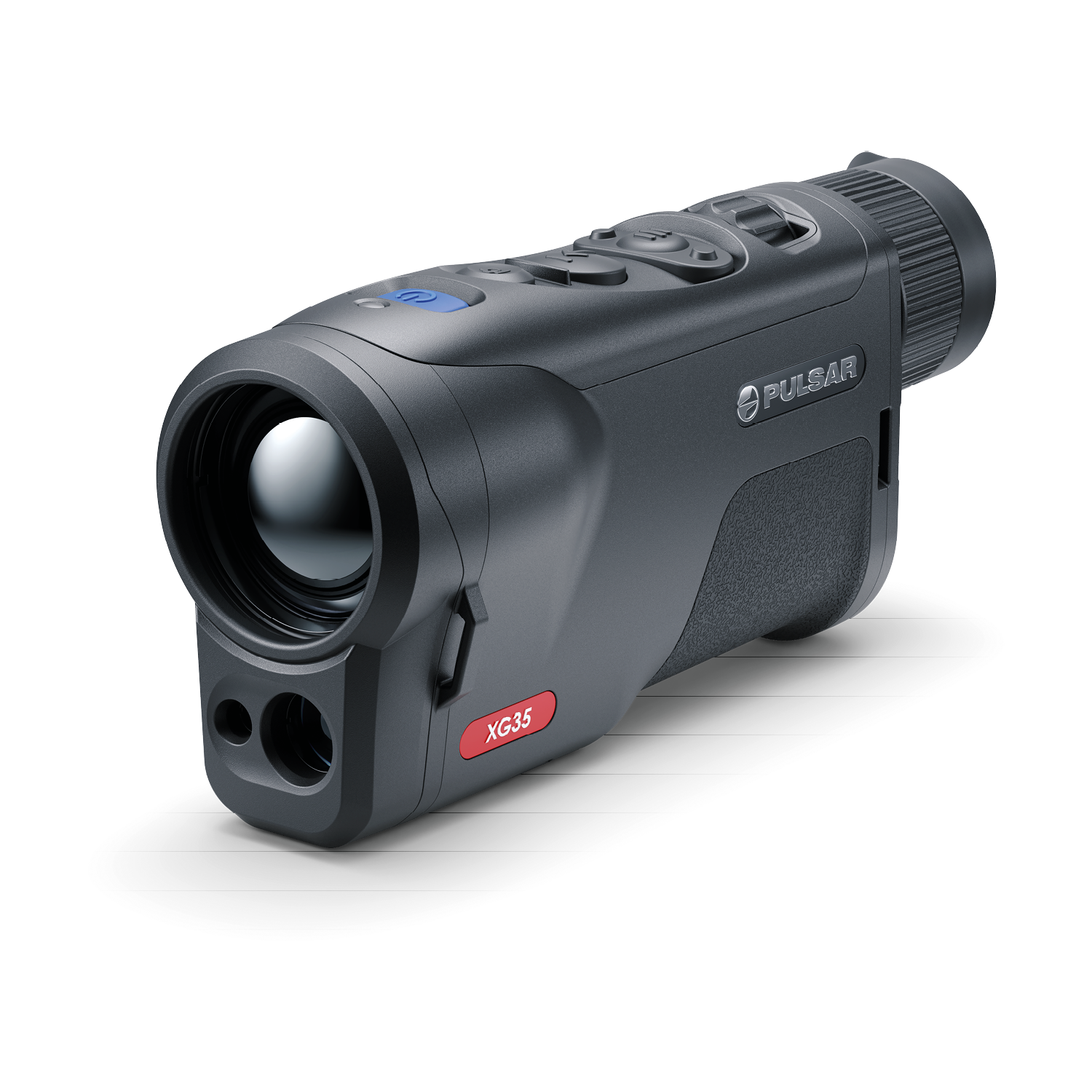

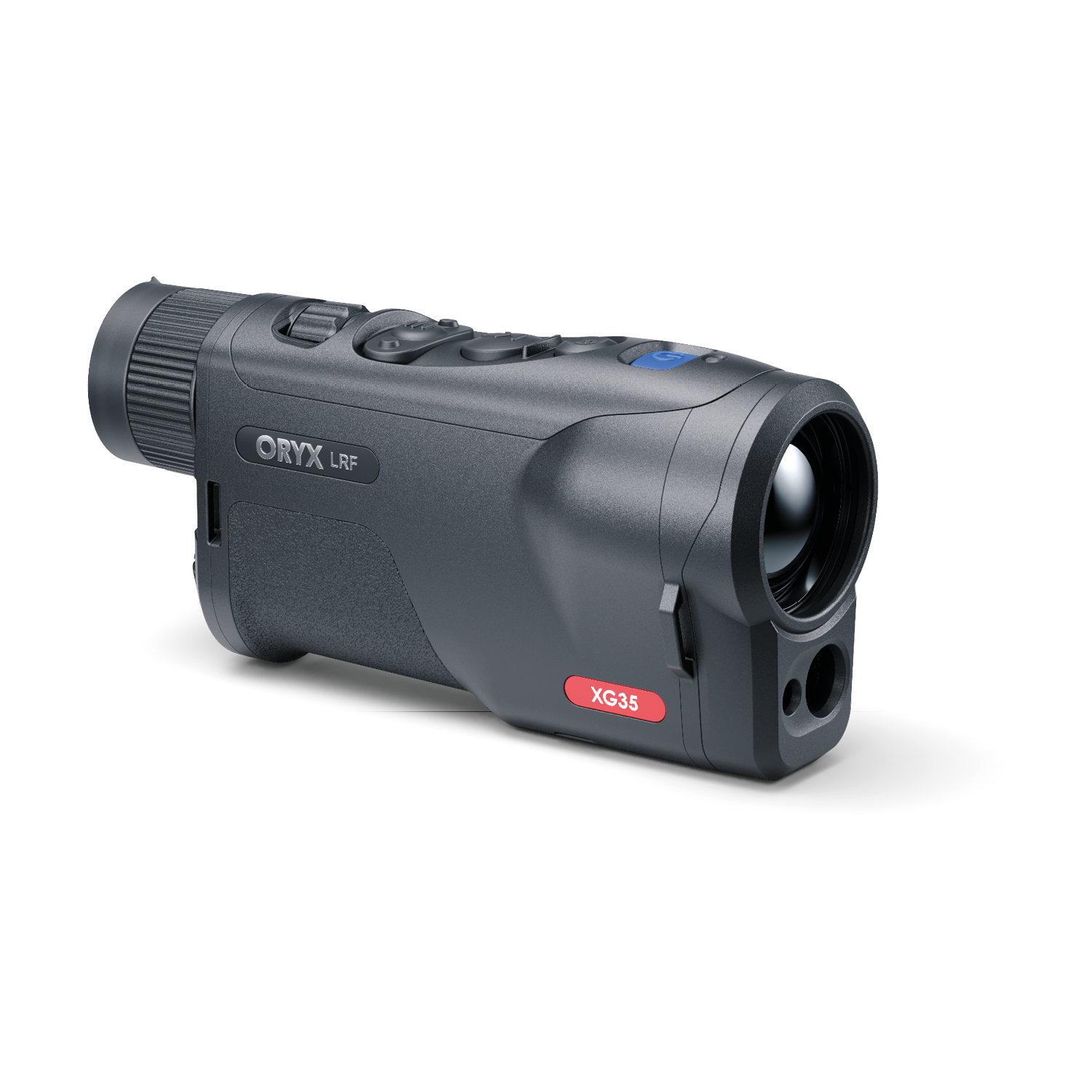

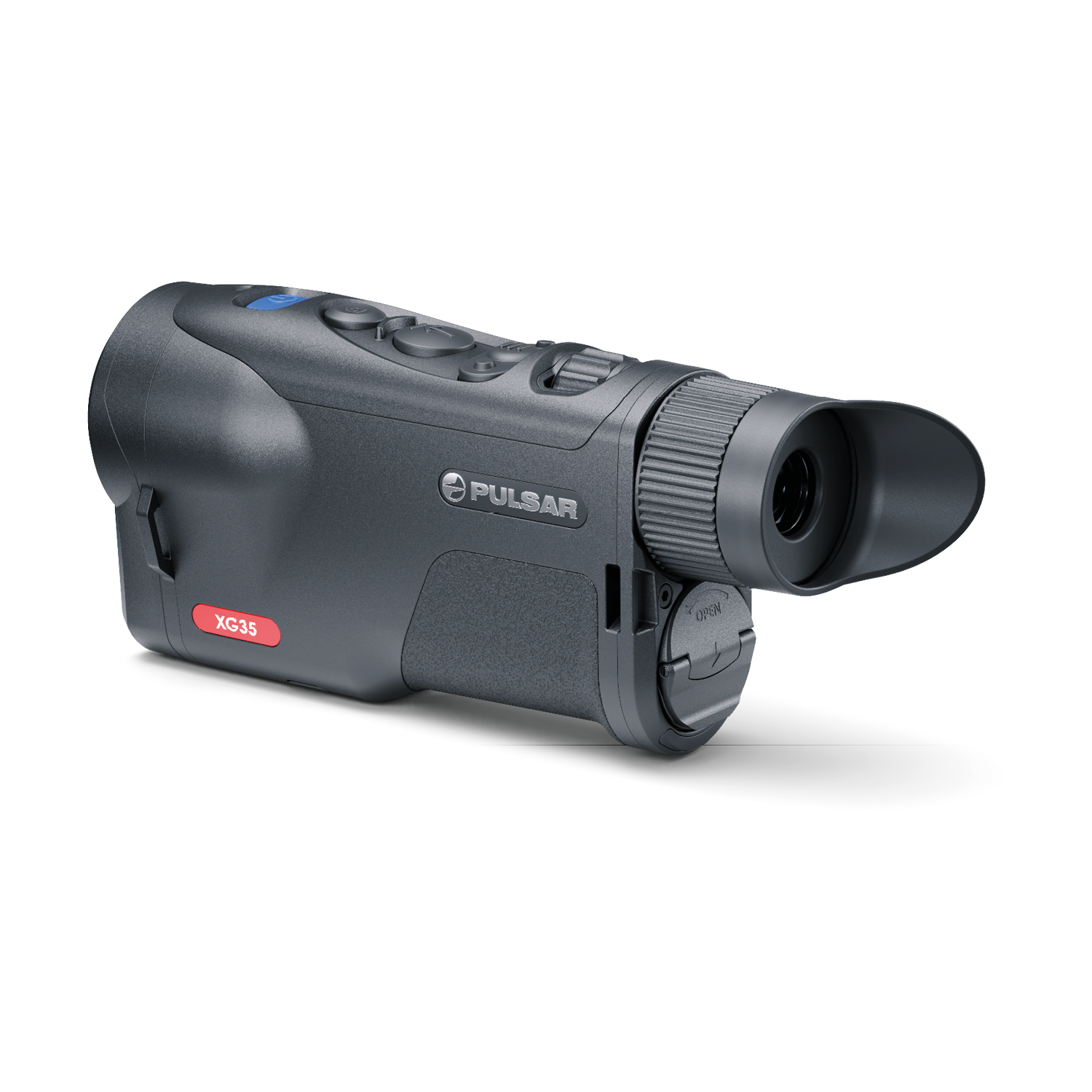

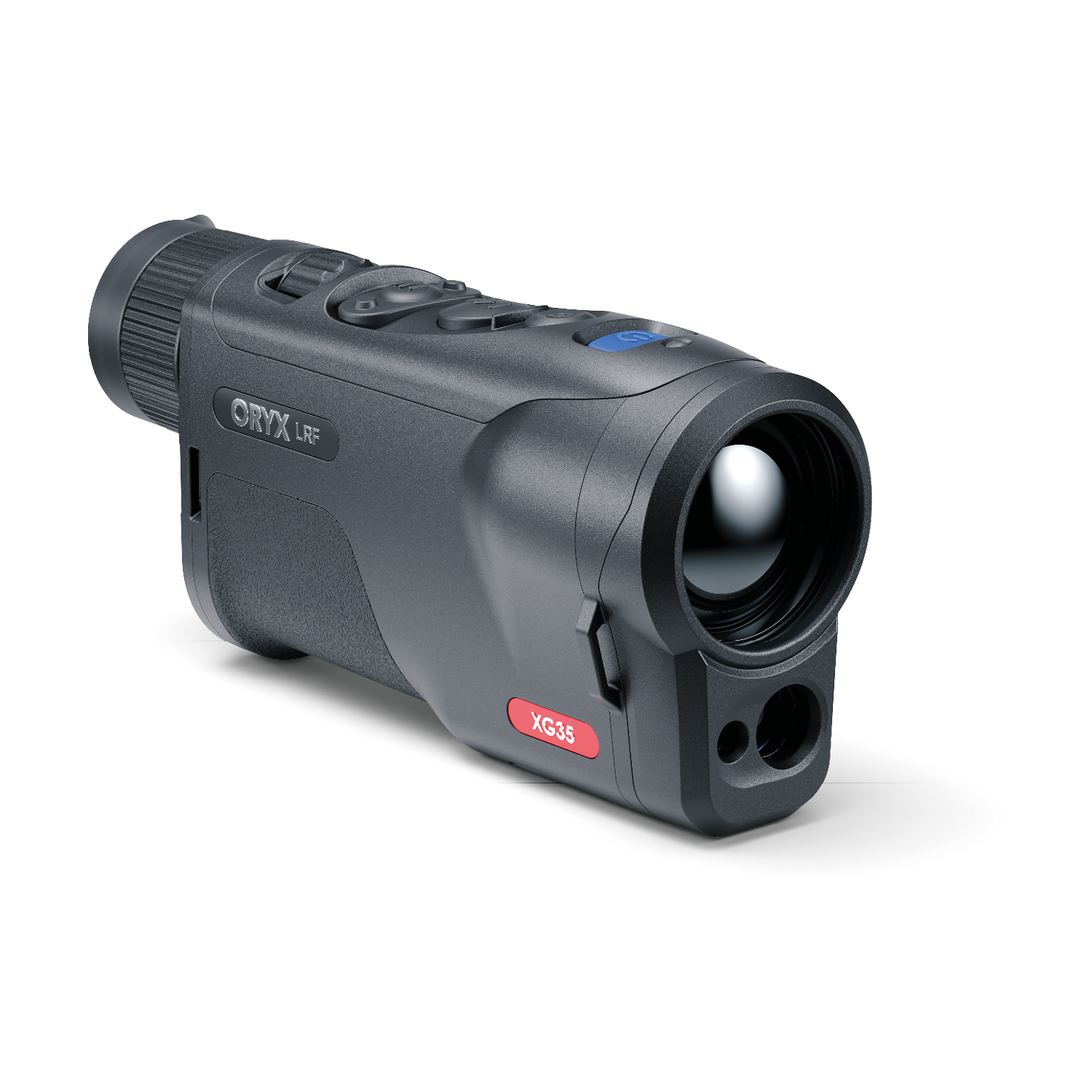

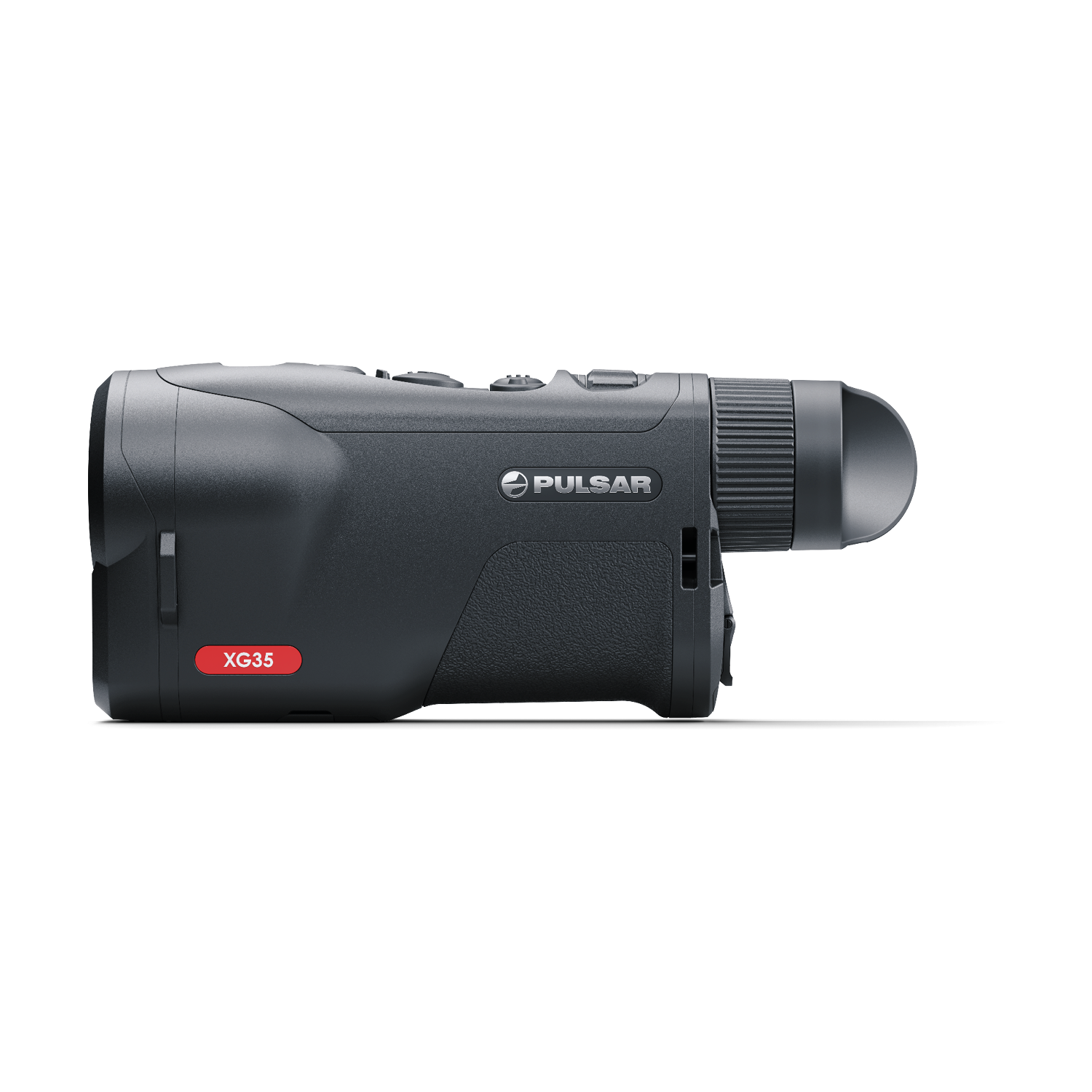

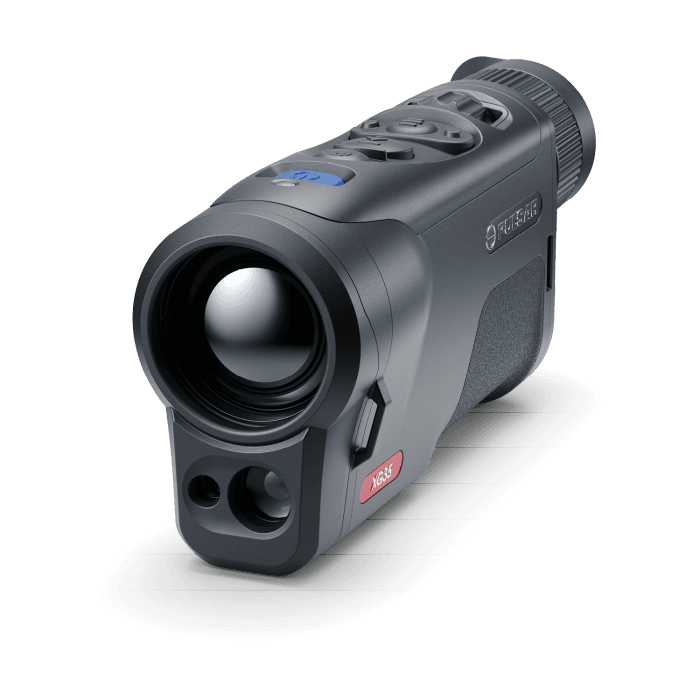

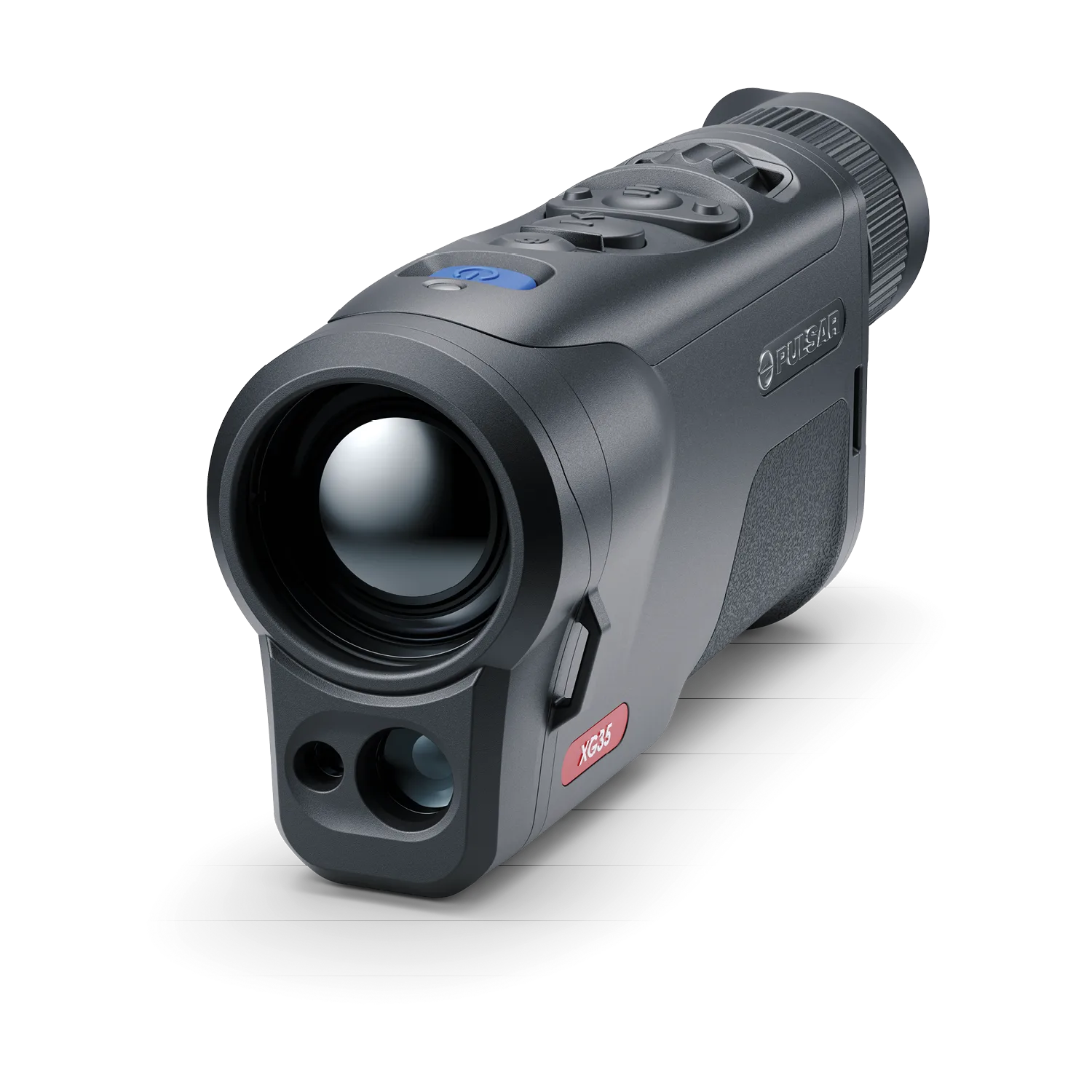

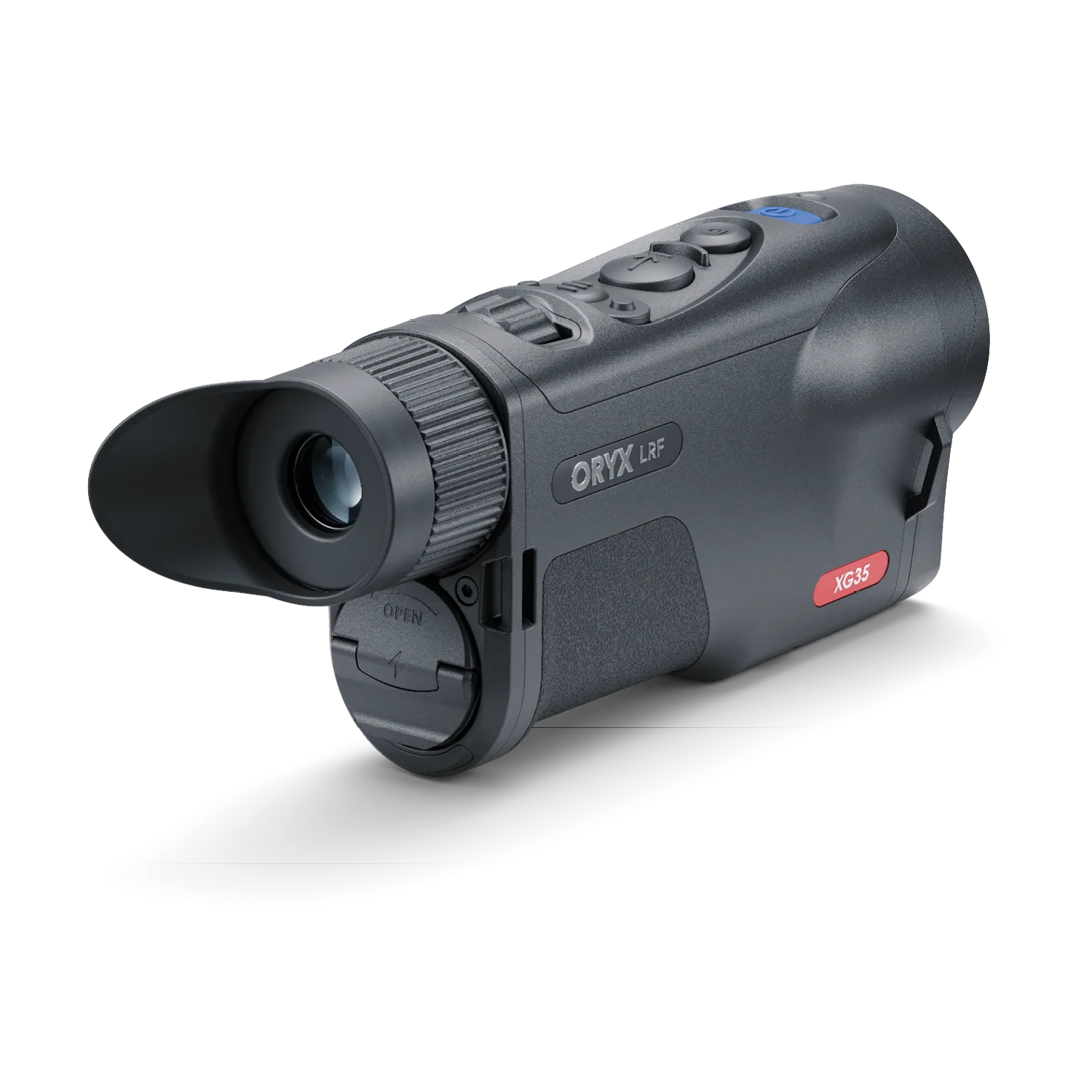

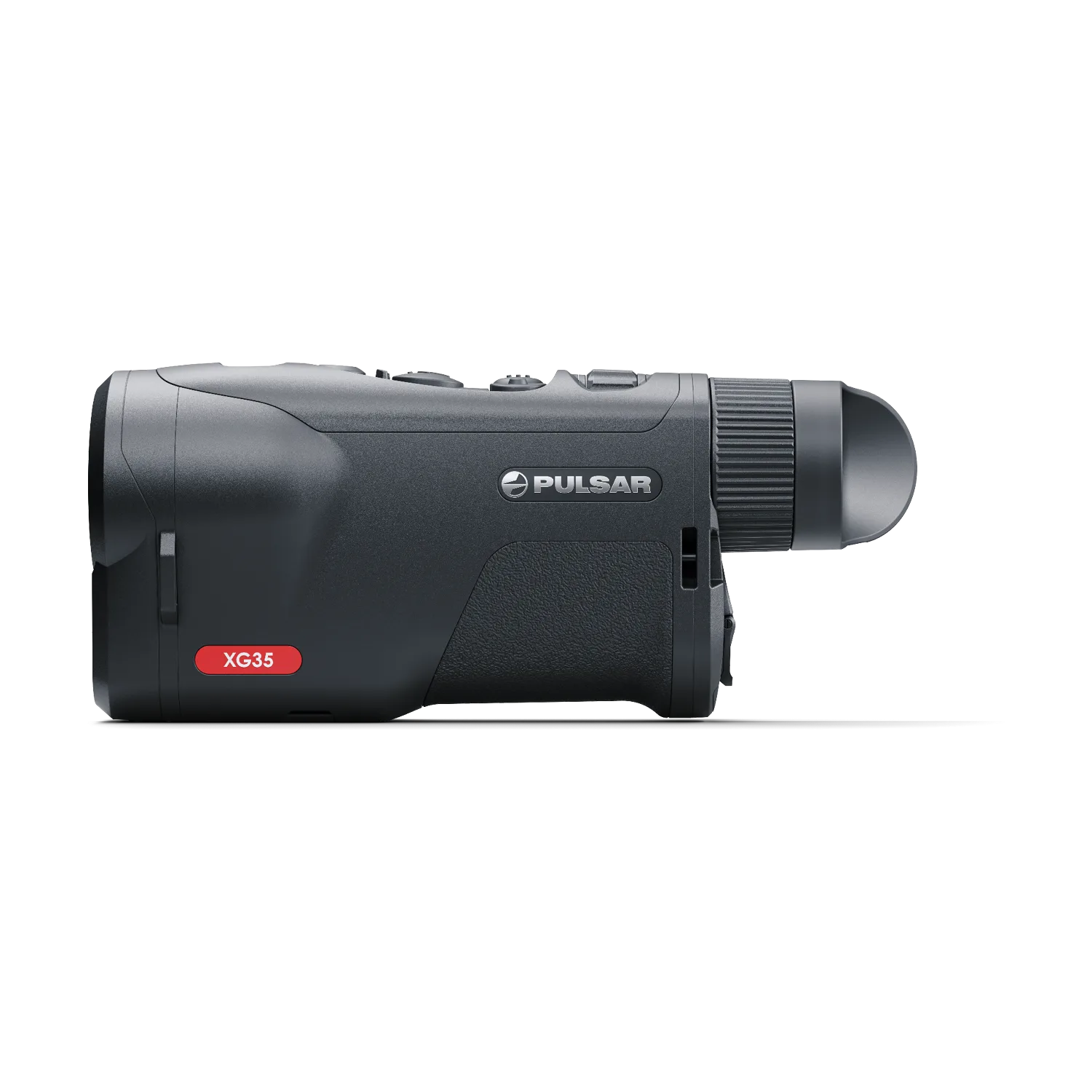

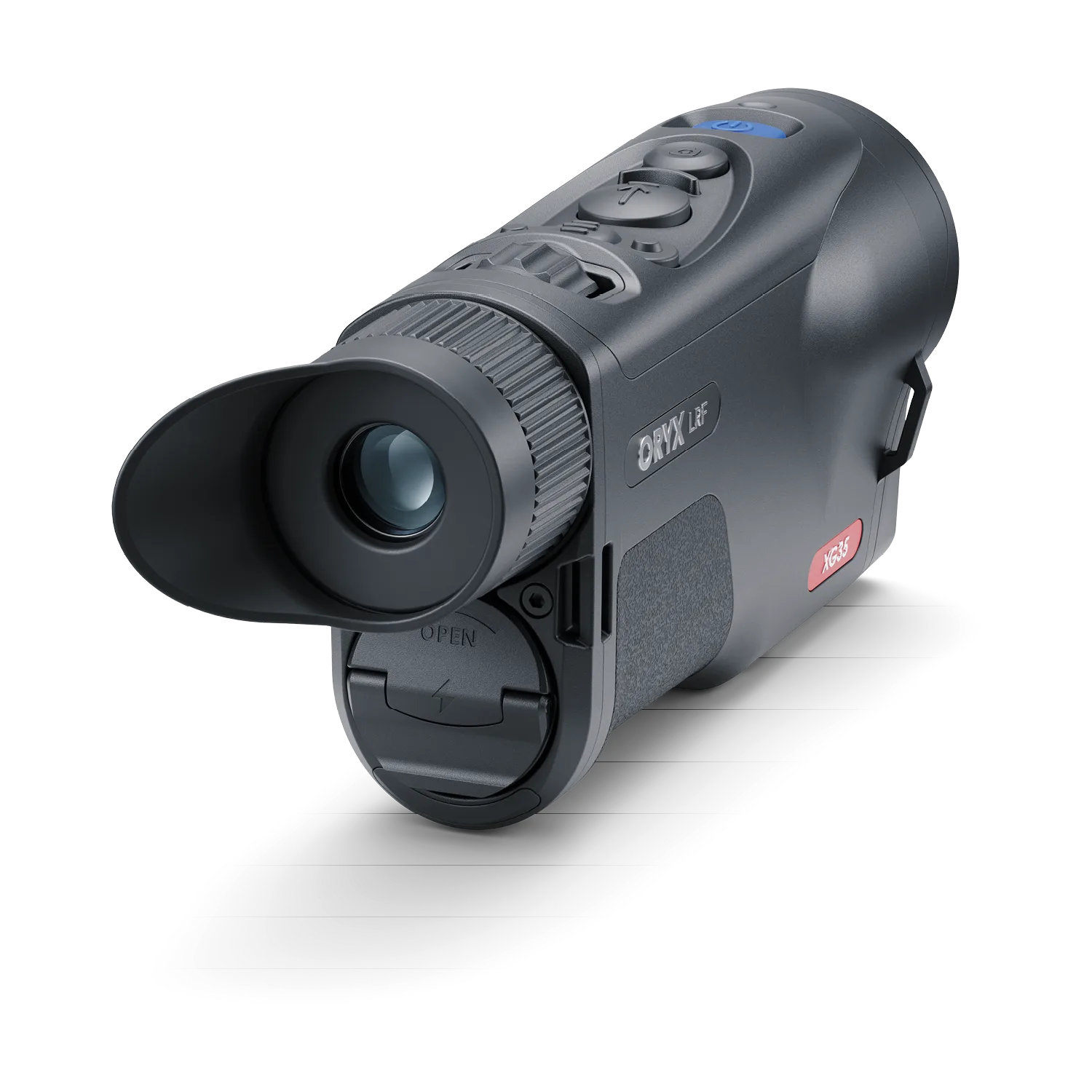

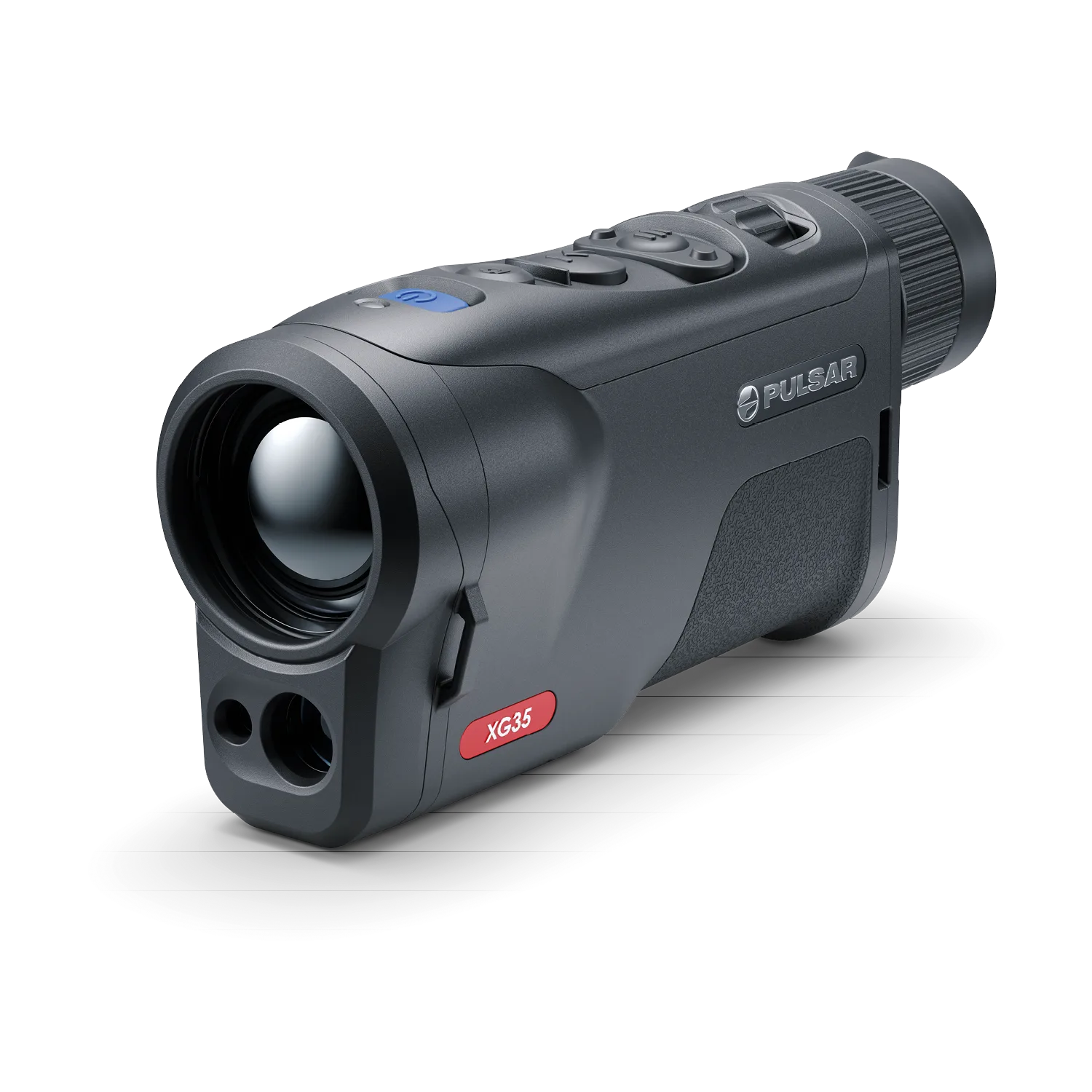

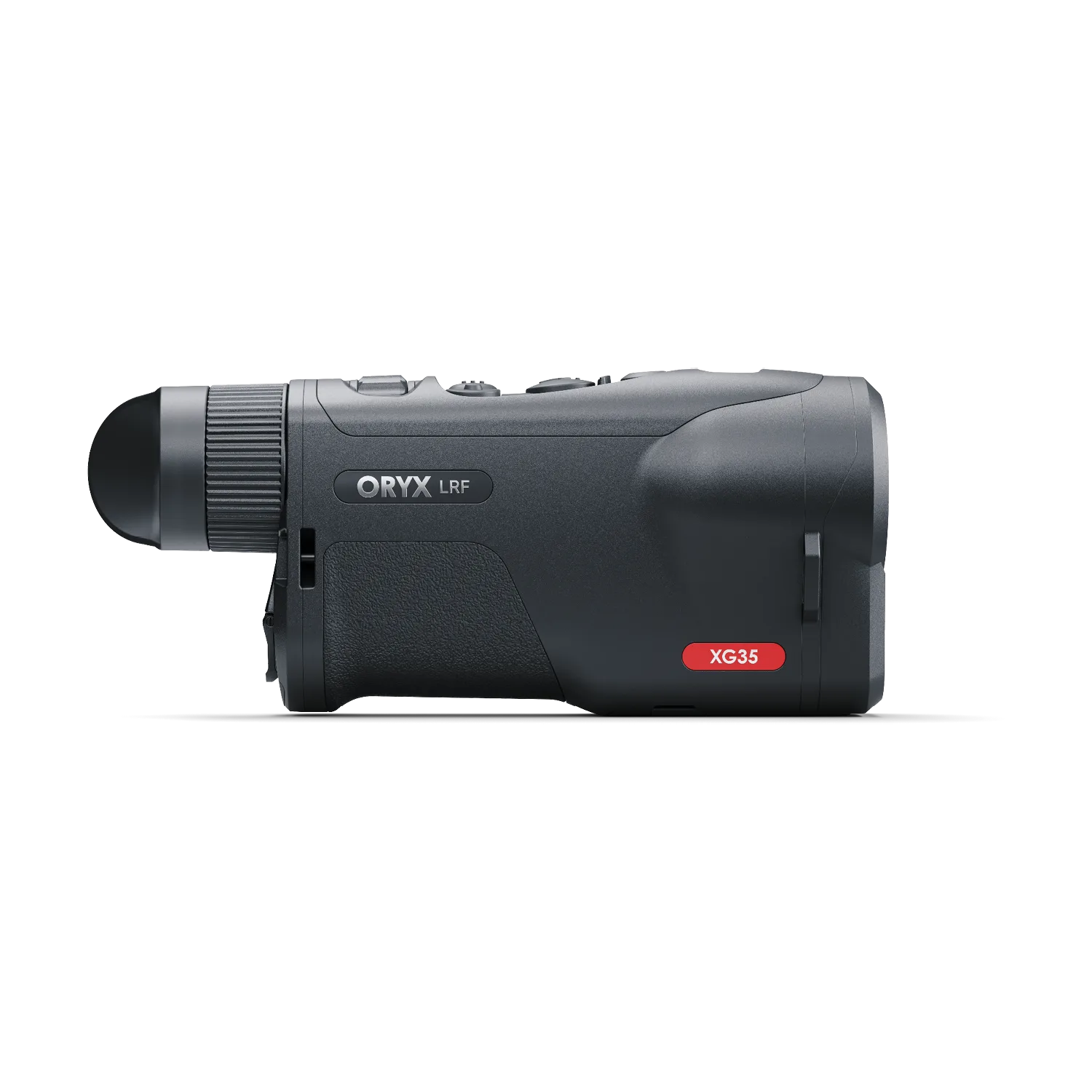

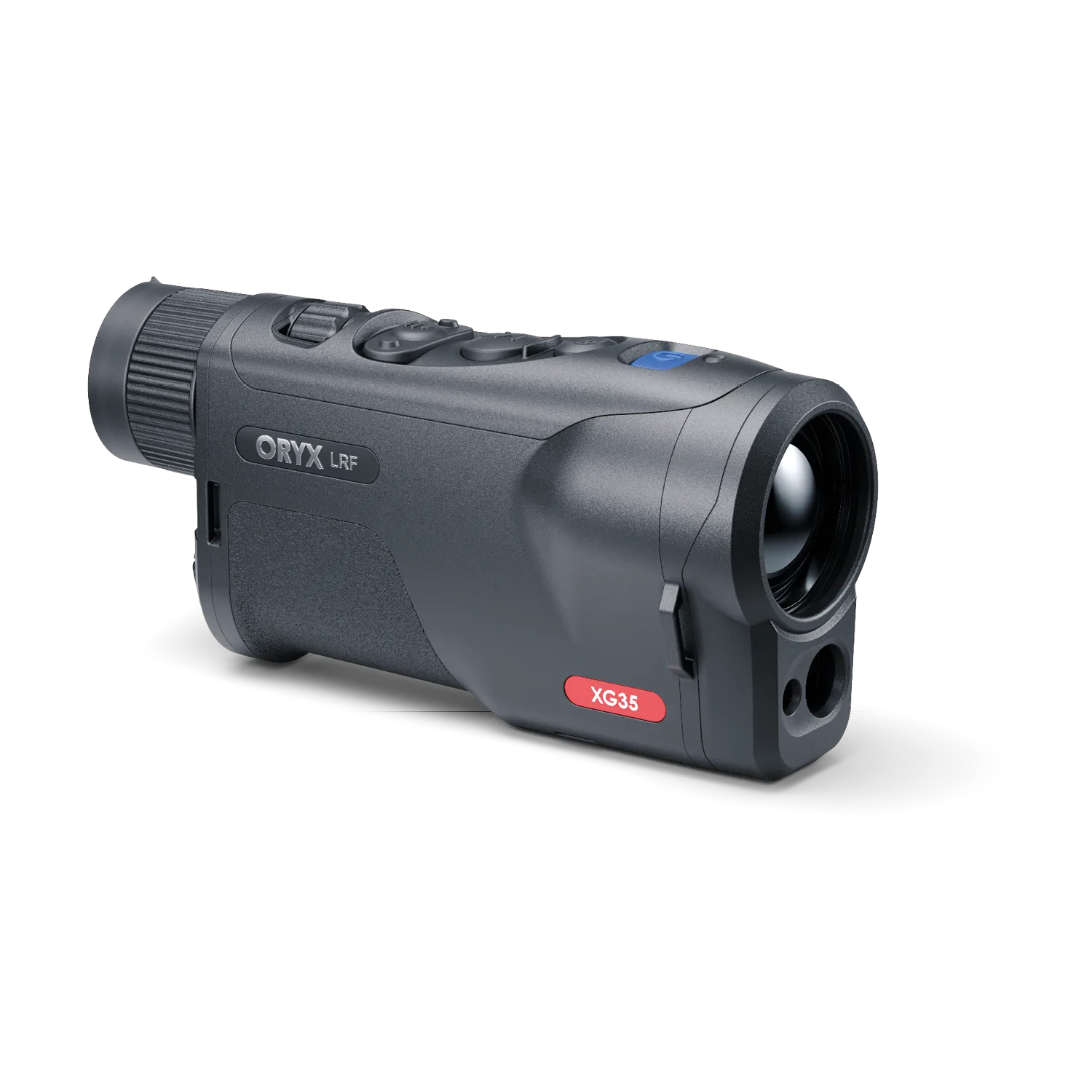

Pulsar Oryx LRF XG35 Thermal Monocular

Pulsar Oryx LRF XG35 Thermal Monocular

Introducing One-Handed Devices

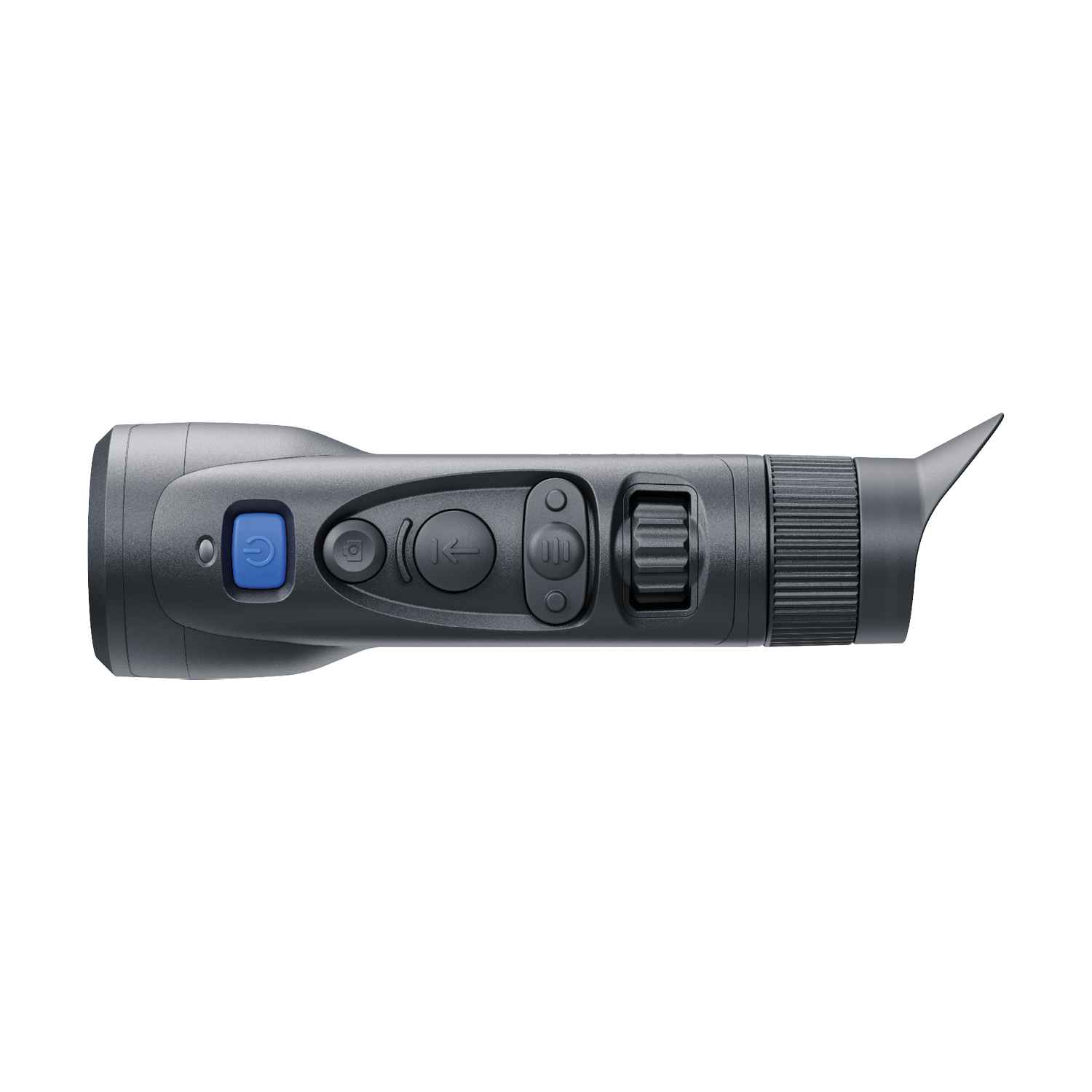

The Pulsar Oryx LRF XG35 ushers in a new era for thermal observation.  A new, ergonomically considered design places a focus wheel behind the eyepiece, allowing for one-handed operation. Powerful thermal optics, a built-in laser rangefinder, and a wide range of digital features and functionalities make this thermal imaging monocular perfect for a wide range of applications.

Key Features:

• 3 sensitivity amplification levels
• Auto brightness control
• Picture-in-Picture (PiP) mode
• 9 colour palettes
• IP67 waterproof rated
• -25 to +40°C operating temperature
• Magnesium alloy construction

Specifications:

• Thermal Sensor: 640×480, 12µm
• sNETD: <20 mK
• NETD: <40 mK
• Frame Rate: 50 Hz
• Objective Lens: 35mm f1.0
• Magnification: 2.5 to 20x
• FOV (HxV), Degrees: 12.5°

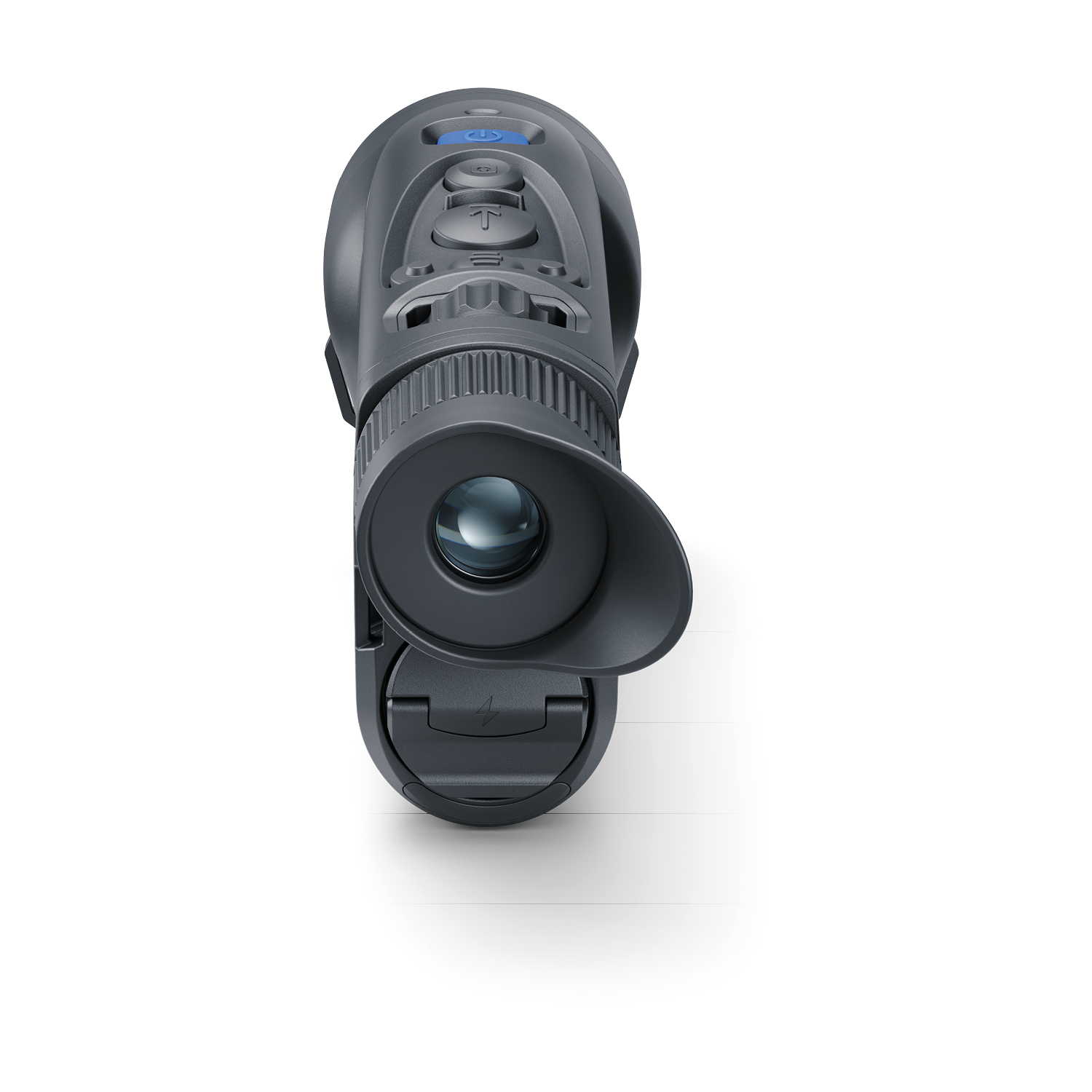

• Eye Relief: 14 mm
• Display: 1024×768 AMOLED HD
• Detection Range: 1800 m
• Rangefinder: Built-in Laser Rangefinder
• Rangefinder Measuring Distance: Up to 1500 m
• Rangefinder Measuring Accuracy: ±1 m
• Safety Class for Laser Equipment: 1 (according to IEC 60825-1:2014)
• Rangefinder Wavelength: 905 nm
• Video Recording: Yes, with audio + still image capture
• Video / Photo Resolution: 1024×768
• Video / Photo Format: .mp4/.jpg
• Built-in Memory: 64 GB
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.5/5 GHz
• Level of Protection: IP67 (IEC60529)
• Operating Temperatures: -25 to +40°C
• Support Application(s): Stream Vision 2
• Output Voltage: 3.0 – 4.2 V
• Battery Type: APS 5 Li-ion Battery Pack
• Battery Capacity: 4900 mAh
• Battery Life: Up to 12 hours (depending on temperature; tested at 22°C)
• External Power Supply: 5V; 9V (USB Type-C Power Delivery)
• Body Material: Magnesium Alloy
• Dimensions: 179x52x77 mm
• Weight: 500 g
• SKU: PUL-77504
