RIX Leap L12R

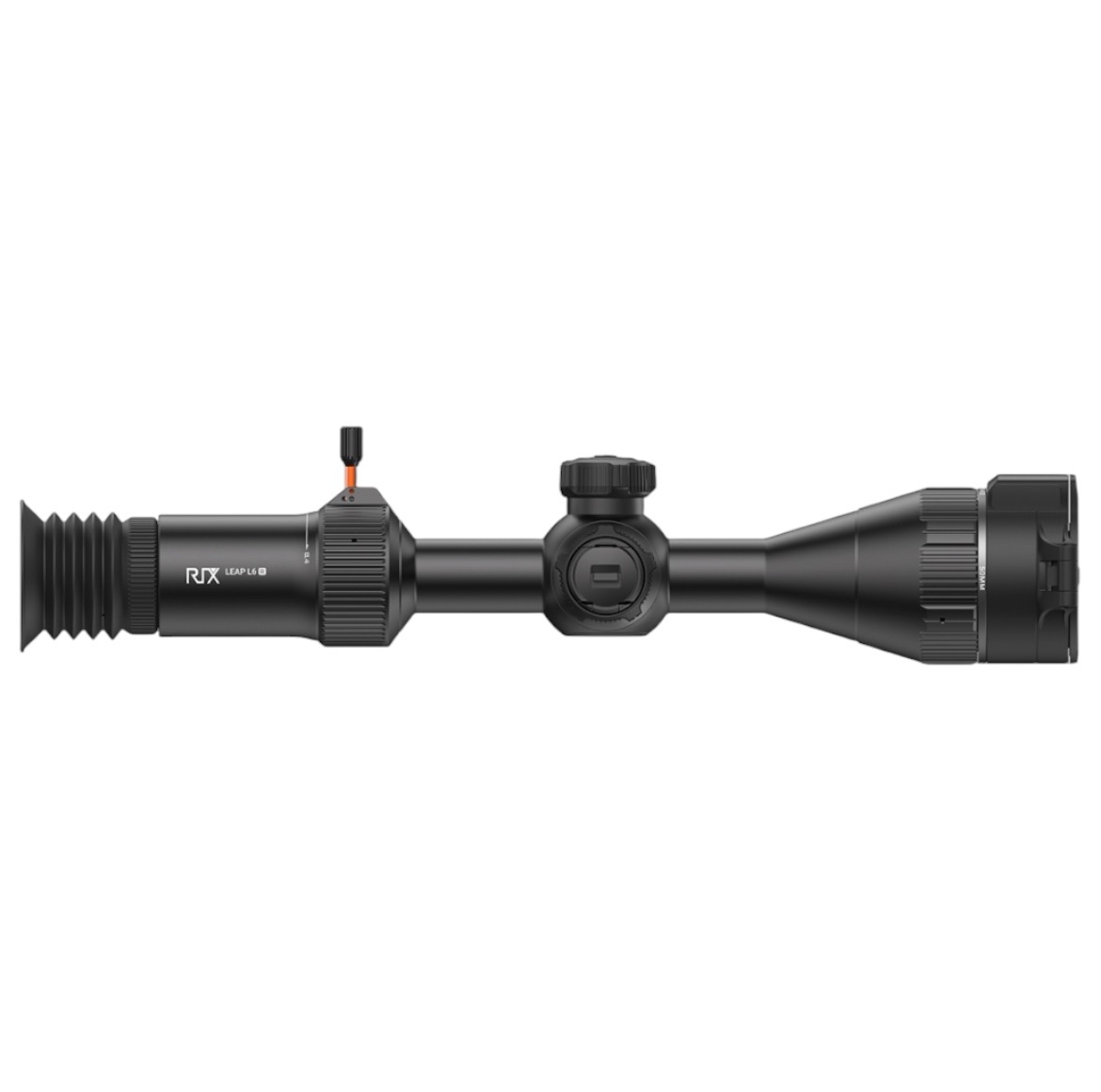

RIX Optics LEAP L12R Thermal Riflescope Original price was: £4,995.00.Current price is: £4,599.00.

RIX Optics LEAP L6R Thermal Riflescope with Laser Rangefinder

Original price was: £2,995.00.Current price is: £2,499.00.

The RIX Optics LEAP L6R pairs a 640×480 thermal sensor and 50mm F0.9 lens with 2.8–8.4x continuous optical zoom, so the lens itself changes magnification before any digital enlargement is used. An integrated 1200m laser rangefinder, a 1920×1080 display and replaceable 18650 power complete a scope that mounts in 30mm rings.

Write a review

0% Finance with £0 Deposit — Pay with Humm at Checkout

Amount of credit: £0.00

Monthly: £0.00

Total repayable: £0.00

Interest paid: £0.00

APR: 0.0% APR

Figures are for illustration only. Final finance is subject to status and provided by Ideal4Finance.

Description

Which L6R this is

This page covers the RIX LEAP L6R, the LEAP-series thermal riflescope with an integrated laser rangefinder, a 640×480 sensor and continuous optical zoom. It is a different model from the earlier LEAP L6 without the ‘R’, and from the newer LPR L6R, which is a separate RIX model with its own specification. Apart from the clearly labelled L12R comparison further down, the figures on this page apply to the LEAP L6R only.

A 50mm F0.9 objective feeds the 640×480 sensor, which RIX rates at a NETD below 20mK. NETD describes thermal sensitivity: a lower figure means the sensor can tell apart smaller temperature differences, which helps a subject stand out from a background of similar temperature. To see where the L6R sits among other models, browse the RIX Optics range.

What continuous optical zoom changes

The L6R’s 2.8–8.4x magnification comes from the lens. As you adjust it, the optics move smoothly through the range, so you can stop anywhere between 2.8x and 8.4x rather than jumping between fixed steps. You can scan at a lower setting and then bring a heat source closer while the magnification is still being produced optically.

A 1–4x digital enlargement is also available as a separate step. It enlarges the image the scope has already formed and does not move any lens elements, so optical and digital magnification are two different tools. The display and the recordings also have their own figures:

Function LEAP L6R What it describes
Optical zoom 2.8–8.4x, continuous Magnification produced by the lens
Digital enlargement 1–4x A separate enlargement of the formed image
Display 1920×1080 The screen you view
Recorded video 1280×720 The resolution of saved footage
Internal storage 32GB Space for your recordings

Ranging, power and fit

The L6R lists two distances, and they answer different questions. The integrated laser rangefinder is rated to 1200m, the furthest distance at which it is specified to return a range reading. The 2600m figure is RIX’s advertised detection distance: how far away a heat signature can register as present. Detecting a heat source is not the same as identifying it, and real-world results vary with the target and the conditions.

Item LEAP L6R
Laser rangefinder Up to 1200m
Advertised detection distance 2600m
Battery format Replaceable 18650
Runtime Approximately 4 hours under RIX’s stated room-temperature test conditions
Mounting interface 30mm rings

When planning your setup, allow for:

  • 30mm rings, or a mount with a 30mm clamp, that suit your rifle and rail.
  • Charged 18650 cells. Because the battery is replaceable, you can swap in a charged spare and carry on during a longer outing.

LEAP L6R or LEAP L12R?

The RIX LEAP L12R shares the LEAP name but differs in three areas that shape the choice: native sensor resolution, optical zoom range and power.

LEAP L6R LEAP L12R
Native sensor 640×480 1280×1024
Continuous optical zoom 2.8–8.4x 2–6x
Power Replaceable 18650 Internal battery plus 18650

The L12R has the higher native sensor resolution. The L6R’s optical range extends further, up to 8.4x against the L12R’s 6x. For power, the L12R pairs an internal battery with an 18650 cell, while the L6R uses a replaceable 18650. If optical magnification at the top of the range matters most to you, the L6R is the closer match. If native sensor resolution comes first, or you would like an internal battery alongside a replaceable cell, the L12R is worth a closer look. If you are weighing up thermal imaging riflescopes beyond the LEAP series, see our full selection of thermal rifle scopes.

Frequently asked questions

What optical zoom does the LEAP L6R have?

It has a continuous optical zoom from 2.8x to 8.4x, so the lens can be set anywhere within that range. A separate 1–4x digital enlargement can be used on top. That digital step enlarges the formed image and does not add optical magnification.

Is this the same as the LPR L6R or the original LEAP L6?

No. This is the LEAP L6R, with a 640×480 thermal sensor and an integrated laser rangefinder. The LPR L6R is a newer, separate RIX model, and the LEAP L6 without the ‘R’ is an earlier model. Neither shares this page’s specification.

Does the video record at the same resolution as the display?

No. You view the image on a 1920×1080 display, and video is recorded at 1280×720. Recordings are saved to 32GB of internal storage.

How long does the L6R run on an 18650 battery?

RIX quotes approximately four hours under its stated room-temperature test conditions. The 18650 cell is replaceable, so you can carry a charged spare and swap it in when the first one runs down.

What do the 1200m and 2600m figures mean?

The 1200m figure is the maximum rated distance for the laser rangefinder to take a range reading. The 2600m figure is RIX’s advertised detection distance, meaning how far away a heat signature can show up as present. Neither figure is a distance at which a subject can be identified.

What mounting does the LEAP L6R use?

The scope has a 30mm ring interface. You will need 30mm rings, or a mount with a 30mm clamp, that suit your rifle and rail.
