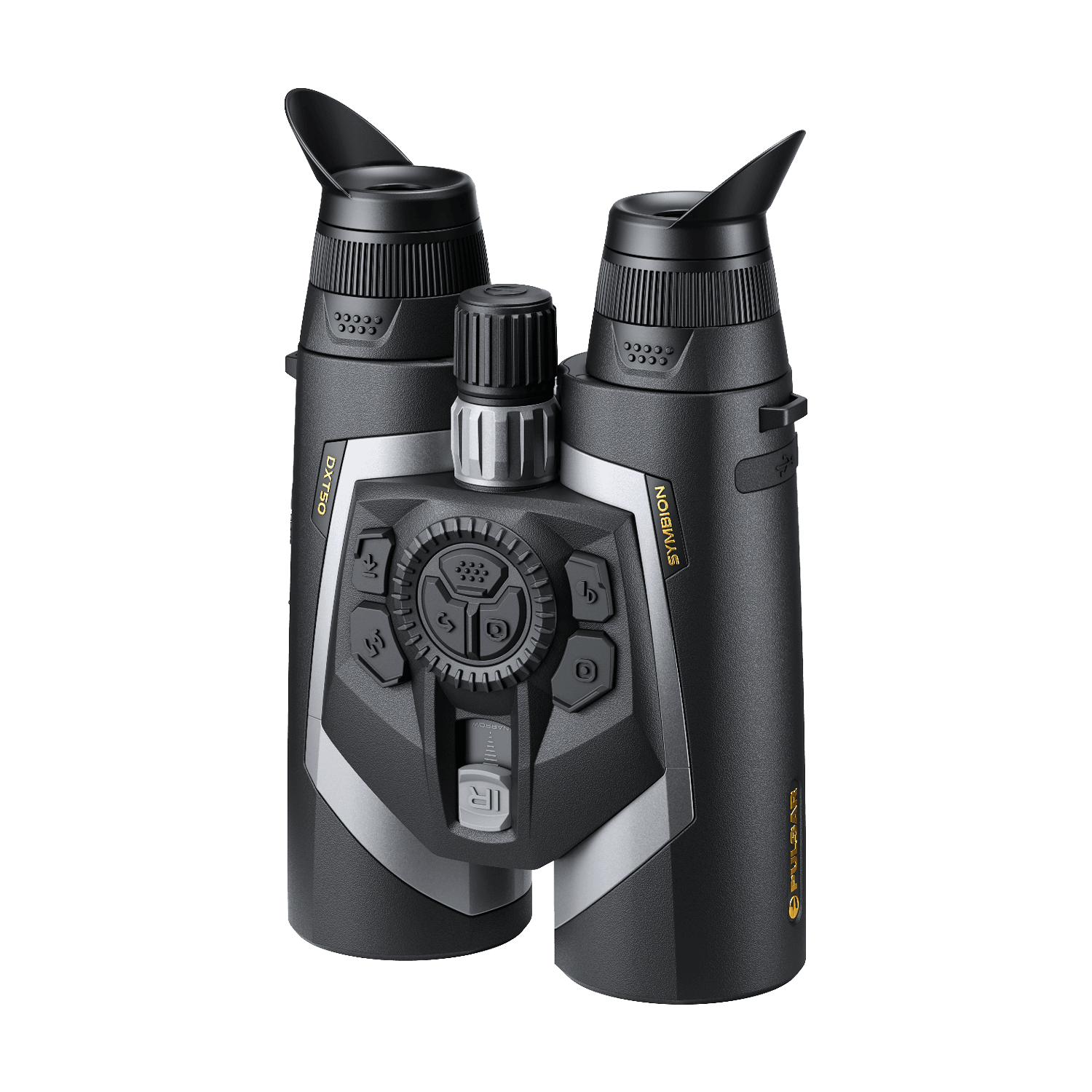

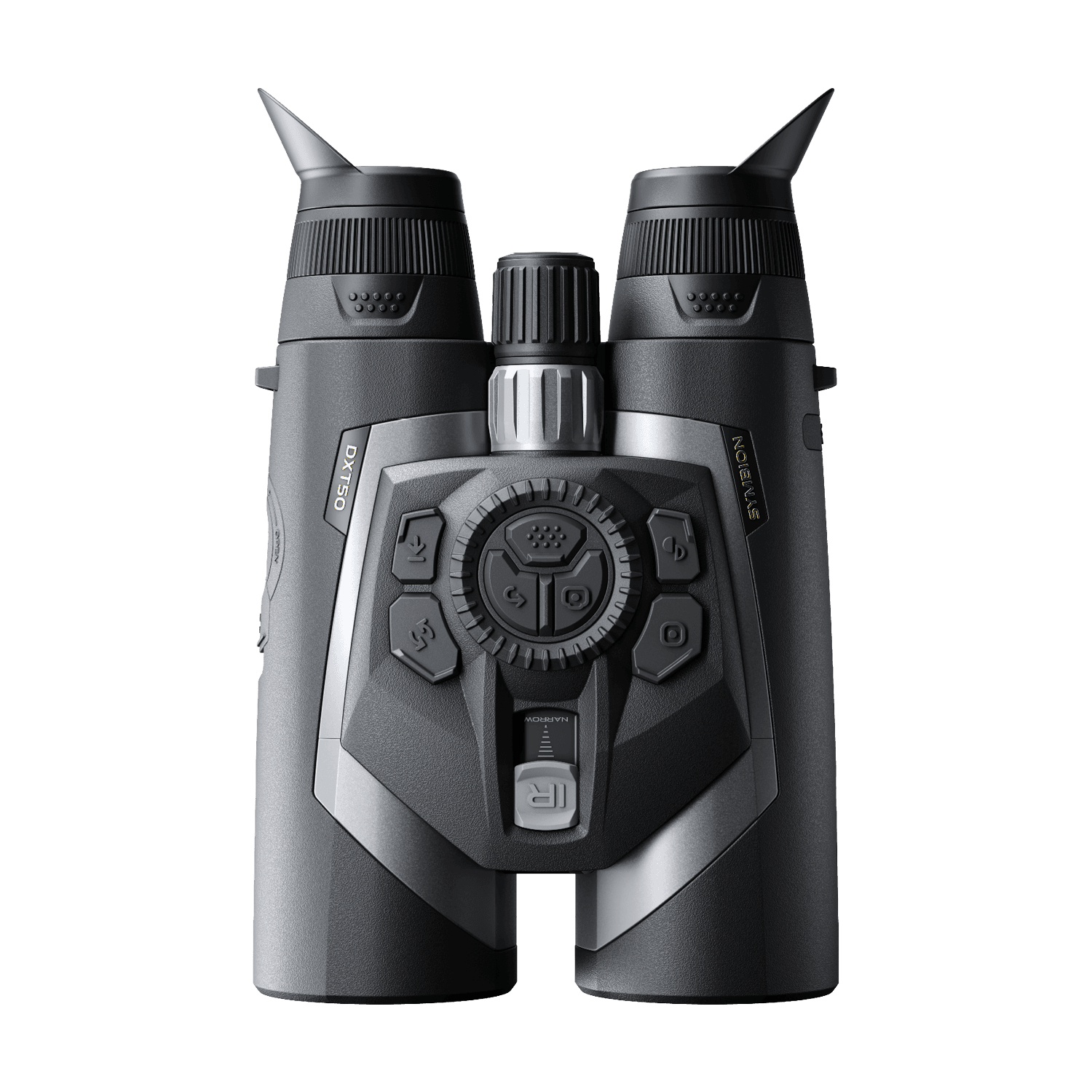

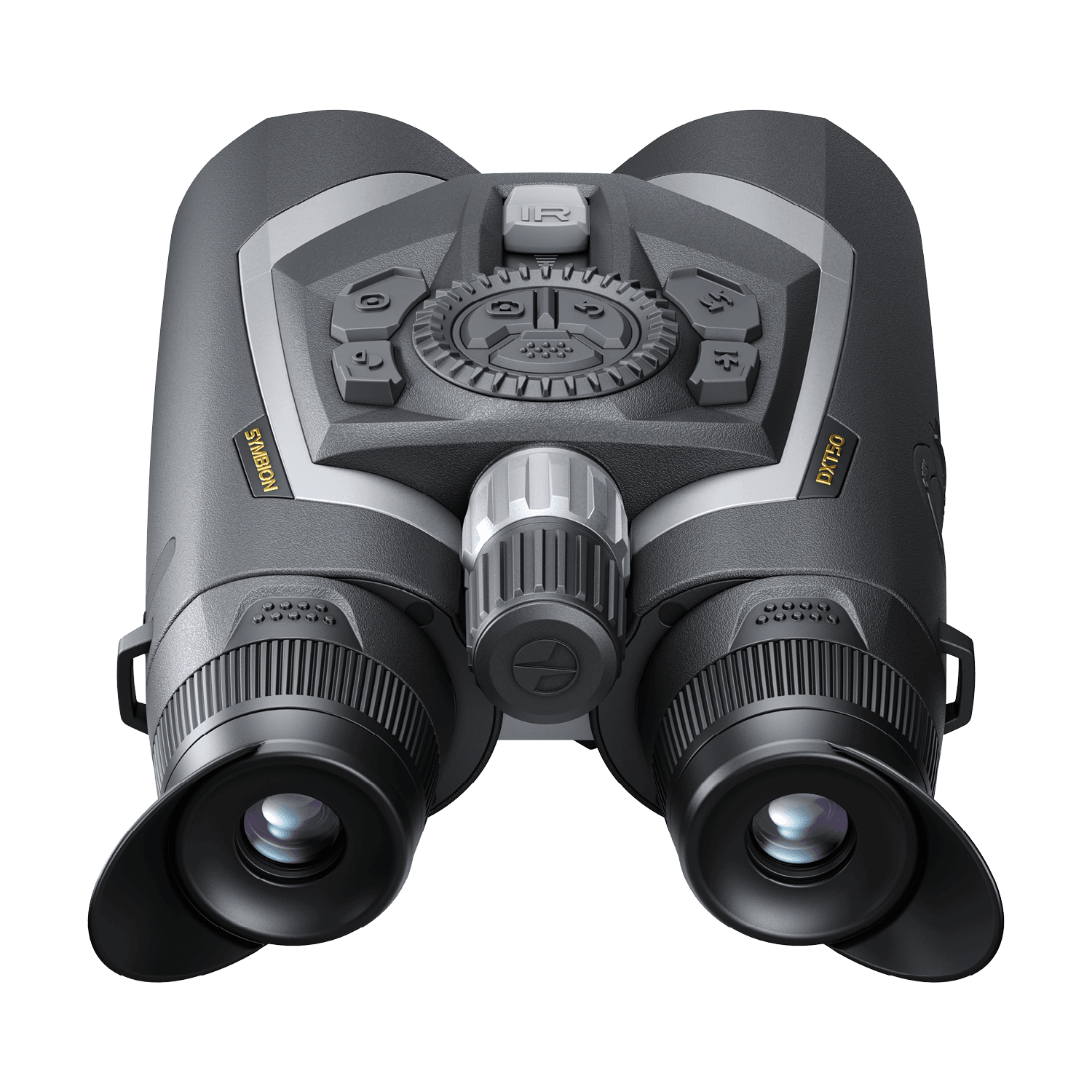

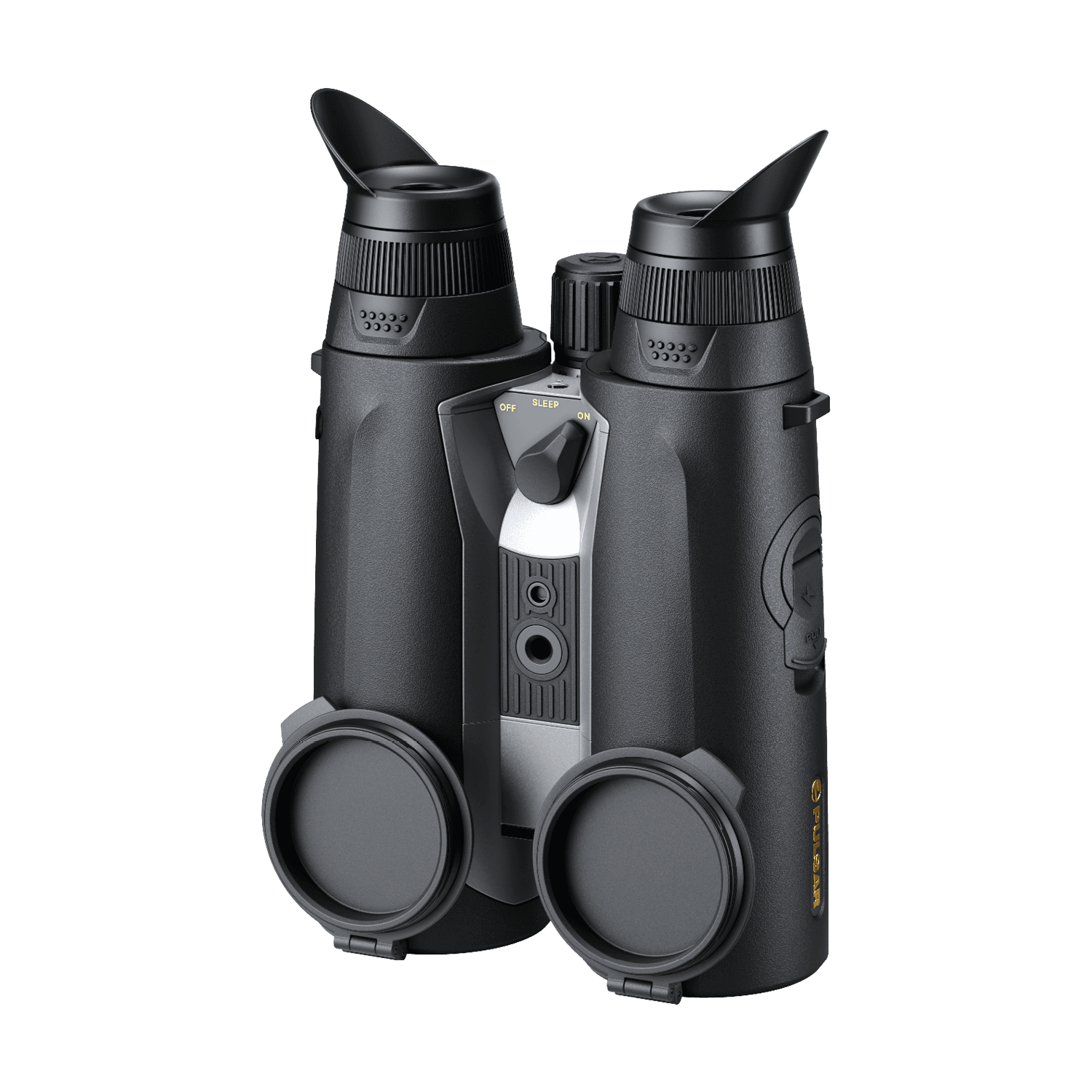

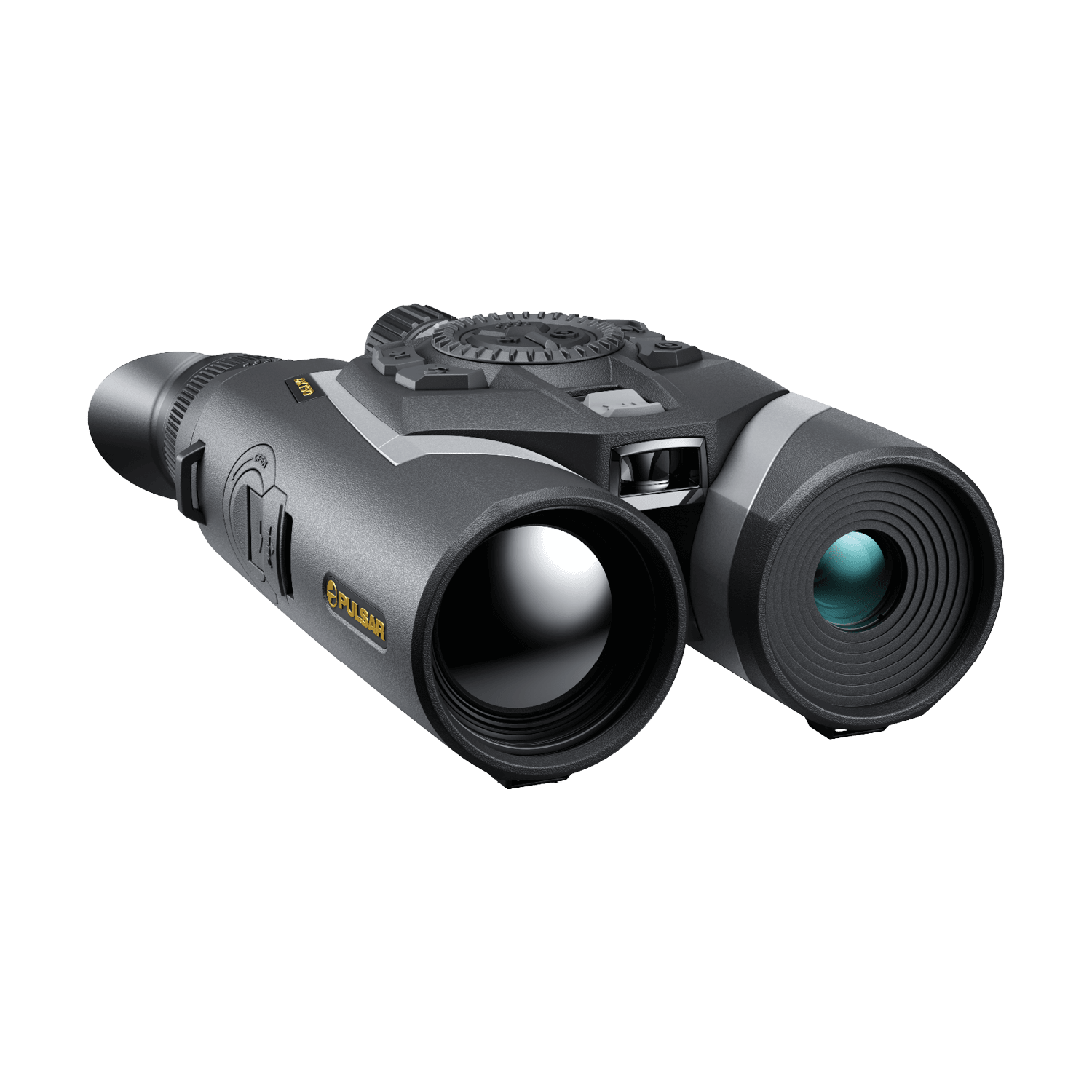

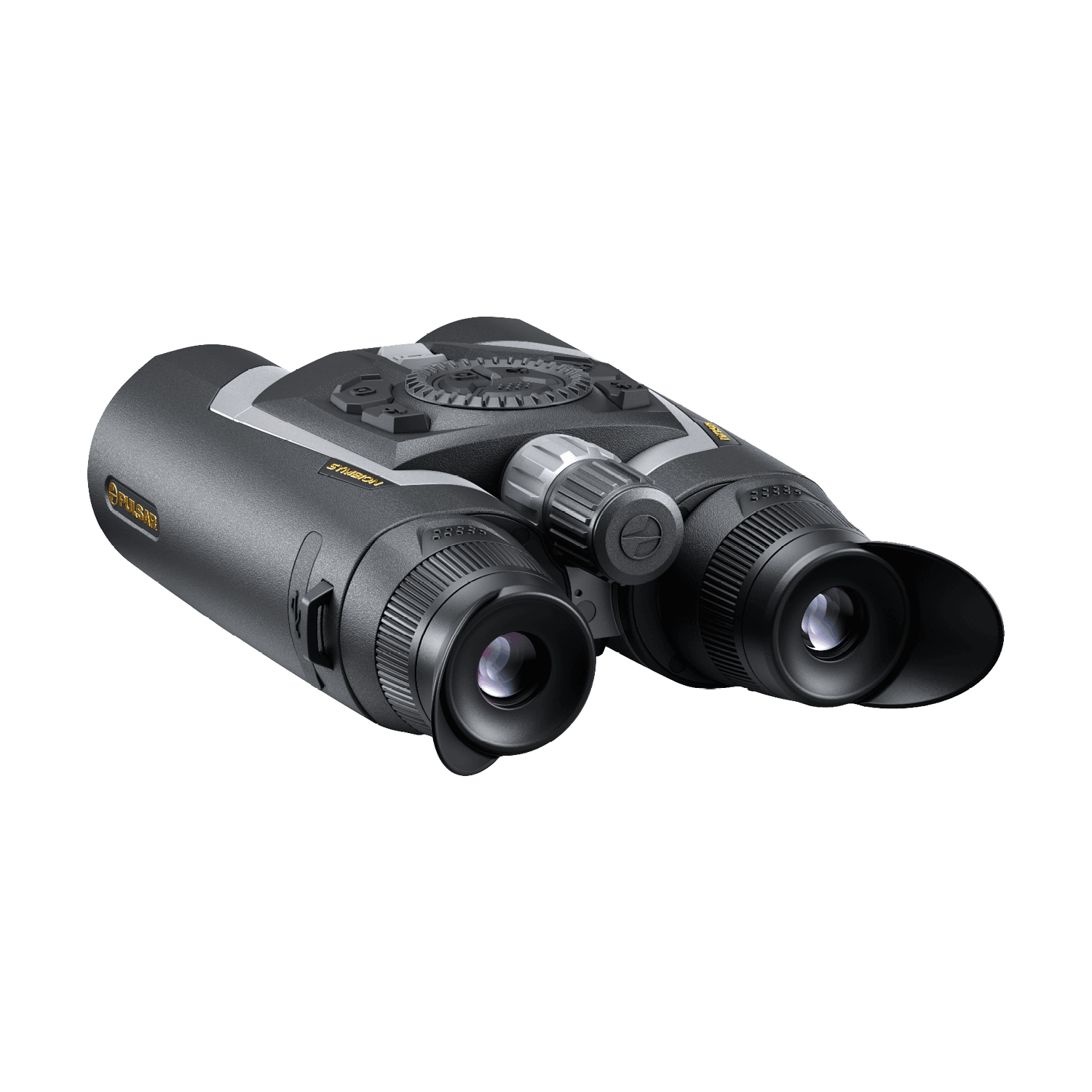

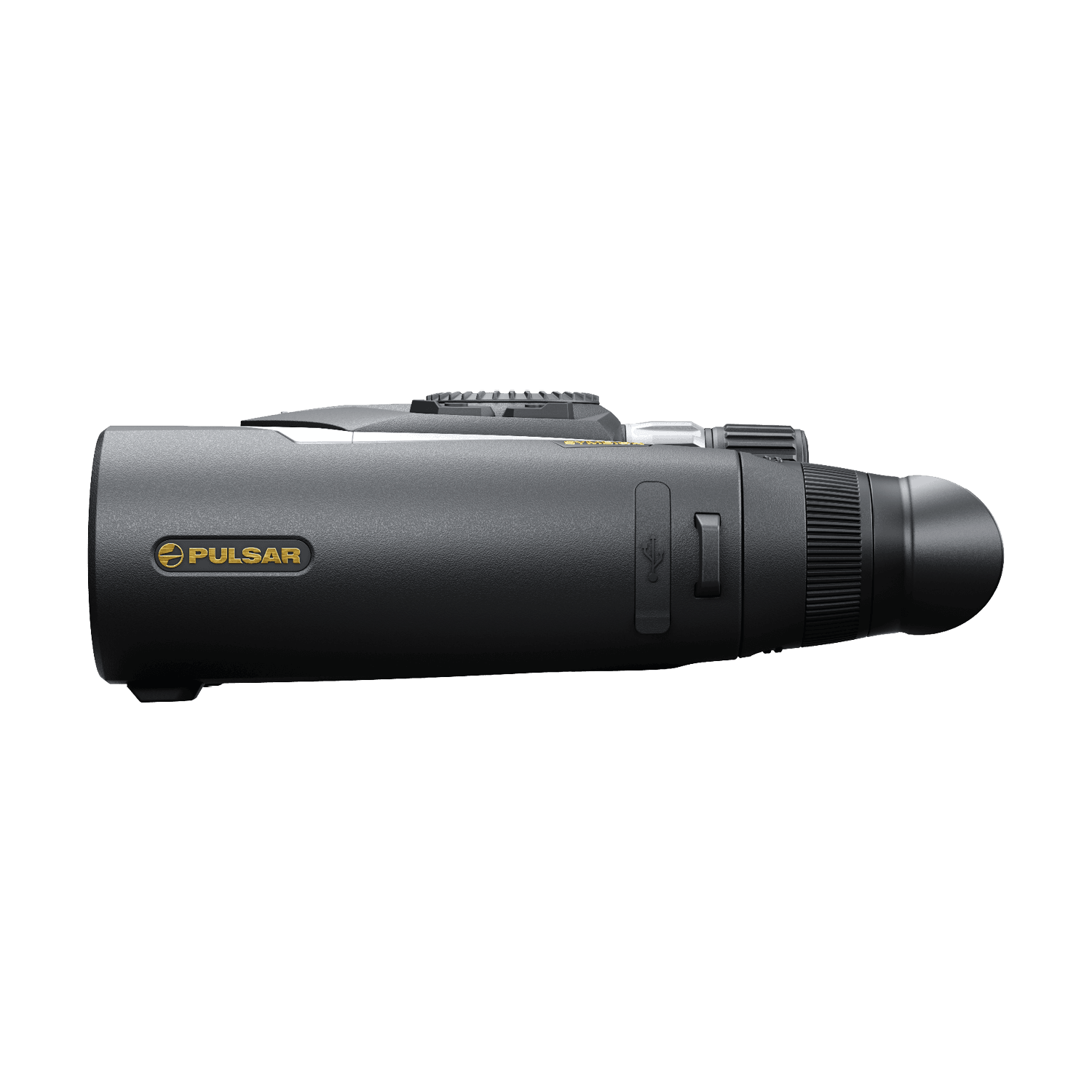

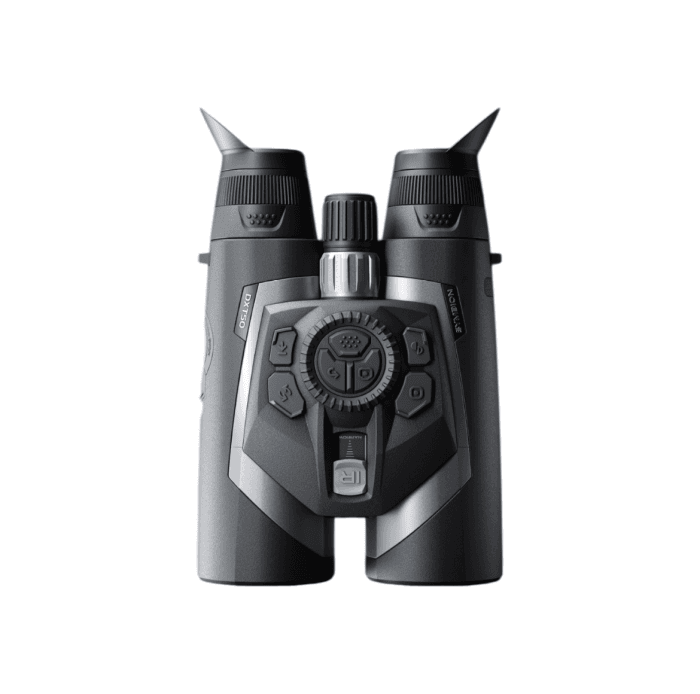

Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars

The Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars are a flagship thermal optic designed for users who demand maximum image detail, wide-angle scanning, and precision distance measurement. Combining an ultra-high-resolution 1280×1024 thermal sensor, integrated laser rangefinder, and dual thermal & digital imaging channels, the DXT50 delivers exceptional performance for hunting, wildlife observation, surveillance, and professional field applications.

With advanced sensor technology and wide-angle optics, the Pulsar SYMBION LRF DXT50 excels at detecting heat signatures quickly, identifying targets with confidence, and maintaining full situational awareness in any environment.

Key Features of the Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars

• Multispectral Thermal & Digital Imaging Binoculars

• Ultra-High-Resolution 1280×1024 Thermal Sensor

• 12µm Pixel Pitch with <40mK NETD

• Thermal Imaging Binoculars with Laser Rangefinder (up to 1500m)

• Wide Field of View for fast detection and scanning

• 50mm F1.0 Germanium Objective Lens

• Thermal detection range up to 2300 metres

• 1920×1080 AMOLED Display

• Photo & video recording with 64GB internal memory

• Wi-Fi, Bluetooth & USB-C connectivity

• IP67 waterproof magnesium alloy housing

Ultra-High-Resolution Thermal Imaging – Pulsar SYMBION LRF DXT50

At the core of the Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars is a powerful 1280×1024 thermal sensor, delivering outstanding clarity, contrast, and fine detail. The high pixel density significantly enhances object recognition, edge definition, and scene interpretation, particularly at lower magnifications.

With a native thermal magnification of 2x, the DXT50 provides a much wider field of view, making it ideal for scanning open terrain, woodland edges, and large areas efficiently.

Wide-Angle Thermal Binocular Performance with the Pulsar SYMBION LRF DXT50

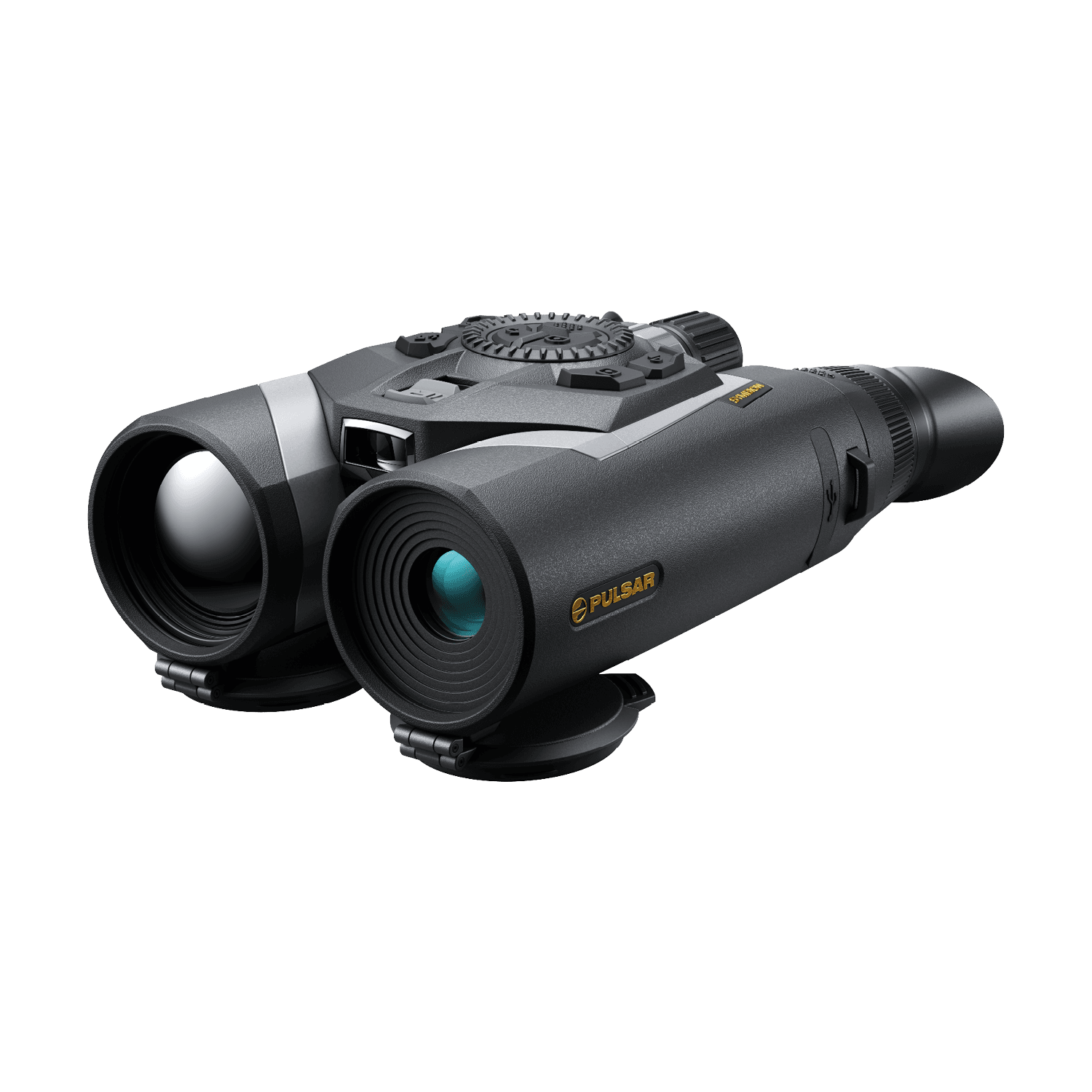

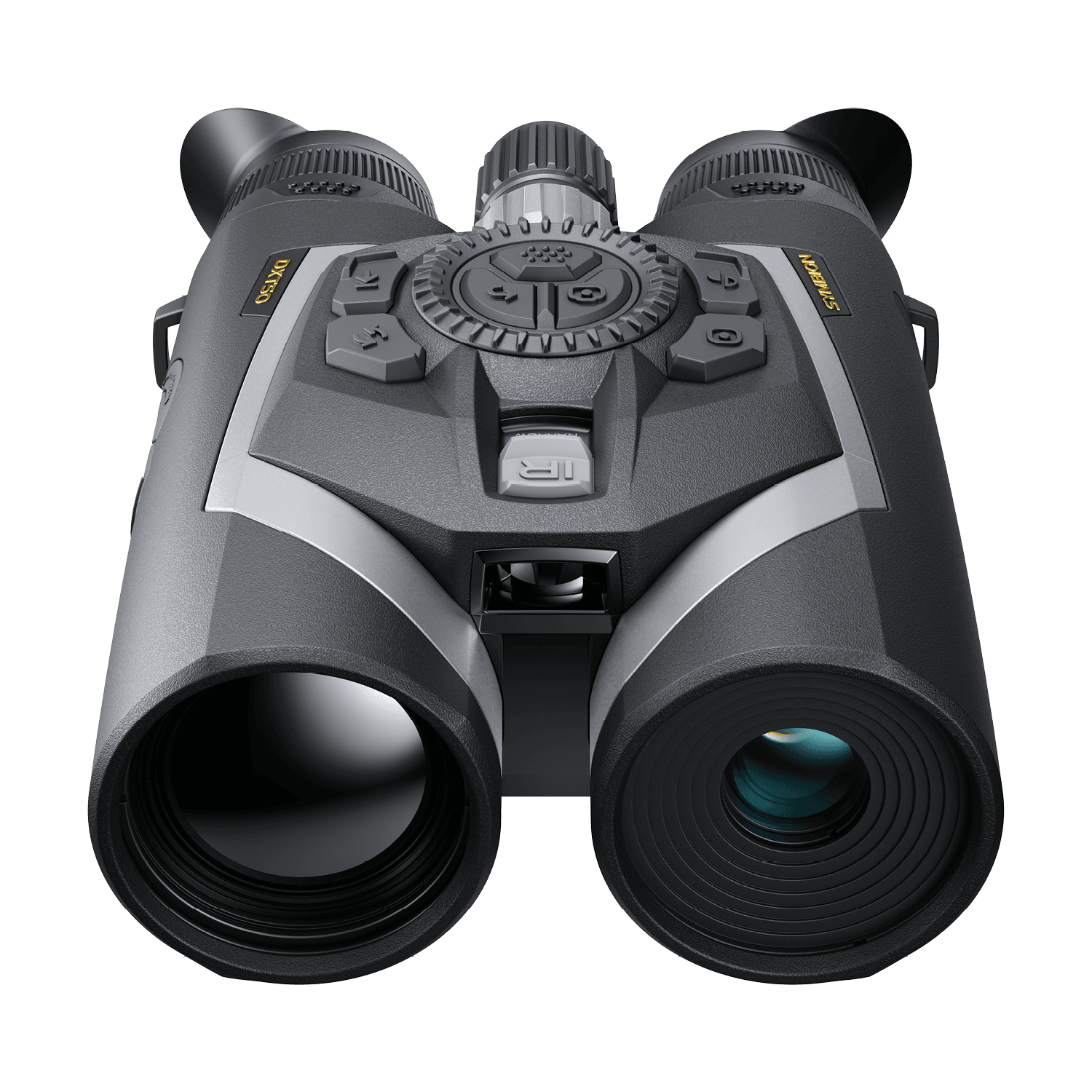

The 50mm F1.0 germanium objective lens, combined with the ultra-high-resolution sensor, offers an exceptional balance of wide-angle coverage and long-range detection. Heat signatures can be detected at distances of up to 2300 metres.

A 17.5° horizontal field of view (30.7m at 100m) enables faster target acquisition and superior situational awareness compared to higher-magnification thermal binoculars.

Pulsar SYMBION LRF DXT50 Thermal Binoculars with Integrated Laser Rangefinder

The Pulsar SYMBION LRF DXT50 features a built-in laser rangefinder capable of accurately measuring distances up to 1500 metres with ±1 metre accuracy.

When paired with Stream Vision Ballistics, these thermal imaging binoculars provide advanced ranging data and ballistic support, making them ideal for professional users and precision applications.

Multispectral Thermal & Digital Imaging Binoculars – Pulsar SYMBION LRF DXT50

The multispectral design allows seamless switching between two viewing modes:

• Thermal imaging for detection in total darkness, fog, smoke, and vegetation

• Digital optical imaging for daytime or twilight observation

The digital imaging channel offers 6.5–26x magnification, ensuring precise target identification after thermal detection.

AMOLED Display Technology in Pulsar SYMBION LRF DXT50 Thermal Binoculars

A high-contrast 1920×1080 AMOLED display delivers smooth visuals with excellent colour reproduction and detail. Users can customise the image using:

• 9 thermal colour palettes

• Normal, High & Ultra sensitivity modes

• Image smoothing and enhancement filters

This allows optimal performance across changing environmental and weather conditions.

Photo & Video Recording on Pulsar SYMBION LRF DXT50 Thermal Imaging Binoculars

The Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars feature built-in photo and video recording, stored on 64GB of internal memory.

Integrated Wi-Fi and Bluetooth allow live streaming, remote control, and file management via the Stream Vision 2 mobile app.

Additional smart features include:

• Automatic shut-off & sleep mode

• Manual, semi-automatic & automatic calibration

• Firmware updates via mobile app

Rugged IP67 Design – Pulsar SYMBION LRF DXT50 Multispectral Binoculars

Constructed from lightweight magnesium alloy, the Pulsar SYMBION LRF DXT50 is built for durability and long observation sessions. The IP67 waterproof rating ensures reliable operation in harsh weather conditions.

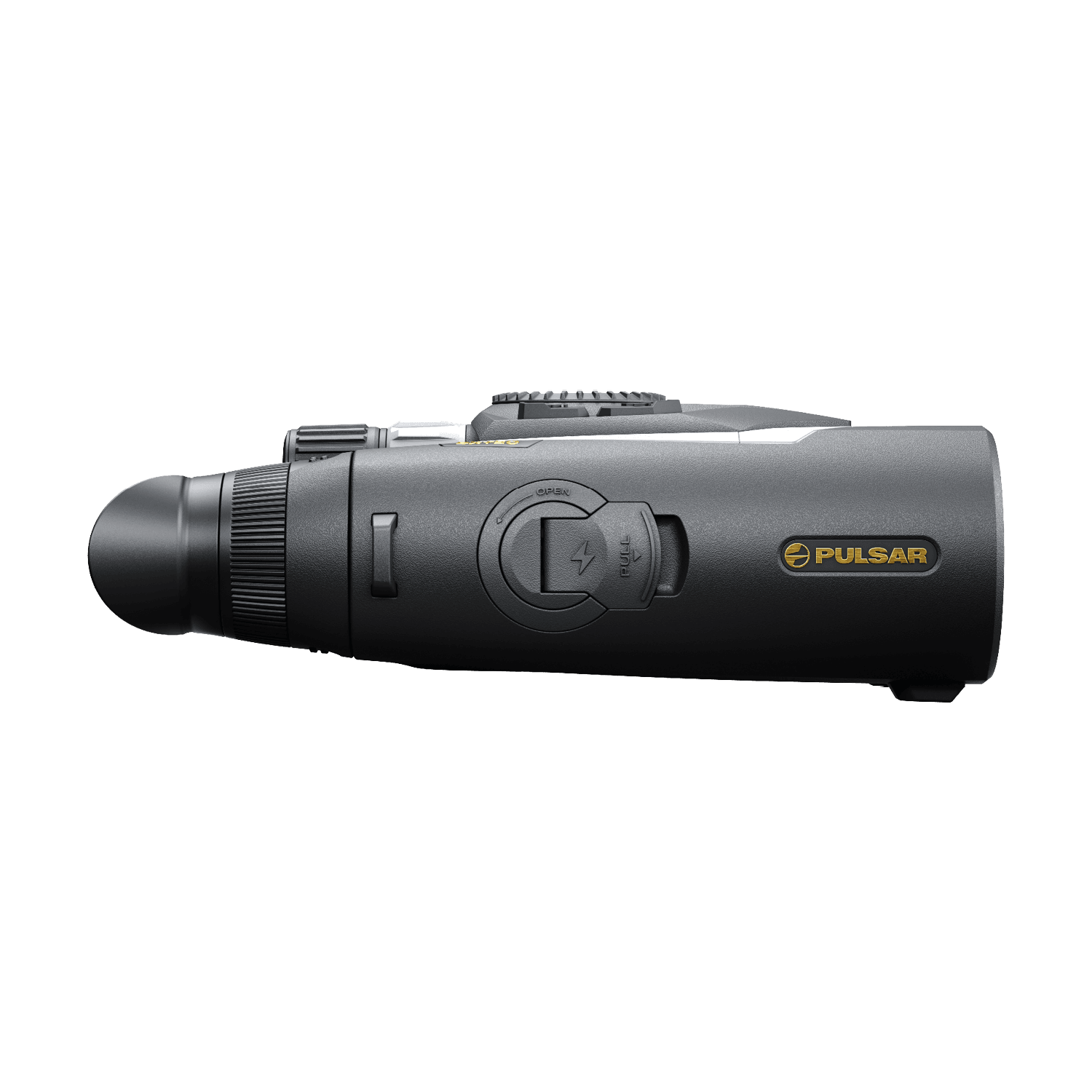

With an operating temperature range of -25°C to +50°C, these thermal binoculars are suitable for year-round use. Power is supplied by dual APS5 rechargeable batteries, delivering up to 8 hours of continuous runtime, with USB-C Power Delivery support for external power sources.

Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars – Technical Specifications

Thermal Imaging Channel

• Sensor Resolution: 1280 × 1024

• Pixel Pitch: 12 µm

• Frame Rate: 50 Hz

• Sensor NETD: <40 mK

• System NETD: <20 mK

• Objective Lens: 50mm F1.0

• Magnification: 2–16x

• Field of View @100m: 30.7 m

• Detection Range: 2300 m

Digital Imaging Channel

• Magnification: 6.5–26x

• Digital Zoom: 2x / 4x / 8x

• Field of View @100m: 10.2 m

• Eye Relief: 13 mm

• Diopter Adjustment: -5 to +5

Display & Media

• Display Type: AMOLED

• Resolution: 1920 × 1080

• Photo / Video Recording: Yes

• Internal Memory: 64 GB

Laser Rangefinder

• Wavelength: 905 nm

• Range: Up to 1500 m

• Accuracy: ±1 m

Connectivity

• Wi-Fi: 2.4 GHz / 5 GHz

• Bluetooth: Yes

• USB: USB Type-C

• Mobile Apps: Stream Vision 2 & Stream Vision Ballistics

Power & Build

• Battery Type: 2 × APS5

• Battery Life: Up to 8 hours

• Housing Material: Magnesium Alloy

• Protection Rating: IP67

• Operating Temperature: -25°C to +50°C

• Dimensions: 207 × 132 × 72.5 mm

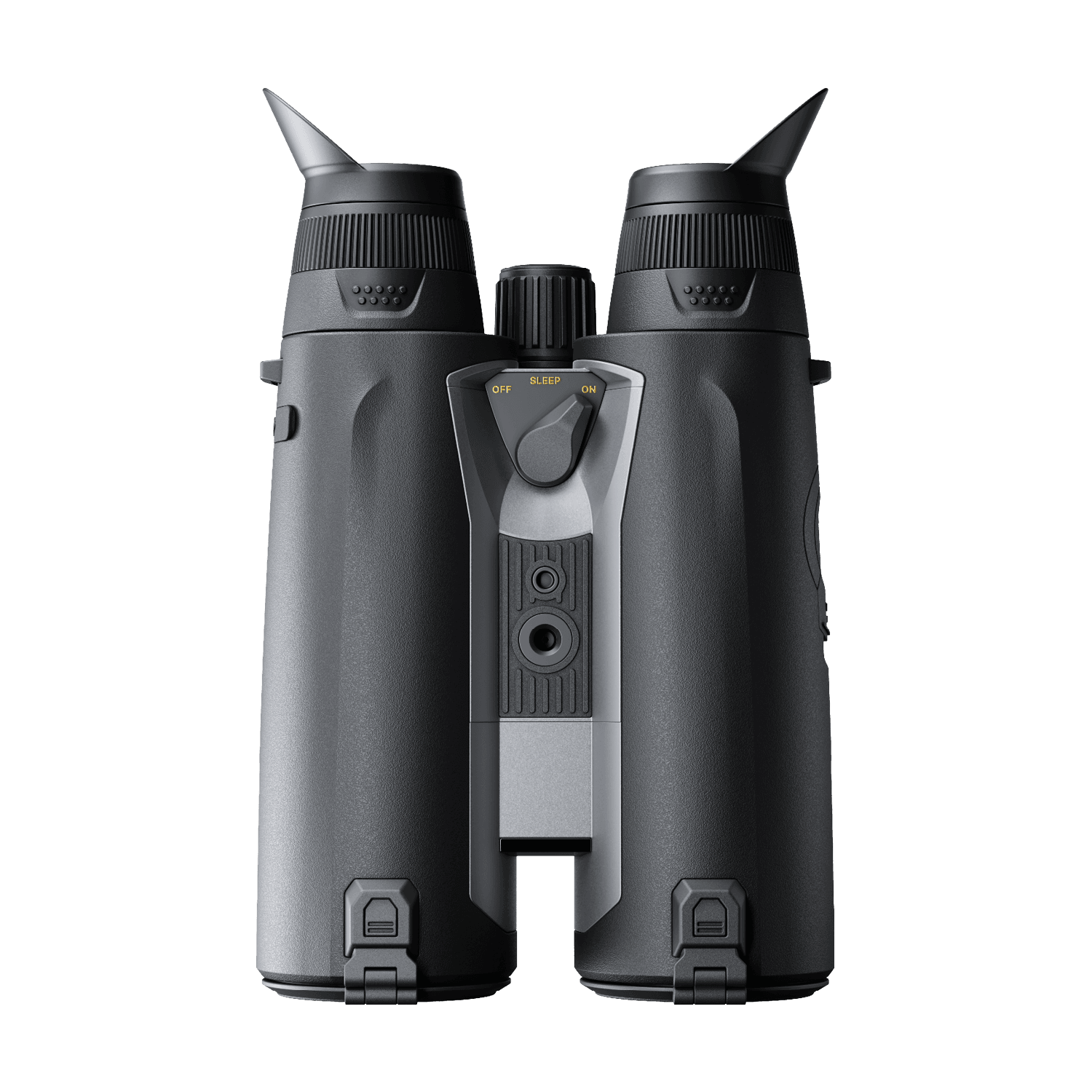

• Tripod Mount: 1/4″

Why Choose the Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars?

The Pulsar SYMBION LRF DXT50 Multispectral Thermal Imaging Binoculars are the ideal choice for users seeking maximum thermal detail, wide-angle situational awareness, and precision laser ranging in one advanced optic. Designed for demanding field use, these binoculars set a new benchmark in premium thermal imaging performance.

✔ 3-Year Pulsar Warranty Included
