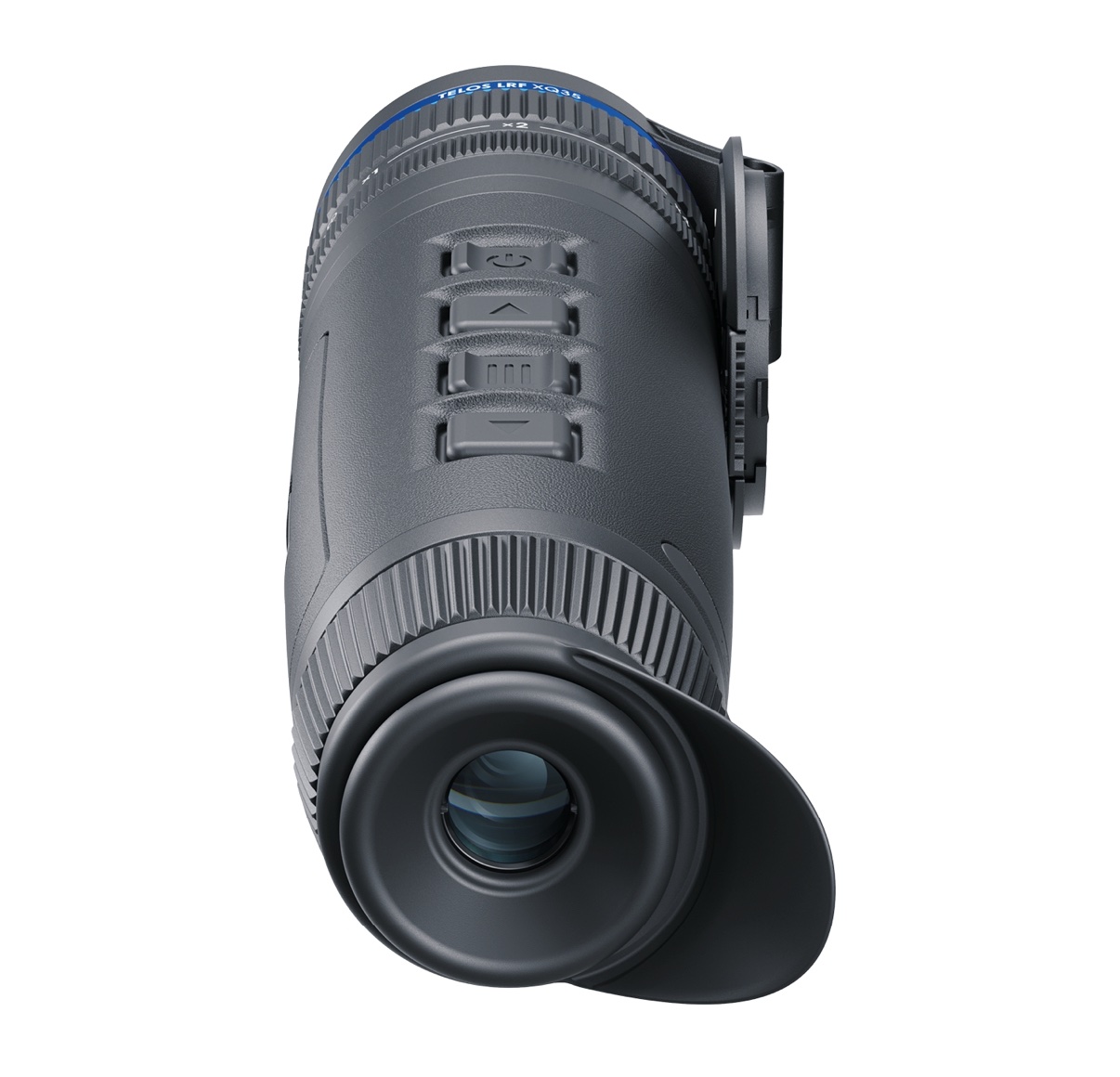

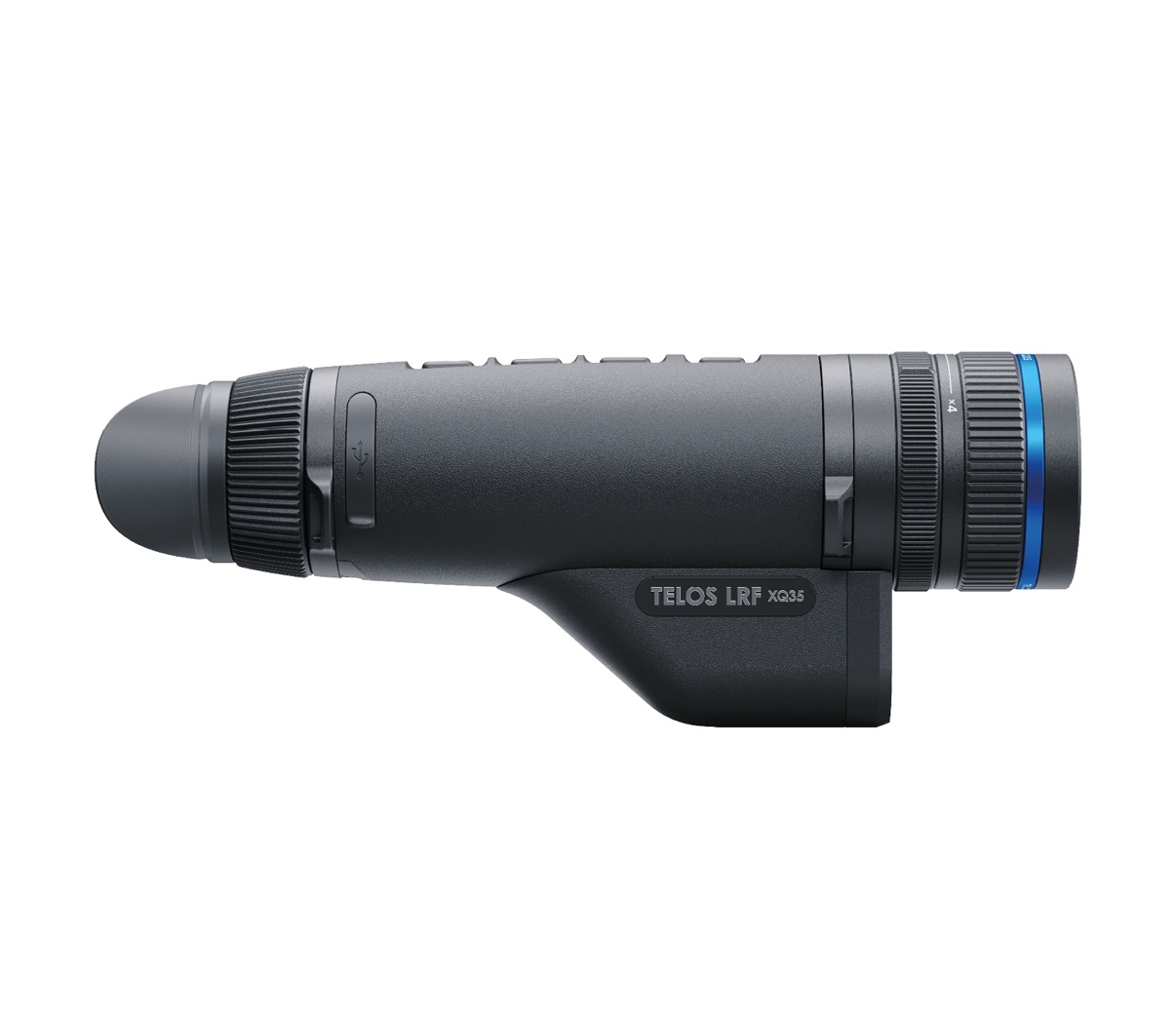

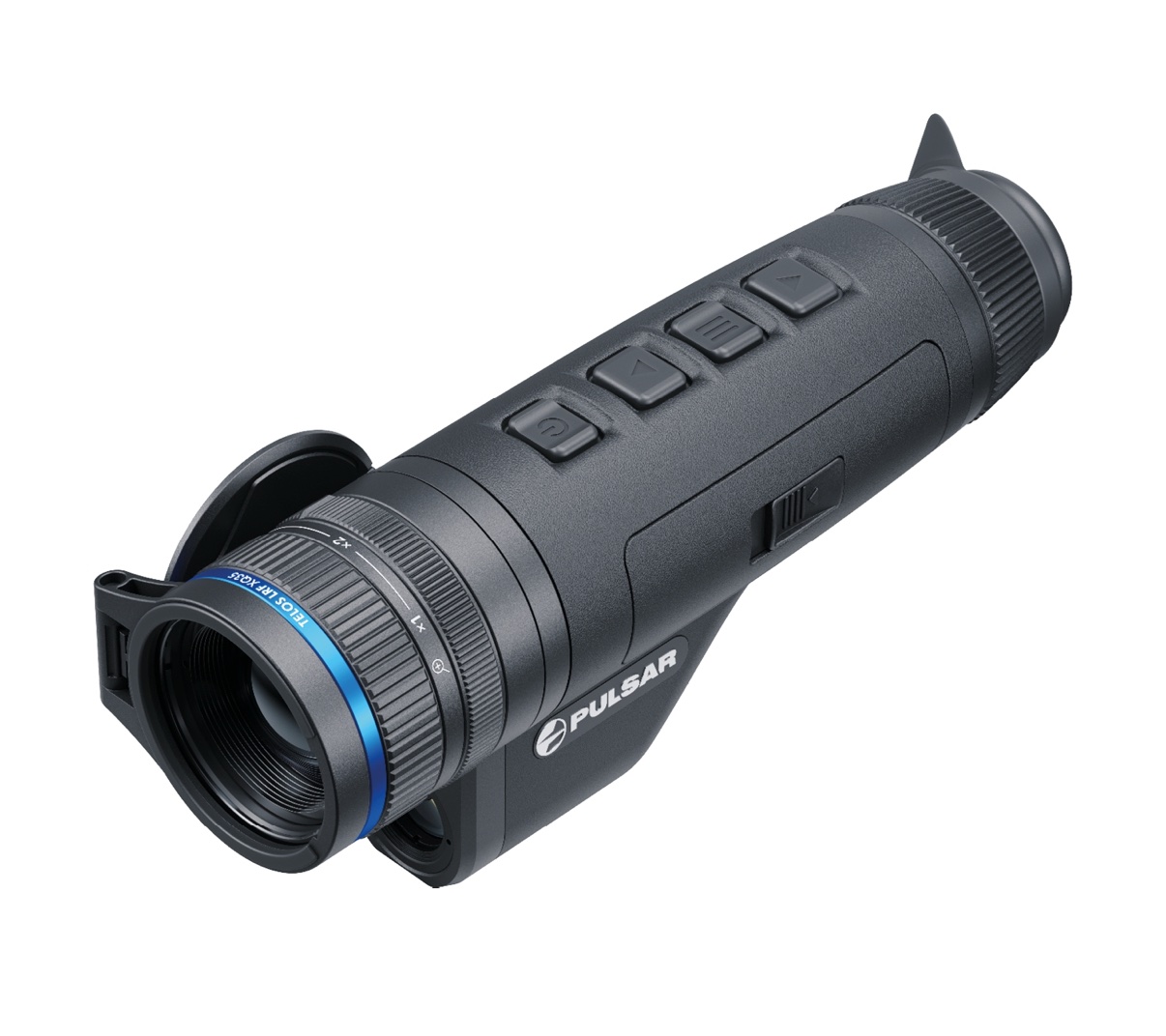

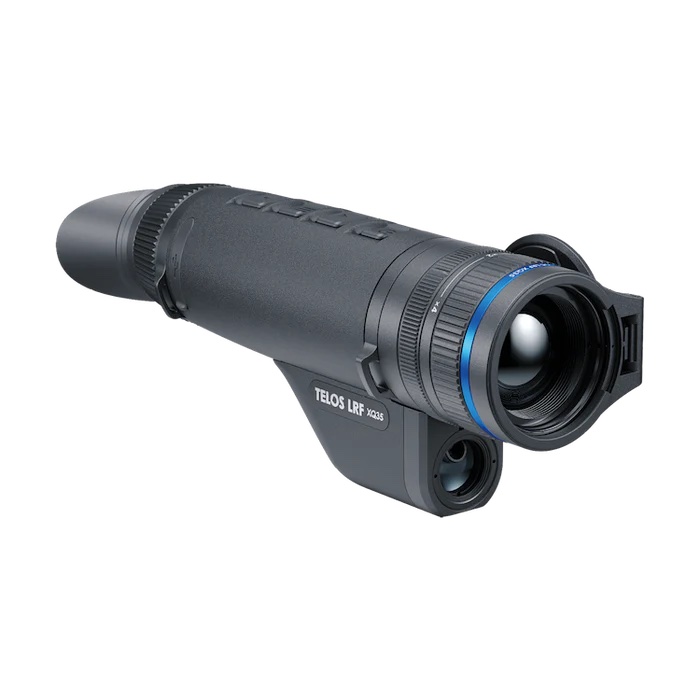

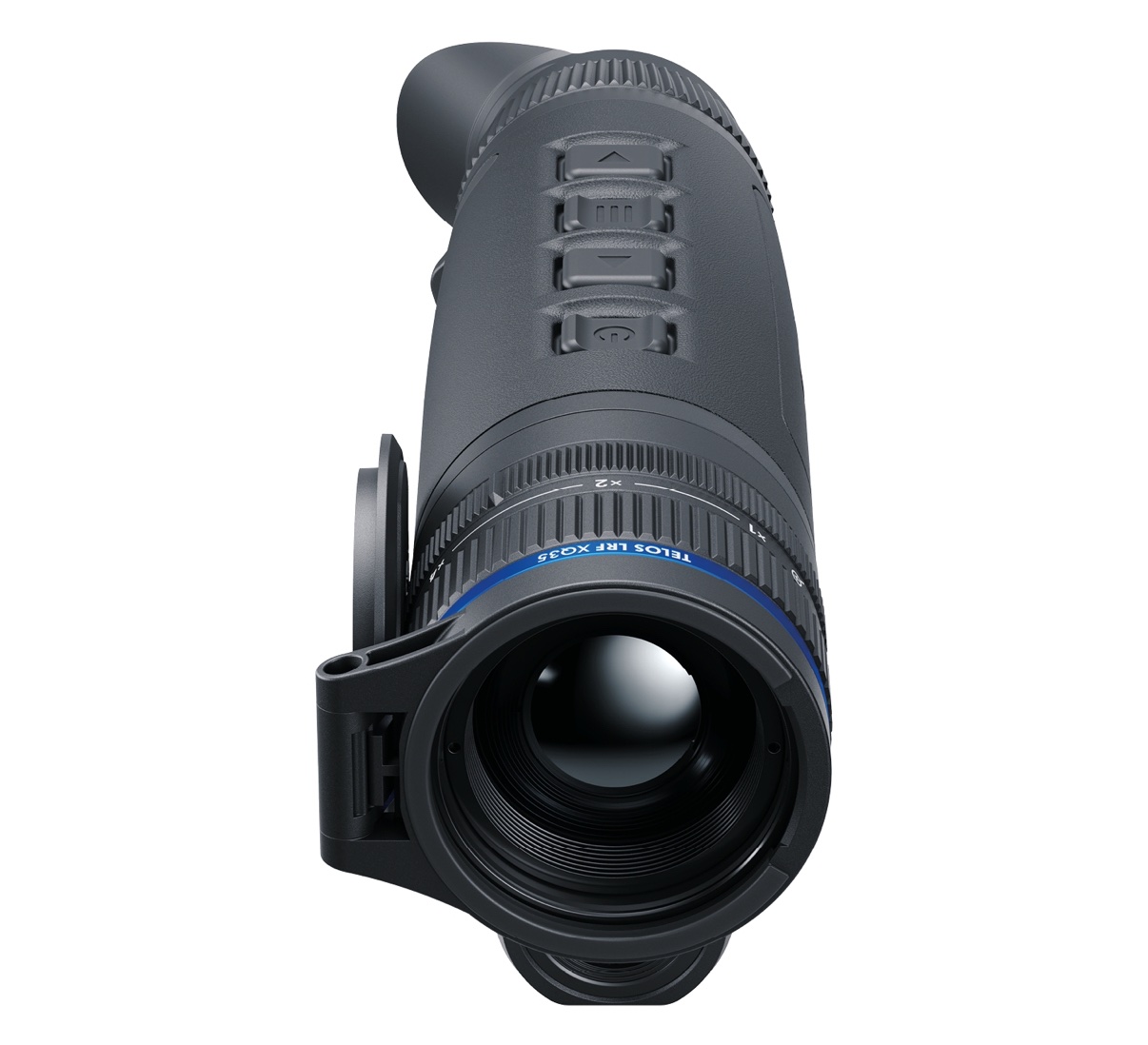

Pulsar Telos LRF XQ35 Thermal Monocular

Pulsar Telos LRF XQ35 Handheld Thermal Monocular

The Pulsar Telos LRF XQ35 is a high-performance thermal monocular designed for advanced observation. Built for durability and versatility, this monocular combines superior thermal imaging, rugged construction, and cutting-edge features, making it ideal for professionals and outdoor enthusiasts alike.

Advanced Thermal Imaging

• Superior Sensor Technology: Equipped with a European-made Lynred thermal sensor (384×288, 17µm), providing exceptional sensitivity (<25mK NETD) for detecting even the smallest temperature variations.
• Impressive Detection Range: The 35mm f1.0 objective lens allows detection up to 1300 meters, offering clear visuals in fog, rain, snow, and low-light conditions.

Upgradeable Design for Future-Proof Performance

• Adaptable Components: The device’s thermal sensor, lens, and internal electronics can be upgraded, ensuring it remains relevant as technology advances.
• Future-Ready: Whether you need to improve image quality or enhance detection range, the Telos LRF XQ35 grows with your needs.

Image Boost Technology for Clarity

• Enhanced Image Quality: Pulsar’s proprietary Image Boost technology optimizes contrast, clarity, and detail, making it easier to identify objects in challenging environments.
• Adjustable Settings: Customize brightness, contrast, and sensitivity to suit various observation conditions.

Integrated Laser Rangefinder

• Accurate Distance Measurements: Measure up to 1000 meters with ±1 meter accuracy, ensuring precise assessments for a wide range of tasks.
• Efficient Distance Scanning: Supports both single and continuous scans for quick, reliable readings in the field.

Customizable Viewing Experience

• Multiple Color Palettes: Choose from eight different color palettes, including White Hot, Black Hot, Red Hot, and options for low-light conditions like Red Monochrome and Violet.
• Ergonomic Design: Features a user-friendly button layout and a rotatable hand strap for comfortable operation, whether you’re left- or right-handed.

Built for Rugged Conditions

• Rugged and Waterproof: The rubber-armored body is IPX7 rated, providing protection against immersion in water up to one meter for 30 minutes.
• Durable in Extreme Temperatures: Operates in temperatures ranging from -25°C to +40°C, ensuring reliable performance in any climate.

Built-in Recording and Wi-Fi Connectivity

• Capture and Share Media: Record high-quality video and still images with the built-in recorder, storing up to 64GB of data.
• Wi-Fi Connectivity: Connect wirelessly to the Stream Vision 2 app for remote control, live image adjustments, and easy sharing of media.

Long Battery Life

• Extended Operation: The included 6400 mAh Li-Ion battery provides up to 8.5 hours of continuous use, perfect for extended observation sessions in the field.
• Convenient Charging: Recharge the battery with a USB Type-C power supply (5V, 9V).

SPECS

• Sensor Type: Uncooled
• Sensor: 384×288, 17µm, <25mK NETD
• Frame Rate: 50 Hz
• Objective Lens: 35mm f1.0
• Magnification: 3.0 – 12.0x (with x4 Digital Zoom)
• Field of View: 10.7° x 8.0°
• Eye Relief: 14mm
• Display: 1024×768 AMOLED HD
• Detection Range: Up to 1300m
• Laser Safety Class: Class 1 (IEC 60825-1)
• Laser Wavelength: 905 nm
• Maximum Measuring Range (Laser): 1000m
• Measurement Accuracy: ±1 meter
• Video Recording: Yes, with Audio
• Still Image Capture: Yes
• Video/Photo Resolution: 1024×768 pixels
• Video/Photo Format: .mp4 (Video), .jpg (Photos)
• Built-In Memory: 64GB
• Wi-Fi: Built-in
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Wi-Fi Frequency: 2.4 GHz / 5 GHz
• Environmental Protection: IPX7 (Waterproof)
• Operating Temperature Range: -25°C to +40°C
• Compatible Mounts: 1/4″
• Power Output Voltage: 3.0-4.2 V
• Battery Type: LPS 7i Li-Ion Battery Pack
• Battery Capacity: 6400 mAh
• Operating Time on Battery (at 22°C): Up to 8.5 hours
• External Power Supply: 5V, 9V (USB Type-C Power Delivery)
• Body Material: Rubber Armoured Reinforced Plastic
• Dimensions: 224 x 66 x 87 mm
• Weight: 480g (without battery), 630g (with LPS7i Battery)

Key Features

• Fully Upgradeable: Easily upgrade thermal sensor, lens, and electronics.
• High-Sensitivity Thermal Sensor: Detects even the smallest temperature changes.
• Advanced Image Boost: Optimizes thermal imaging clarity and contrast.
• Precision Laser Rangefinder: Measures up to 1000m with ±1 meter accuracy.
• Multiple Color Palettes: Versatile options for different observation needs.
• Ergonomic and Customizable: Comfortable controls, adjustable hand strap, and menu settings.
• Built-In Video & Image Capture: High-quality recording with 64GB internal memory.
• Durable & Waterproof: IPX7-rated, designed to withstand tough conditions.
• Wi-Fi Connectivity: Stream Vision 2 app integration for remote control and media sharing.
• Long Battery Life: Up to 8.5 hours of continuous operation on a single charge.

Pulsar 3-Year Warranty
