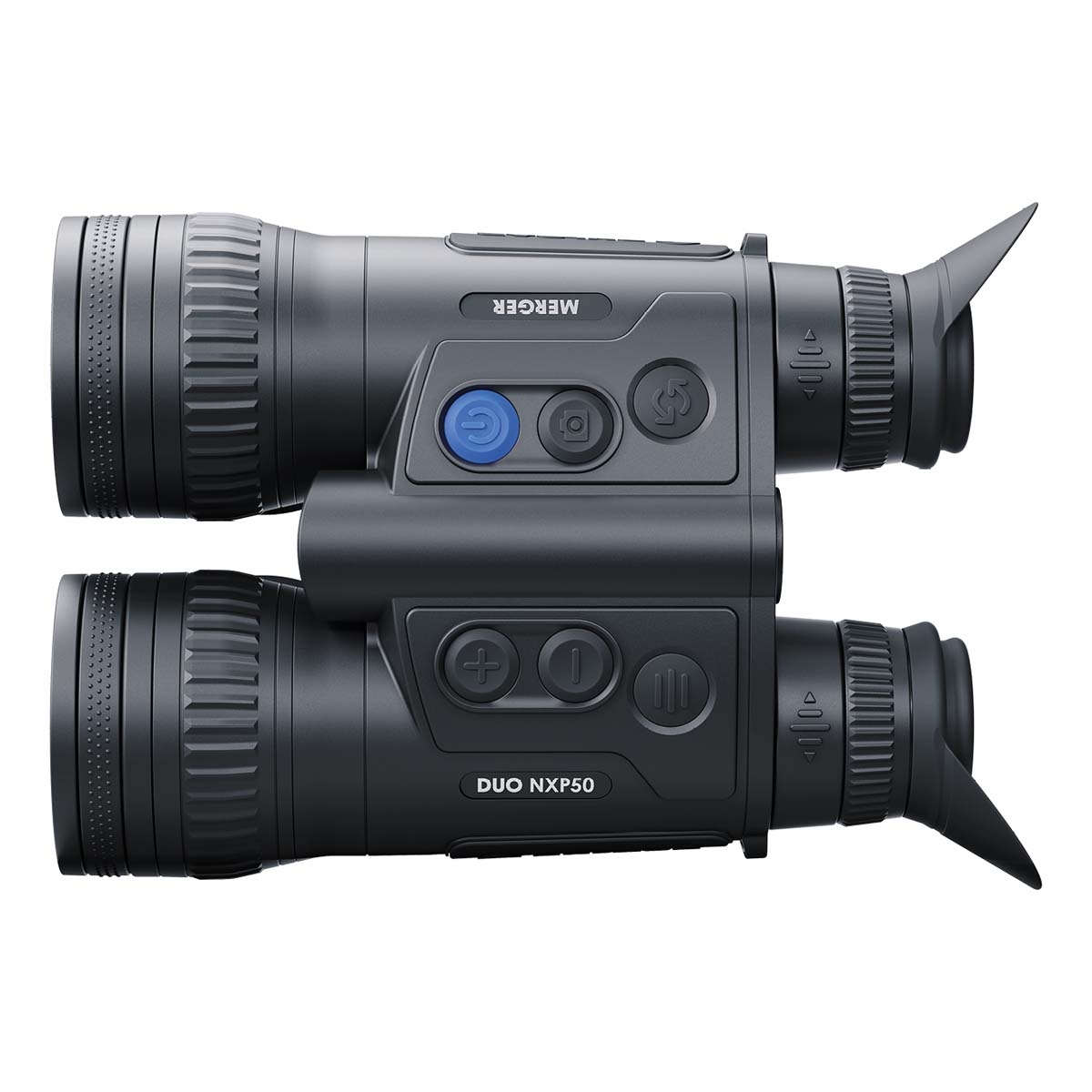

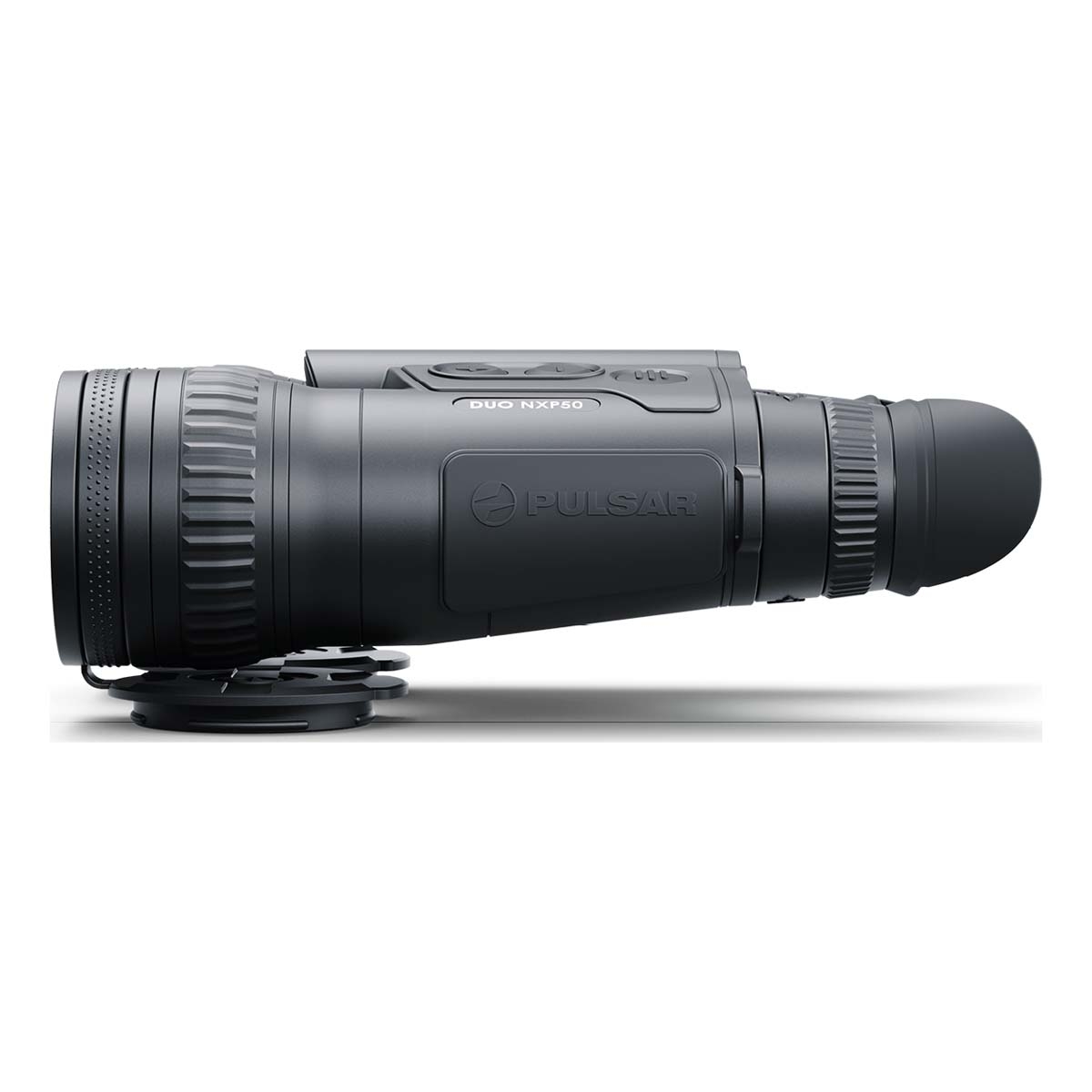

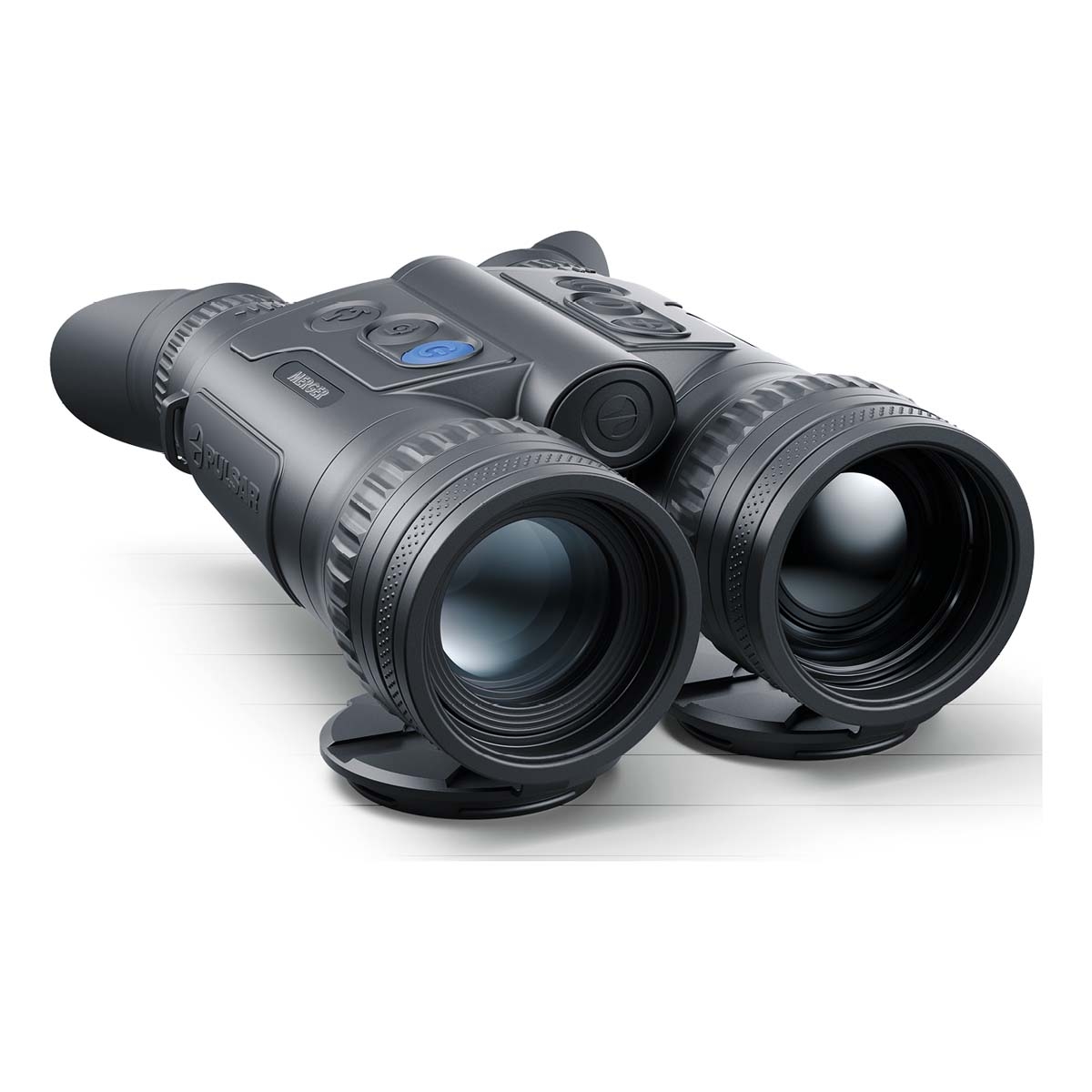

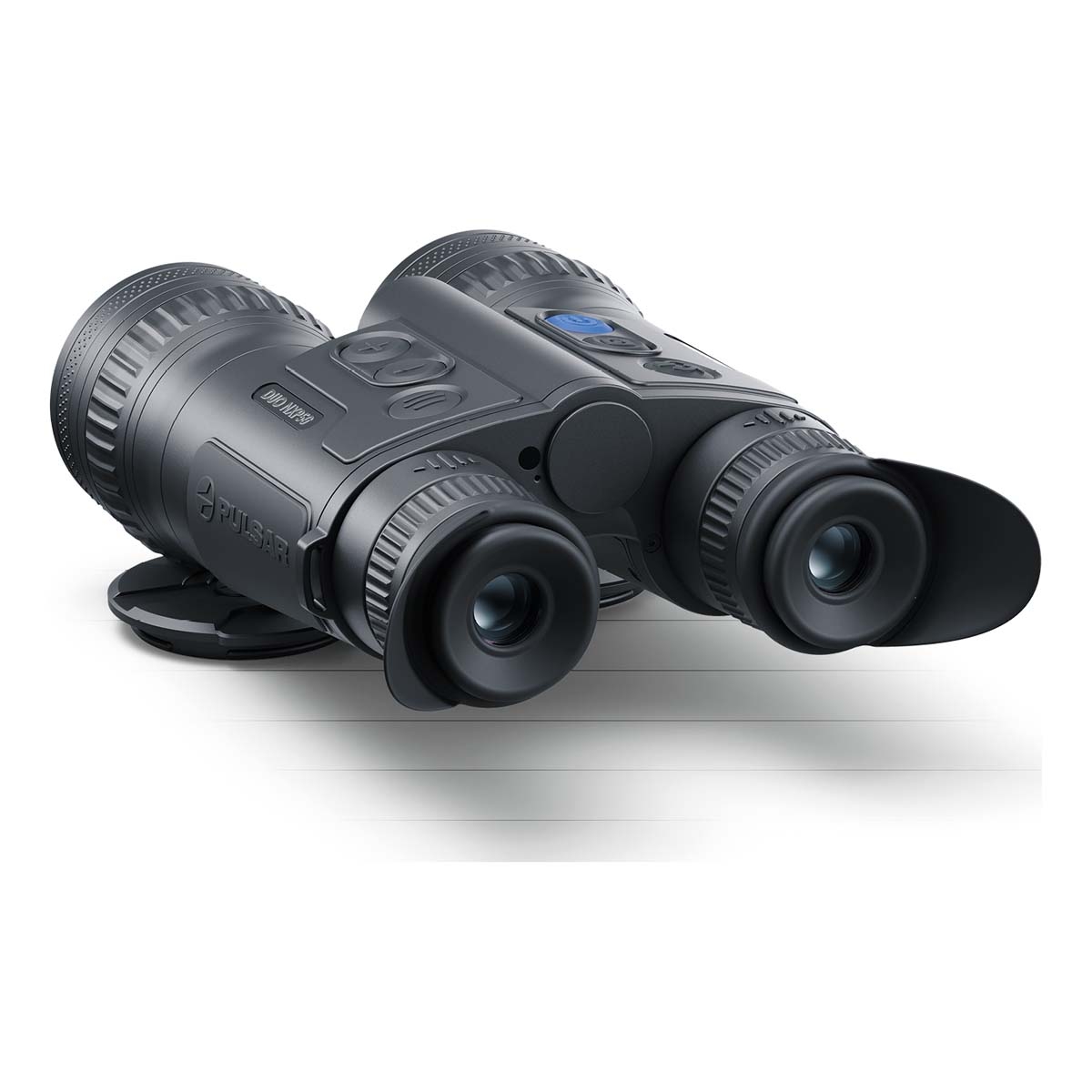

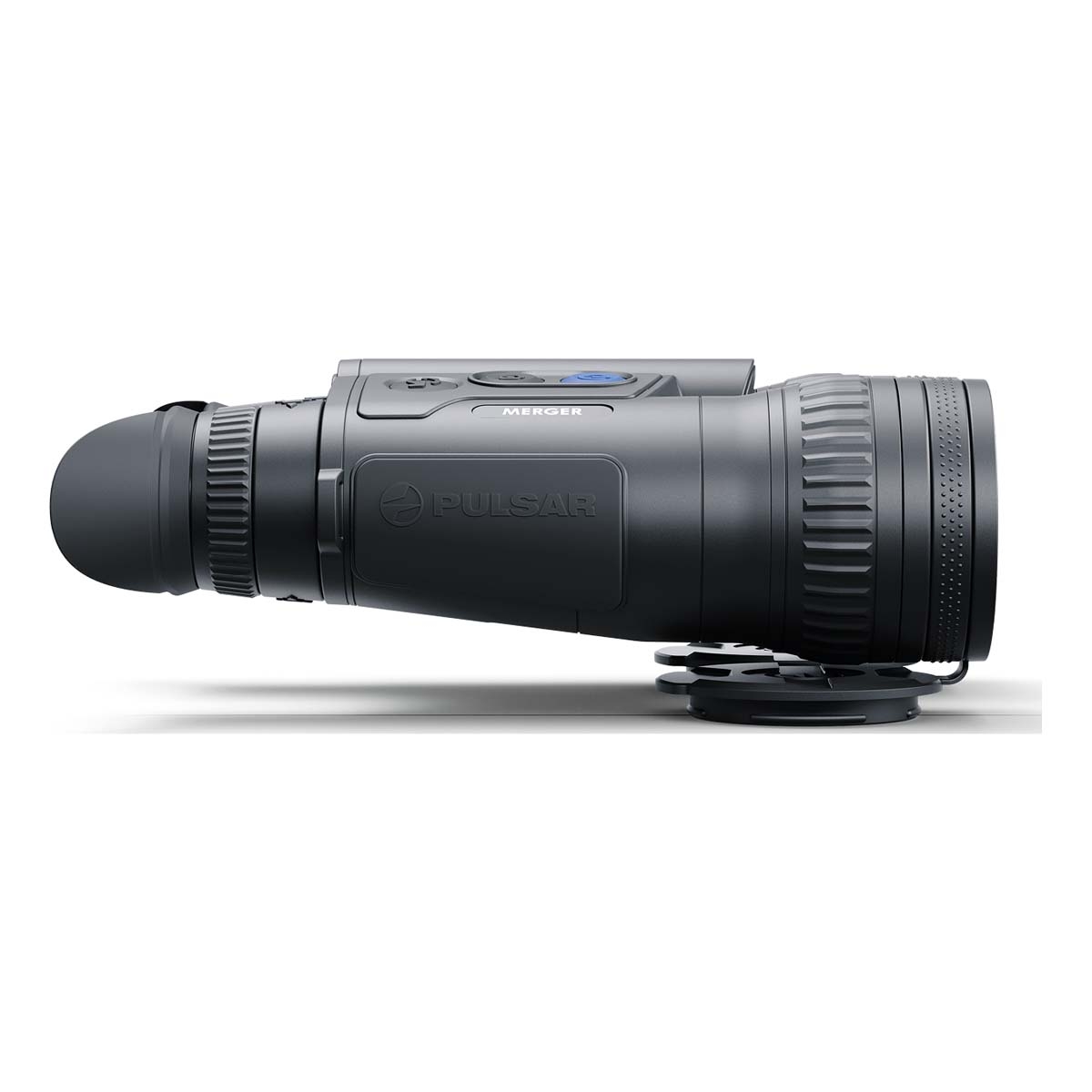

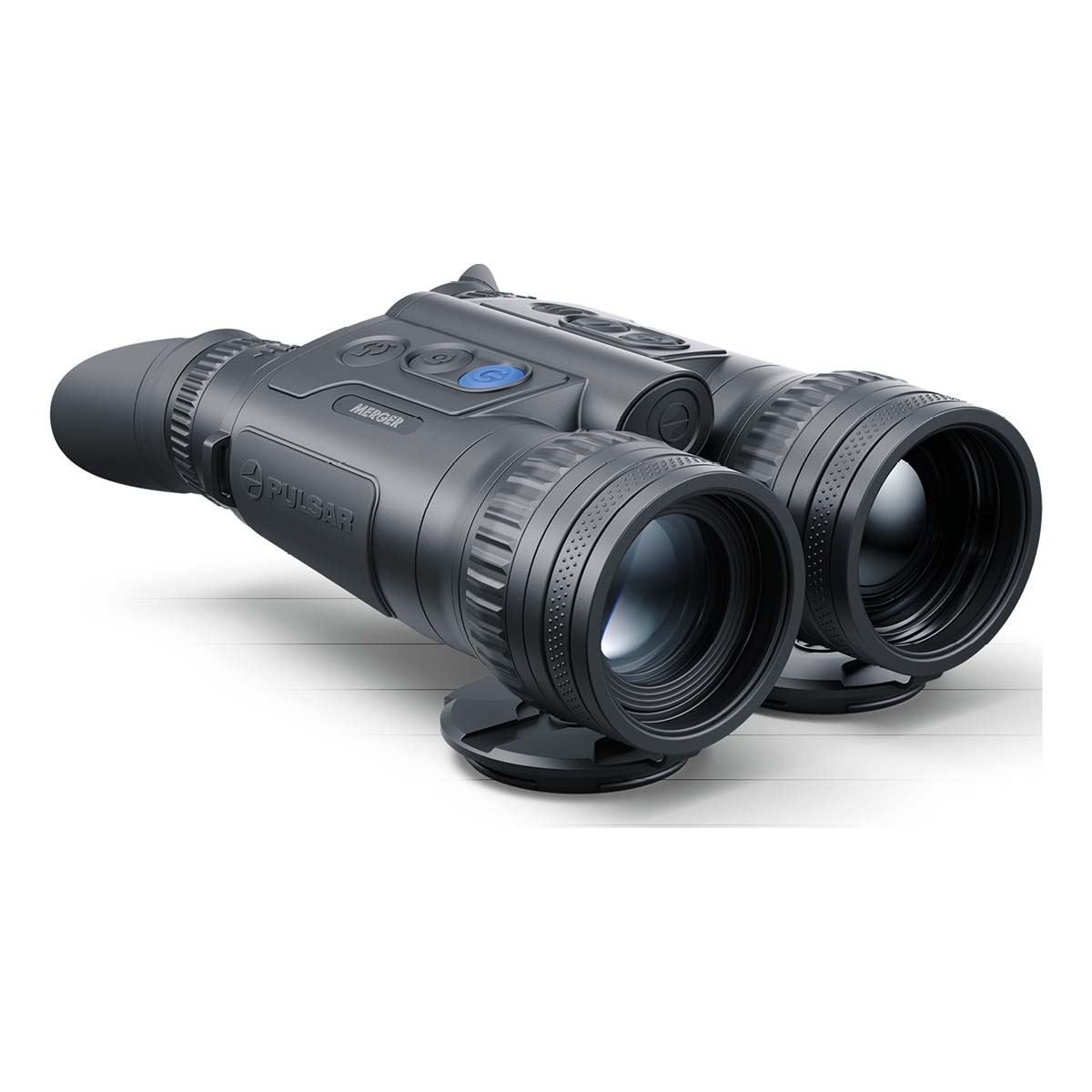

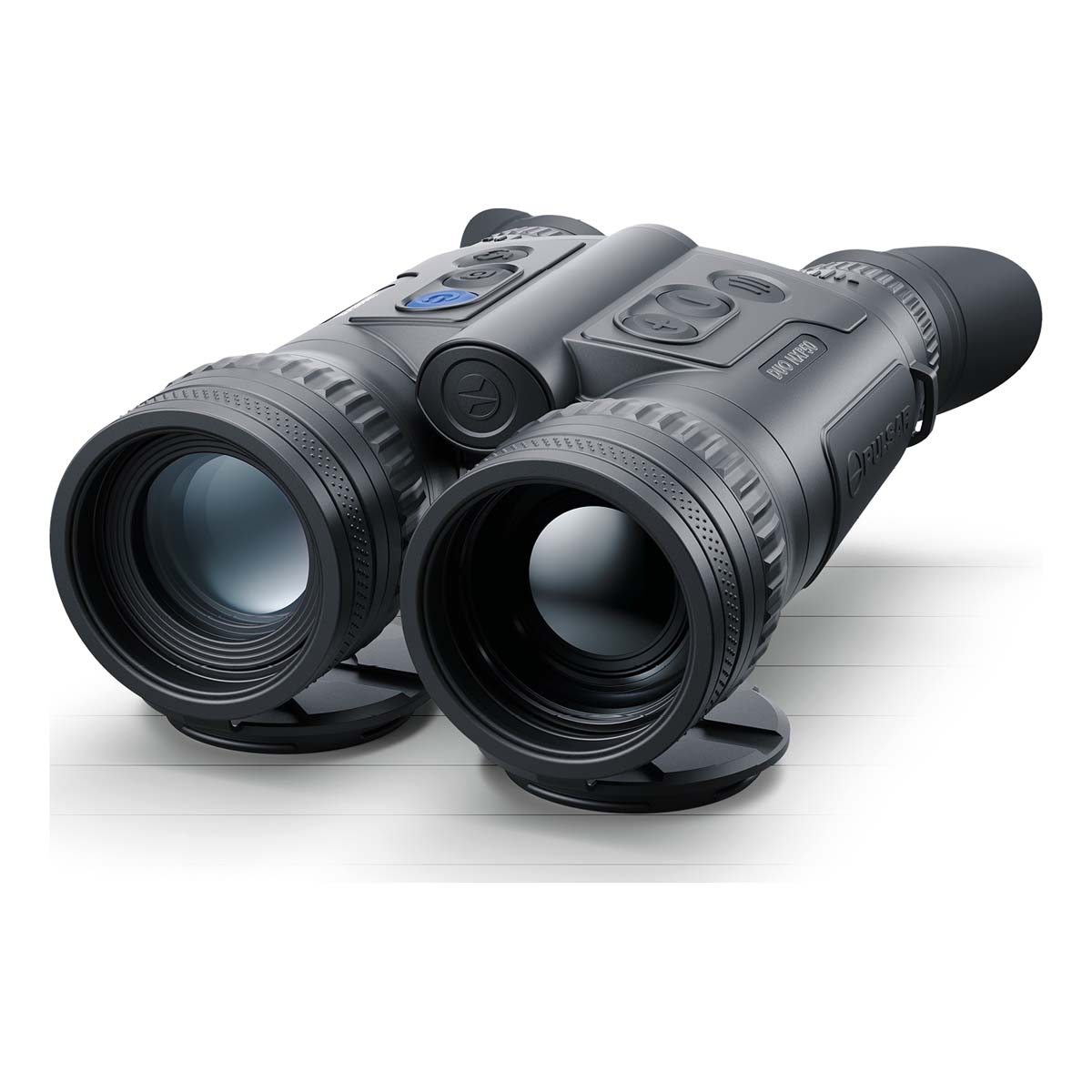

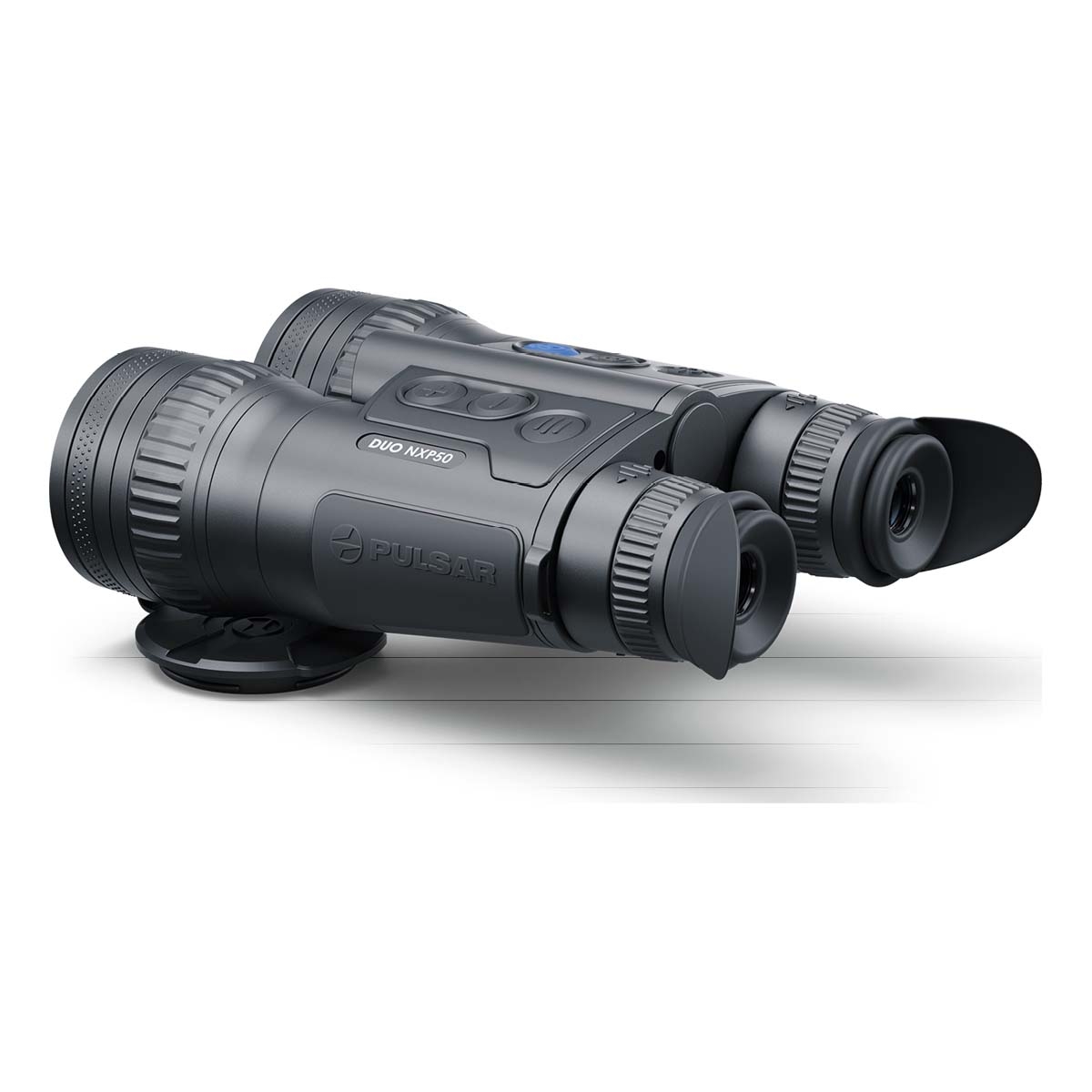

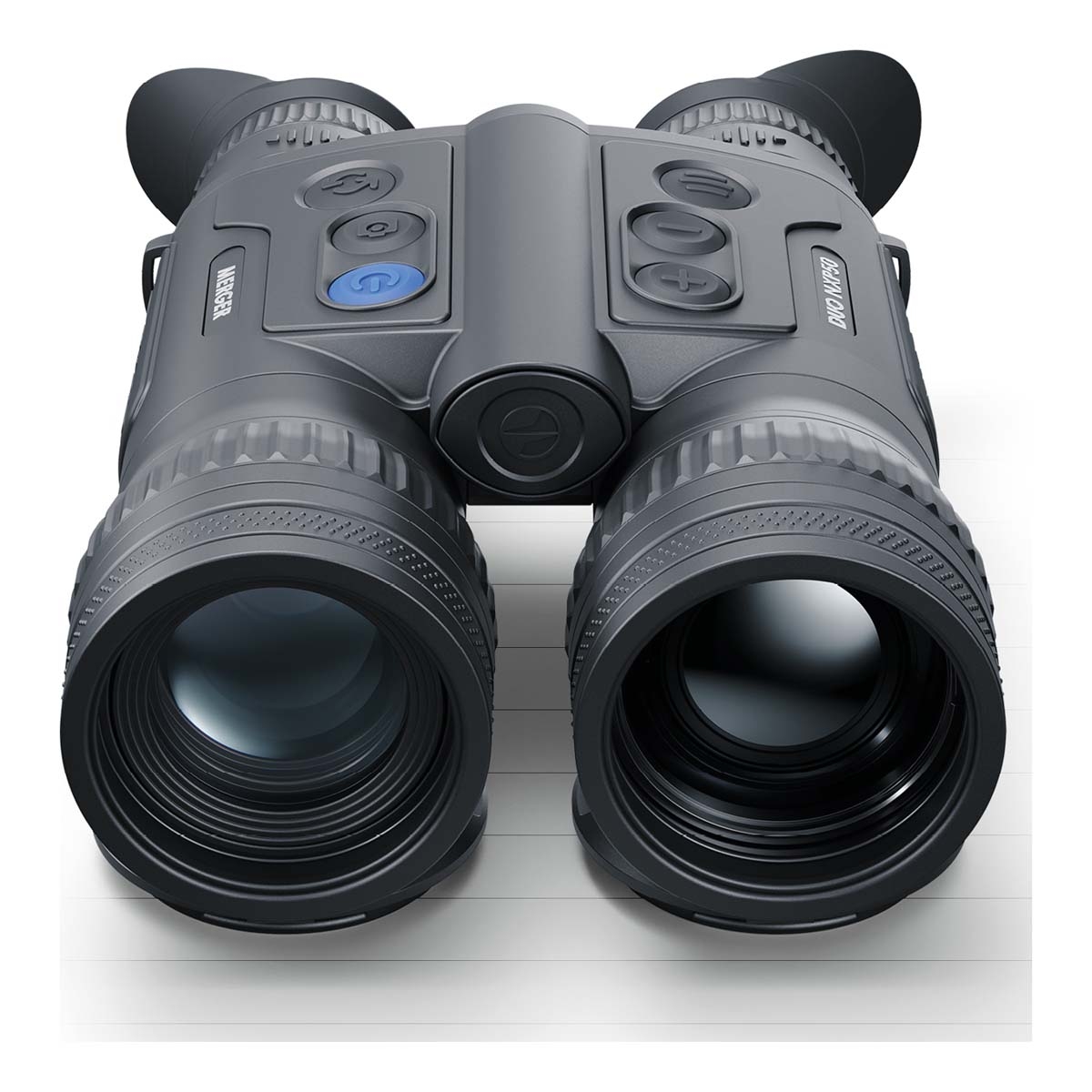

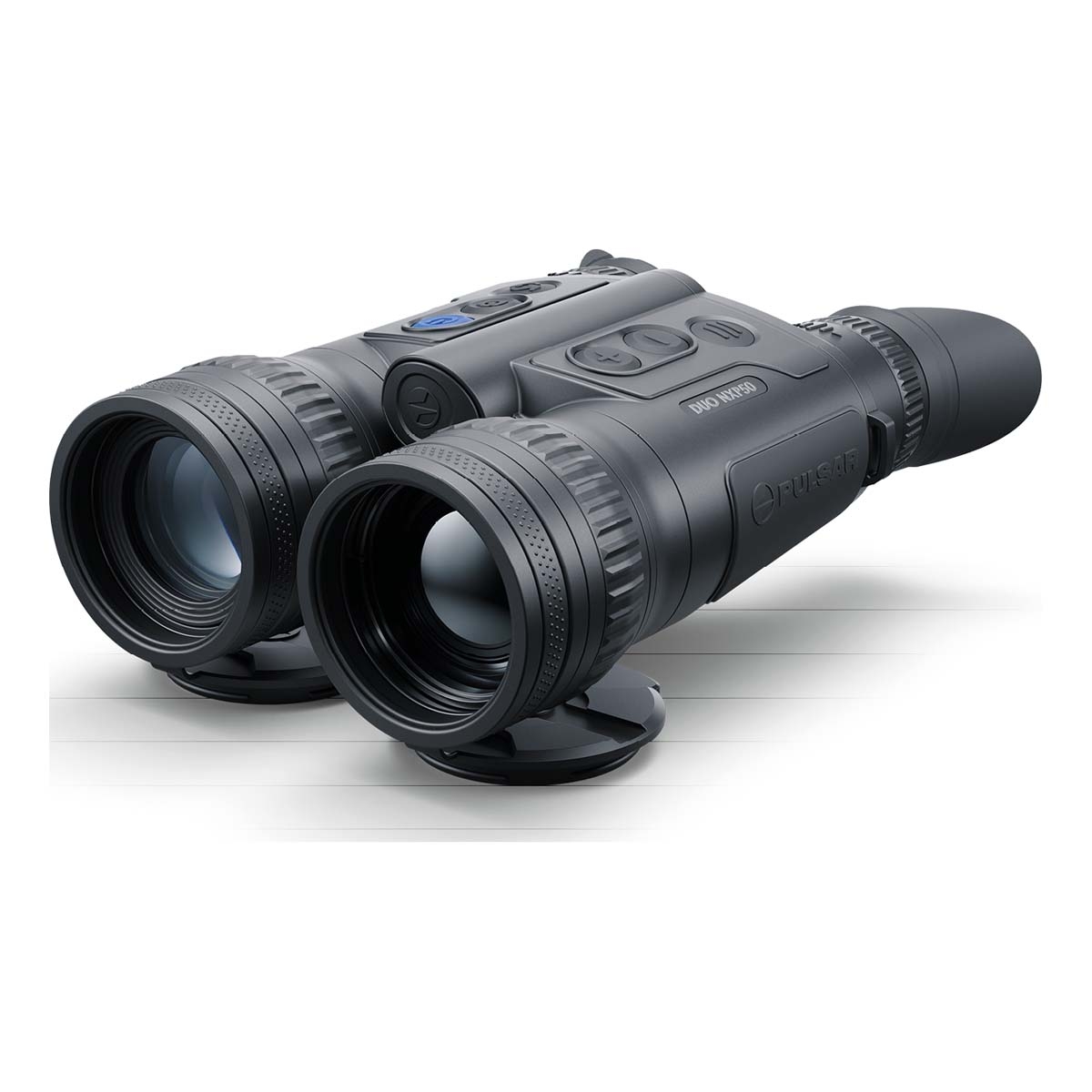

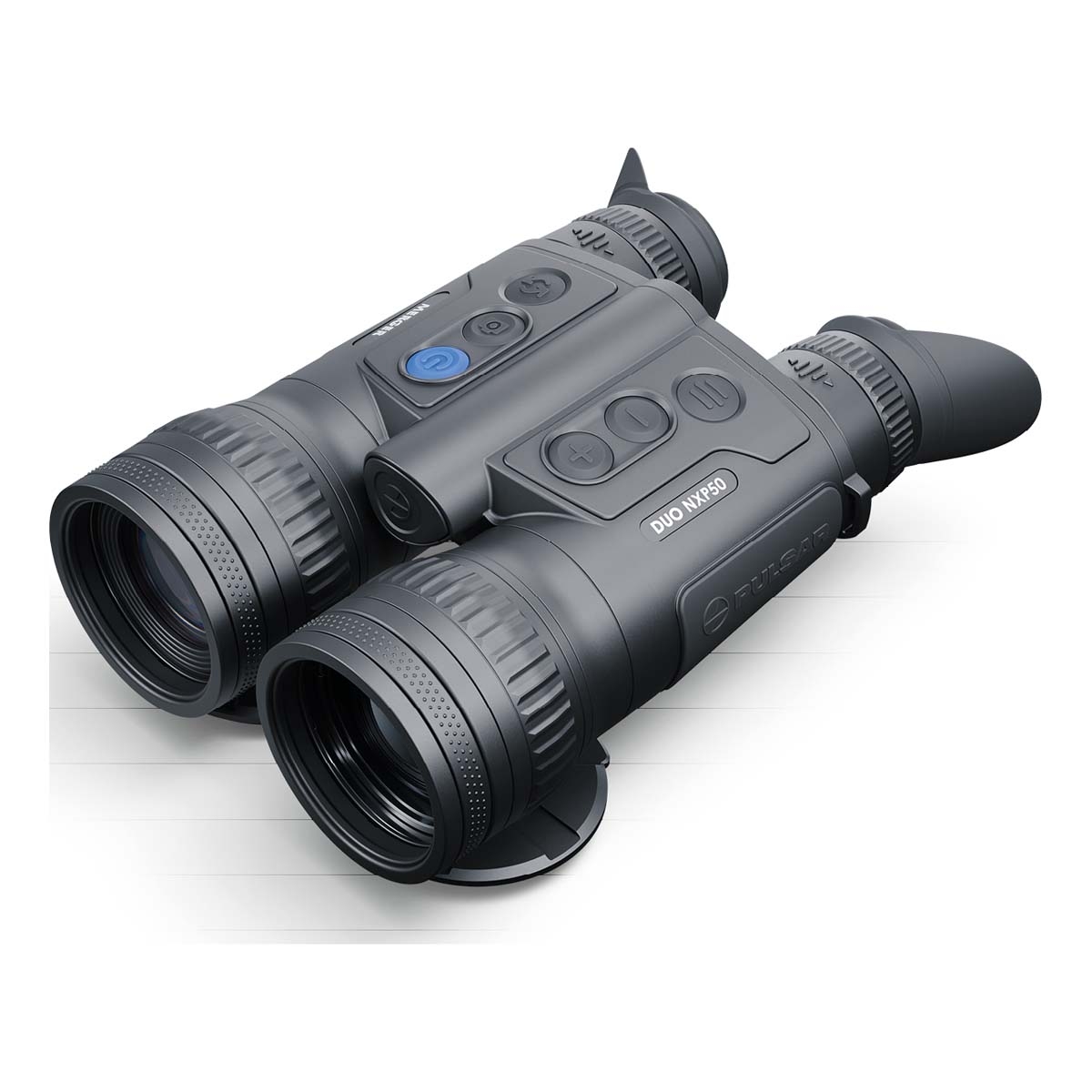

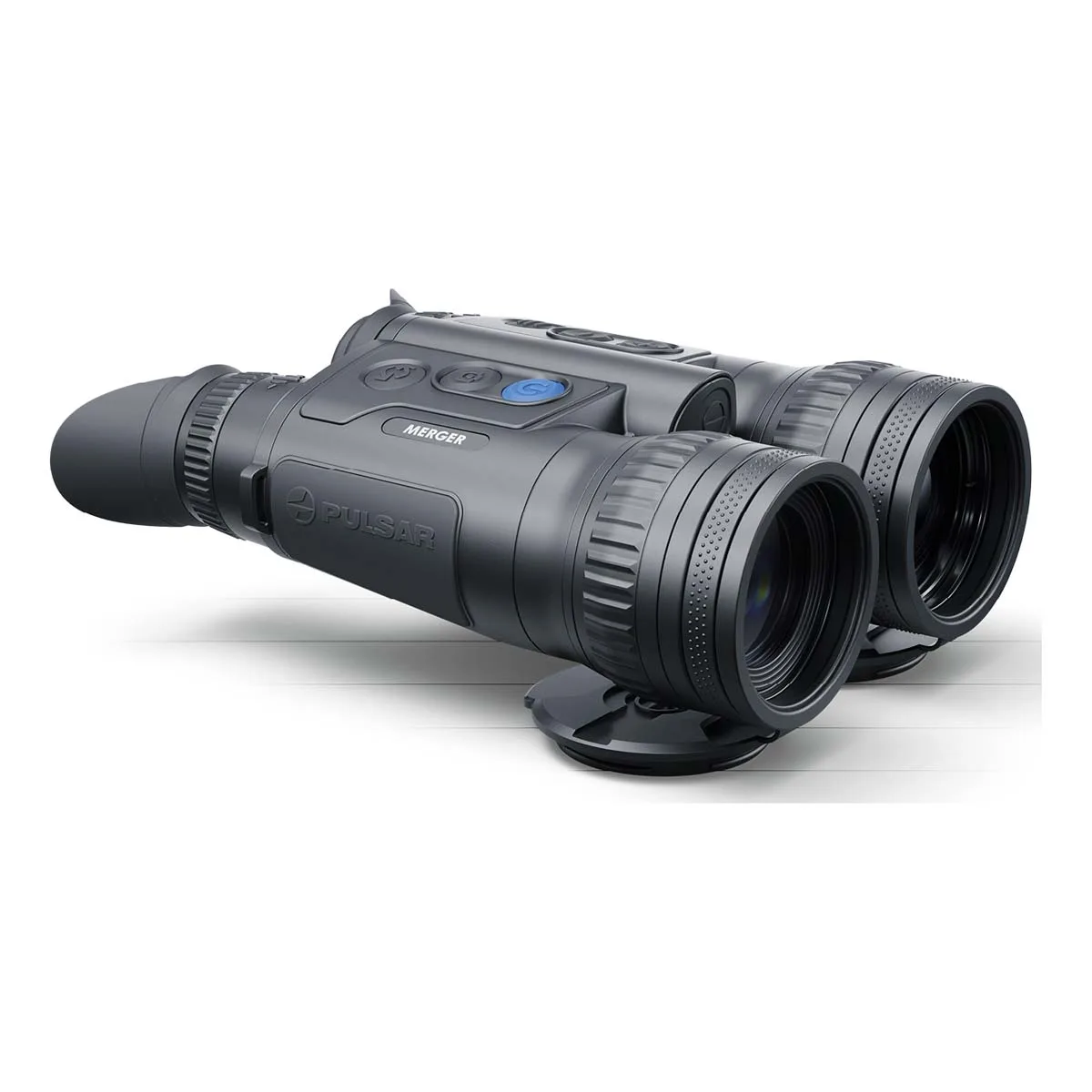

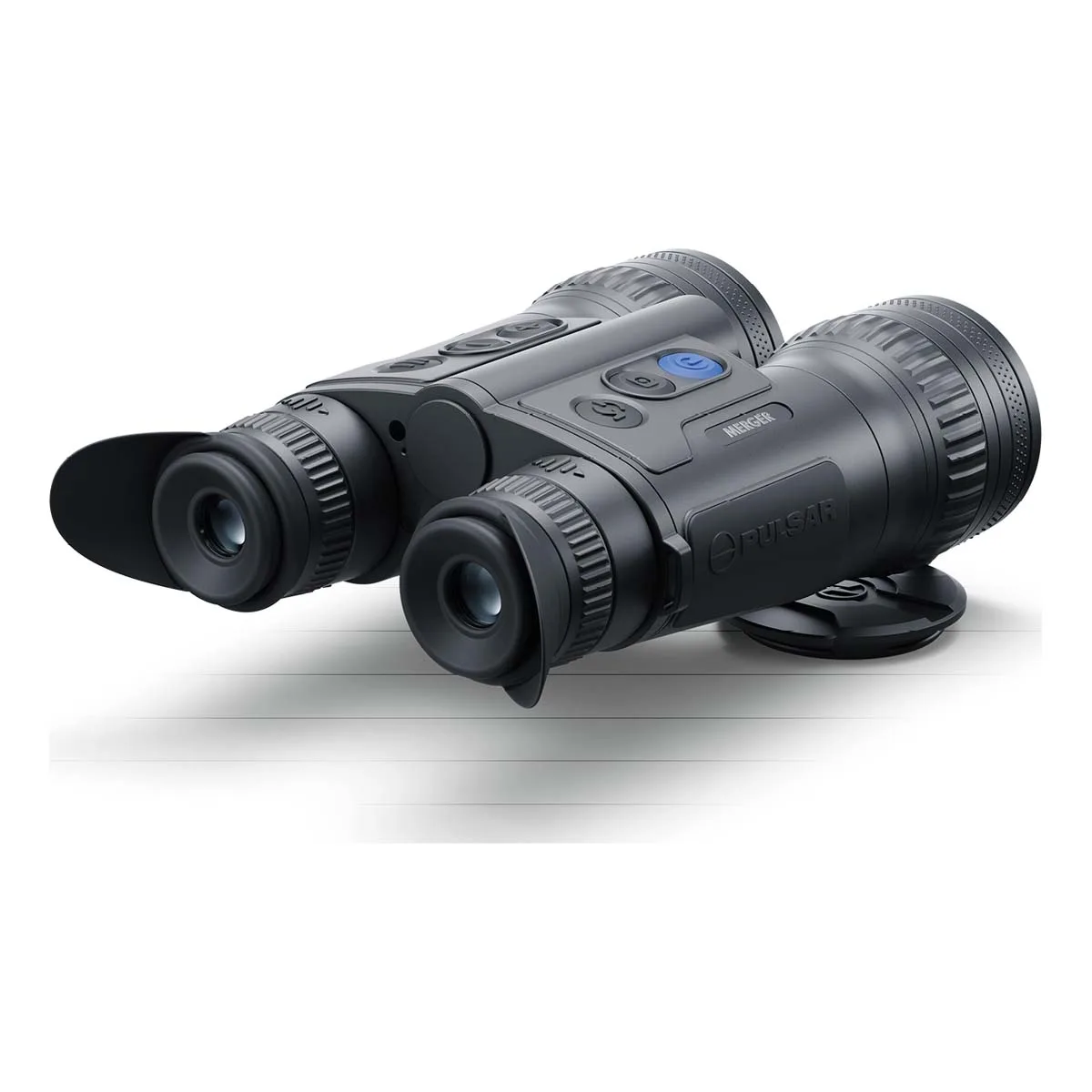

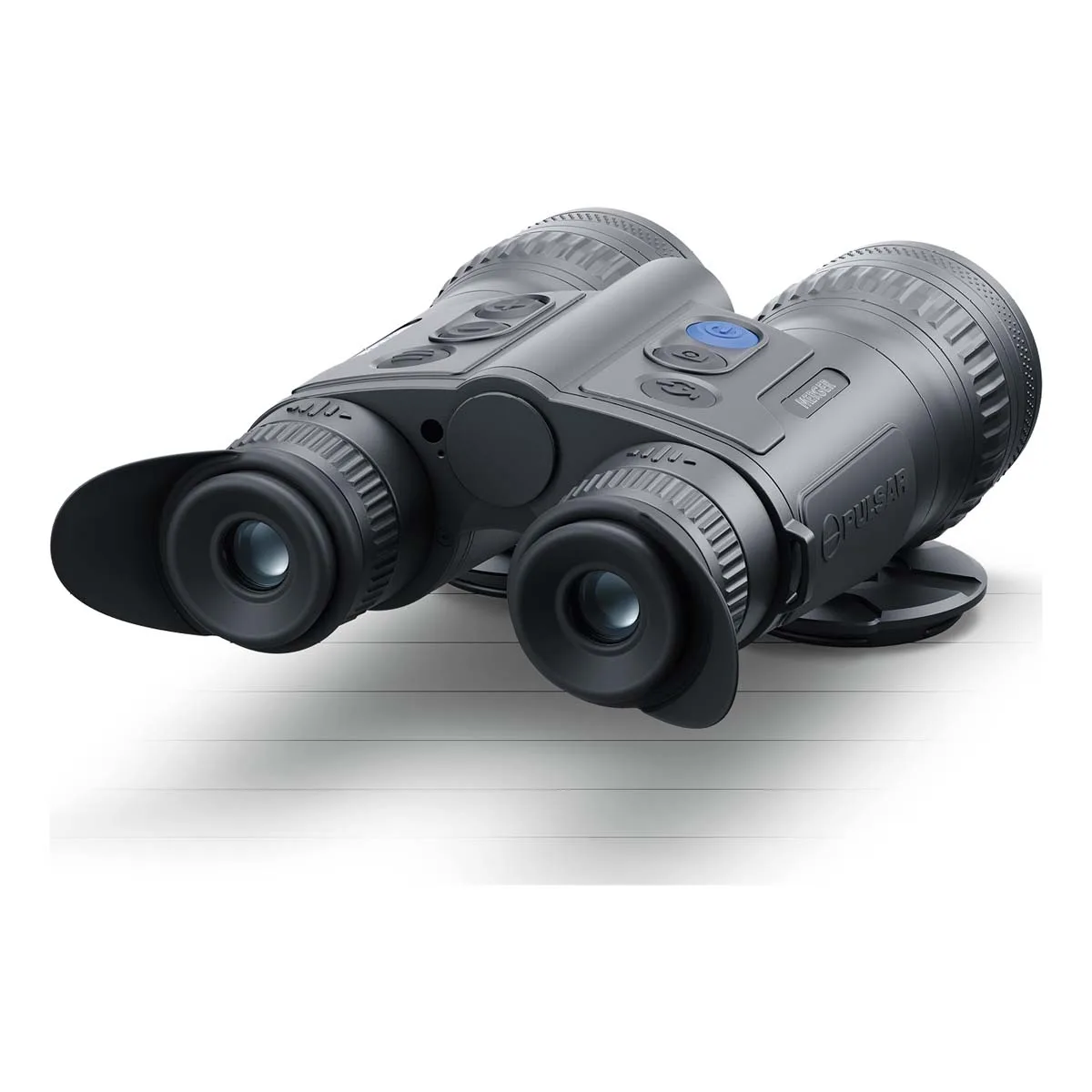

Pulsar Merger DUO NXP50 Multispectral Thermal Binoculars

Pulsar Merger DUO NXP50 Multispectral Thermal/Digital Binoculars (PUL-77455)

The Merger Duo NXP50 provides users with the detection capabilities of a powerful thermal imaging device and the identification capabilities of a fully-fledged digital night vision device. Plus, with combined viewing mode and Picture-in-Picture, users can even evaluate the terrain around them via the digital night vision channel whilst identifying an observed animal’s anatomical features through the thermal channel.

Key Features:

• Unprecedented Thermal Performance

  • 640×480 resolution, 17 µm, <30mK NETD sensor.
  • Detects heat signatures up to 1800m.
  • 50mm f1.0 germanium objective lens for excellent thermal optics.

• Full-HD Digital Night Vision

  • 1920×1200 CMOS sensor for stunning digital night vision.
  • Highlights silhouettes and anatomical features of observed animals.

• Advanced Image Processing

  • Proprietary Image Boost algorithms for enhanced image clarity and contrast.
  • Improves detection in low-contrast environments and under poor conditions.

• IR Illuminator Included

  • Invisible 940 nm IR illuminator with three-step power adjustment.
  • Adjustable spot position for enhanced illumination control.

• Up to 10 Hours of Battery Life

  • Dual-battery system: built-in 4 Ah and replaceable 3.2 Ah battery.
  • Long operational time with easy battery replacement in the dark.

• Power-Saving Proximity Sensor

  • Auto standby mode when the binoculars are moved away from the face.
  • Screen automatically reactivates when brought back to the eyes.

• User Mode

  • Custom brightness and contrast settings.
  • Save settings in internal memory for easy retrieval.

• Designed for User Comfort

  • Lightweight, ergonomic design for comfortable long-term use.
  • Six function buttons for easy access to key features.

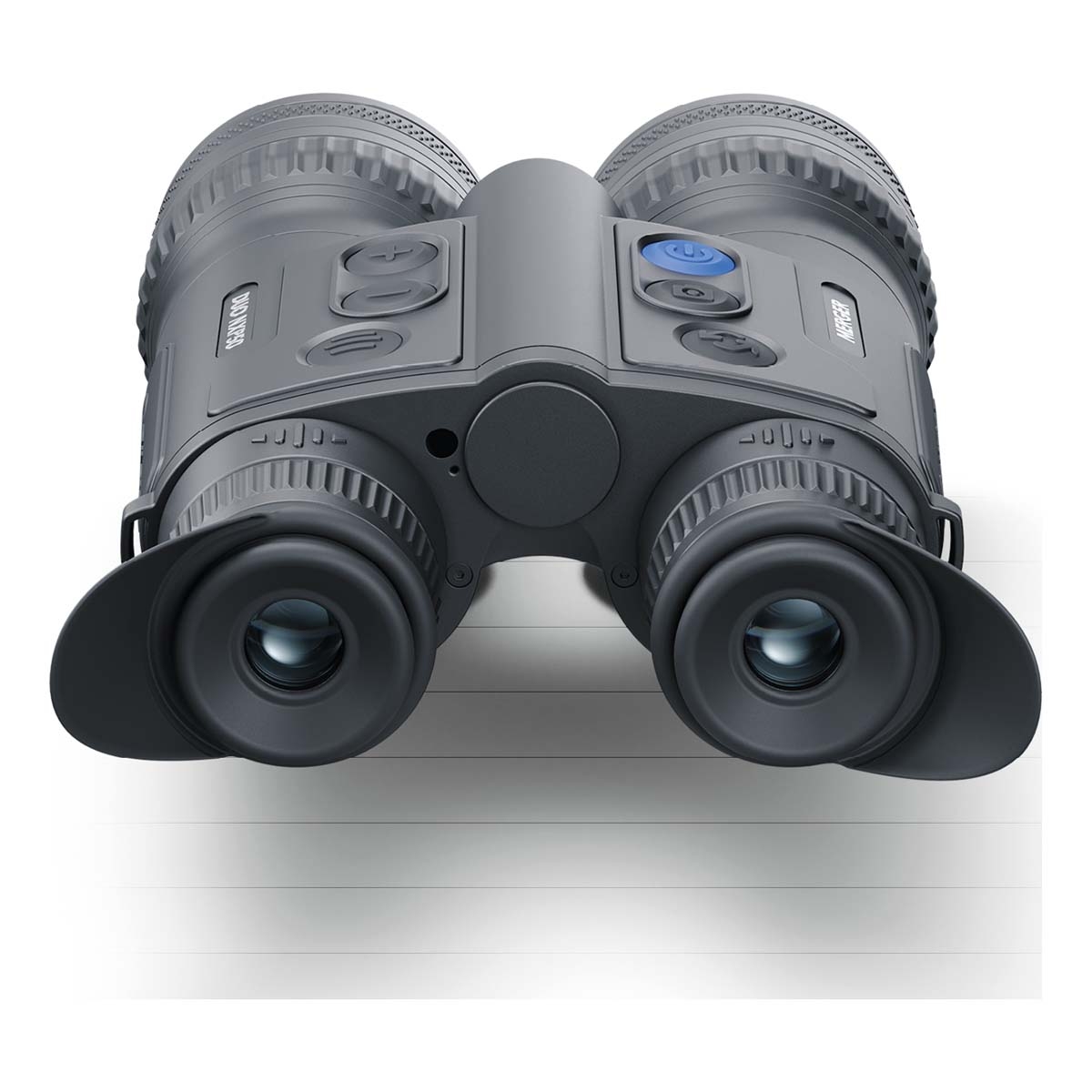

• Adjustable Interpupillary Distance

  • Interpupillary distance adjustable from 62mm to 74mm for improved comfort.

• Ergonomically Designed Carry Case Included

  • Case with optimal belt positioning for comfort and mobility.
  • Suitable for attaching to MOLLE equipment or a waist belt.

• 8 Colour Palettes

  • Color options including White Hot, Black Hot, Red Hot, and more for optimal observation.

• Robust & Durable Design

  • Magnesium alloy housing for protection against shocks, drops, moisture, and temperature extremes.
  • Acts as a heat sink for consistent operation.

• IPX7 Waterproof

  • Waterproof up to 1m for 30 minutes.

• Operating Temperature Range

  • Functional in temperatures from -25°C to +50°C.

• Built-In Video Recorder

  • 16GB internal memory for storing photos and videos.
  • Transfer footage via USB-C or Stream Vision 2 app.

• Built-In Wi-Fi Module

  • 2.4/5 GHz dual-band support for better connectivity.
  • Seamless smartphone or tablet connection for remote control and media sharing.

• Stream Vision 2

  • Remote control via mobile app.
  • Firmware updates and content browsing/sharing features via Stream Vision 2 app.

Specifications:

• Thermal Sensor: 640×480, 17µm, <25mK NETD uncooled, microbolometric
• Digital Sensor: 1920×1200 Full-HD CMOS
• Frame Rate: 50 Hz
• Objective Lens: 50mm f1.0 (thermal) | 50mm f1.4 (digital)
• Magnification: 3-24x (thermal) | 1.5-12x (digital)
• FOV: 12.4×9.3 / 21.8×16.4 (thermal channel on minimal magnification) | 21.1×16.3 / 16.4×12.3 (digital channel on minimal magnification)
• Eye Relief: 12 mm
• Display: 1280×960 HD AMOLED
• IR Illuminator Emitter: LED
• IR Wavelength: 940 nm
• IR Optical Power: 500 mW
• Beam Divergence (Degree): ≥ FOV
• IR Spot Position Adjustment: Yes
• Detection Range: 1800m (thermal)
• Video Recorder: Yes, with sound
• Video Resolution: 1280×960
• Video / Photo Format: .mp4/.jpg
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz
• Degree of Protection: IPX7 (waterproof)
• Operating Temperature Range: -25 to +50°
• Output Voltage: 3.0 to 4.2 V
• Battery Type: Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h) and built-in battery pack (4.0 A·h)
• Battery Capacity: 3200 mAh (external) & 4000 mAh (internal)
• Operating Time 7.5 hours (at t=22°)
• External Power Supply: 5V, 9V (USB Type-C Power Delivery)
• Body Material: Magnesium alloy
• Dimensions: 207x140x73 mm
• Weight: 1200 g (with batteries)
• SKU: PUL-77455
