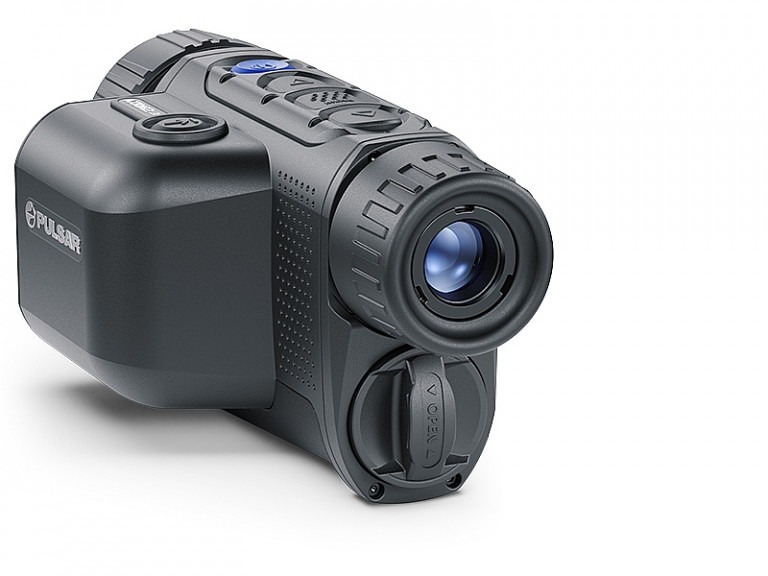

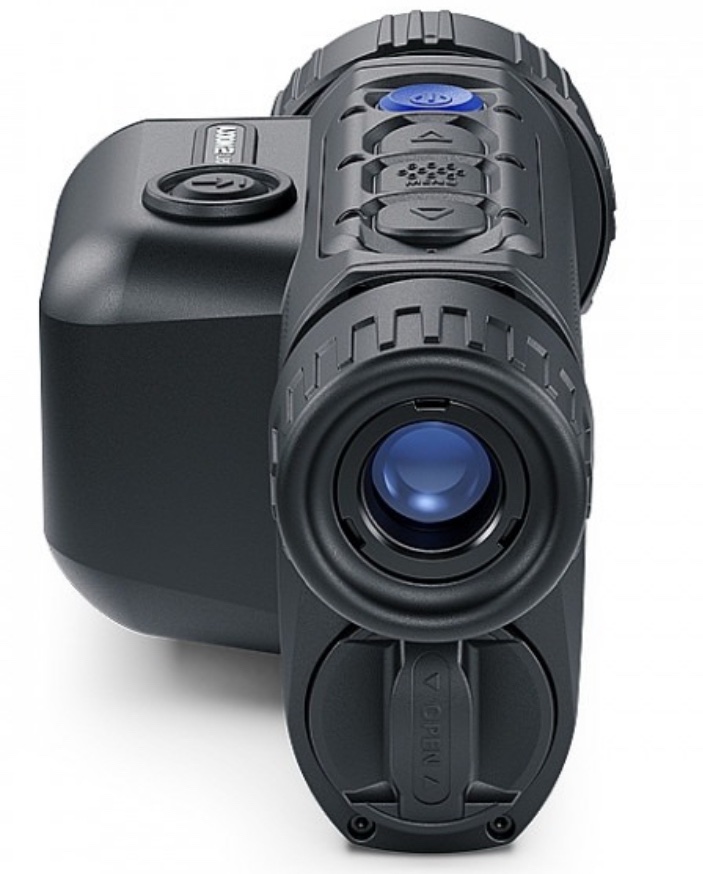

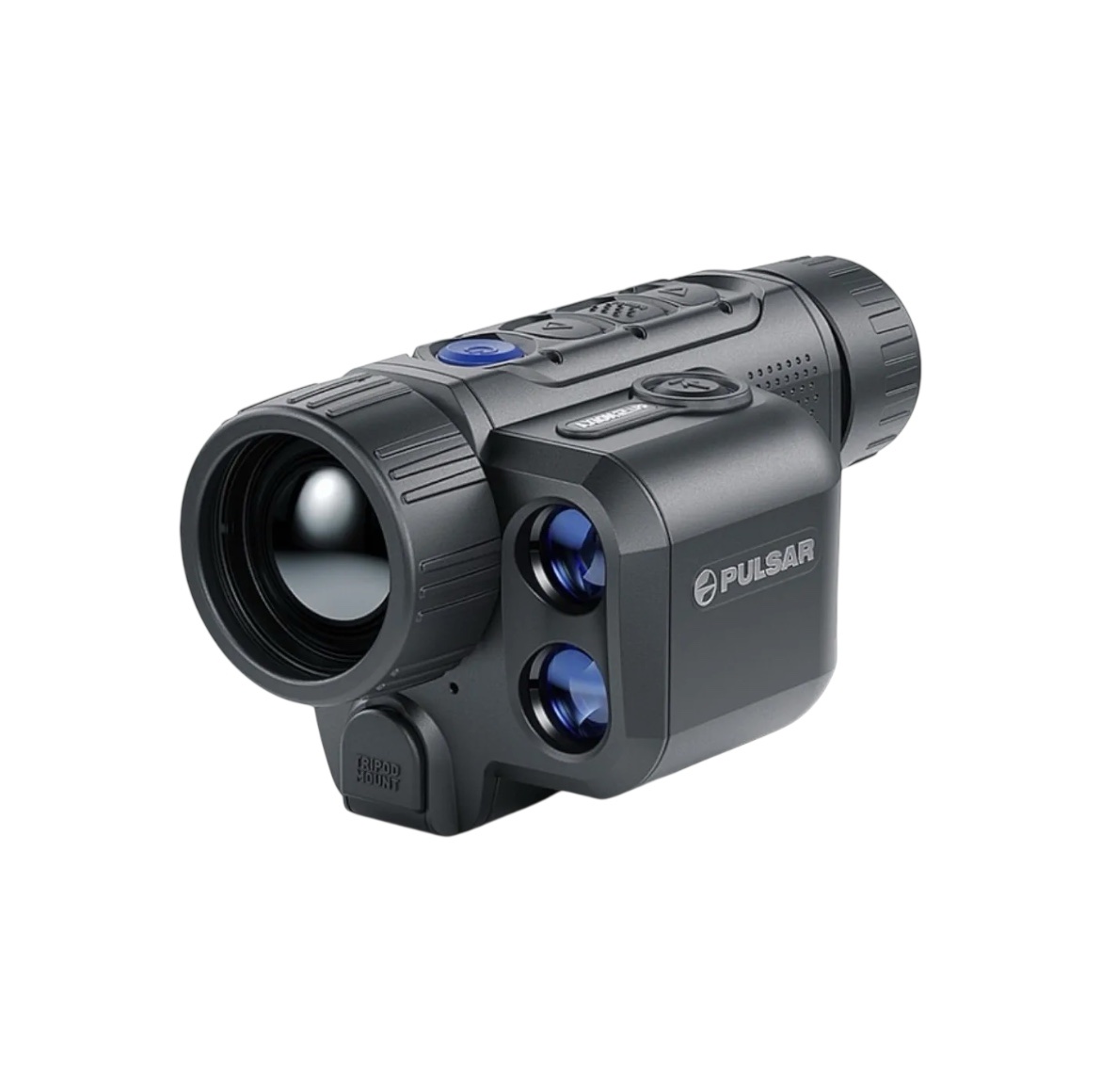

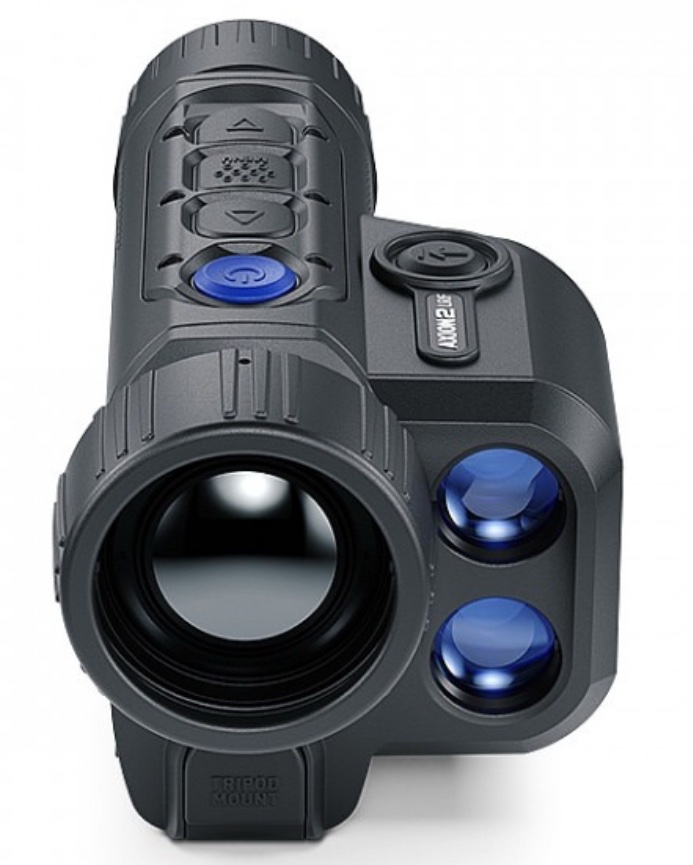

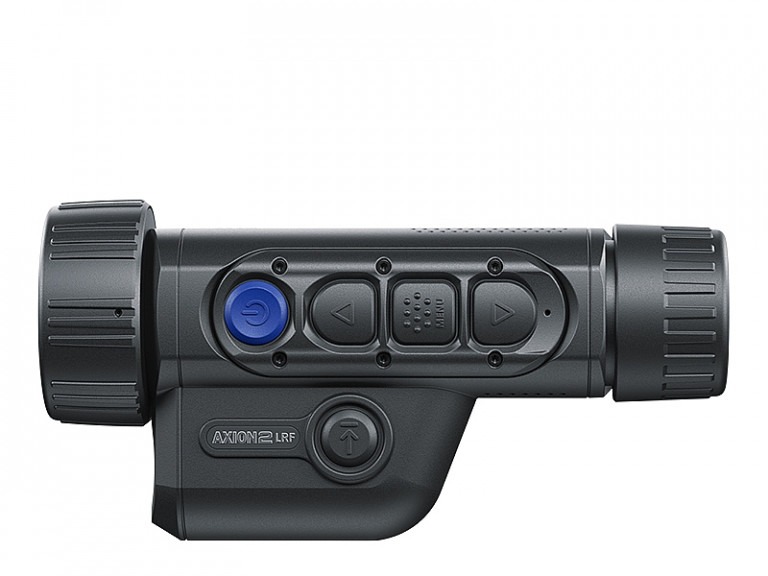

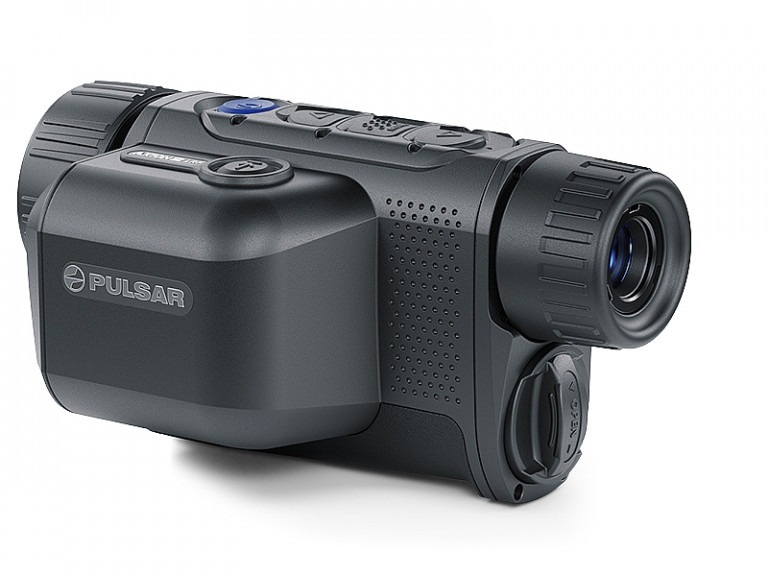

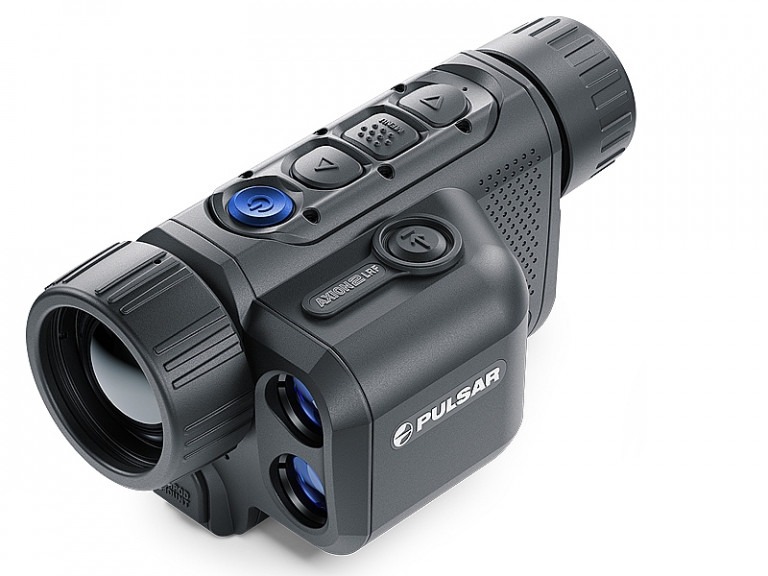

Pulsar AXION 2 LRF XQ35 PRO Monocular

Pulsar AXION 2 LRF XQ35 Monocular (PUL-77502)

The Pulsar Axion 2 LRF XQ35 Pro enhances the Axion 2 series with a cutting-edge <25mK NETD sensor, delivering superior thermal sensitivity. Featuring a 384×288 17µm resolution and an F1.0 aperture, this compact thermal monocular detects heat signatures up to 1300m with precision.

Built with the same rugged, ergonomic chassis as its predecessor, it offers up to 11 hours of battery life for extended field use. Additionally, the integrated 1000m laser rangefinder provides precise distance measurements with ±1m accuracy, making it a reliable tool for outdoor and tactical applications.

Key Features:

• Sensor: 384×288, 17µm, <25 mK NETD thermal sensor
• Lens: 35mm f1.0 germanium objective lens
• Battery Life: Up to 11 hours on a single charge
• Design: Compact, lightweight, and ambidextrous
• Detection Range: Up to 1300m in total darkness
• Laser Rangefinder: Measures distances up to 1000m with ±1m accuracy
• Magnification: 2x – 8x with gradual or continuous zoom
• Fast Aperture Lens: 35mm f1.0 for high infrared transmission
• Enhanced Image Processing: Signal amplification, brightness, contrast adjustment
• Material: Magnesium alloy housing (lightweight and strong)
• IPX7 Waterproof: Withstands immersion in 1m of water for 30 minutes
• Heat Dissipation: Reduces image noise, increases operational consistency
• AMOLED Display: High-contrast VGA-resolution for smooth, clear images
• Picture in Picture (PiP) Mode: Zoomed-in frame while retaining full field of view
• 8 Colour Palettes: Optimized for detection, recognition, and prolonged observation
• Built-in Video & Still Image Recording: Stores hours of video and thousands of images
• Wi-Fi & Stream Vision 2: Connects to mobile devices for remote viewing, updates, and storage
• Dual Wi-Fi Band (2.4 GHz & 5 GHz): Improved connection stability and faster data transfer
• Cloud Storage: 16GB of free space for media storage

Specifications:

• Sensor: 384×288 pix. @ 17 µm (NETD <25 mK)
• Objective Lens: F35 / 1.0
• Magnification: 2 – 8x (4x zoom)
• Field of View (HxV): 10.7х8° / 18.2×13.7 m @ 100m
• Detection Range: 1300m

Sensor:

• Type: Uncooled
• Resolution: 384×288 pixels
• Pixel Pitch: 17 µm
• NETD: <25 mK
• Frame Rate: 50 Hz

Optics:

• Objective Lens: F35 / 1.0
• Magnification: 2 – 8x (4x zoom)
• Field of View (HxV): 10.7х8° / 18.2×13.7 m @ 100m
• Eye Relief: 14 mm

Display:

• Type: AMOLED
• Resolution: 640×400 pixels
• Detection Range: 1300m

Laser Rangefinder:

• Safety Class: IEC 60825-1:2014 (Class 1)
• Wavelength: 905 nm
• Maximum Measuring Range: 1000m
• Measurement Accuracy: ±1m

Video Recorder:

• Video/Photo Resolution: 528×400 pixels
• Video/Photo Format: .mp4 / .jpg
• Built-in Memory: 16 GB

Wi-Fi:

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz

Bluetooth:

• Wireless Protocol: Not available
• Wireless Standard: Not available
• Frequency: Not available

Environmental Characteristics:

• Protection Rating: IPX7 (Waterproof)
• Operating Temperature: -25°C to +40°C

Connections and Compatibilities:

• Mount Type: 1/4″
• Remote Control: Not available
• Supported Application: Stream Vision 2

Power Supply:

• Output Voltage: 3.0 – 4.2V
• Battery Type: APS 5 Li-ion Battery Pack
• Battery Capacity: 4900 mAh
• Battery Life (at 22°C): Up to 11 hours
• External Power Supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size:

• Body Material: Magnesium Alloy
• Dimensions: 152x74x75 mm
• Weight: 0.47 kg (with APS5 battery)

• SKU: PUL-77502
