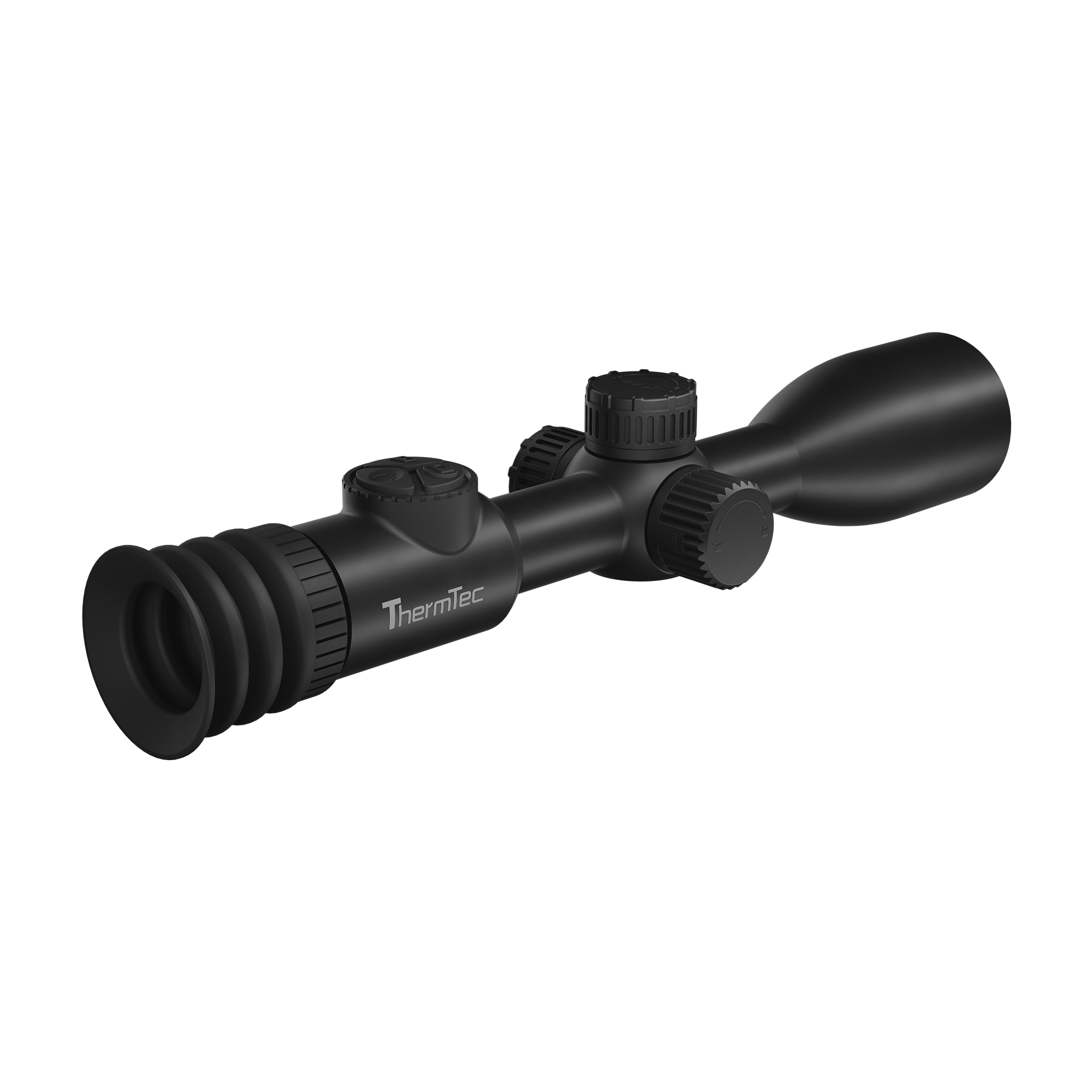

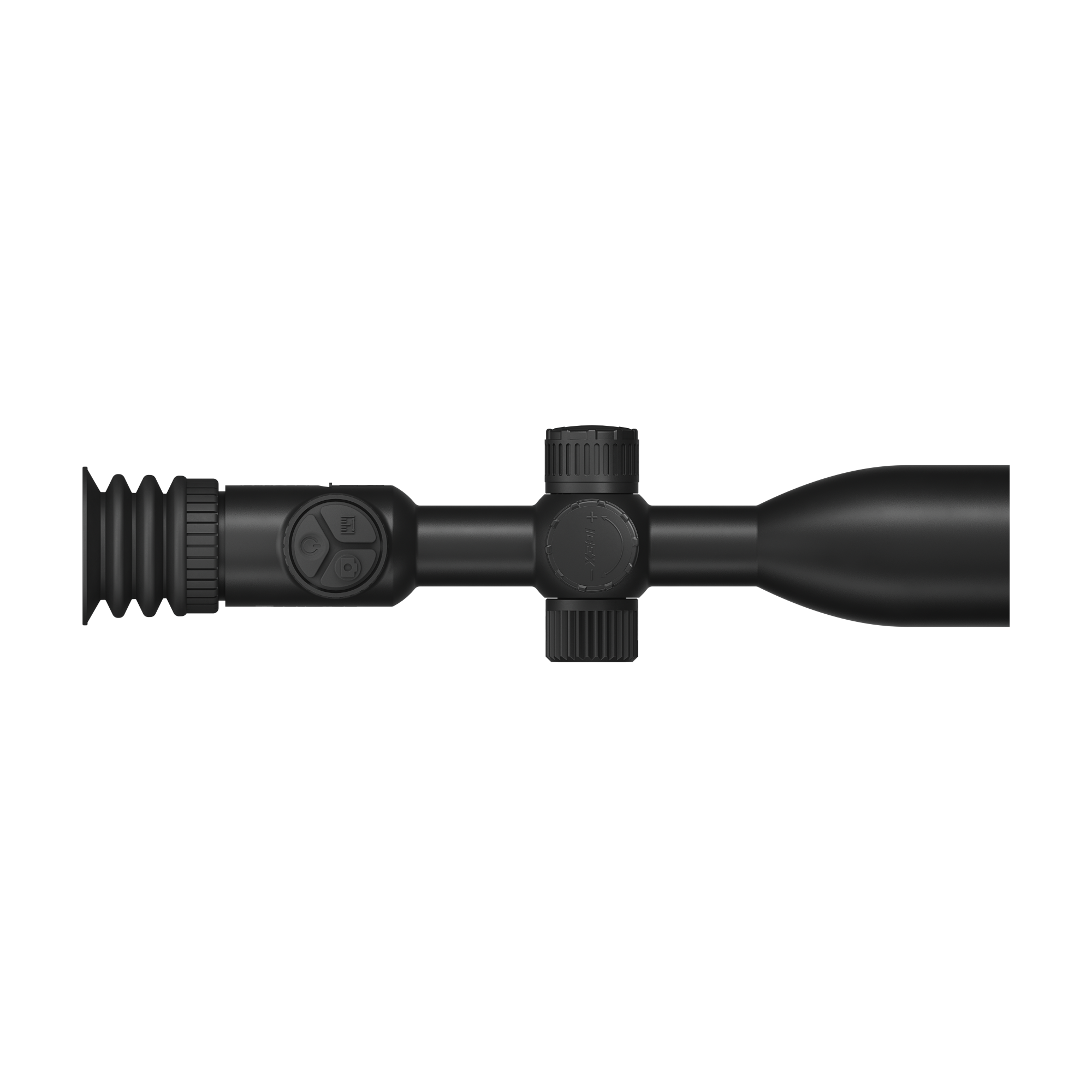

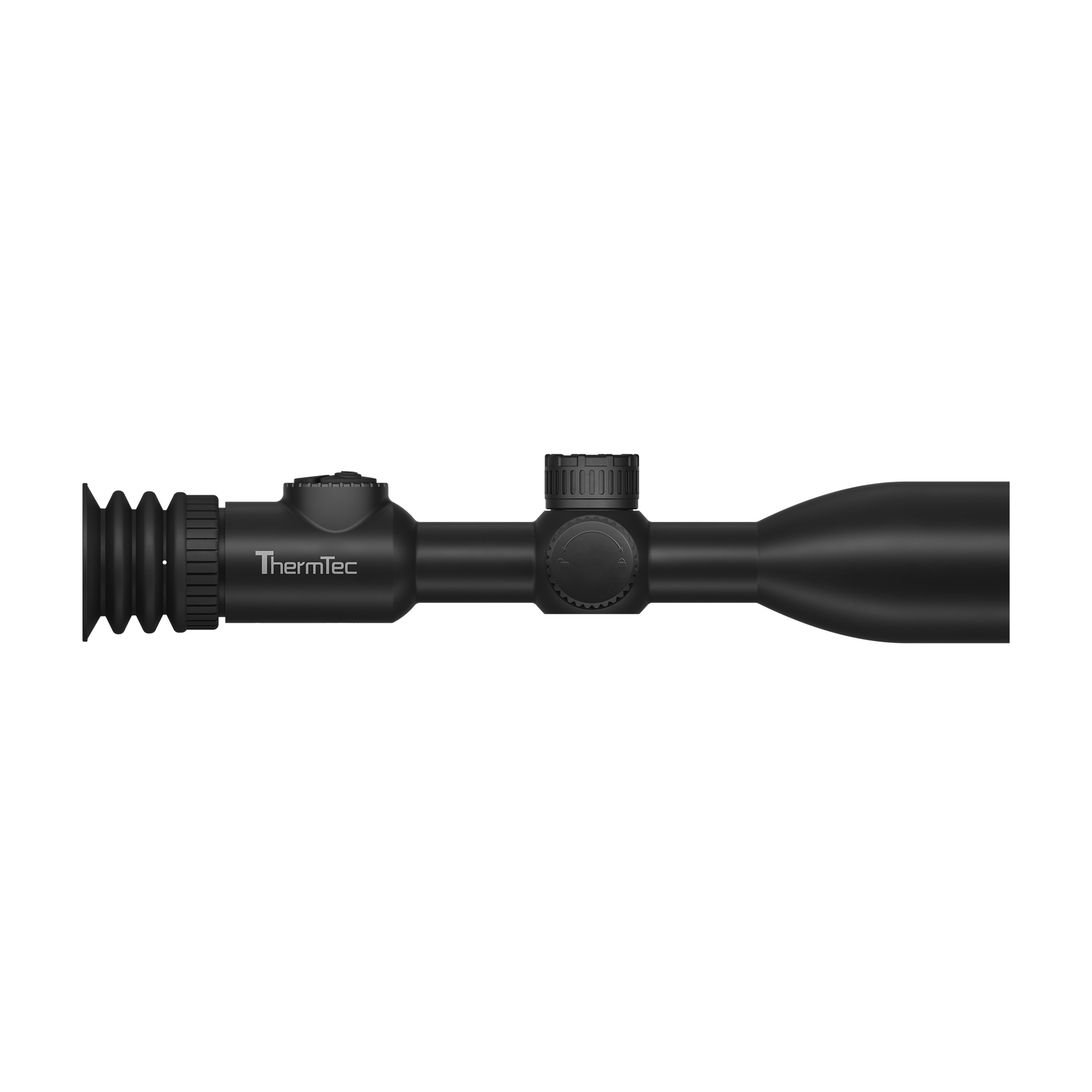

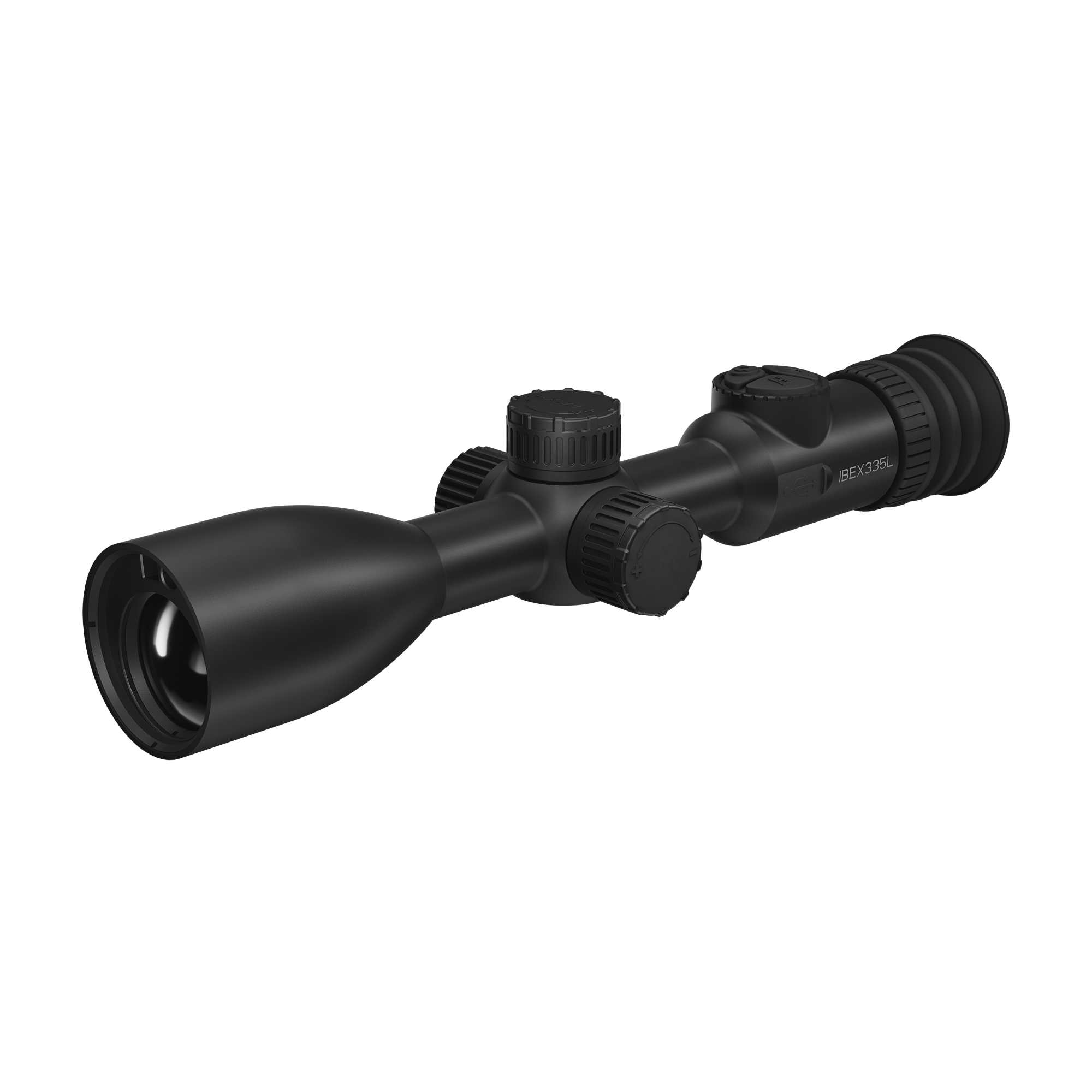

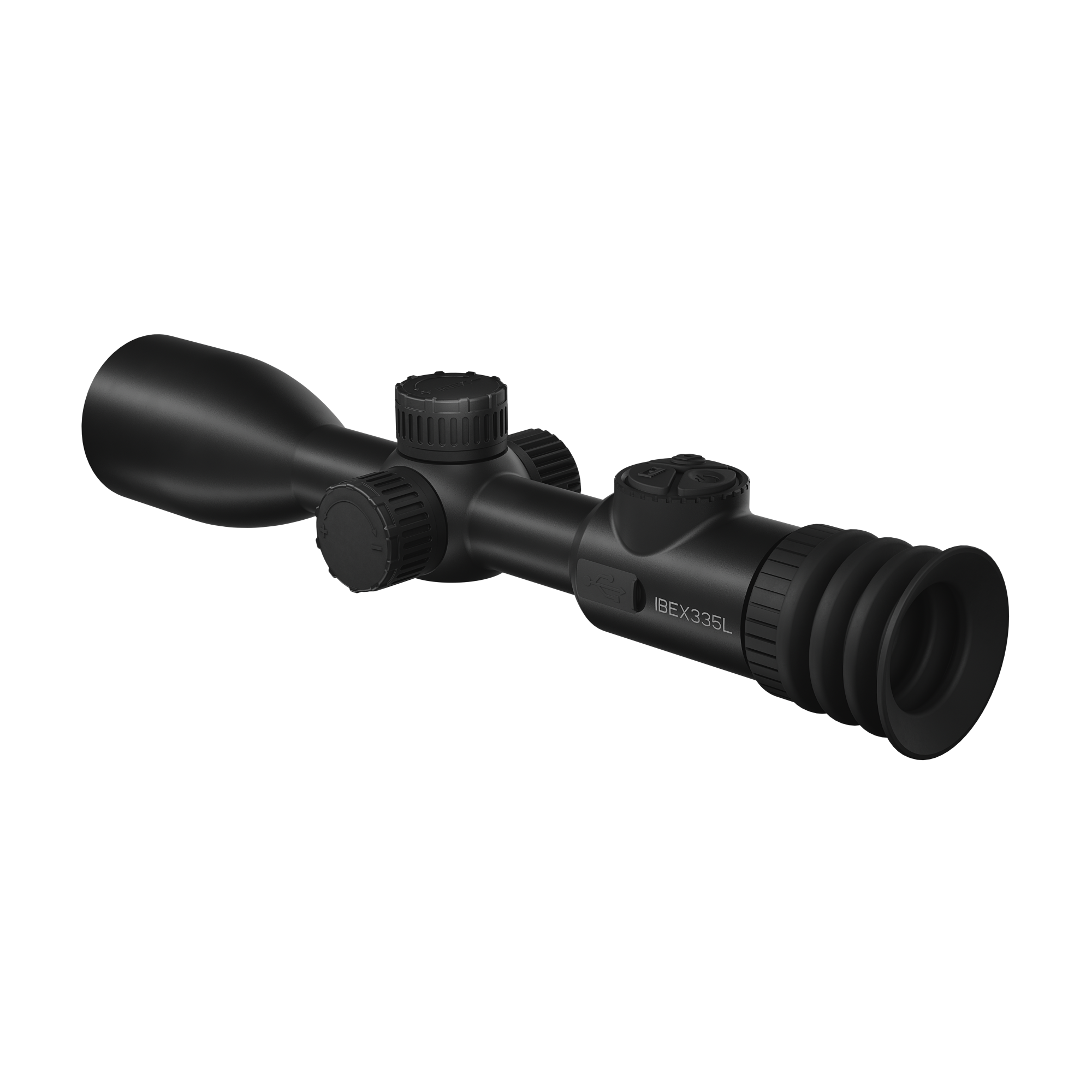

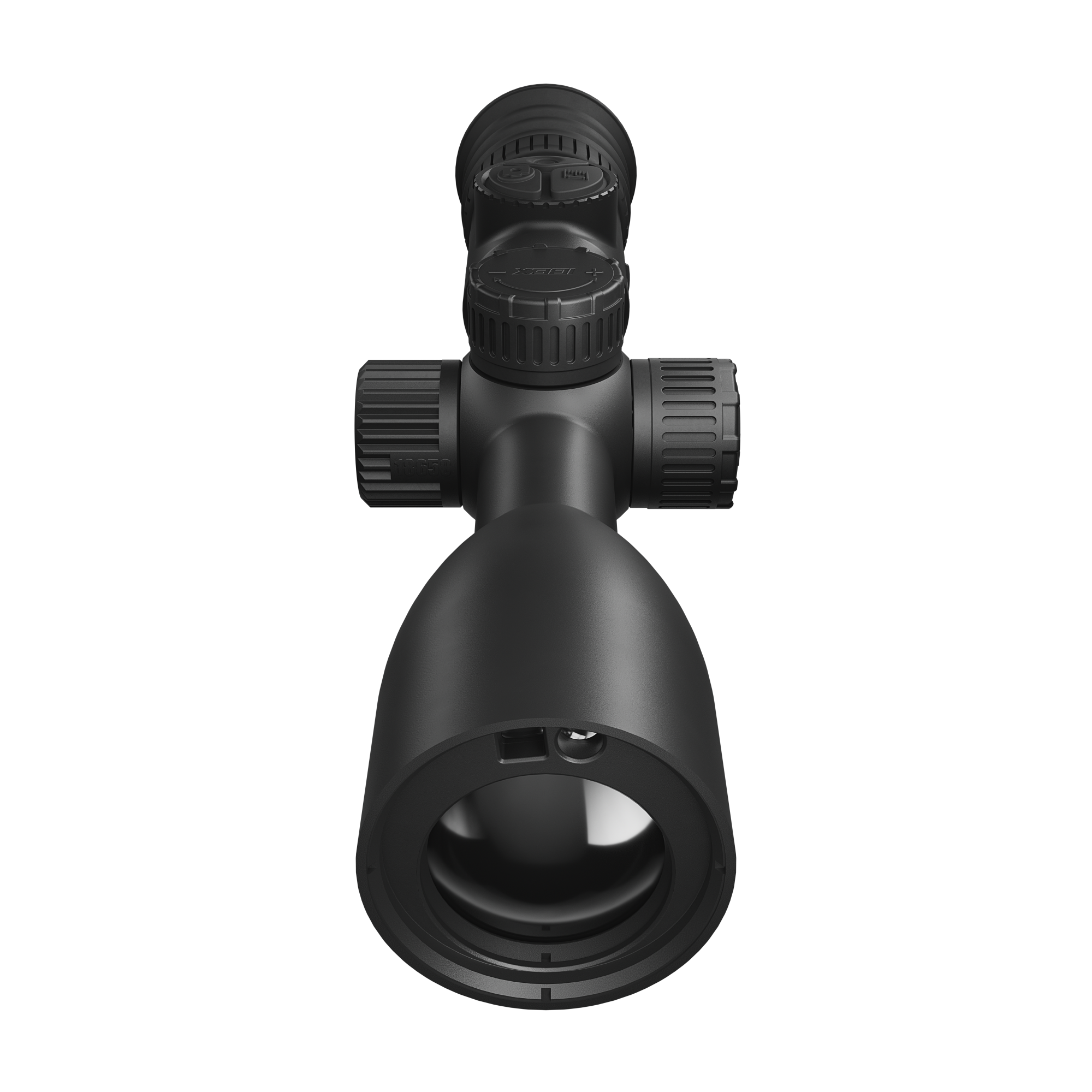

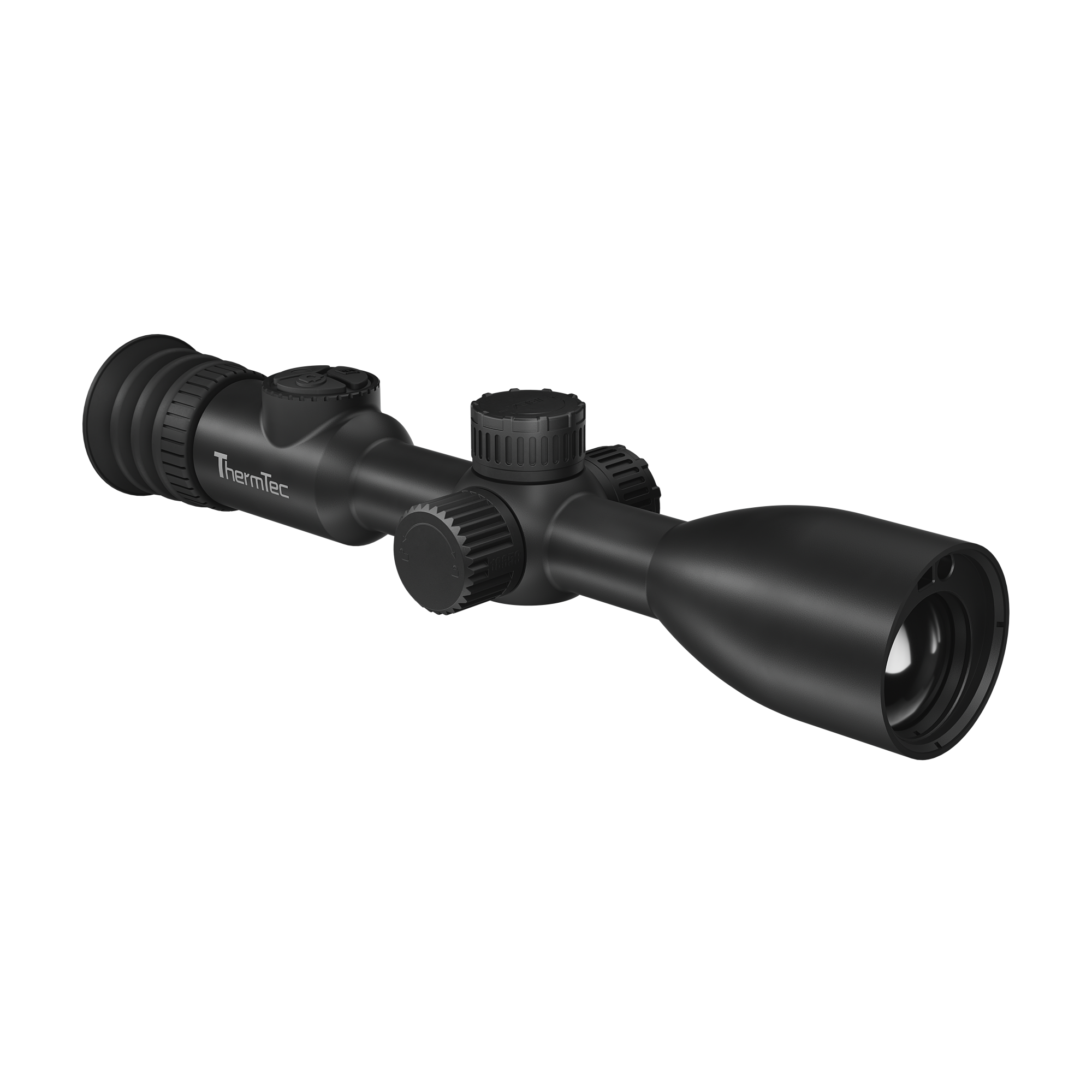

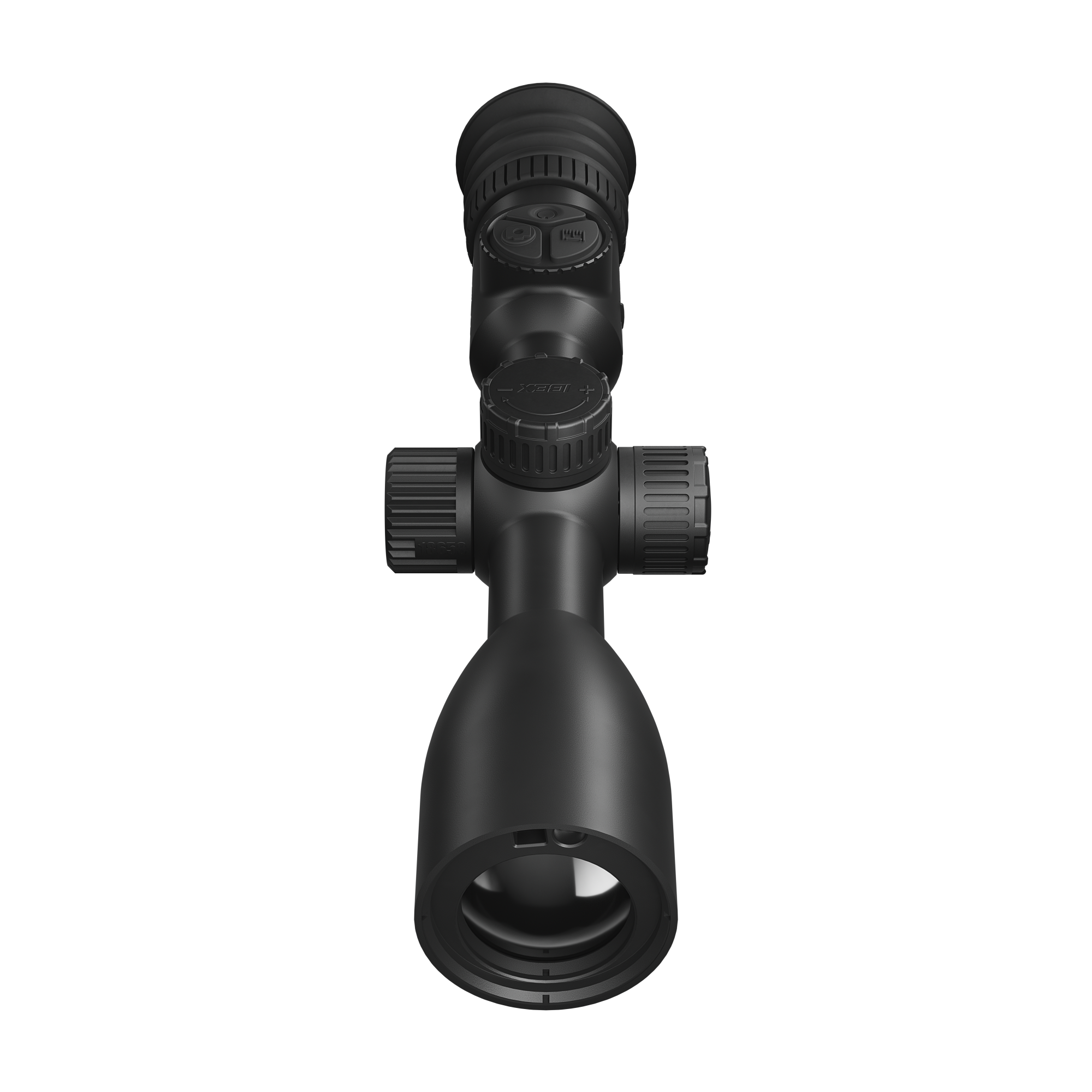

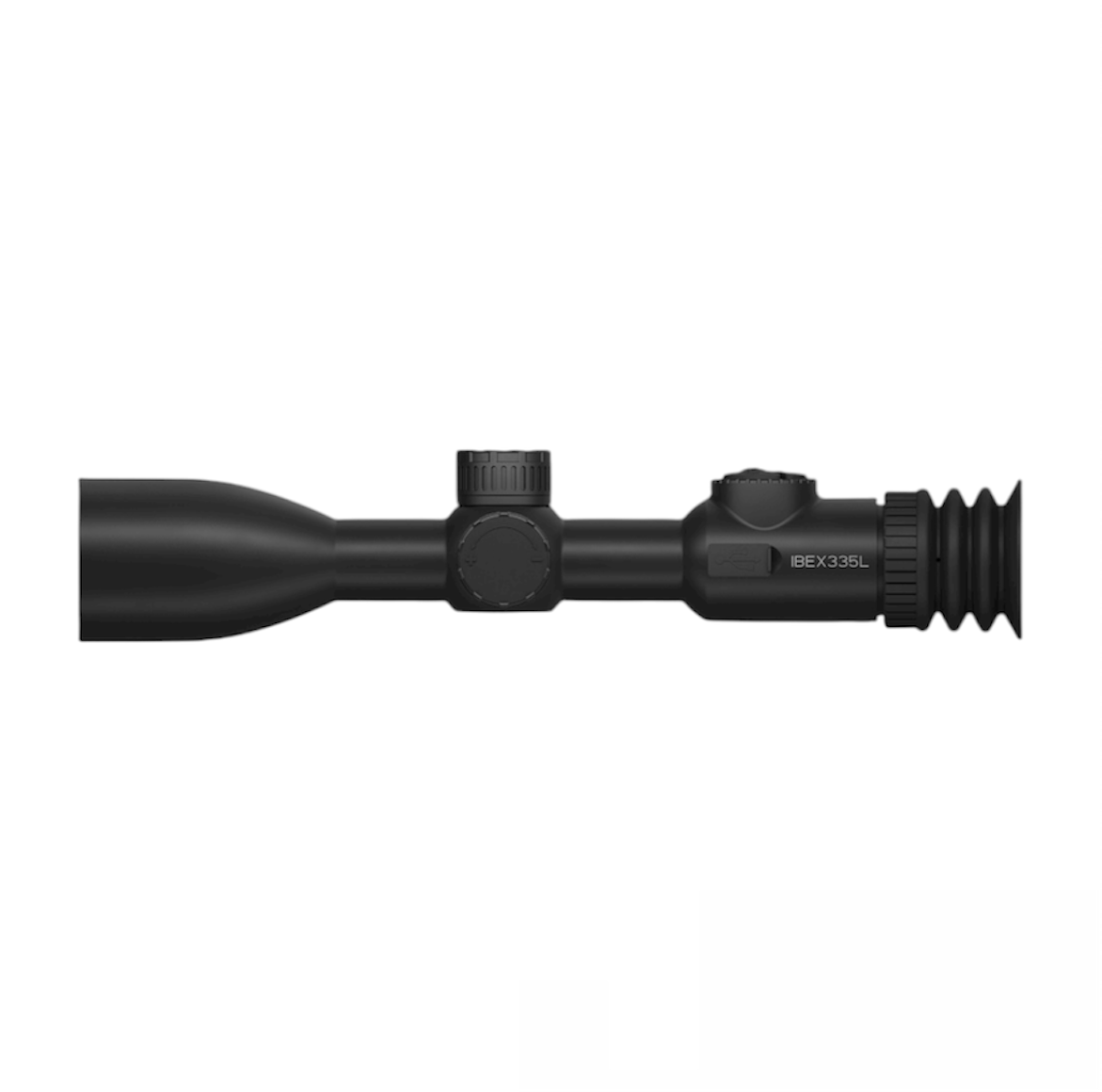

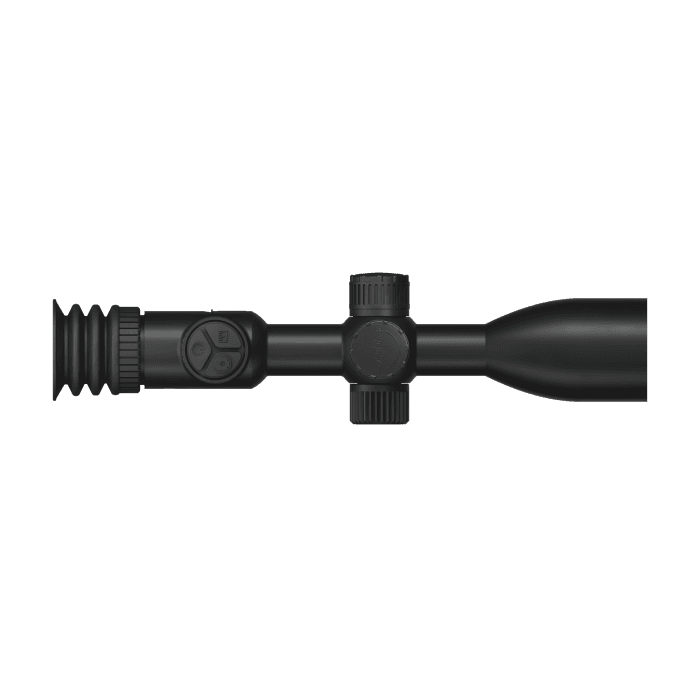

ThermTec iBEX 335L Thermal Riflescope

Original price was: £1,389.00.Current price is: £1,299.00.

The ThermTec iBEX 335L is a standalone thermal riflescope with an integrated laser rangefinder, so you can view a heat signature and take a distance reading through the same eyepiece. Its 384×288, 12µm sensor (NETD <18mK) and 35mm objective give a 3.7x base magnification and a 7.5° × 5.7° field of view on a 1600×1200 AMOLED display. It runs on a replaceable 18650 battery and fits standard 30mm rings.

  • Call for our best prices
  • Visit us to explore our product range
  • Apple Pay / Google Pay / PayPal
  • Free UK shipping on orders of £120 or more
  • Secure checkout

Write a review

0% Finance with £0 Deposit — Pay with Humm at Checkout

Amount of credit: £0.00

Monthly: £0.00

Total repayable: £0.00

Interest paid: £0.00

APR: 0.0% APR

Figures are for illustration only. Final finance is subject to status and provided by Ideal4Finance.

Description

Thermal sighting and distance measurement in one 35mm scope

The iBEX 335L combines a thermal imaging core and a laser rangefinder in one riflescope body. You can locate a warm subject, take a distance reading and keep the subject in view through the same eyepiece, without switching to a separate handheld rangefinder.

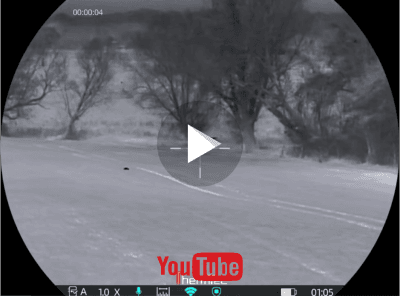

Themtec Ibex 335L

Because the 335L images heat rather than reflected light, it does not rely on an infrared illuminator to form its picture after dark. That is the key practical difference from many digital night vision scopes. If you are still weighing up the two technologies, our thermal rifle scopes category brings the thermal options together for comparison.

iBEX 335L specifications

Specification iBEX 335L
Type Standalone thermal riflescope with integrated laser rangefinder
Thermal sensor 384 × 288
Pixel pitch 12µm
Thermal sensitivity (NETD) <18mK
Refresh rate 50Hz
Objective lens 35mm
Base magnification 3.7x
Digital zoom 1–4x
Field of view 7.5° × 5.7°
Display AMOLED, 1600 × 1200
Detection range (manufacturer advertised) Up to 1800m
Laser rangefinder measuring range (manufacturer specification) Up to 1000m
Battery Replaceable 18650 rechargeable
Runtime (manufacturer quoted) Up to 6 hours
Mounting interface 30mm rings
Weight 770 ±5g without battery

These figures are ThermTec’s published specification for the 335L, available in the Manufacturer iBEX datasheet. To see where this model sits among ThermTec’s other thermal optics, browse the full ThermTec range.

Base magnification, digital zoom and field of view

With its 35mm objective and 384×288, 12µm sensor, the 335L has a 3.7x base magnification and a field of view of 7.5° wide by 5.7° high. The base view is the one to scan with, since it shows the widest area.

The 1–4x digital zoom enlarges the base image electronically. A subject appears larger on screen, but digital enlargement does not add detail the sensor has not captured, so it is best used for a closer look at something you have already located at base magnification.

The 50Hz refresh rate helps keep the image smooth as you pan, and the 1600×1200 AMOLED display presents it to the eye. The NETD of under 18mK describes how finely the sensor separates small temperature differences, which matters when a subject is only slightly warmer than the ground or cover around it.

Detection range and laser ranging answer different questions

ThermTec quotes two distance figures for the 335L, and each measures something different:

  • Detection range, up to 1800m (manufacturer advertised): how far away a heat source can appear as a visible signature. Detection means a warm shape shows in the image, not that you can tell what it is.
  • Laser rangefinder, up to 1000m (manufacturer specification): the furthest distance the integrated LRF is specified to measure.

Neither figure is an identification distance. Recognising or identifying a subject generally takes a shorter distance than detecting it, depending on the subject’s size, its temperature contrast with the background and the conditions at the time.

Power and mounting

Replaceable 18650 battery

The 335L runs on a replaceable 18650 rechargeable cell, a widely used battery format. ThermTec quotes up to 6 hours of runtime; actual use varies with temperature, cell condition and the functions in use, such as the rangefinder. Because the cell can be removed, a charged spare lets you carry on during a long session rather than waiting for a recharge.

30mm ring interface and weight

The scope body takes 30mm rings. Choose a set that also suits your rifle’s rail and gives the mounting height your setup needs. The quoted 770 ±5g excludes the battery, so allow for an 18650 cell when comparing it with scopes weighed with the battery fitted.

Frequently asked questions

Is the iBEX 335L a thermal scope, or does it need an IR illuminator?

It is a thermal riflescope. It forms its image from the heat subjects give off, so it needs neither visible light nor an infrared illuminator to produce a picture in the dark. Digital night vision scopes, by contrast, generally rely on IR illumination after dark.

How far can the iBEX 335L detect, and how far can its rangefinder measure?

ThermTec advertises a detection range of up to 1800m and specifies the integrated laser rangefinder to measure up to 1000m. The first figure is how far away a heat signature can appear in the image; the second is the longest distance the rangefinder is specified to measure. Neither tells you how far away you can identify a subject.

What is the base magnification and field of view of the 335L?

The manufacturer’s datasheet gives the 335L a 3.7x base magnification and a 7.5° × 5.7° field of view. The 1–4x digital zoom then enlarges the base image up to four times, making subjects larger on screen without adding sensor detail.

Which battery does the iBEX 335L use, and how long does it run?

It uses a replaceable 18650 rechargeable battery, with a manufacturer-quoted runtime of up to 6 hours. Runtime varies with temperature, battery condition and the functions in use. As the cell is removable, carrying a charged spare is a straightforward way to extend a session.

Will the iBEX 335L fit my existing scope rings?

The scope has a 30mm ring interface, so it needs 30mm rings. If your current rings are 30mm and suit your rifle’s rail and the mounting height you need, they are the right size for the 335L. Rings made for a different tube diameter are not.
