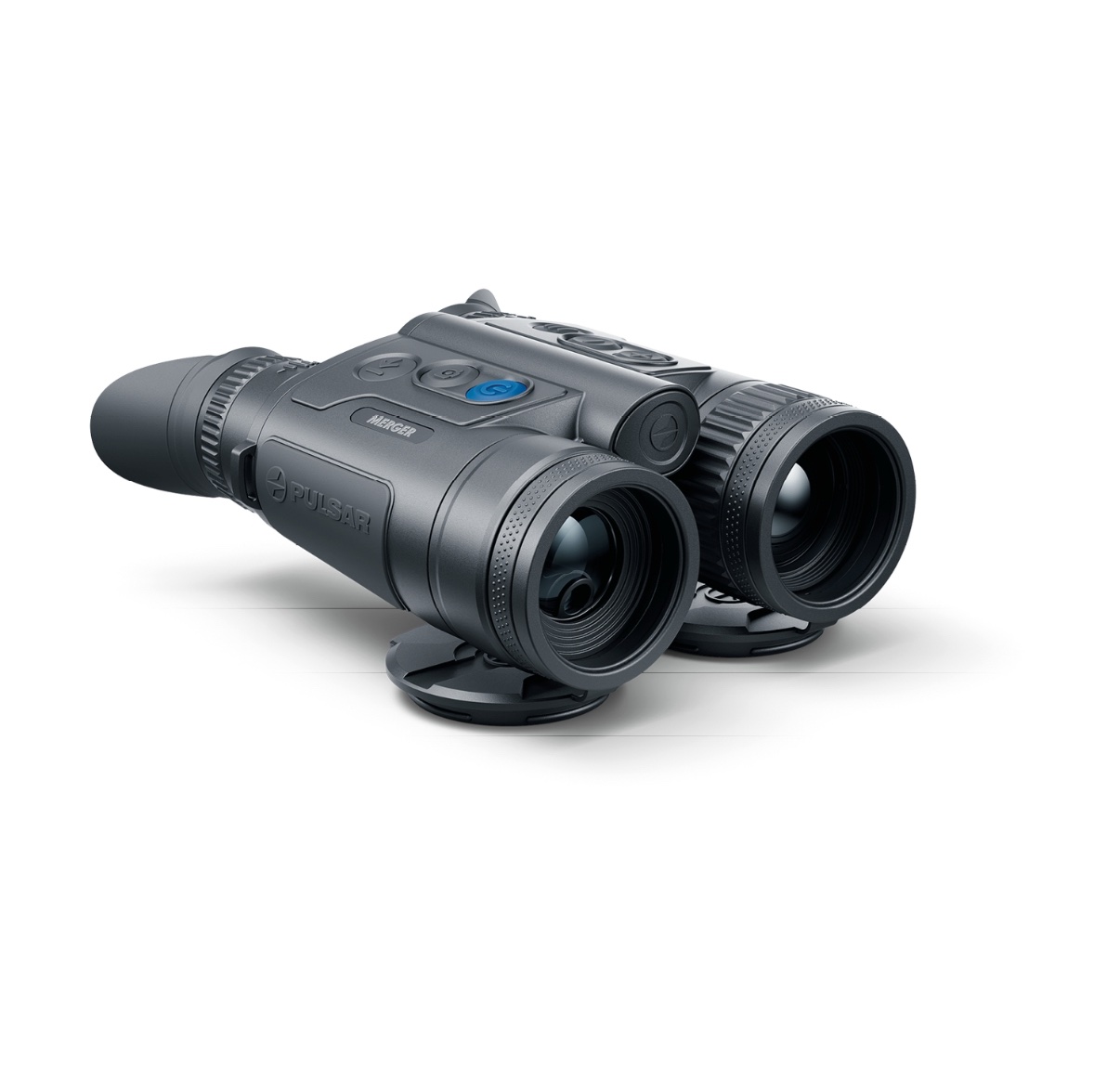

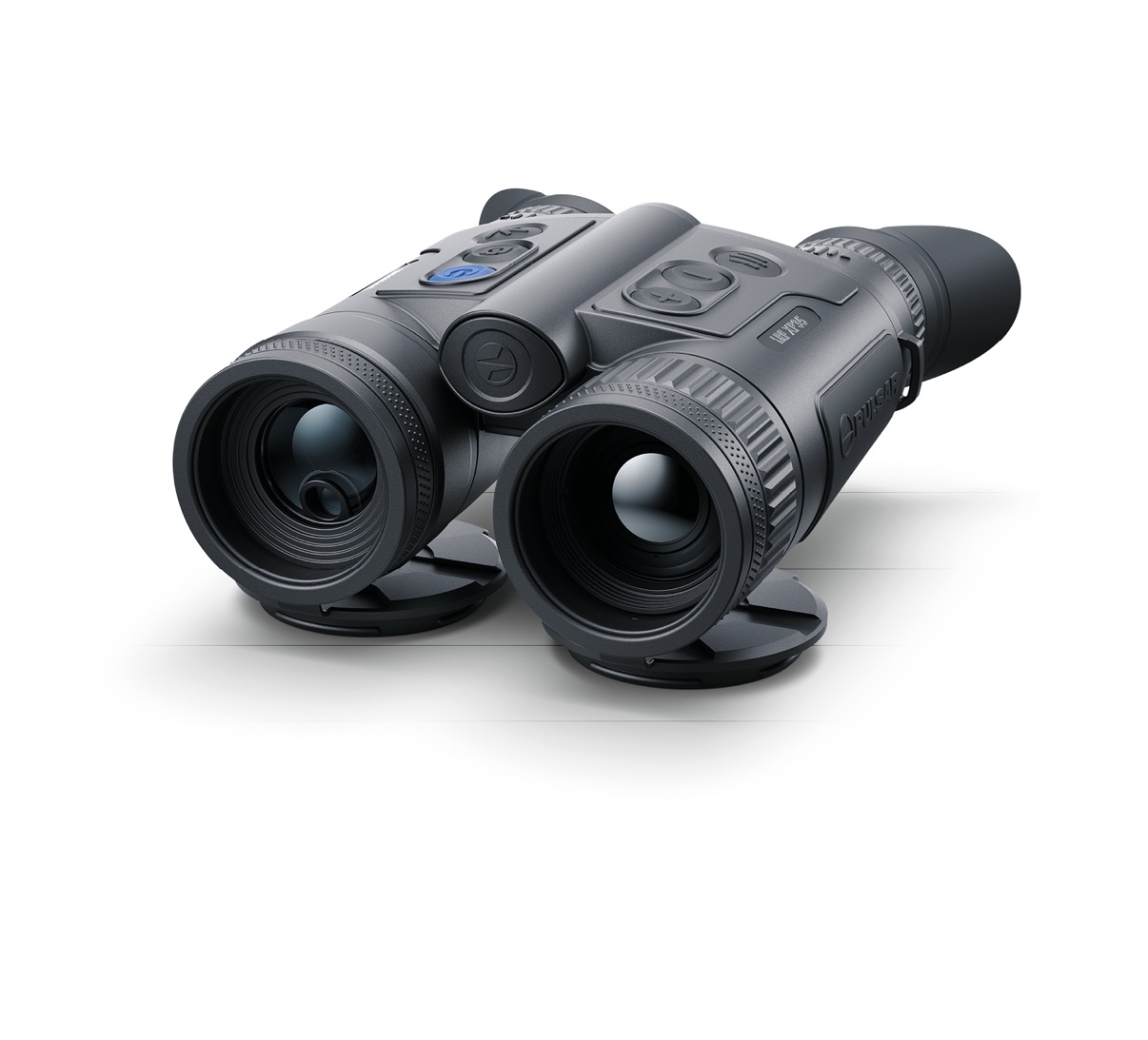

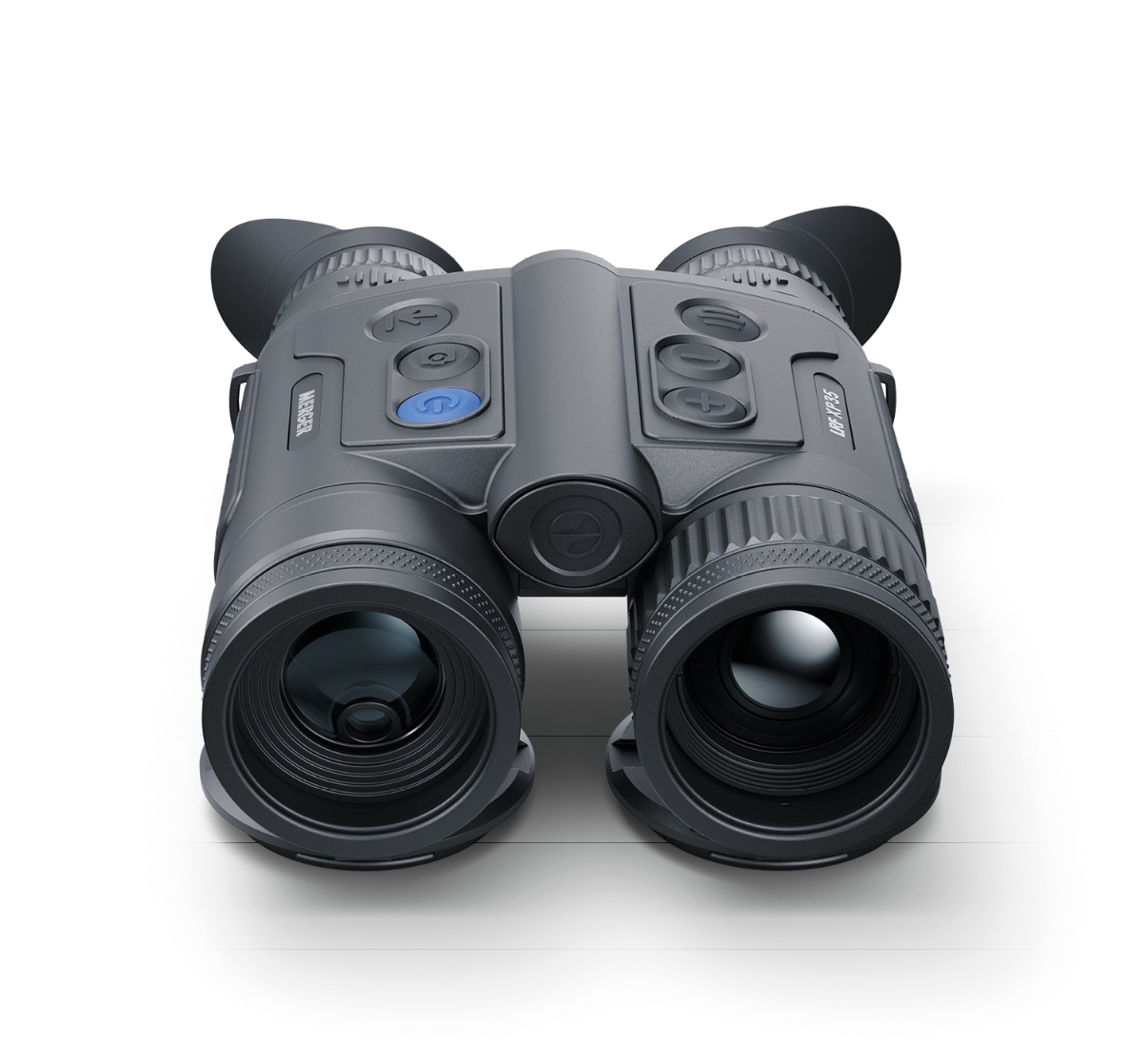

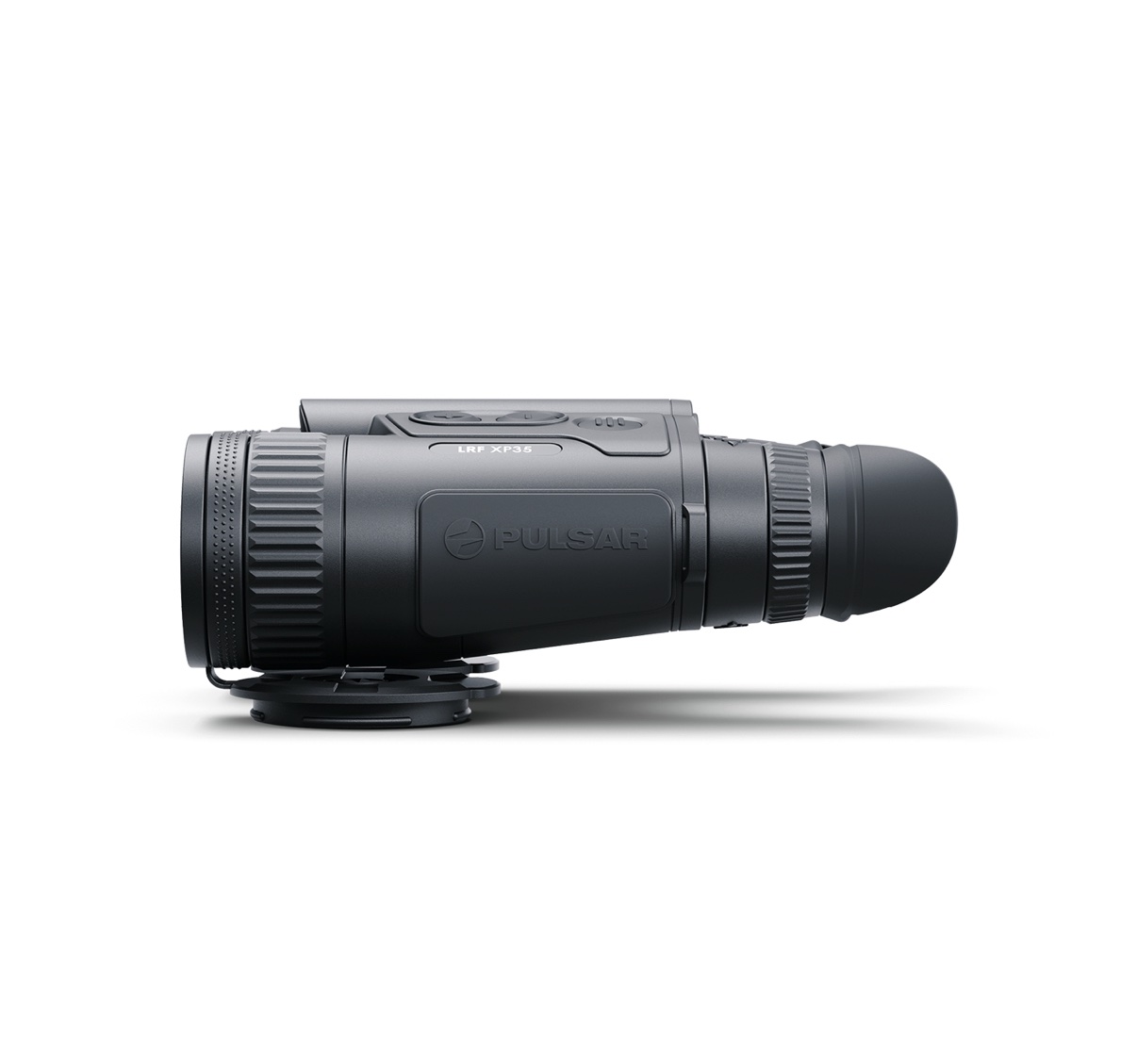

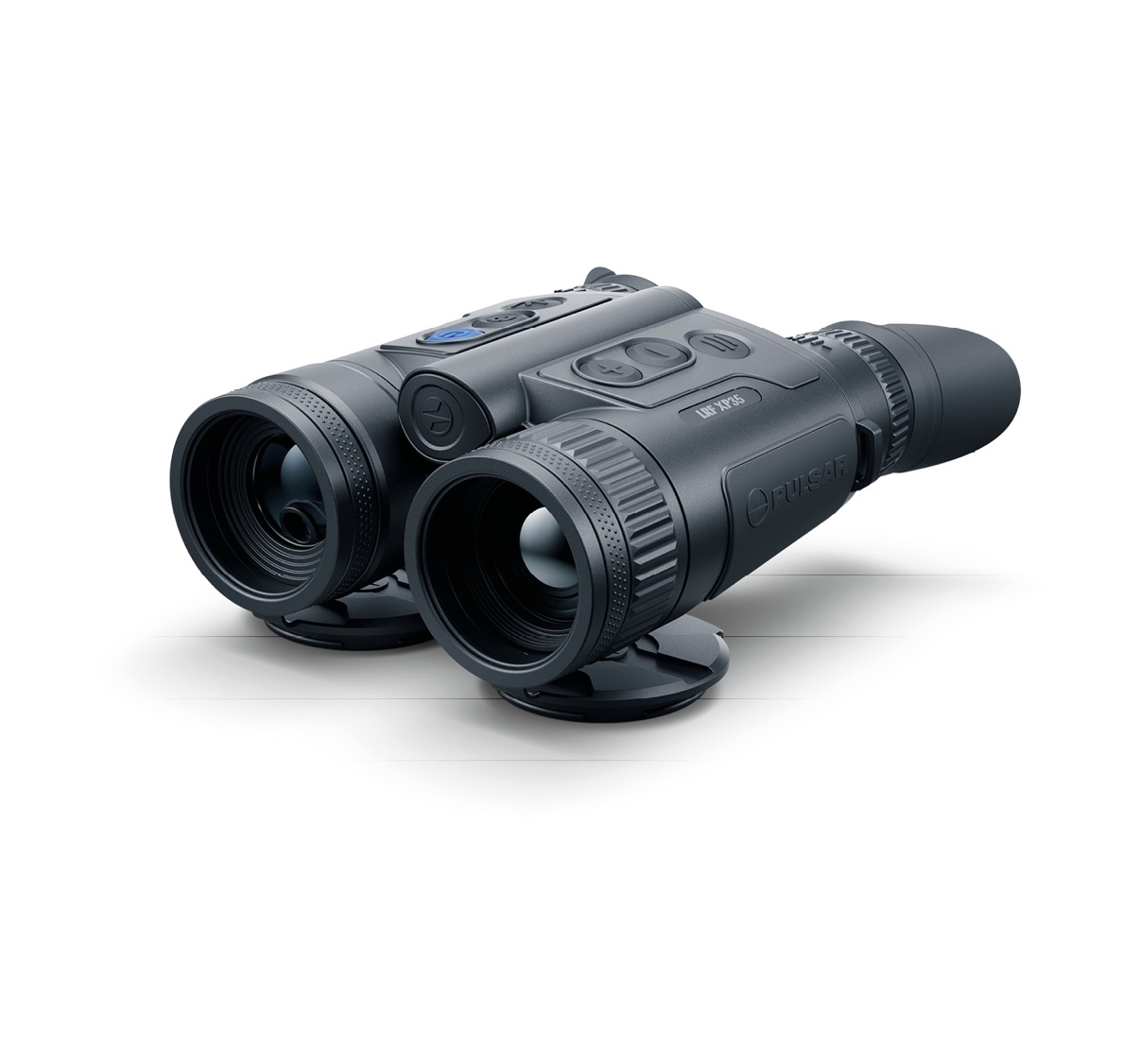

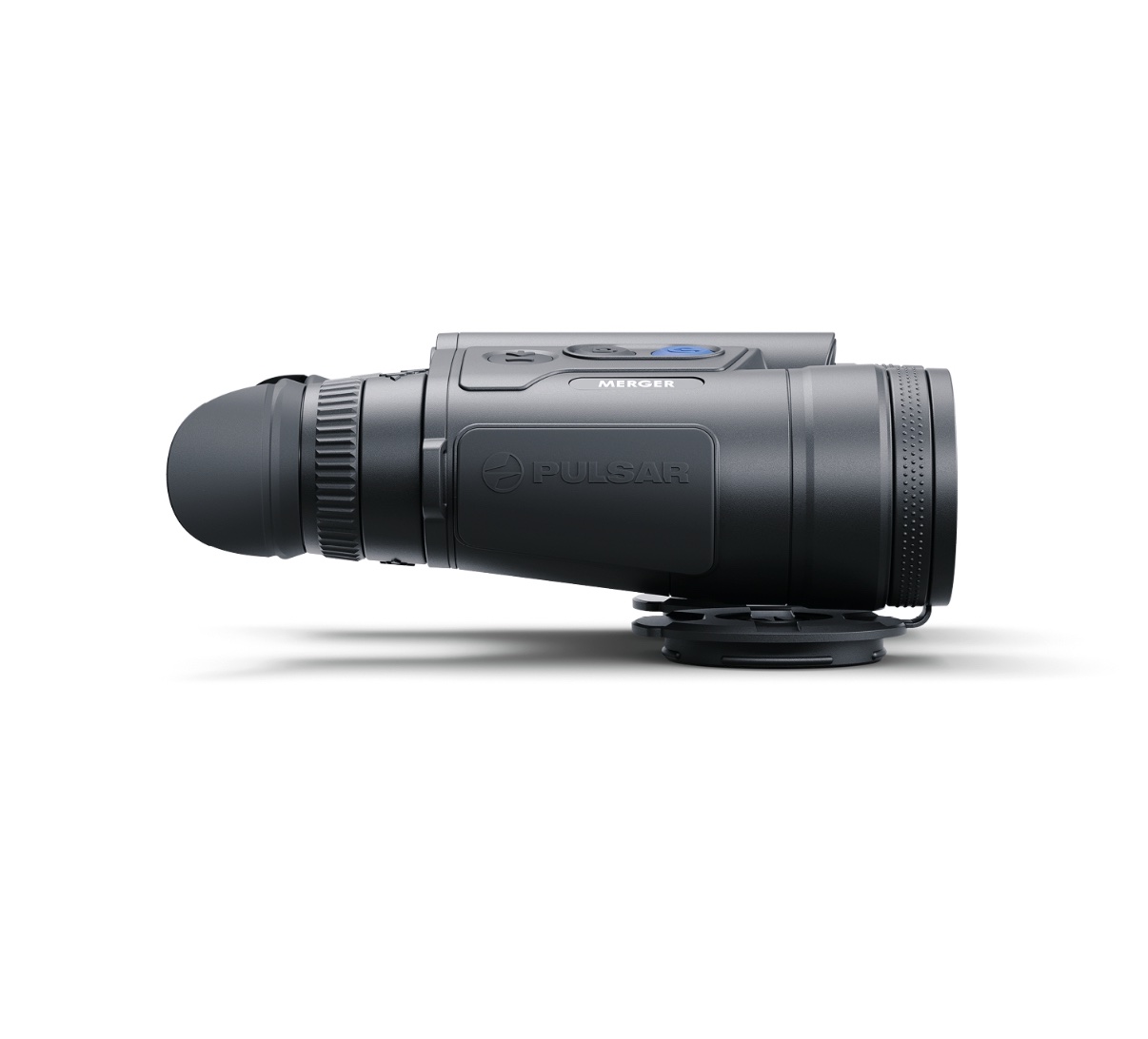

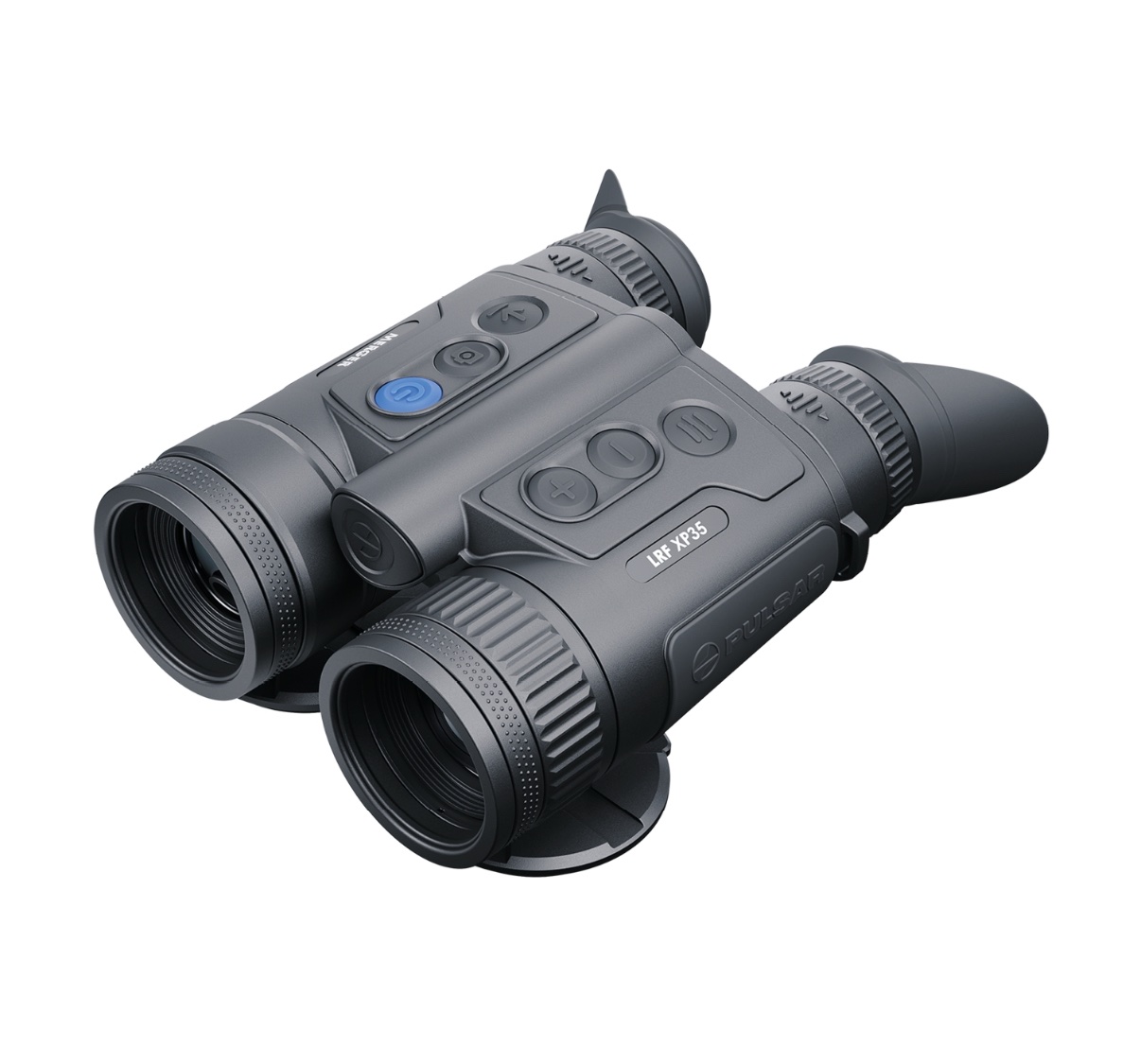

Pulsar Merger LRF XP35 Thermal Binoculars

Pulsar Merger LRF XP35 Thermal Binoculars

The Pulsar Merger LRF XP35 Thermal Binoculars combine advanced thermal imaging with precise laser rangefinding, offering an unparalleled experience for wildlife observation, security, and outdoor exploration. Compact and ergonomic, the Merger LRF XP35 is designed to deliver exceptional performance in a lightweight, durable package.

Unmatched Thermal Imaging Performance

At the core of the Merger LRF XP35 is a European-made Lynred 640×480 thermal sensor with a 17µm pixel pitch and <25mK NETD sensitivity. This high-resolution sensor ensures clear, detailed imaging, even in challenging environments with minimal temperature contrast. With a detection range of up to 1,350 meters, users can confidently identify heat signatures at long distances, day or night.

Wide Field of View for Enhanced Observation

The Merger LRF XP35 features a 17.8° field of view—the largest in the Pulsar Merger series—allowing for expansive area scanning and greater situational awareness. Combined with three sensitivity amplification levels and advanced image processing algorithms, the binoculars ensure sharp visuals in varying weather conditions.

Precision and Comfort for Extended Use

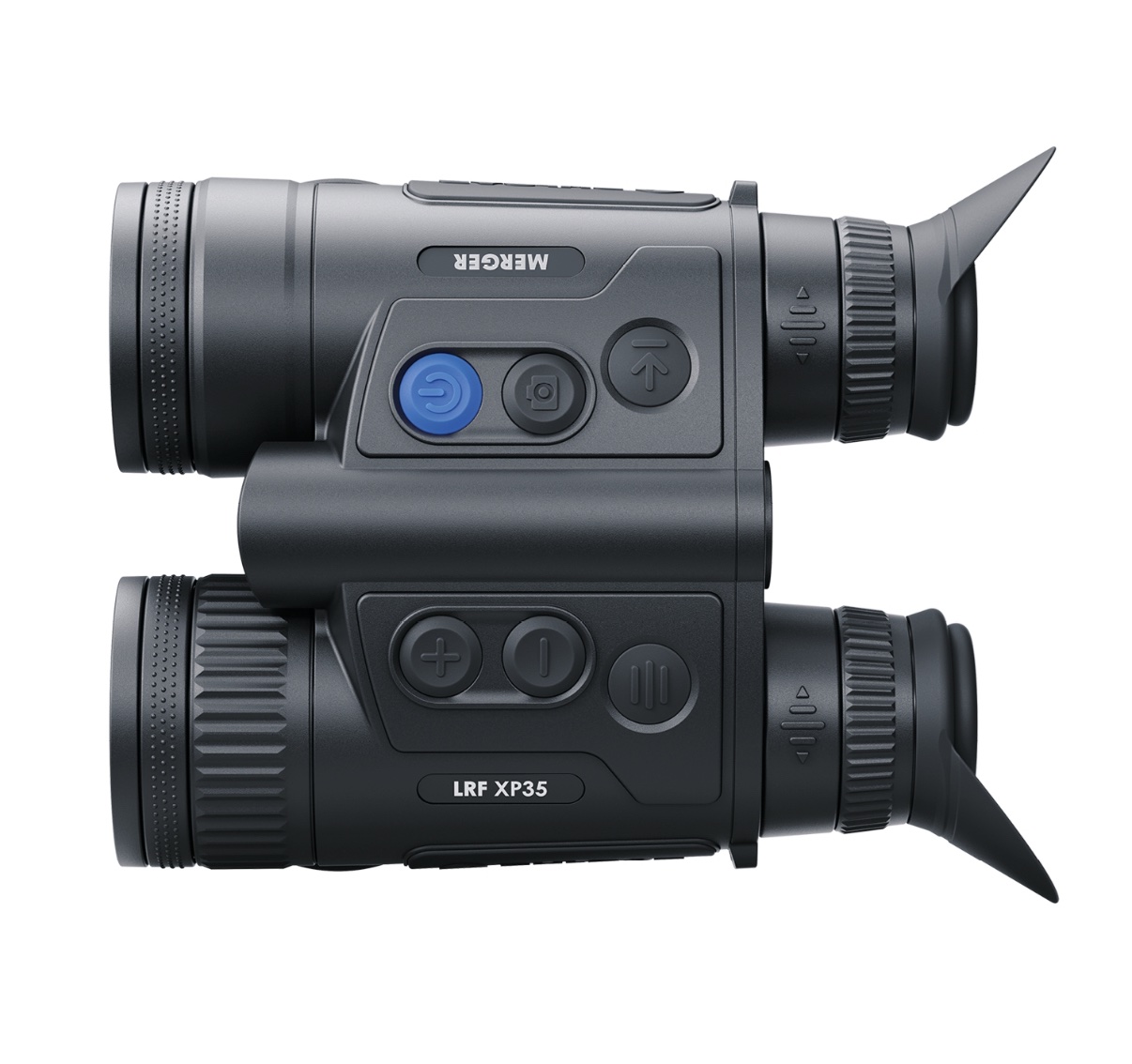

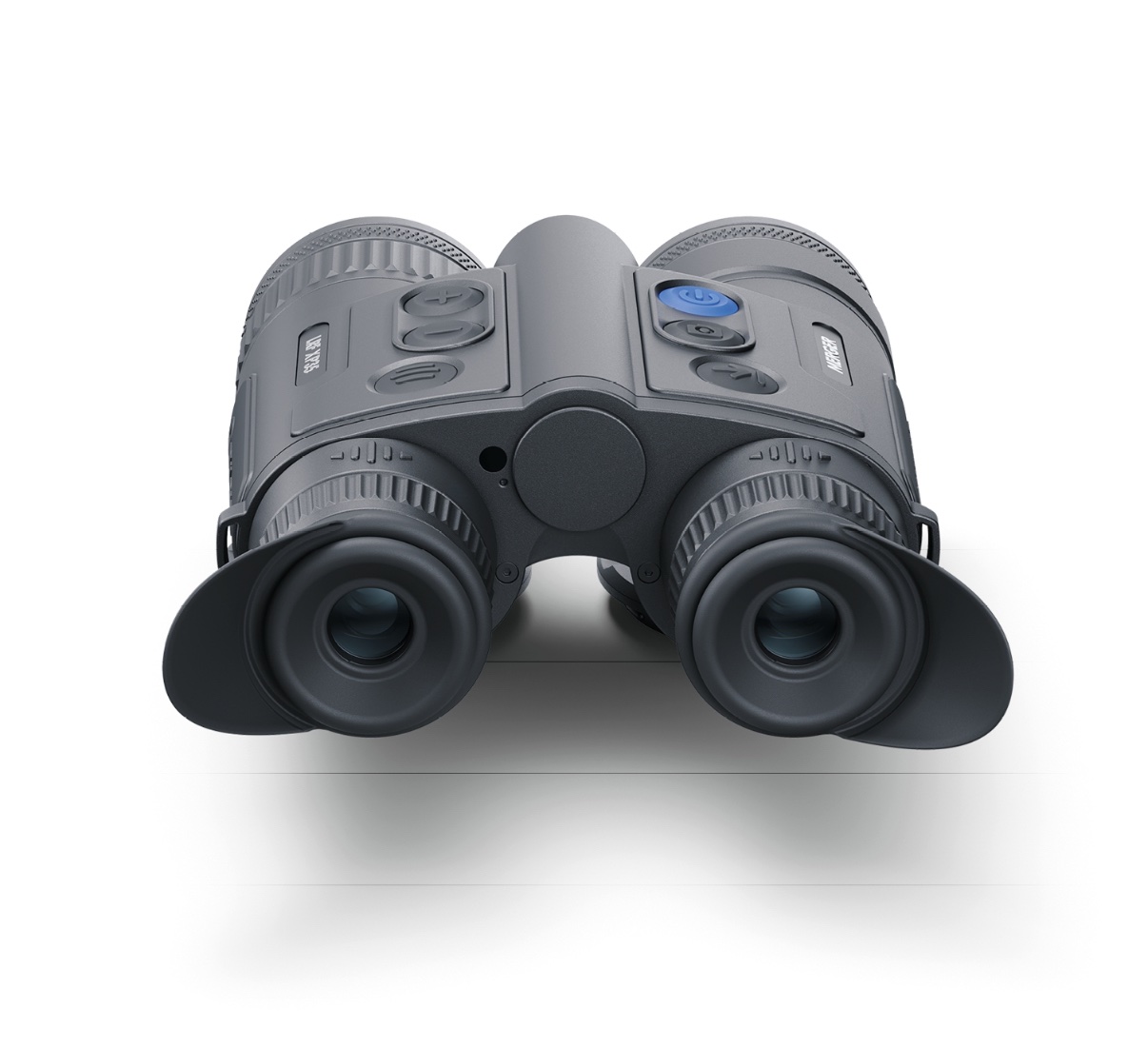

Equipped with an integrated laser rangefinder, the Merger LRF XP35 measures distances up to 1,000 meters with ±1m accuracy, making it an invaluable tool for tactical or field applications. Its ergonomic design, modeled after classic binoculars, ensures a natural and fatigue-free experience, even during extended observation sessions. Adjustable interpupillary distance (63-74 mm) and an intuitive button layout further enhance usability.

High-Definition AMOLED Display

The device boasts a 1024×768 HD AMOLED display, delivering vibrant colors, sharp contrast, and smooth visuals across a 2-16x magnification range. The display is optimized for energy efficiency, ensuring prolonged battery life during operation.

Durable and Built for Harsh Conditions

With an IPX7 waterproof rating and a magnesium alloy body, the Merger LRF XP35 is built to withstand harsh environments. It performs reliably in extreme temperatures ranging from -25°C to +50°C, making it a dependable choice for challenging outdoor conditions.

Specifications

Thermal Sensor

• Resolution: 640×480 pixels
• Pixel Pitch: 17µm
• NETD: <25mK

Optics

• Objective Lens: 35mm f1.0
• Magnification: 2-16x
• Field of View: 17.8°

Display

• Type: AMOLED
• Resolution: 1024×768 pixels

Laser Rangefinder

• Measuring Range: Up to 1,000 meters
• Accuracy: ±1m

Battery

• Internal: 4.0Ah
• External: 3.2Ah (replaceable)
• Runtime: Up to 9 hours

Recording & Storage

• Video/Photo Resolution: 1024×768 pixels
• Format: .mp4/.jpg
• Memory: 16GB internal

Wireless Features

• Protocol: Wi-Fi
• Frequency: 2.4 / 5 GHz

Environmental

• Waterproof Rating: IPX7
• Operating Temperature: -25°C to +50°C

Size & Weight

• Dimensions: 165×133×68 mm
• Weight: 830 g (with batteries)

Warranty

Covered by a 3-year Pulsar warranty for reliable performance and peace of mind.
