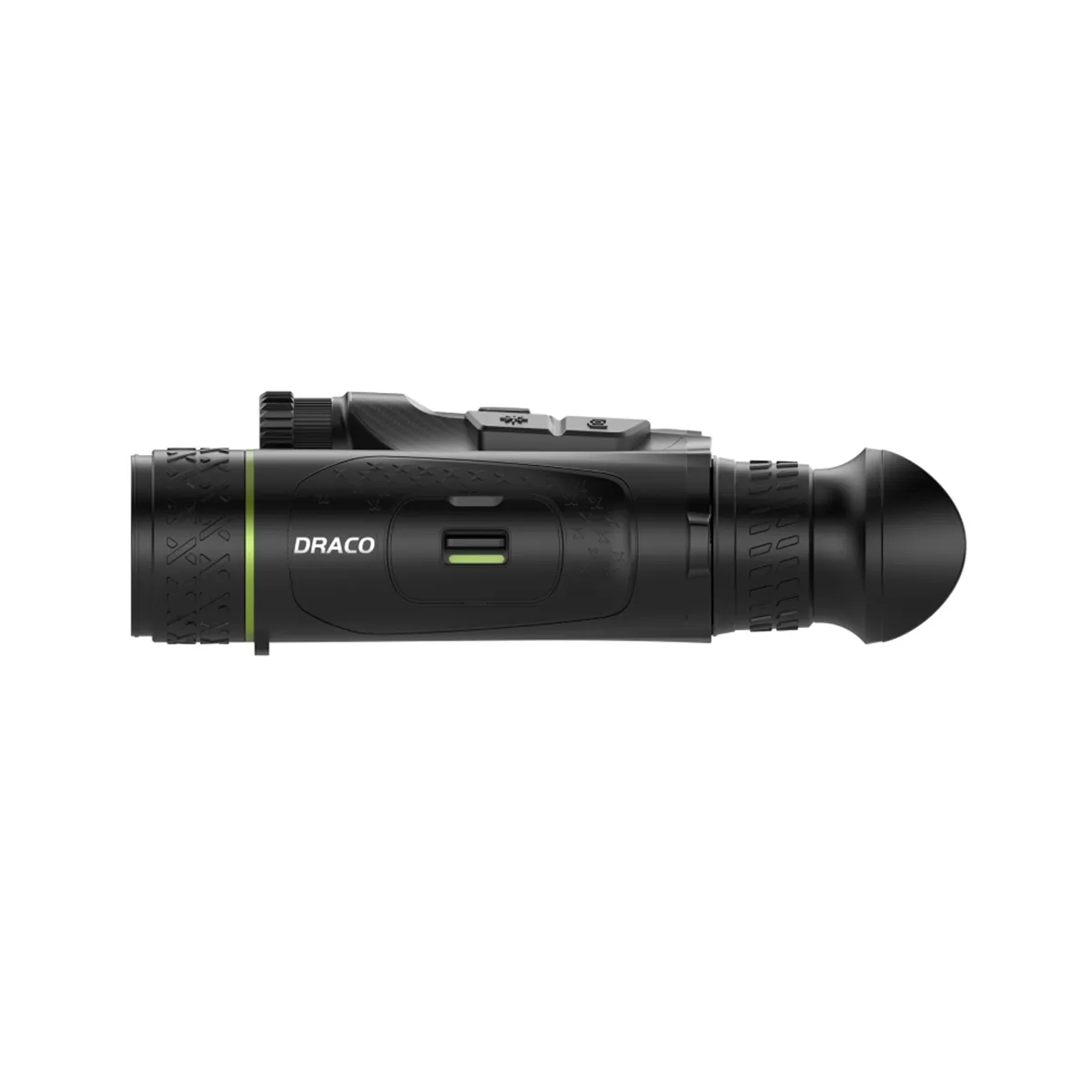

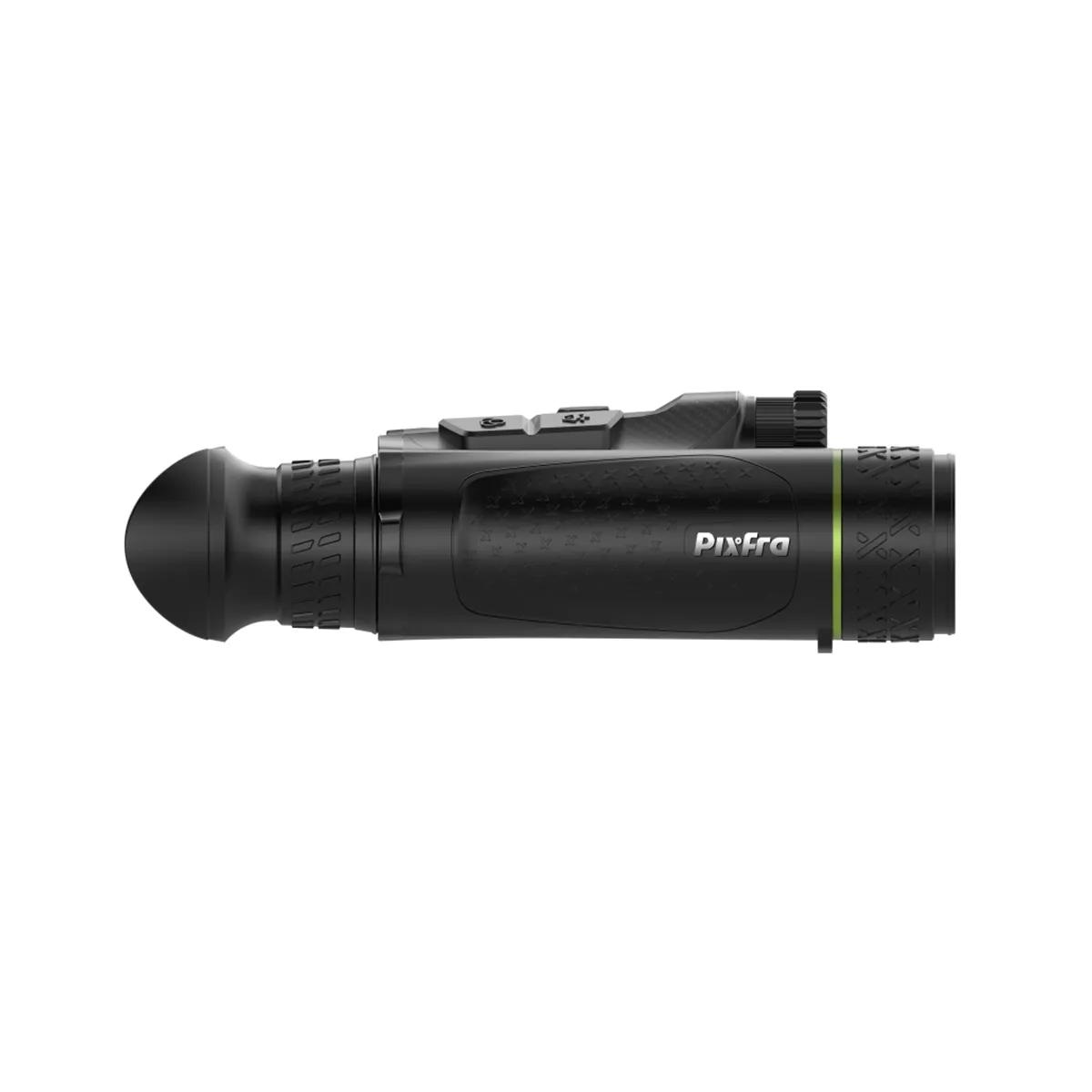

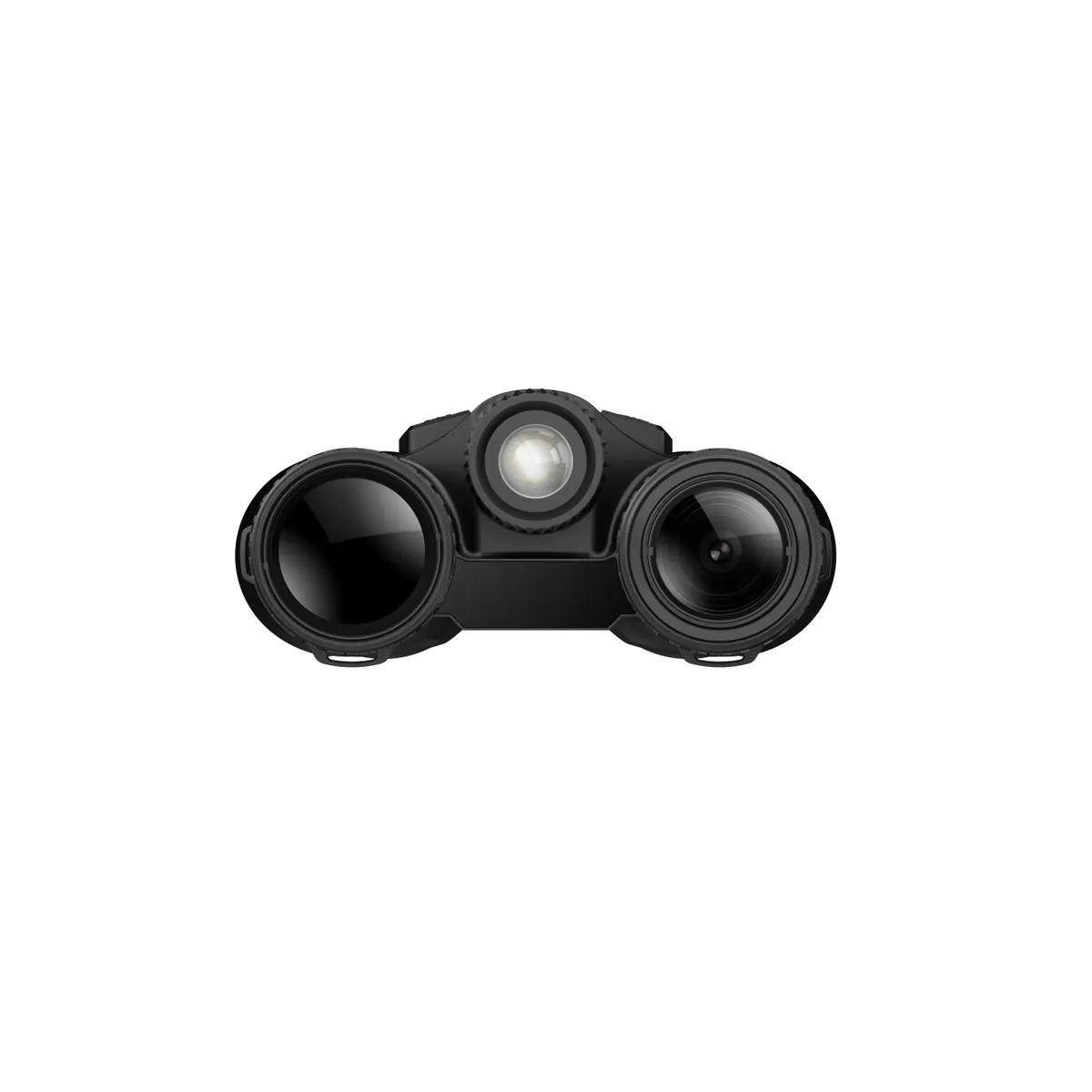

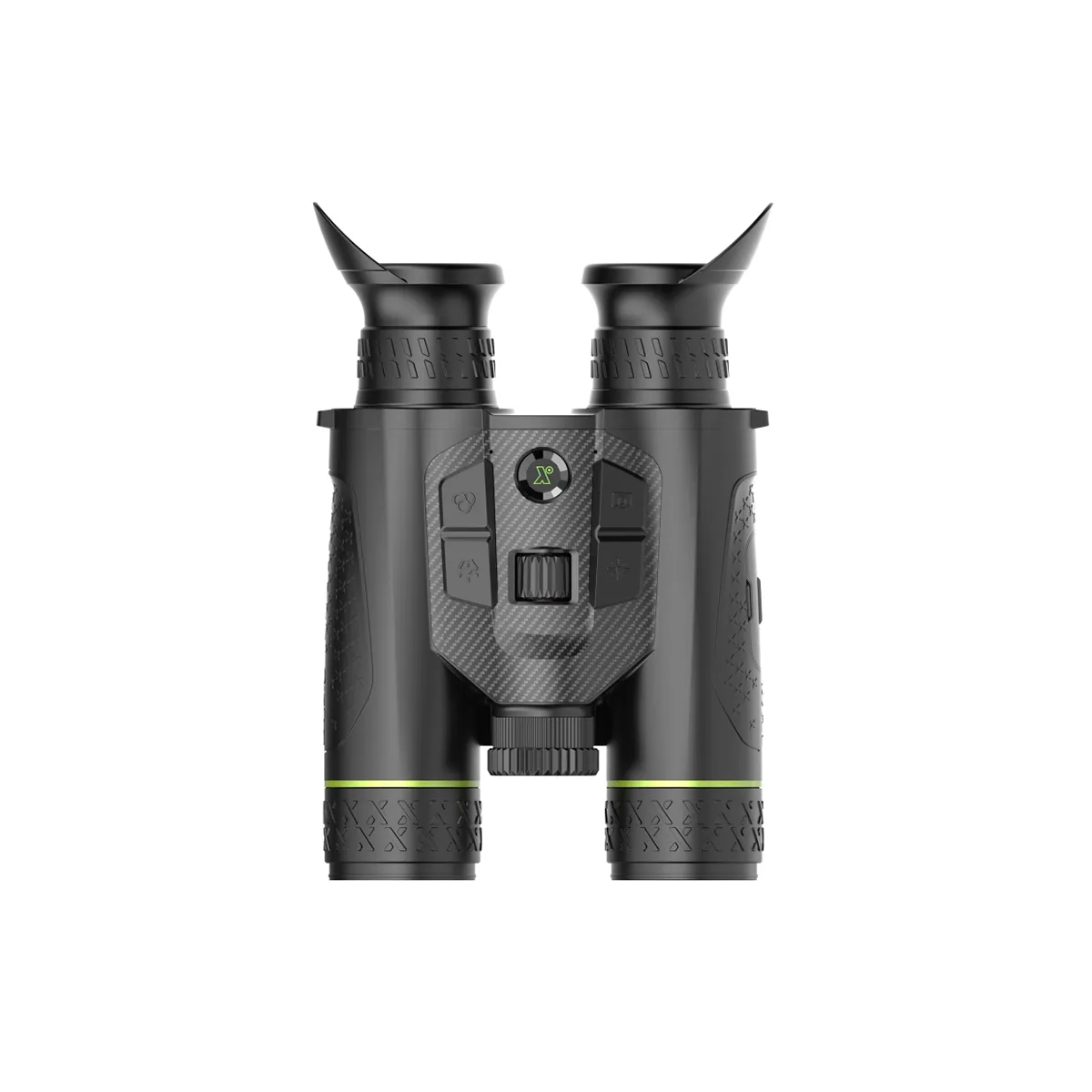

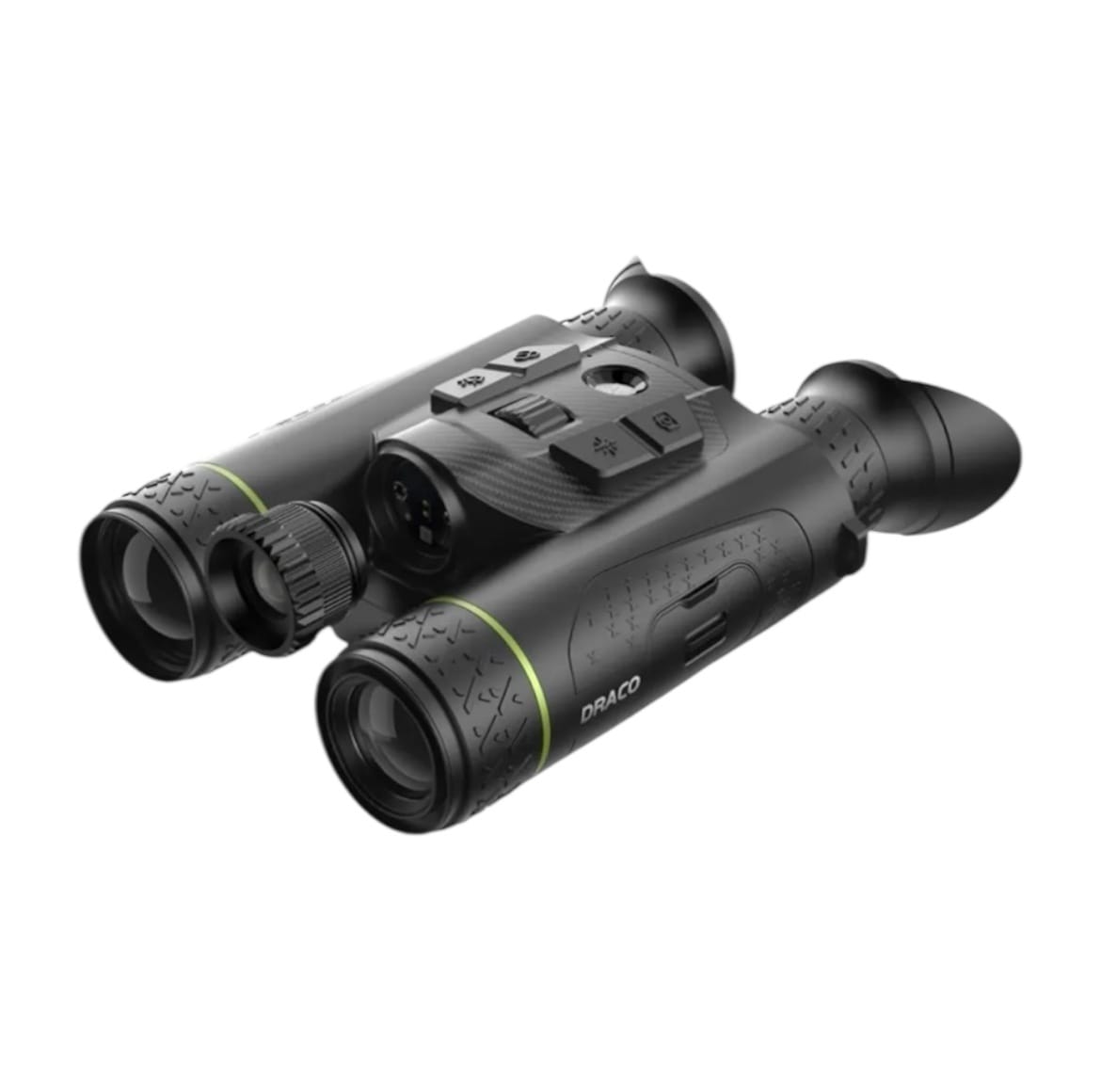

Pixfra Draco D335-4K LRF Multispectral Thermal Binoculars

The Pixfra Draco D335-4K LRF Multispectral Thermal Binoculars are designed for serious field use. They deliver strong thermal performance while remaining compact and easy to handle. Therefore, they are ideal for users who need range, detail, and reliability without moving to heavier 640-class devices.

Positioned as the mid-range workhorse of the Draco series, the D335-4K offers a clear upgrade over the D225. At the same time, it maintains a wide field of view and excellent depth perception. As a result, it suits woodland, farmland, and open terrain equally well.

Key Features

High-Sensitivity Thermal Performance

At the core of the D335-4K is a 384 × 288 VOx thermal sensor with a 12µm pixel pitch. It delivers an impressive sensitivity of ≤15mK. Therefore, fine temperature differences remain visible even in poor weather.

• Thermal resolution: 384 × 288
• NETD: ≤15mK @ f/1.0
• 35mm f/0.95 thermal lens
• Base magnification: 3.8×
• Digital zoom: 1–8×
• Detection range up to 1,800 m

As a result, users gain better target definition at distance without sacrificing situational awareness.

4K Day & Night Digital Optics

In addition to thermal imaging, the D335-4K features a 4K digital day/night channel. This allows confident identification in daylight and detailed monochrome viewing at night.

• 1/1.8” CMOS sensor
• 3840 × 2160 resolution
• 55mm f/2.0 lens
• 5.5× base optical magnification
• Up to 44× total magnification with digital zoom

Additionally, automatic day/night switching ensures smooth transitions as lighting conditions change.

Advanced Image Processing with PIPS 3.0

Pixfra’s PIPS 3.0 AI image enhancement improves both thermal and digital channels. Therefore, images remain sharp and clear in fog, rain, or haze.

• AI ISP for noise reduction
• AI super-resolution for improved detail
• Multiple thermal colour palettes
• Adjustable digital colour modes

As a result, users can tailor the image to suit terrain, weather, and personal preference.

Integrated Laser Rangefinder

The built-in Class 1 laser rangefinder measures distances up to 1,000 m with ±1 m accuracy. This improves safety, awareness, and decision-making in the field.

• Accurate distance readings
• Ideal for target assessment and planning
• Seamlessly integrated into the viewing system

Night Vision IR Support

A detachable IR illuminator enhances night performance when ambient light is low.

• Available in 850nm (standard)
• Smart IR control prevents close-range washout
• Extends usable night-time range

Therefore, digital night vision remains effective even in total darkness.

Display & Viewing Comfort

Viewing is handled by a high-resolution 0.49” OLED display.

• Resolution: 1920 × 1080
• Bright, high-contrast image
• Binocular-style curved user interface

This provides a comfortable viewing experience during long observation sessions.

Usability & Connectivity

The D335-4K is designed for intuitive, one-handed operation. As a result, it performs well in fast-moving situations.

• Electronic Image Stabilisation (EIS)
• Defog mode
• Standby mode for power saving
• Menu memory function
• Wi-Fi (2.4 / 5 GHz) connectivity
• Pixfra app support for live view and file management
• 64GB internal storage for photos and video

Power & Durability

Power is supplied by removable 18650 batteries, offering flexible charging options.

• Approx. 8 hours battery life at 25°C
• USB-C charging
• Power bank compatible
• Optional external charger support

Additionally, the device is built to withstand harsh conditions.

• IP67-rated dust and water protection
• Operating temperature: –30°C to +55°C
• Weight: approx. 0.62 kg

Ideal Applications

• Wildlife observation
• Hunting and pest control
• Search and rescue
• Security and surveillance
• Outdoor exploration
• Long-range thermal detection

Pixfra Draco D335-4K LRF Multispectral Thermal Binoculars Specifications

• Thermal Sensor: 384 × 288 VOx, 12µm, ≤15mK
• Thermal Lens: 35mm f/0.95
• Detection Range: ≈1,800 m
• Digital Sensor: 4K CMOS (3840 × 2160)
• Laser Rangefinder: 1,000 m, ±1 m
• Display: 0.49” OLED, 1920 × 1080
• Storage: 64GB internal
• Battery: Removable 18650
• Protection Rating: IP67
• Weight: 0.62 kg
• SKU: PIX-PFI-D335-4K

3 Year Pixfra Warranty
