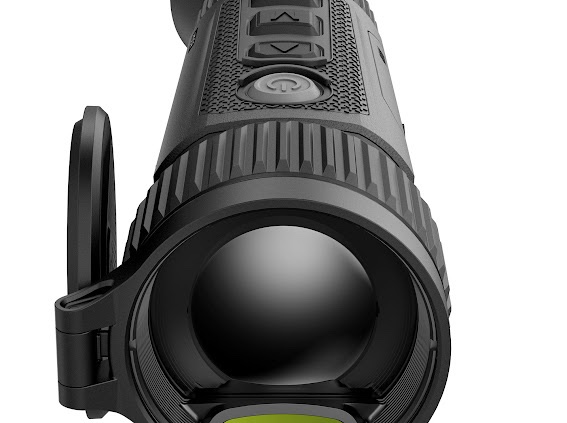

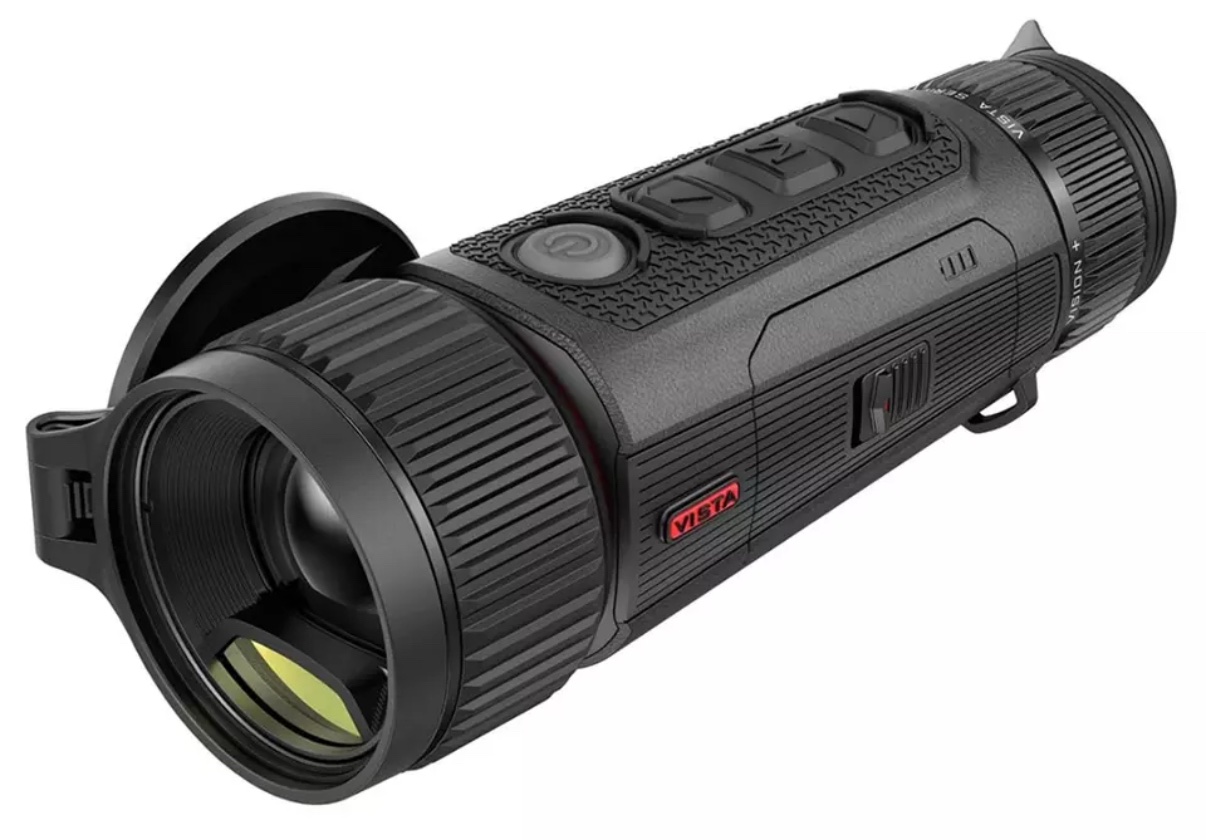

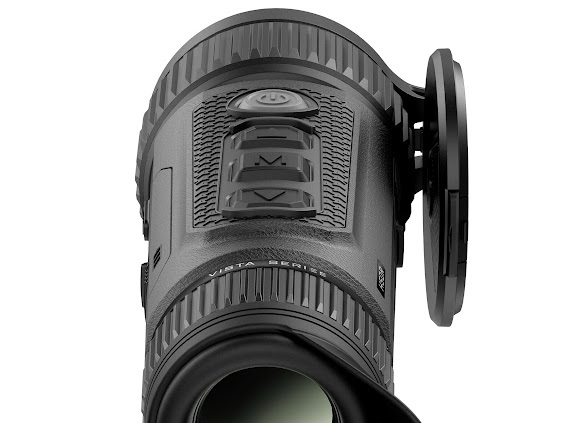

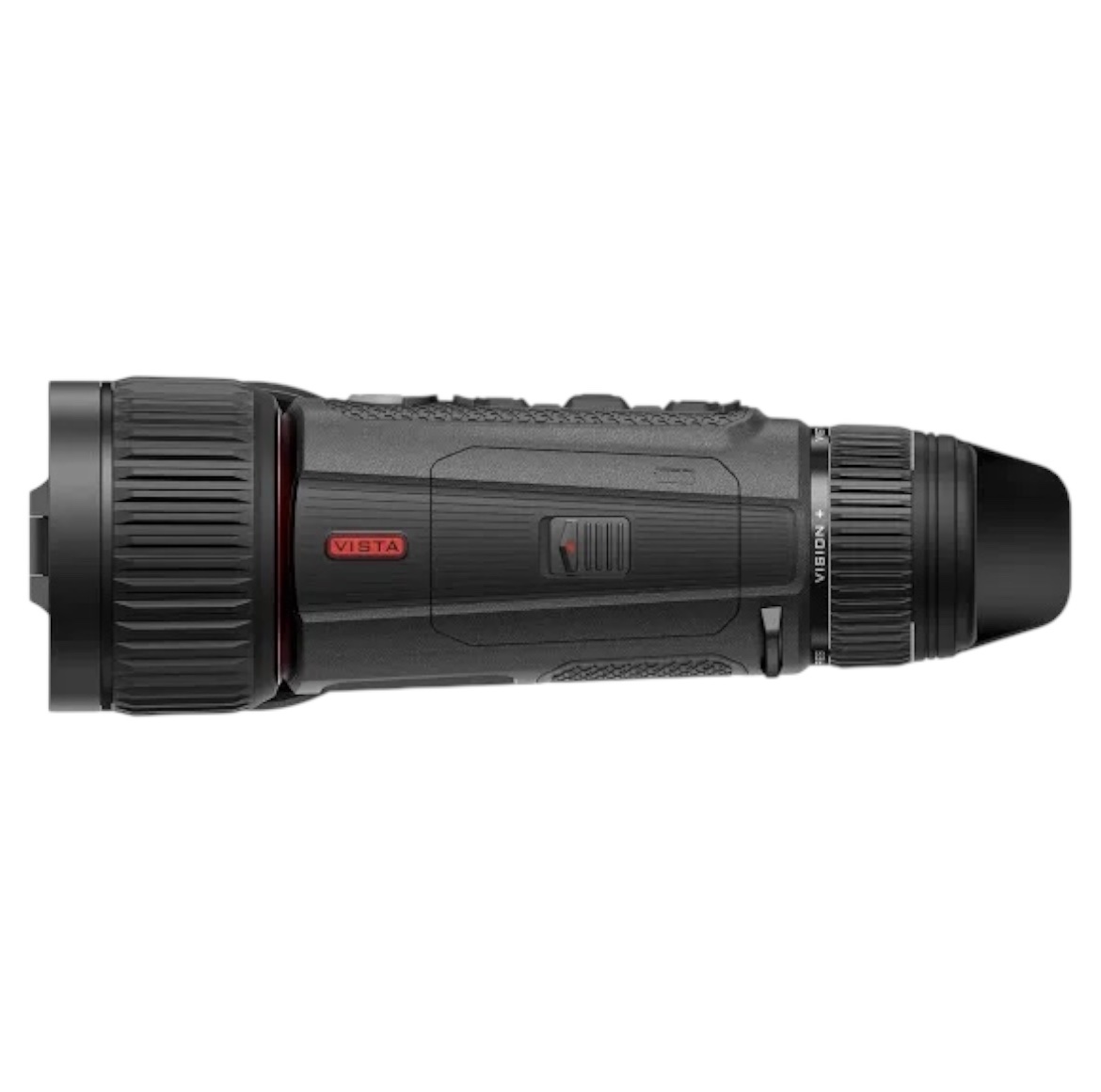

Nocpix Vista H50R Thermal Monocular

Nocpix Vista H50R Thermal Monocular

Advanced Long-Range Thermal Imaging with Precision Rangefinding

The Nocpix Vista H50R Thermal Monocular from the Vista Series is designed for users requiring superior thermal performance and long-distance precision. Equipped with advanced thermal sensors and rangefinding capabilities, the Vista H50R is ideal for tactical operations, search and rescue missions, wildlife observation, and surveillance. It combines high-quality optics with a powerful detection range, delivering reliable and clear thermal imaging even in the harshest environments.

High-Performance Thermal Imaging

Featuring a 640 x 512 thermal sensor and NETD ≤ 15mk, the Vista H50R delivers exceptional thermal resolution and sensitivity, allowing you to detect even the slightest temperature differences. The 50mm ƒ0.9 objective lens provides a magnification range from 4x to 40x, giving users flexibility for both wide-area scans and detailed target identification. With a detection range of up to 2600 meters, this monocular is built for long-range observation, making it perfect for spotting heat signatures from far distances.

Built-In Rangefinder and Laser Precision

The Vista H50R is equipped with an integrated rangefinder that can accurately measure distances up to 1200 meters, making it a critical tool for determining the exact distance to your target. The Class 1 laser provides fast and safe rangefinding, enhancing precision in both tactical and outdoor scenarios where accuracy is key.

Rugged, User-Friendly Design

Built for the outdoors, the Nocpix Vista H50R offers rugged durability without compromising usability. Weighing 22.93oz (650g), this thermal monocular is lightweight and easy to carry. It is powered by a replaceable li-ion battery pack (IBP-7 / 4400mAh), providing up to 5.5 hours of continuous use. Its IP67 rating ensures protection against water and dust, making it suitable for challenging environments and adverse weather conditions.

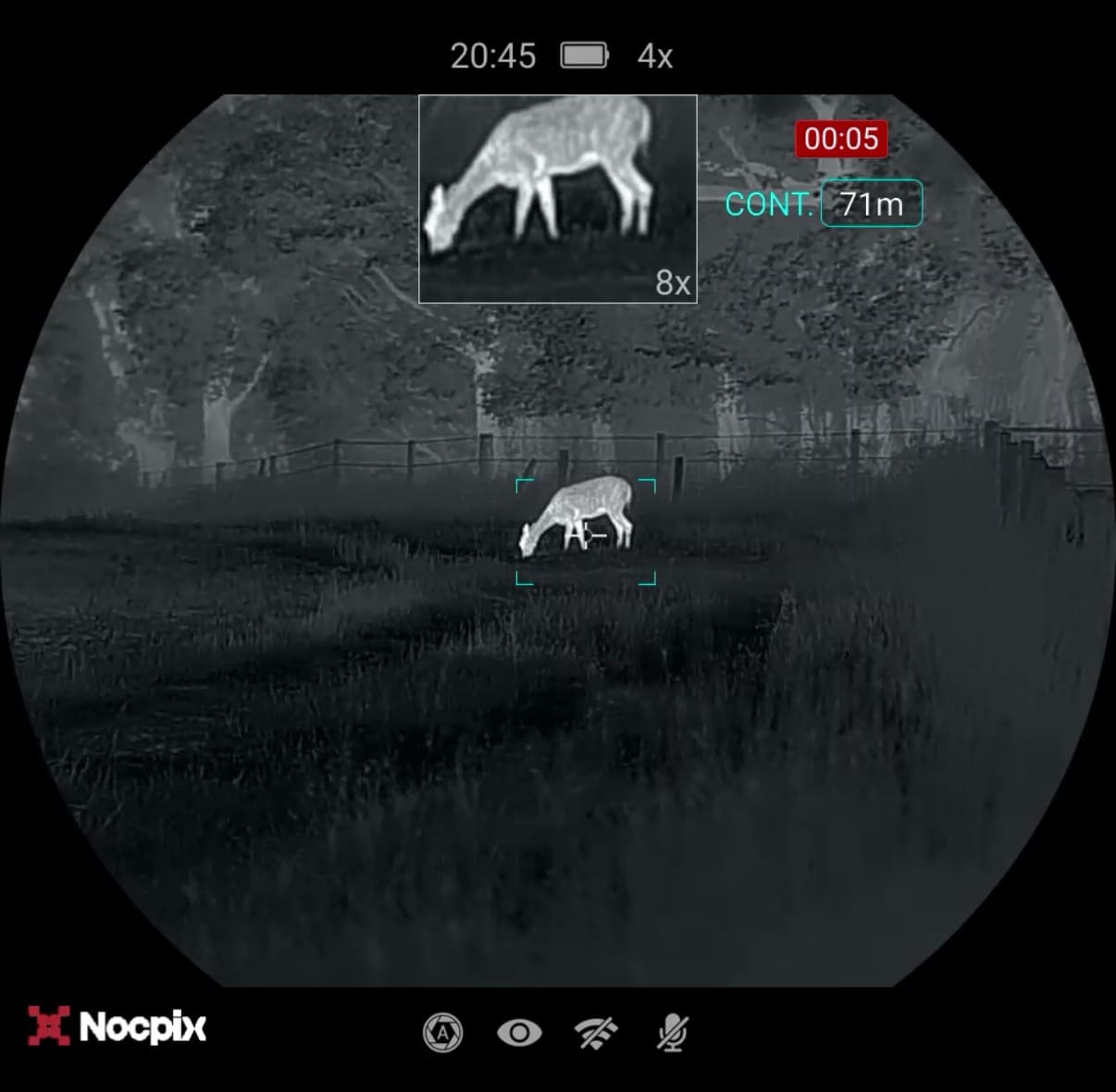

Stunning Display and Recording Capabilities

With a 2560 x 2560 AMOLED display, the Vista H50R offers a crystal-clear viewing experience, providing detailed, high-contrast images in any lighting condition. Additionally, the device supports video recording, built-in WiFi, and a microphone for capturing and sharing your observations. The 64GB internal memory allows ample storage for recordings and images, ensuring that no crucial data is lost.

Built for Professionals

Whether you are involved in law enforcement, search and rescue, or wildlife monitoring, the Vista H50R is designed to meet professional needs. With its robust features, superior thermal imaging, and long-range performance, this monocular is a reliable tool for those who demand precision and clarity in their fieldwork.

Learn More: NocPix Vista H50 Thermal Monocular

Specifications of the

Nocpix Vista H50R Thermal Monocular

• Model: NPMON-VISTA-H 50R
• Magnification: 4x ~ 40x
• Objective Lens: 50mm ƒ0.9
• Battery: Replaceable li-ion battery pack IBP-7 / 4400mAh
• Weight: 22.93 oz / 650g
• NETD: ≤ 15 mk
• Resolution: 640 x 512
• Pixel Size: 12MP
• Frame Rate: 60fps
• Field of View (Angular): 8.8° x 7.0°
• Field of View (Linear): 15m x 12m
• Dimensions: 7.64 x 2.76 x 3.23 in (194 x 70 x 82mm)
• Thermal Sensor: 640 x 512, 12μ
• Detection Range: 2600m
• Eye Relief: 25mm
• Exit Pupil Diameter: 8mm
• Diopter Adjustment: -4 to +6
• Display Type: AMOLED
• Display Resolution: 2560 x 2560
• Max Operating Time: 5.5hrs
• WiFi: Yes
• Mic: Yes
• Memory Card Capacity: 64GB
• IP Rating: IP67 (Water and dust resistant)
• Operating Temperature: -20°C to +50°C
• Range Finding Distance: 1200m
• Laser: Class 1

3 year warranty
