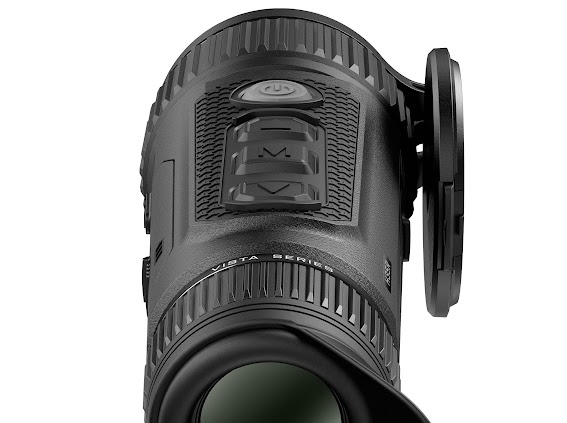

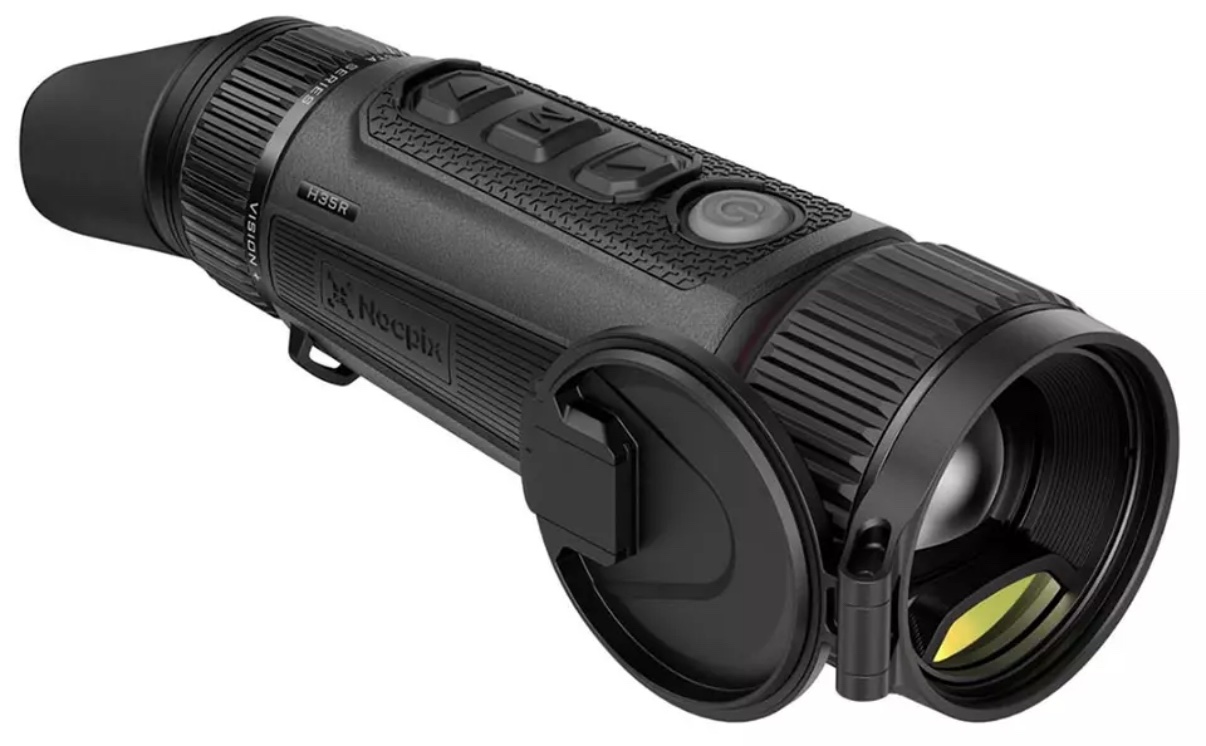

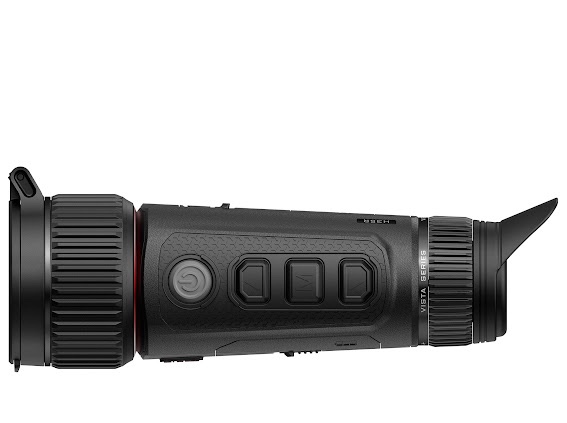

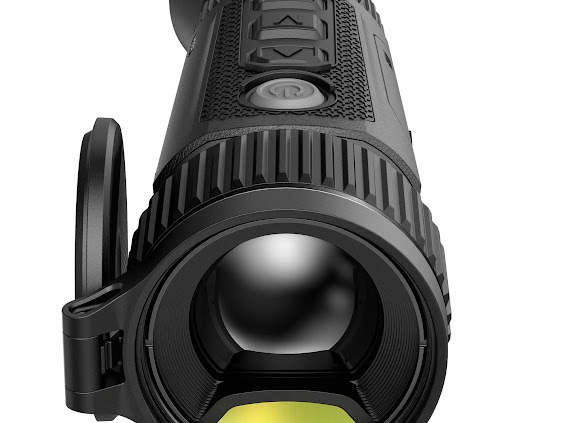

Nocpix Vista H35R Thermal Monocular
Cutting-Edge Thermal Imaging with Rangefinding
The Nocpix Vista H35R Thermal Monocular from the Vista Series offers superior thermal imaging with advanced features, including integrated rangefinding. Designed for professionals who require precision in both image quality and distance measurement, this monocular is ideal for search and rescue, tactical operations, and wildlife observation. The Vista H35R delivers powerful performance in a durable and compact design, making it a top choice for demanding outdoor environments.
High-Precision Thermal Imaging
With a 640 x 512 thermal sensor and an NETD of ≤ 15 mk, the Vista H35R delivers exceptional image clarity, even in adverse conditions. The thermal sensor enables detection of heat signatures up to 1800 meters, allowing users to locate and identify objects at long distances with ease. Its 35mm ƒ0.9 objective lens and wide magnification range (3x to 28x) make it versatile for various observational tasks, from wide-angle scans to focused, detailed views.
Built-In Rangefinder and Laser
One of the standout features of the Vista H35R is its integrated rangefinder with a measuring distance of up to 1200 meters, offering pinpoint accuracy when gauging distances to targets. Equipped with a Class 1 laser, this monocular provides fast and accurate rangefinding, making it an invaluable tool in both tactical and outdoor scenarios.
Robust and Reliable Design
Weighing 22.58 ounces (640g), the Vista H35R is built for durability without compromising on portability. It is equipped with a replaceable li-ion battery pack (IBP-7 / 4400mAh) that offers up to 5.5 hours of continuous operation, ensuring reliable performance on long missions. The monocular is designed to withstand harsh environments with its IP67 rating for water and dust resistance, making it ready for any adventure or operational requirement.
Enhanced Viewing Experience
The high-resolution AMOLED display with a stunning resolution of 2560 x 2560 ensures that you capture every detail in vivid clarity. Whether you’re recording footage or viewing live images, the Vista H35R provides a top-tier viewing experience, enabling you to make accurate assessments in the field.
Advanced Features for Professional Use
In addition to thermal imaging and rangefinding, the Vista H35R comes equipped with WiFi connectivity, a built-in microphone, and 64GB of internal storage for capturing and storing video and images. The combination of these advanced features makes the device not only powerful in the field but also highly convenient for data sharing and review.
Specifications
- Model: NPMON-VISTA-H35R
- Magnification: 3x ~ 28x
- Objective Lens: 35mm ƒ0.9
- Battery: Replaceable li-ion battery pack IBP-7 / 4400mAh
- Weight: 22.58 oz / 640g
- NETD: ≤ 15 mk
- Resolution: 640 x 512
- Pixel Size: 12MP
- Frame Rate: 60fps
- Field of View (Angular): 12.5° x 10.0°
- Field of View (Linear): 22m x 18m
- Dimensions: 7.48 x 2.64 x 3.11 in (190 x 67 x 79mm)
- Thermal Sensor: 640 x 512, 12μ
- Detection Range: 1800m
- Eye Relief: 25mm
- Exit Pupil Diameter: 8mm
- Diopter Adjustment: -4 to +6
- Display Type: AMOLED
- Display Resolution: 2560 x 2560
- Max Operating Time: 5.5hrs
- WiFi: Yes
- Mic: Yes
- Memory Card Capacity: 64GB
- IP Rating: IP67 (Water and dust resistant)
- Operating Temperature: -20°C to +50°C
- Range Finding Distance: 1200m
- Laser: Class 1
Learn More: Nocpix Vista H35 Thermal Monocular
