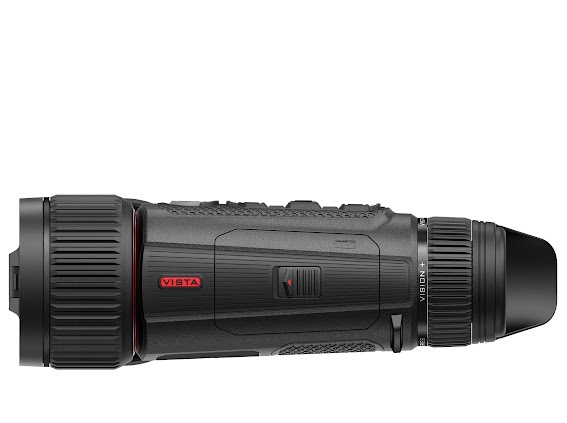

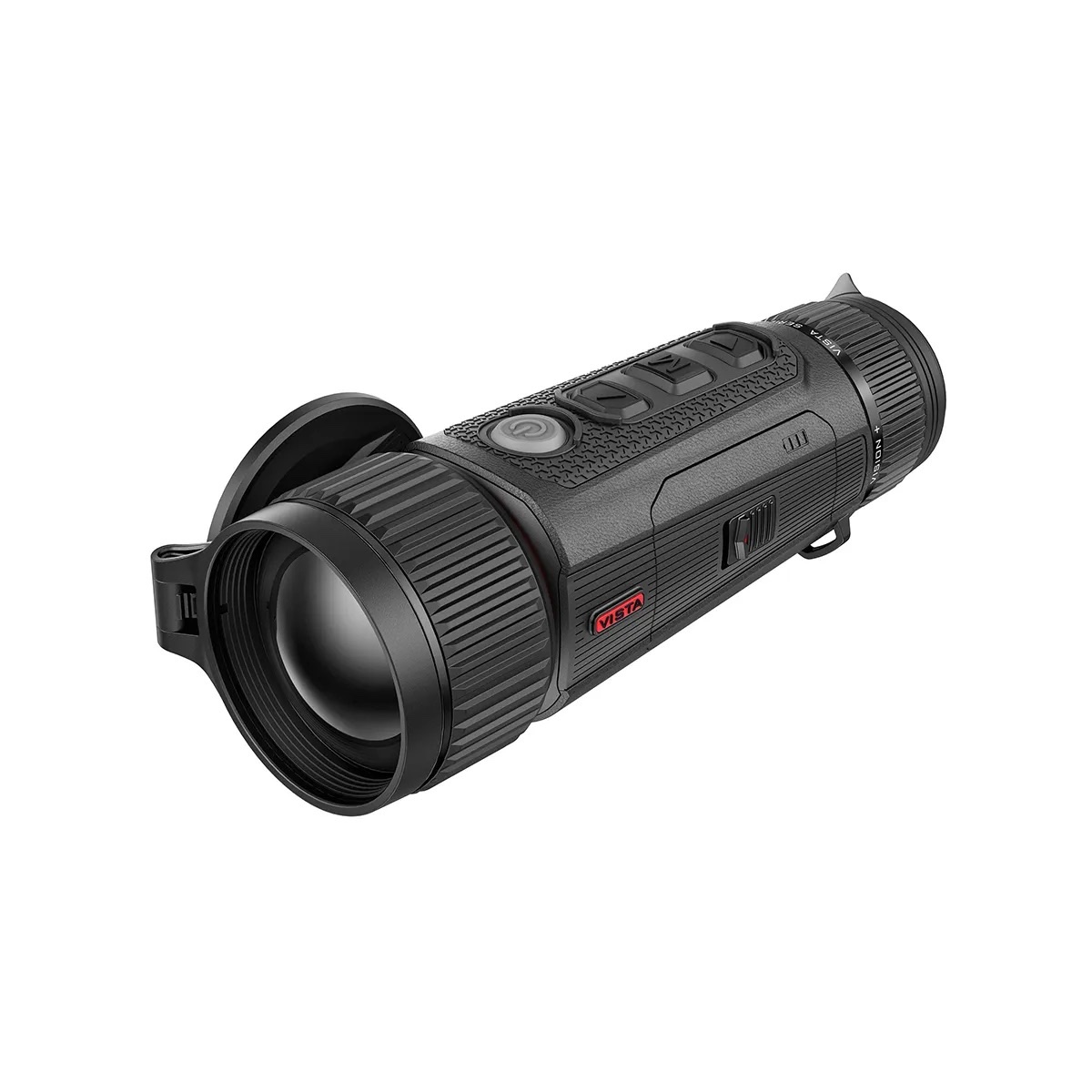

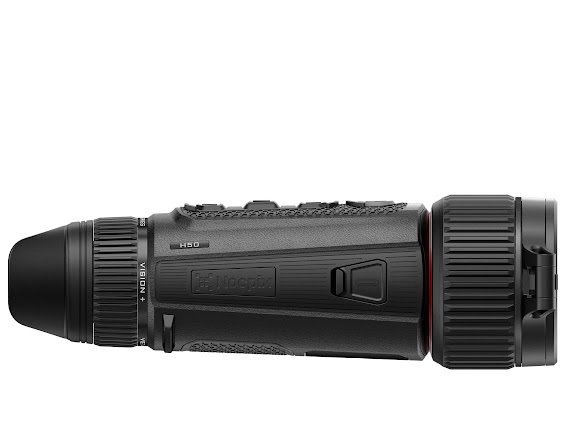

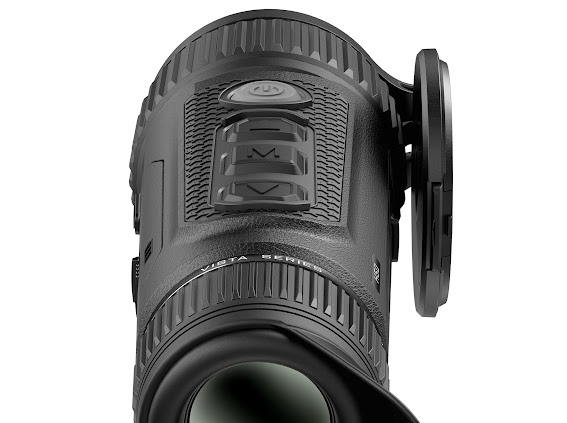

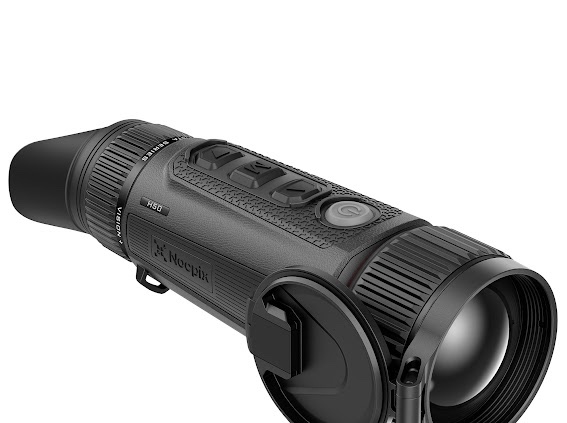

NocPix Vista H50 Thermal Monocular

NocPix Vista H50 Thermal Monocular

Superior Long-Range Thermal Imaging for Professionals

The NocPix Vista H50 Thermal Monocular from the Vista Series offers cutting-edge thermal imaging for users who demand precision and clarity. Designed for law enforcement, wildlife observation, and tactical applications, the Vista H50 delivers exceptional long-range detection and crisp imaging in any environment. Its combination of powerful optics, rugged build, and professional features make it a reliable tool for advanced thermal imaging needs.

High-Resolution Thermal Imaging

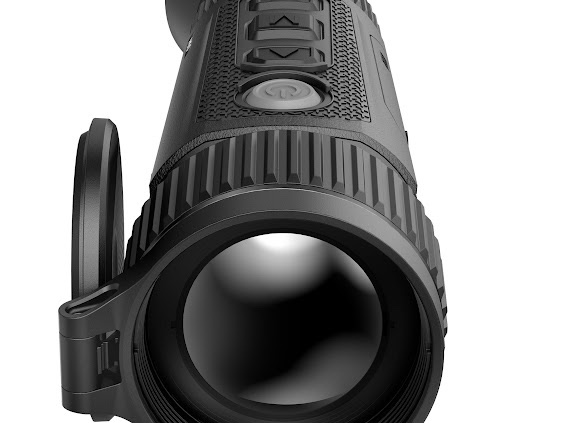

At the core of the Vista H50 is a 640 x 512 thermal sensor with NETD ≤ 15mk, offering sharp image quality even in low-contrast thermal environments. The monocular is equipped with a 50mm ƒ0.9 objective lens and provides a magnification range of 4x to 40x, making it versatile enough for both wide-area scans and zooming in for detailed identification. The detection range of 2600 meters allows you to detect heat signatures from long distances, enhancing situational awareness in the field.

Rugged and Portable Design

Despite its advanced capabilities, the Vista H50 remains portable and easy to handle, weighing only 22.22oz (630g). Its compact design and replaceable li-ion battery pack (IBP-7 / 4400mAh) ensure you can operate the monocular for up to 5.5 hours in the field. With an IP67 rating, the device is resistant to water and dust, making it durable in various weather conditions and challenging environments.

High-Definition Display and Recording Capabilities

The AMOLED display with a 2560 x 2560 resolution ensures a clear and vibrant viewing experience. The Vista H50 is equipped with built-in video recording, a microphone, and WiFi connectivity, allowing you to capture, store, and share your observations with ease. With 64GB of internal memory, you’ll have ample storage for all your footage and images.

Ideal for Professional Use

Whether you’re involved in tactical missions, search and rescue operations, or nature monitoring, the Vista H50 is designed to meet your professional needs. With its combination of powerful thermal optics, long-range capabilities, and rugged design, it is a trusted companion in the most demanding situations.

Learn More: DJI Mavic 3 Thermal Drone

Specifications

• Model: NPMON-VISTA-H 50
• Magnification: 4x ~ 40x
• Objective Lens: 50mm ƒ0.9
• Battery: Replaceable li-ion battery pack IBP-7 / 4400mAh
• Weight: 22.22 oz / 630g
• NETD: ≤ 15 mk
• Resolution: 640 x 512
• Pixel Size: 12MP
• Frame Rate: 60fps
• Field of View (Angular): 8.8° x 7.0°
• Field of View (Linear): 15m x 12m
• Dimensions: 7.48 x 2.64 x 3.11 in (190 x 67 x 79mm)
• Thermal Sensor: 640 x 512, 12μ
• Detection Range: 2600m
• Eye Relief: 25mm
• Exit Pupil Diameter: 8mm
• Diopter Adjustment: -4 to +6
• Display Type: AMOLED
• Display Resolution: 2560 x 2560
• Max Operating Time: 5.5hrs
• WiFi: Yes
• Mic: Yes
• Memory Card Capacity: 64GB
• IP Rating: IP67 (Water and dust resistant)
• Operating Temperature: -20°C to +50°C

3 year warranty
