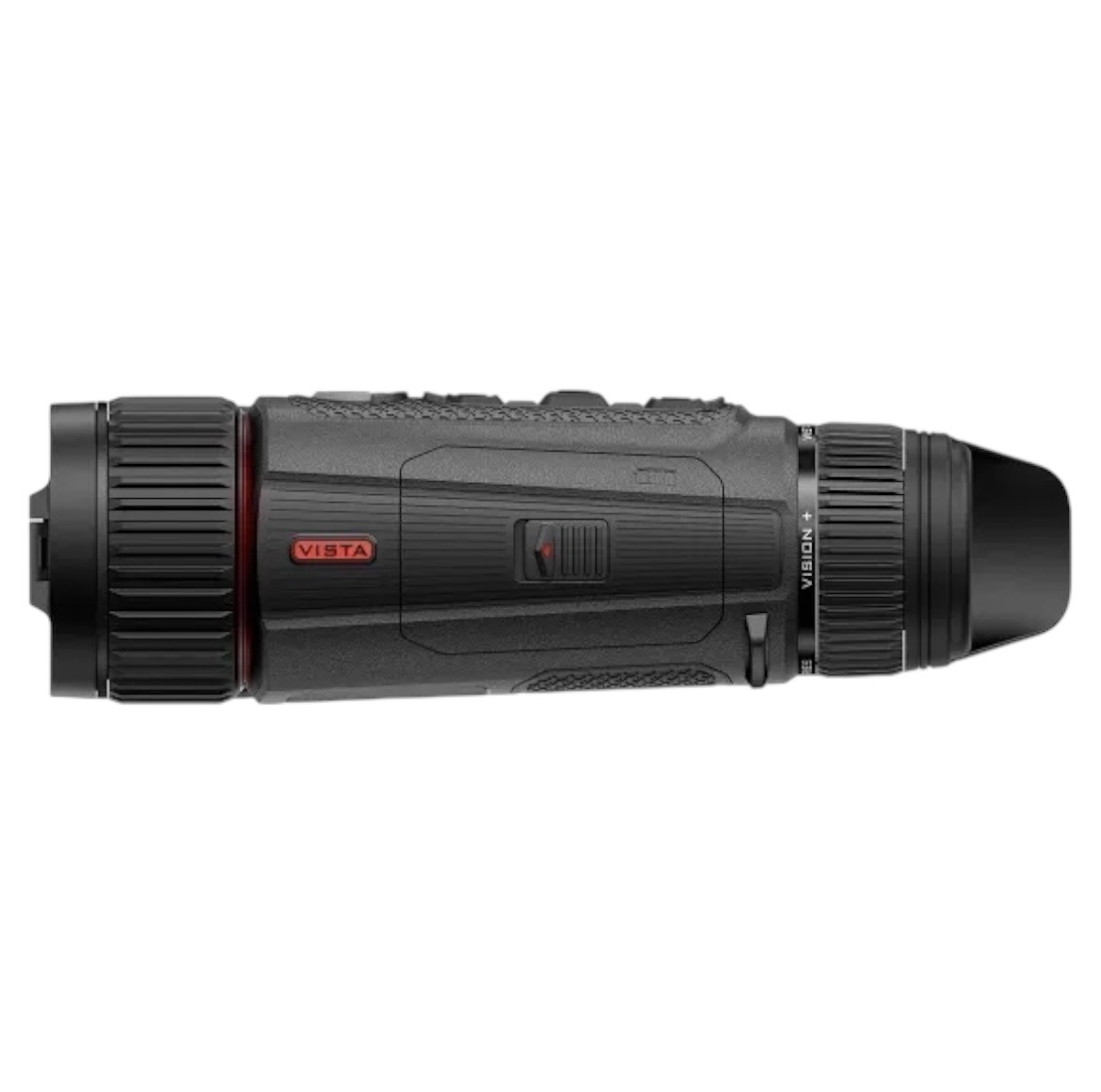

Nocpix Vista H35 Thermal Monocular

Nocpix Vista H35 Thermal Monocular

High-Performance Thermal Imaging for Professional Use

The Nocpix Vista H35 Thermal Monocular from the Vista Series is engineered for professionals who demand superior thermal imaging performance. Whether you’re in law enforcement, search and rescue, or wildlife observation, the Vista H35 delivers unmatched image clarity, reliability, and range in various conditions. Designed for long-range detection and precise tracking, this monocular is ideal for serious users who need high-end features packed into a rugged design.

Superior Thermal Clarity

With a 640 x 512 thermal sensor and an NETD of ≤ 15 mk, the Vista H35 offers crystal-clear thermal images even in the most challenging environments. Its detection range of up to 1800 meters ensures that no target goes unnoticed, providing users with the ability to spot distant objects with incredible detail and precision.

Powerful Optics and Versatile Magnification

The Vista H35 features a 35mm objective lens with an ƒ0.9 aperture, offering a magnification range from 3x to 28x. Whether you’re scanning wide landscapes or focusing on a specific target, this versatile magnification range gives you the flexibility to adapt to any situation. The field of view of 12.5° x 10.0° provides an excellent balance between situational awareness and detail.

Built for Field Use

Weighing 21.16 ounces (600g) and designed with ruggedness in mind, the Vista H35 is ready for the most demanding missions. The replaceable li-ion battery pack (IBP-7 / 4400mAh) allows for up to 5.5 hours of continuous operation, ensuring that you have the power needed for long periods in the field. Its compact yet durable design makes it easy to carry, handle, and operate in various environments.

Rugged and Weather-Resistant

The Nocpix Vista H35 is built to withstand harsh conditions, with an IP67 rating for water and dust resistance. This ensures that the device can perform in extreme environments such as rain, snow, or dusty conditions. Its robust design guarantees that the device will continue to function reliably, even in the most unforgiving scenarios.

Advanced Features for Enhanced Usability

Equipped with a high-resolution AMOLED display (2560 x 2560), the Vista H35 provides stunning visuals, ensuring every detail is captured with clarity. The monocular also includes WiFi connectivity, a built-in microphone, and a 64GB memory card for storing images and videos. These features make it easy to share your findings or review recorded footage after the fact.

Specifications

• Model: NPMON-VISTA-H35
• Magnification: 3x ~ 28x
• Objective Lens: 35mm ƒ0.9
• Battery: Replaceable li-ion battery pack IBP-7 / 4400mAh
• Weight: 21.16 oz / 600g
• NETD: ≤ 15 mk
• Resolution: 640 x 512
• Pixel Size: 12MP
• Frame Rate: 60fps
• Field of View (Angular): 12.5° x 10.0°
• Field of View (Linear): 22m x 18m
• Dimensions: 7.24 x 2.4 x 2.8 in (184 x 61 x 71mm)
• Thermal Sensor: 640 x 512, 12μ
• Detection Range: 1800m
• Eye Relief: 25mm
• Exit Pupil Diameter: 8mm
• Diopter Adjustment: -4 to +6
• Display Type: AMOLED
• Display Resolution: 2560 x 2560
• Max Operating Time: 5.5hrs
• WiFi: Yes
• Mic: Yes
• Memory Card Capacity: 64GB
• IP Rating: IP67 (Water and dust resistant)
• Operating Temperature: -20°C to +50°C

3 year warranty
