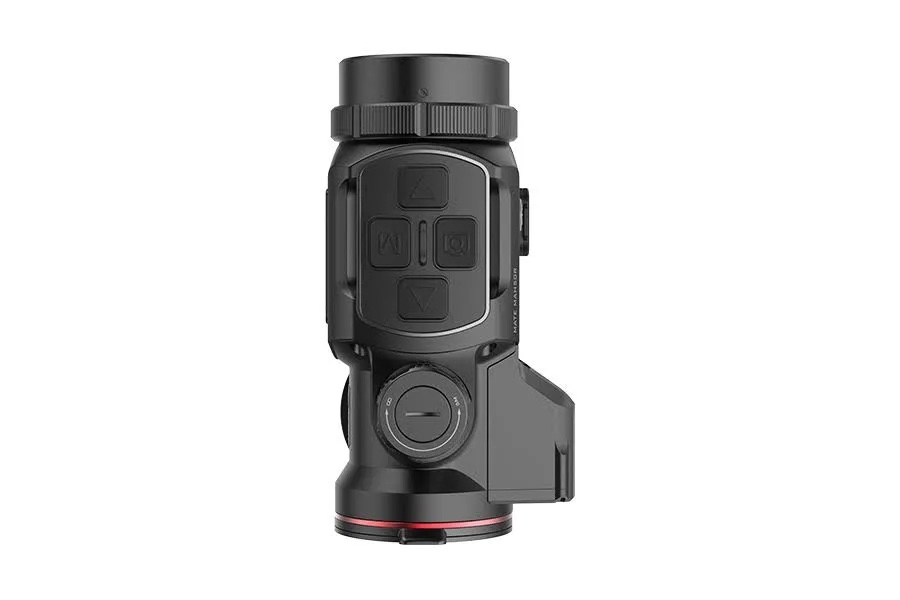

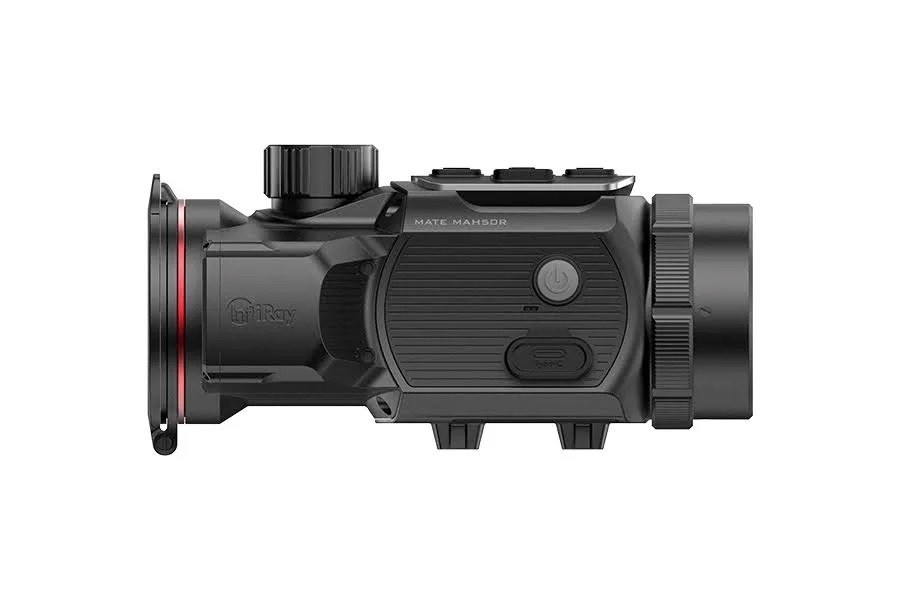

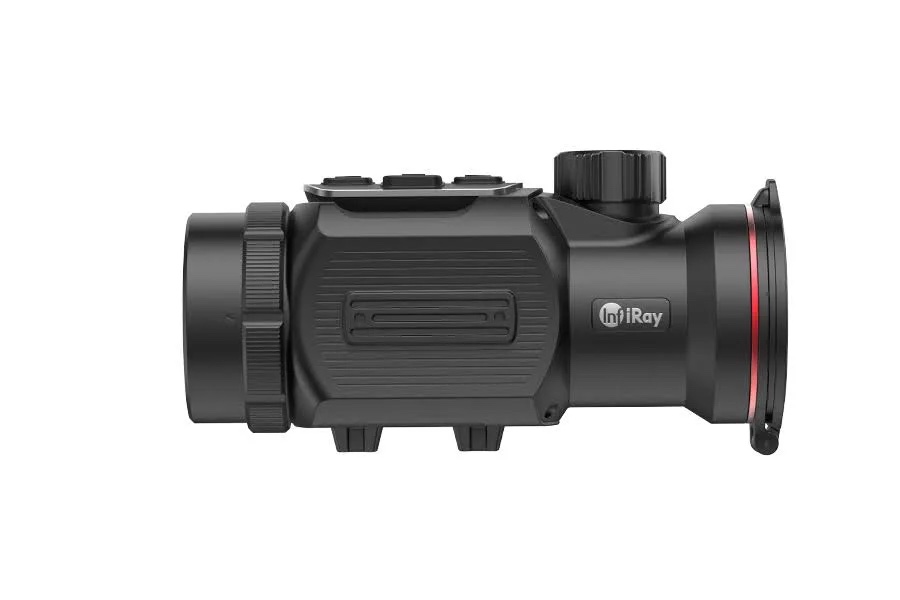

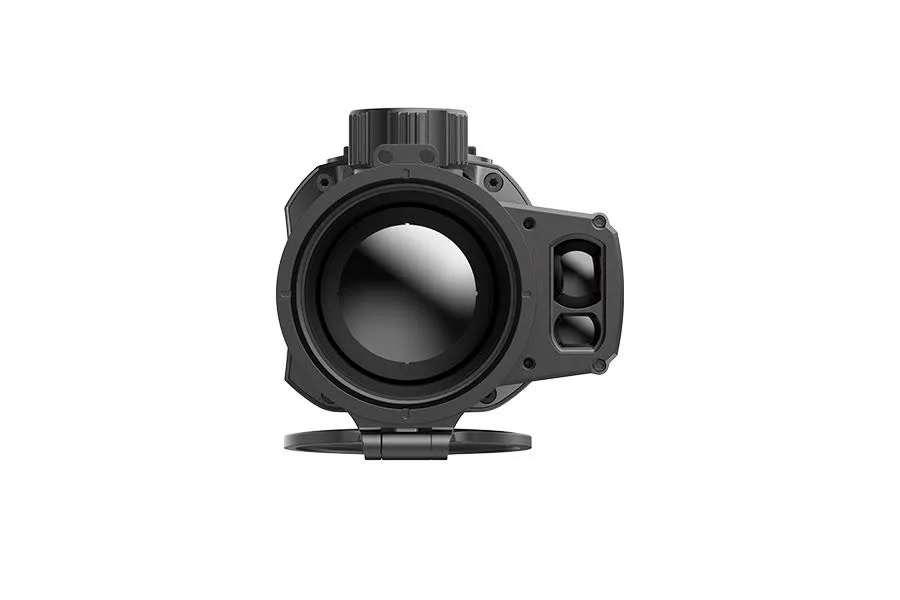

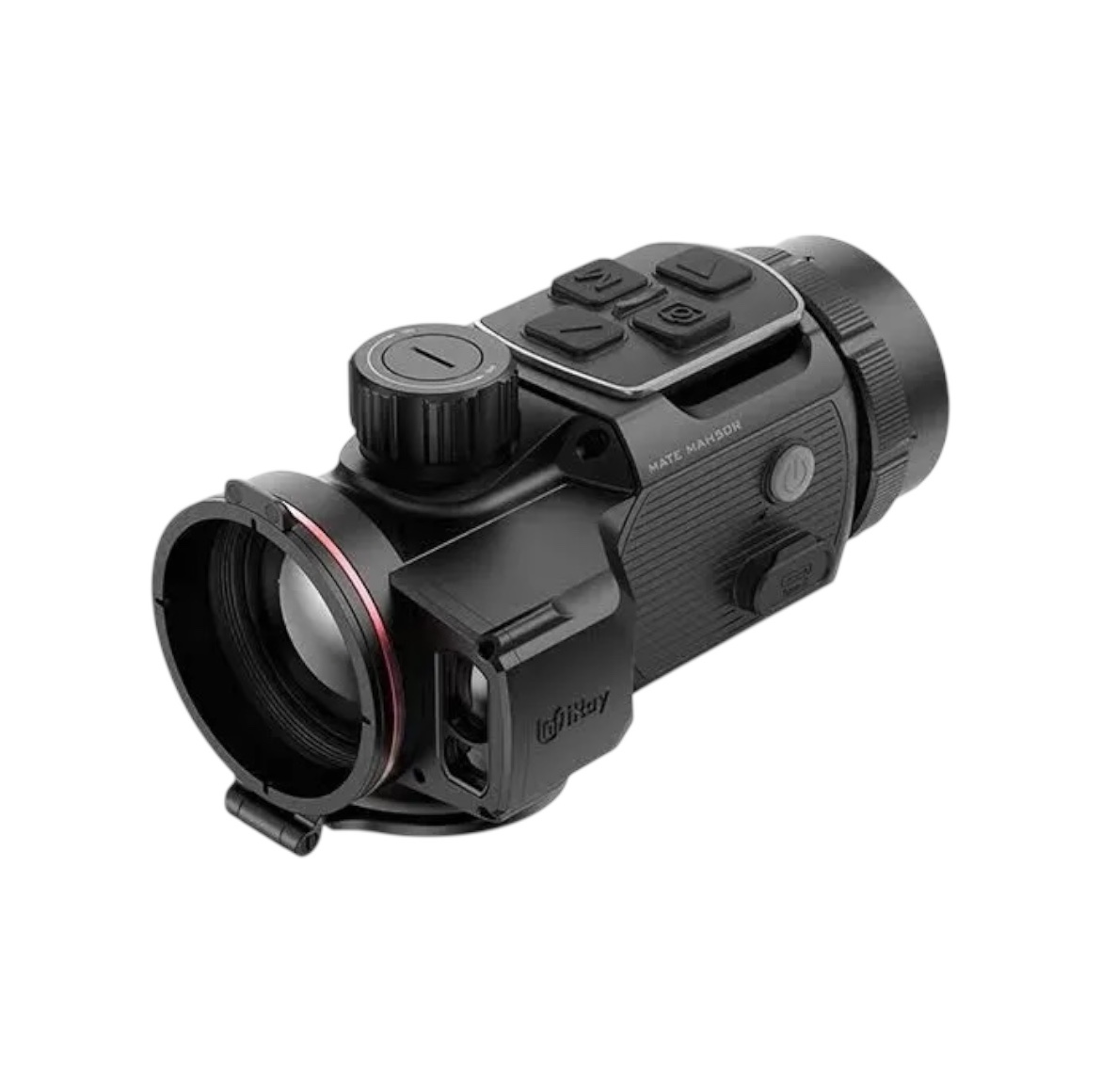

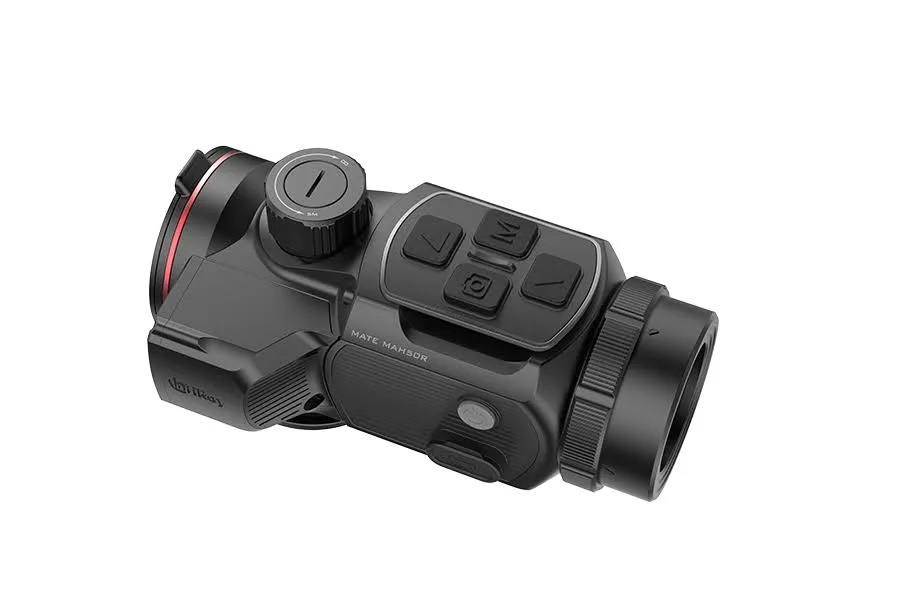

Introducing the revolutionary Infiray Mate MAH50, a game-changing thermal imaging clip-on attachment meticulously engineered to redefine your shooting experience. Whether you’re a seasoned hunter, tactical marksman, or outdoor enthusiast, the MAH50 elevates your capabilities to new heights. Its state-of-the-art 640×512 12 micron thermal core sets a new standard in performance, seamlessly integrating with your existing day scope to instantly transform it into a cutting-edge thermal riflescope.
Experience unparalleled detection prowess with the MAH50’s impressive range of up to 2600 meters and 1 MOA precision, ensuring unparalleled accuracy even at extended magnifications of up to 10x. Crafted with a lightweight magnesium alloy housing, the MAH50 strikes the perfect balance between durability and agility, reducing weight by a staggering 50% without compromising on robustness or precision.
But the MAH50 isn’t just about raw power—it’s designed with the user in mind. Featuring intuitive removable buttons, optional Laser Range Finder (LRF), and a versatile monocular extension, the MAH50 adapts to your specific needs with ease. Enjoy the convenience of a 20% weight reduction compared to traditional alternatives, making it the ultimate choice for those who demand compactness and portability without sacrificing performance.
Delve into the next generation of thermal imaging technology with the Infiray Mate MAH50. With its powerful thermal detector boasting a NETD less than 25mK, ultra-precision zeroing capabilities, and optional accessories like the Laser Rangefinder Module, the MAH50 empowers you to seize every opportunity with confidence. Plus, with the included Cover Ring Adaptor, effortlessly attach the MAH50 to a wide range of riflescope objective sizes for seamless integration.
Elevate your shooting game and unlock new possibilities with the Infiray Mate MAH50—the pinnacle of thermal imaging innovation.
Specifications:
- Model: MAH50
Detector Parameters:
- Resolution: 640 × 512 pixels
- Pixel Size: 12 microns
- NETD: ≤ 25 mK
- Frame Rate: 50 Hz
Optics Parameters:
- Objective Lens: 50mm
- Field of View (H x V): 8.8 × 7.0 degrees / 15.4 × 12.3 m @ 100 m
- Recommended Magnification of the Day Scope:
- G1/G2: 1 – 5x
- G3/G4: 6 – 10x
- E-zoom: Attachment mode: ×1; Monocular mode: ×1/×2/×4
- Detection Range: 2597m (Target size: 1.7m×0.5m, P(n)=99%)
Display Parameters:
- Type: OLED
- Resolution: 1024 × 768 pixels
Electrical Parameters:
- Battery: Built-in battery + Infiray battery Pack
- Max. Battery Life: 4 + 7 hours
- USB Interface: Type-C
Physical Parameters:
- Body Material: Magnesium Alloy
- IP Rating: IP67
- Remote Control: Support
- Built-in Memory: 32 GB
- Aim Point: 1 MOA
- Weight: 530g
- Dimensions: 146 × 62 × 73 mm
- Adapter Ring: M52×0.75
Features:
- High-resolution thermal imaging with 640 × 512 pixels
- Ultra-sensitive sensor with a pixel size of 12 microns and NETD of ≤ 25 mK
- Smooth operation at 50 Hz frame rate
- Enhanced optics with a 50mm objective lens and versatile field of view
- Compatible with a wide range of day scopes, with recommended magnification settings
- Flexible E-zoom options for both attachment and monocular modes
- Extended detection range of up to 2597m
- Crisp OLED display with a resolution of 1024 × 768 pixels
- Long-lasting battery life with both built-in and additional battery pack options
- Convenient Type-C USB interface for easy charging and data transfer
- Robust magnesium alloy construction with IP67 rating for durability and weather resistance
- Remote control support for added convenience
- Ample built-in memory of 32 GB for storage
- Precise aim point adjustment with 1 MOA accuracy
- Lightweight design at only 530g, with compact dimensions for portability
- Adapter ring included for seamless attachment to various optics setups
2 Year Manufacturer Warranty
