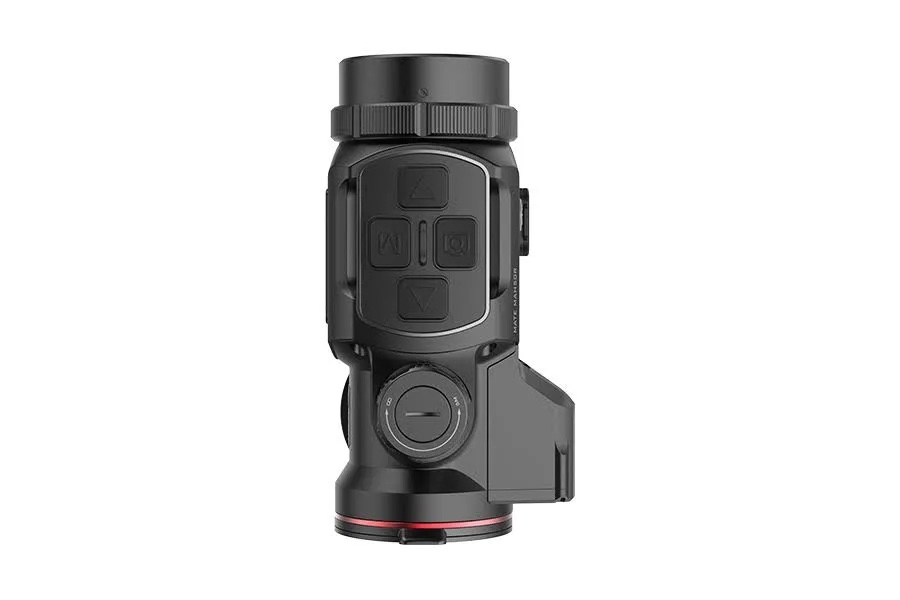

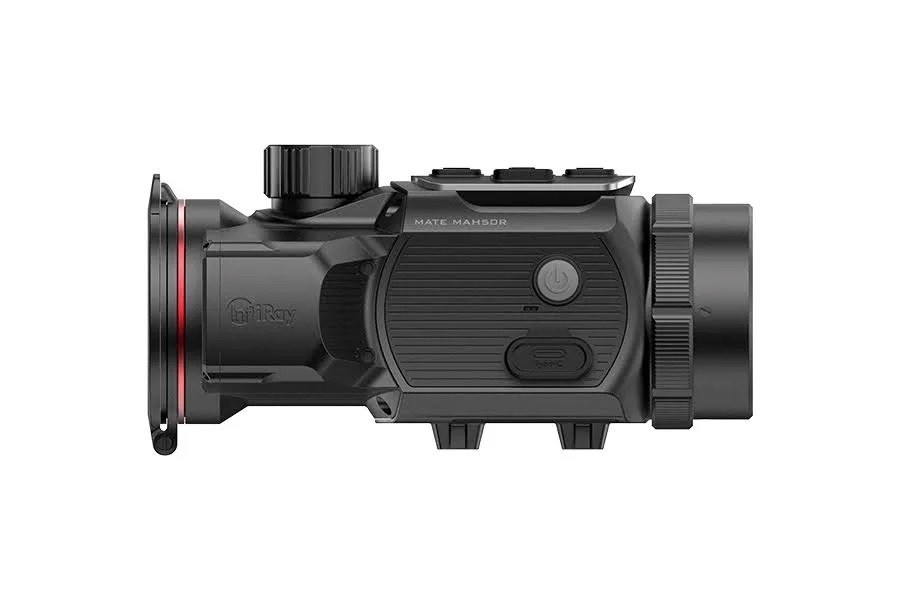

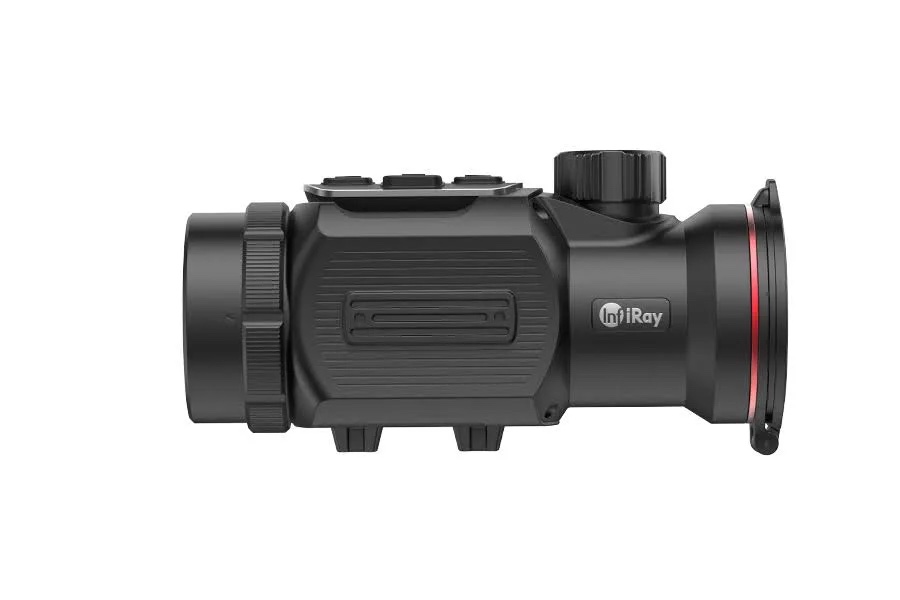

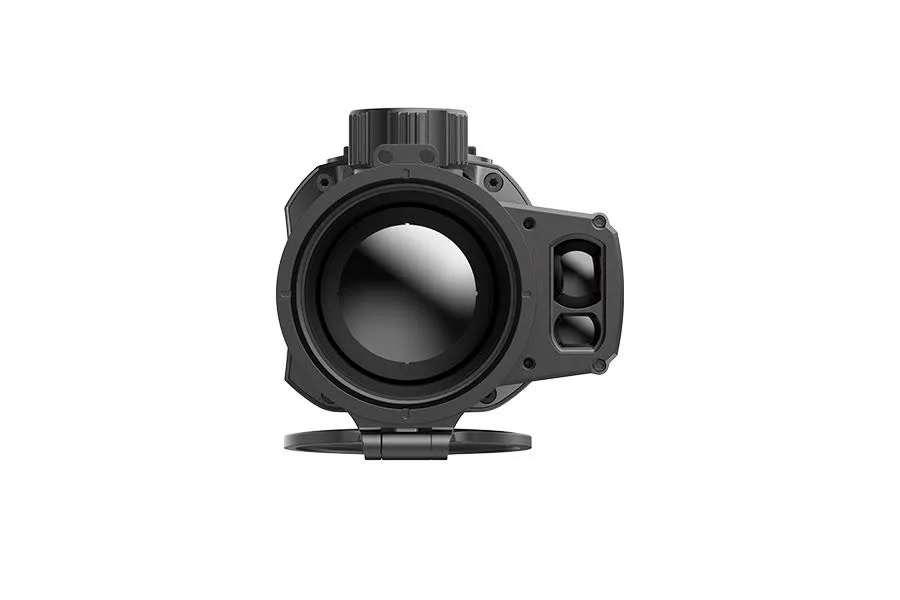

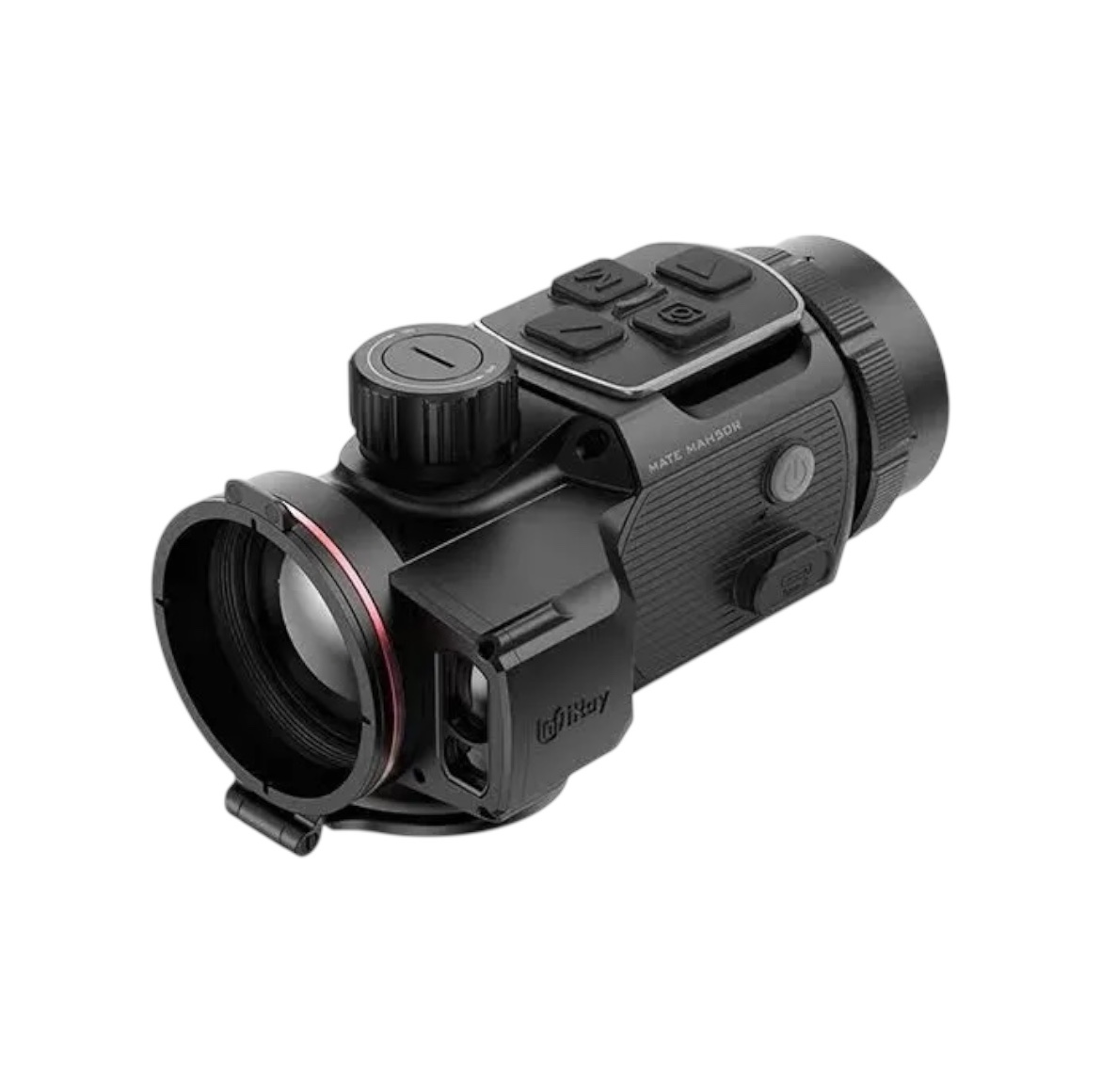

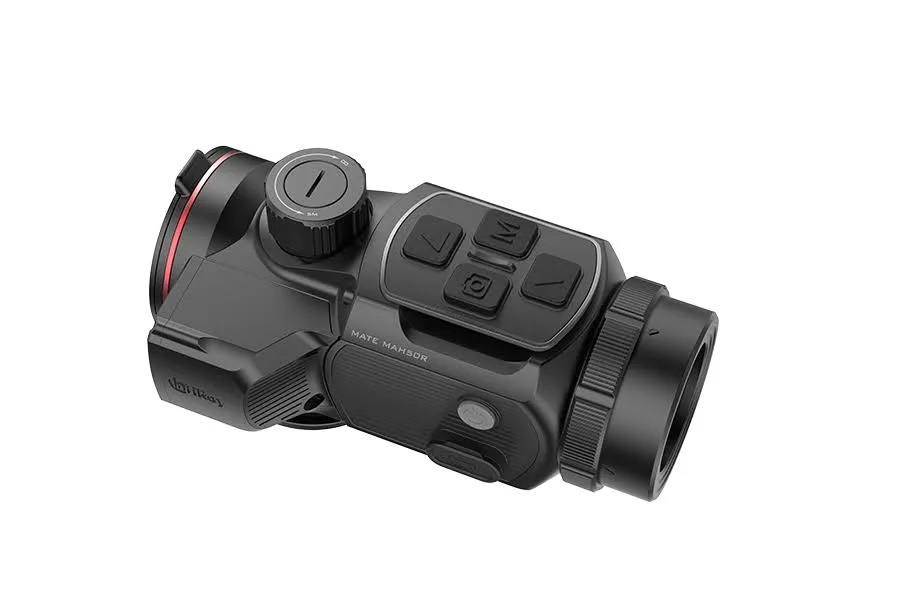

Infiray Mate MAH50 Thermal Clip-On

The Infiray Mate MAH50 is a groundbreaking thermal imaging clip-on attachment designed to enhance your shooting capabilities. Whether you’re a seasoned hunter, tactical marksman, or outdoor enthusiast, the MAH50 transforms your day scope into a high-performance thermal riflescope with unparalleled precision and versatility.

Key Features:

• High-Resolution Thermal Imaging: Equipped with a 640×512 pixel thermal core and a 12-micron pixel size, the MAH50 delivers stunning clarity and detail, allowing you to detect targets up to 2600 meters away with ease. Its NETD of ≤ 25 mK ensures excellent thermal sensitivity for precise observation.
• Enhanced Optics: The MAH50 features a 50mm objective lens and a field of view of 8.8 × 7.0 degrees (15.4 × 12.3 m @ 100 m). The device is designed to work seamlessly with day scopes, recommended for magnifications between 1x to 10x, and offers flexible E-zoom options for both attachment and monocular modes.
• Compact and Lightweight: Crafted from durable magnesium alloy, the MAH50 is 50% lighter than traditional models, weighing just 530 grams. Its robust construction ensures durability and resilience in the field while maintaining portability.
• Versatile Operation: The MAH50 includes intuitive removable buttons, a Laser Range Finder (LRF) option, and a monocular extension, allowing you to tailor the device to your specific needs. It also features a 20% weight reduction compared to alternatives, enhancing ease of use and portability.
• High-Performance Display: Enjoy a crisp OLED display with a resolution of 1024 × 768 pixels, providing clear and vivid images for accurate target identification and engagement.
• Extended Battery Life: The MAH50 supports up to 11 hours of operation with both built-in and additional Infiray battery pack options, ensuring extended use during long shooting sessions.
• Seamless Integration: The included Cover Ring Adaptor allows for easy attachment to various riflescope objective sizes, while the Type-C USB interface facilitates convenient charging and data transfer.

Specifications:

• Model: MAH50

• Detector Parameters:

  • Resolution: 640 × 512 pixels
  • Pixel Size: 12 microns
  • NETD: ≤ 25 mK
  • Frame Rate: 50 Hz

• Optics Parameters:

  • Objective Lens: 50mm
  • Field of View (H x V): 8.8 × 7.0 degrees / 15.4 × 12.3 m @ 100 m
  • Recommended Magnification of the Day Scope: G1/G2: 1 – 5x; G3/G4: 6 – 10x
  • E-zoom: Attachment mode: ×1; Monocular mode: ×1/×2/×4
  • Detection Range: 2597m (Target size: 1.7m × 0.5m, P(n) = 99%)

• Display Parameters:

  • Type: OLED
  • Resolution: 1024 × 768 pixels

• Electrical Parameters:

  • Battery: Built-in battery + Infiray battery Pack
  • Max. Battery Life: 4 + 7 hours
  • USB Interface: Type-C

• Physical Parameters:

  • Body Material: Magnesium Alloy
  • IP Rating: IP67
  • Remote Control: Support
  • Built-in Memory: 32 GB
  • Aim Point: 1 MOA
  • Weight: 530g
  • Dimensions: 146 × 62 × 73 mm
  • Adapter Ring: M52×0.75

• Features:

  • High-resolution thermal imaging with 640 × 512 pixels
  • Ultra-sensitive sensor with a pixel size of 12 microns and NETD of ≤ 25 mK
  • Smooth operation at 50 Hz frame rate
  • Enhanced optics with a 50mm objective lens and versatile field of view
  • Compatible with a wide range of day scopes, with recommended magnification settings
  • Flexible E-zoom options for both attachment and monocular modes
  • Extended detection range of up to 2597m
  • Crisp OLED display with a resolution of 1024 × 768 pixels
  • Long-lasting battery life with both built-in and additional battery pack options
  • Convenient Type-C USB interface for easy charging and data transfer
  • Robust magnesium alloy construction with IP67 rating for durability and weather resistance
  • Remote control support for added convenience
  • Ample built-in memory of 32 GB for storage
  • Precise aim point adjustment with 1 MOA accuracy
  • Lightweight design at only 530g, with compact dimensions for portability
  • Adapter ring included for seamless attachment to various optics setups
  • 2 Year Manufacturer Warranty

Learn More: Infiray AP09 Thermal Spotter

Elevate your shooting game with the Infiray Mate MAH50 Thermal Imaging Clip-On Attachment—where advanced thermal imaging technology meets exceptional performance and versatility.
