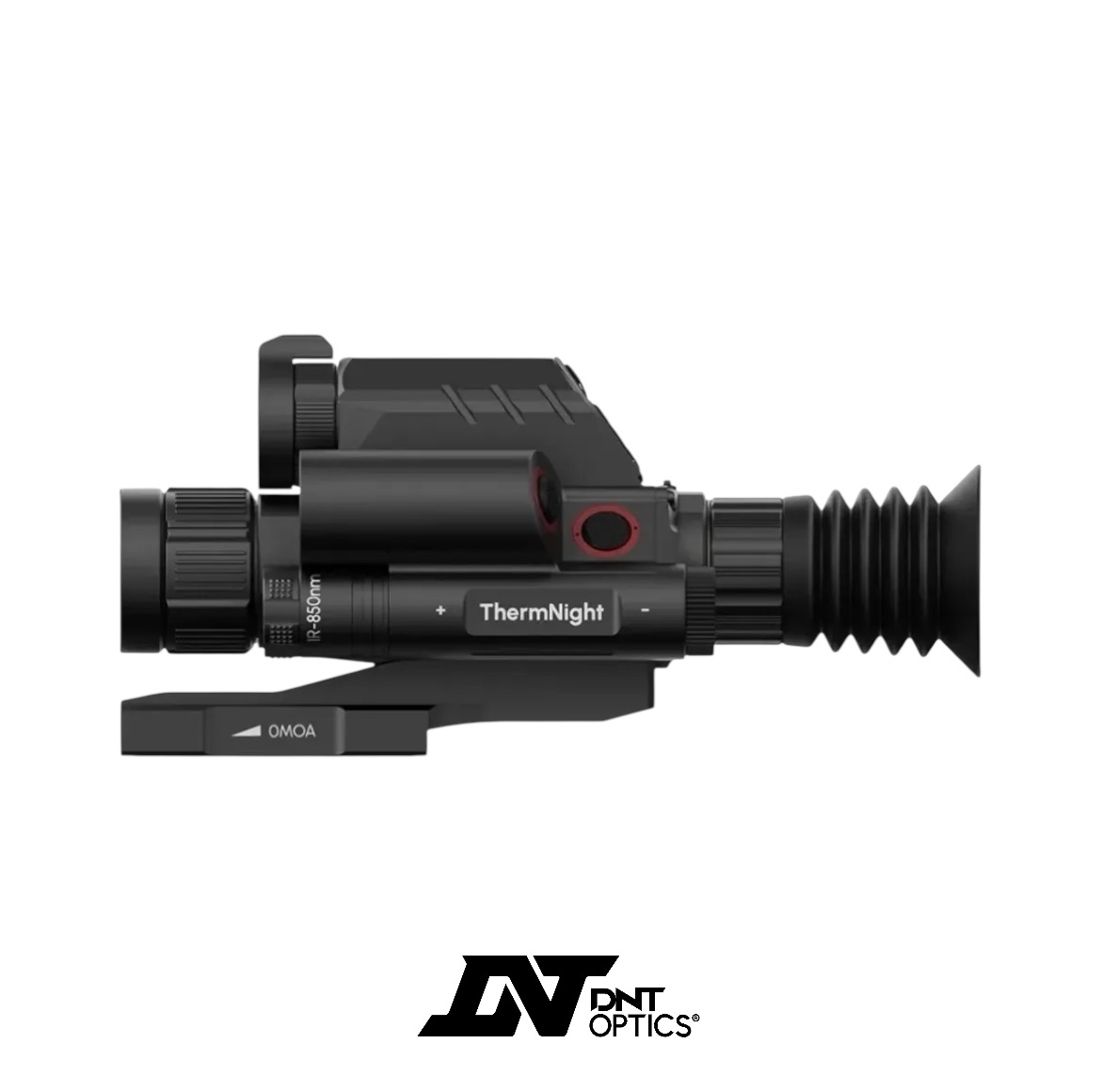

DNT ThermNight LRF Thermal & Night Vision Multispectral Scope
The TNC225R combines cutting-edge thermal sensors for detecting targets with high-definition digital night vision for precise identification. This multispectral scope ensures superior operational effectiveness in various environments and conditions.
With advanced thermal imaging, the TNC225R offers exceptional nighttime detection ranges. Enhanced by digital night vision, it allows accurate and reliable target identification. The ThermNight TNC225R features a highly sensitive 12μm pixel detector and a 256×196 resolution enhanced by an advanced algorithm, with NETD <25. This enables detection of heat signatures at greater distances and positive identification of targets using digital night vision before engagement.
Unmatched Capabilities Day or Night
Equipped with the state-of-the-art soNs ARvis 2 sensor, known for its outstanding sensitivity in low-light conditions and remarkable image clarity, the ThermNight TNC225R offers unparalleled detection and identification capabilities.

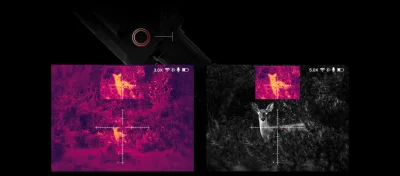

Dual Aiming System
The “one shot zeroing” function of the ThermNight TNC225R is available for both thermal imaging and day/night vision channels. After zeroing in with the day/night vision, you can easily switch to thermal mode and adjust the reticle to match the same point of impact (POI), saving time and enhancing your hunting experience.
Specifications:
- Net Weight: 22.3 oz
- LRF Maximum Measuring Range: 5-1000 yards
- Ingress Protection: IP67
- Display Type: Micro-OLED
- Dimensions: 6.7 × 3.1 × 3 inches
- WIFI/APP: Yes
- Operating Temperature: -4°F to 122°F
- Storage: Internal Storage, 32GB
- Bluetooth: Yes
- Shock Resistance: 800Gs
- Display Resolution: 1920 × 1080 pixels
- Frame Rate: 50 FPS
- Battery Type: 18650 Battery (flat top)
- Operating Time: 5 hours
Thermal Channel – Sensor Specifications:
- Resolution: 256 × 192 px
- Image Sensor: Uncooled Infrared
- Pixel Size: 12 × 12 μm
- NETD: <25 mK @ 25°C
- Base Magnification: 3x
- Digital Zoom: 3x, 6x, 9x, 12x
- External Power Supply: 5V – Type C USB
- Frame Rate: 50 FPS
- Focal Length of Objective Lens: 25 mm
Visible Light Channel – Sensor Specifications:
- Resolution: 1920 × 1080 pixels
- Sensor Frame Rate: 60 FPS
Visible Light Channel – Optical Specifications:
- Objective Lens Focal Length: 52 mm
- Base Magnification: 5x
- Eye Relief: 1.8 inches
- Diopter Adjustment: ±5D
- Infrared Power: Class 3R Eye Safe
- Video Record Resolution: 1024 × 768 pixels
- Digital Zoom: 5x, 7.5x, 10x, 12x, 15x, 17.5x, 20x
- IR Wavelength: 850/940 nm
2 year manufacturer warranty
