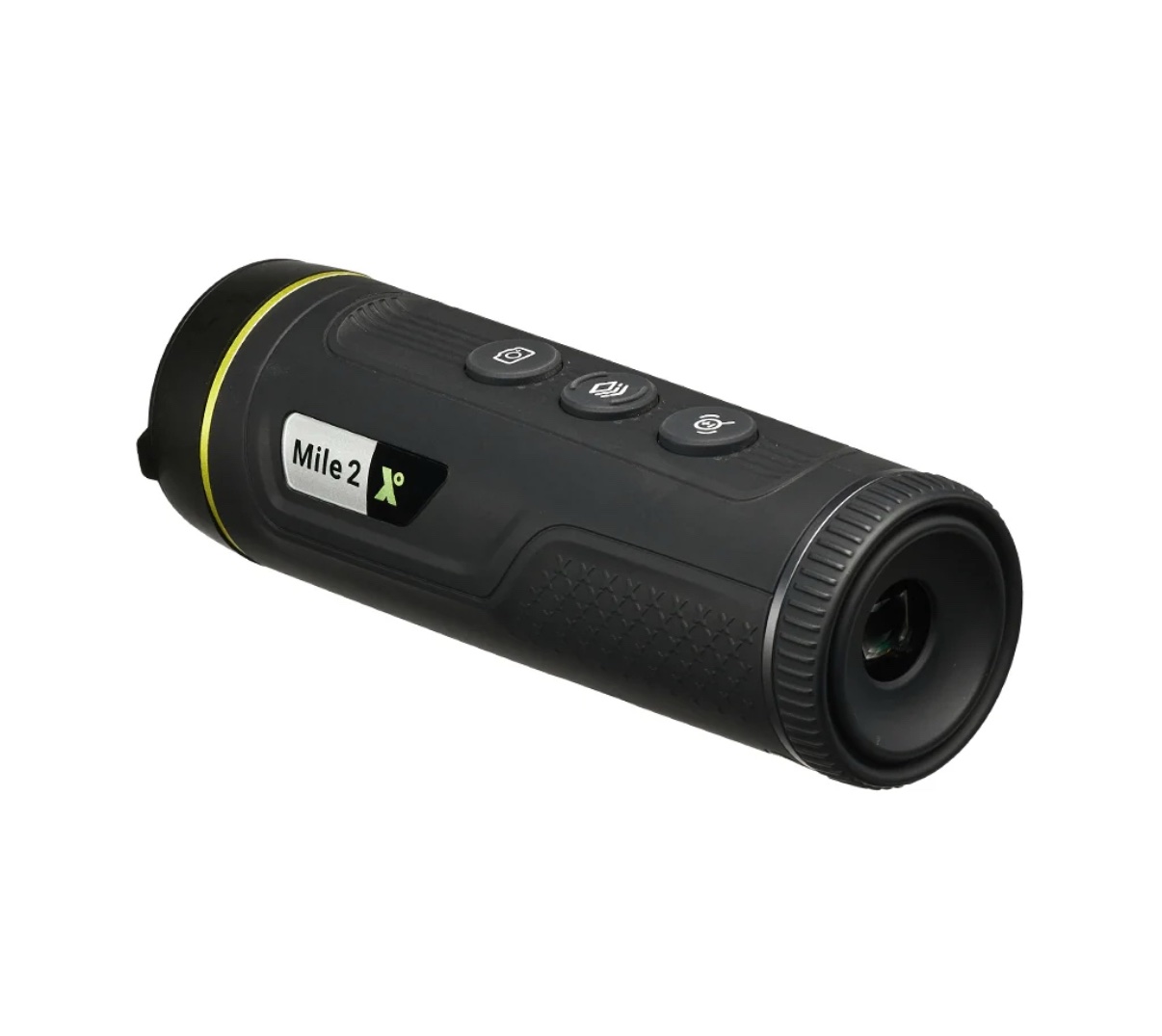

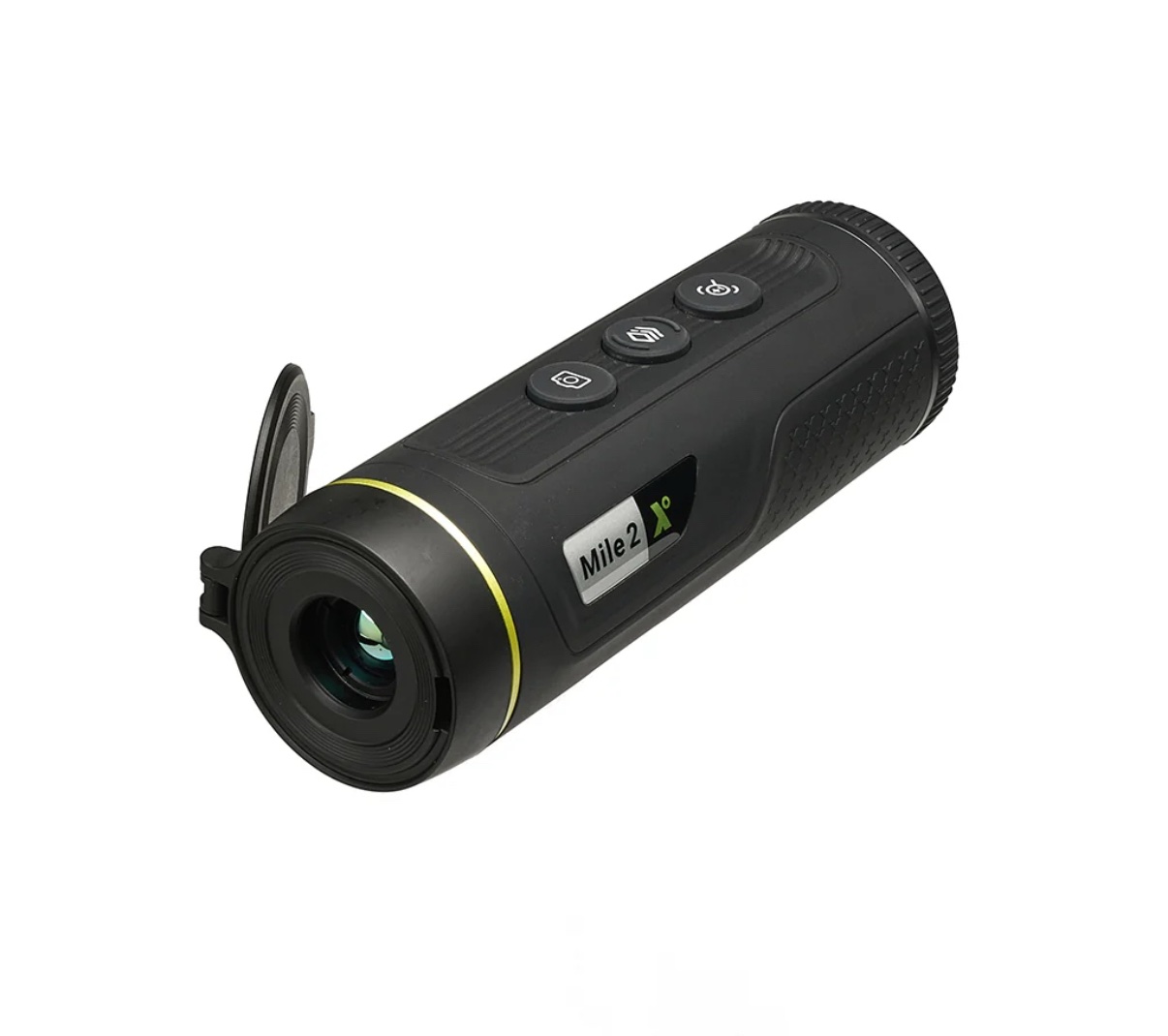

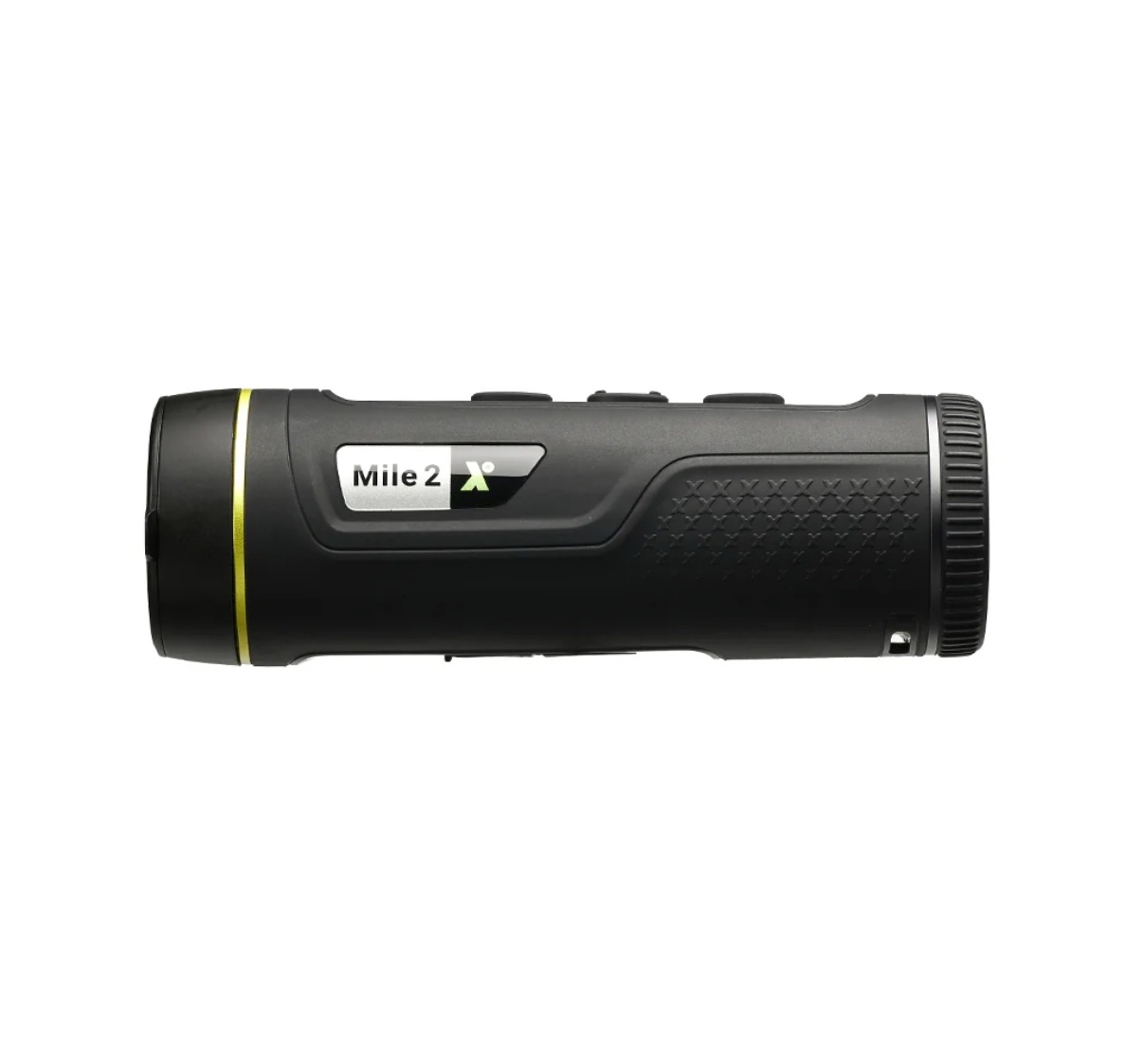

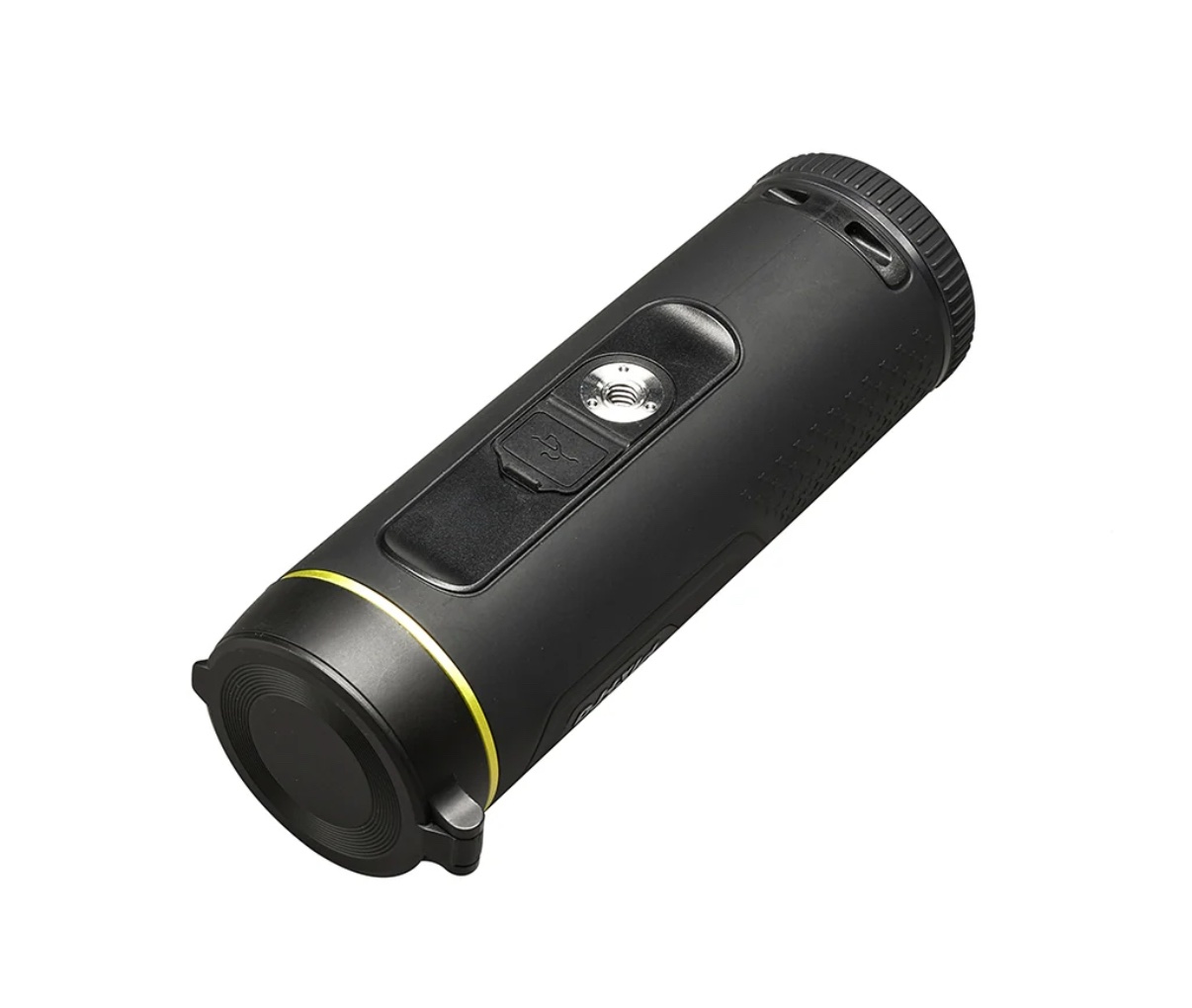

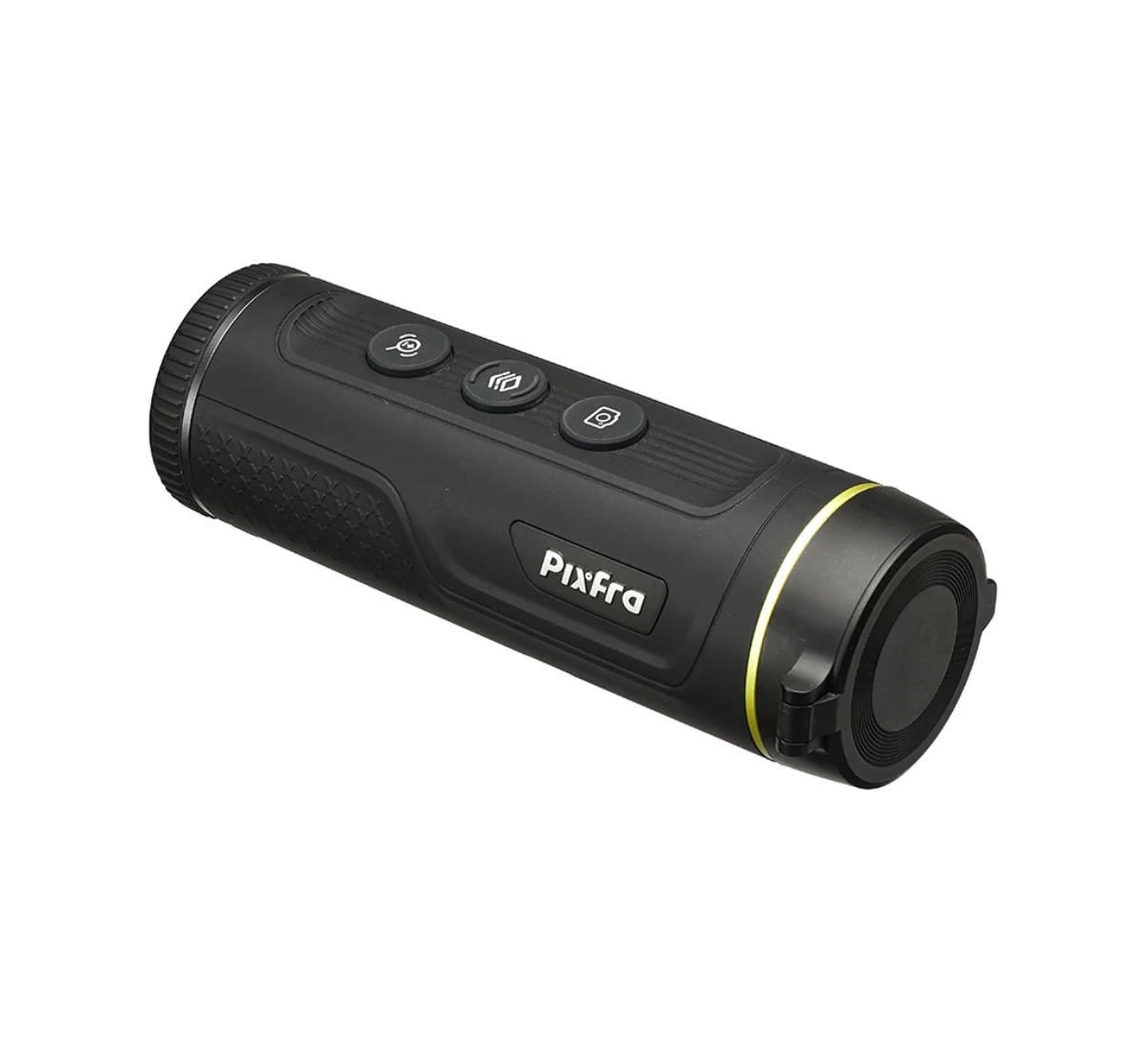

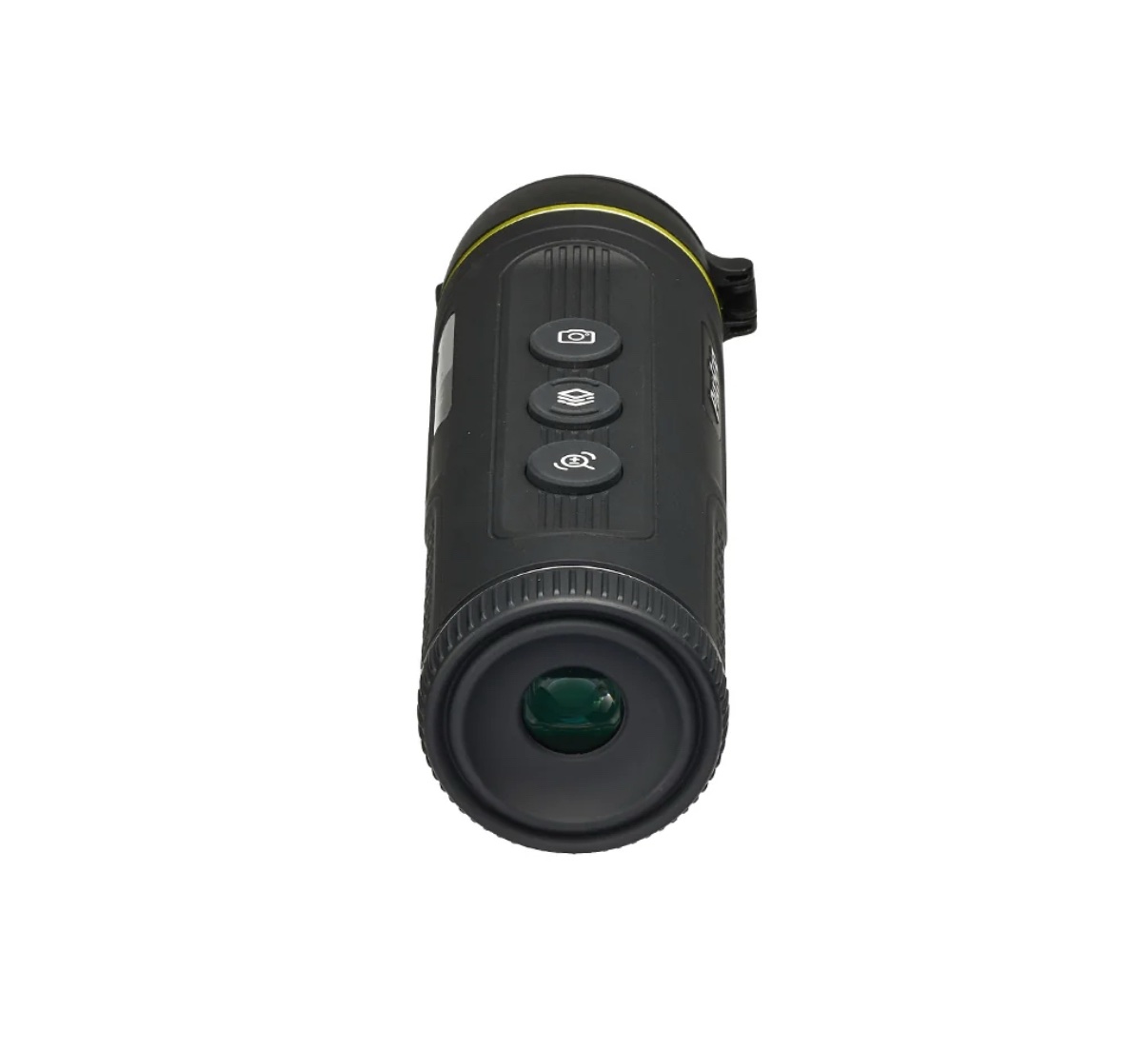

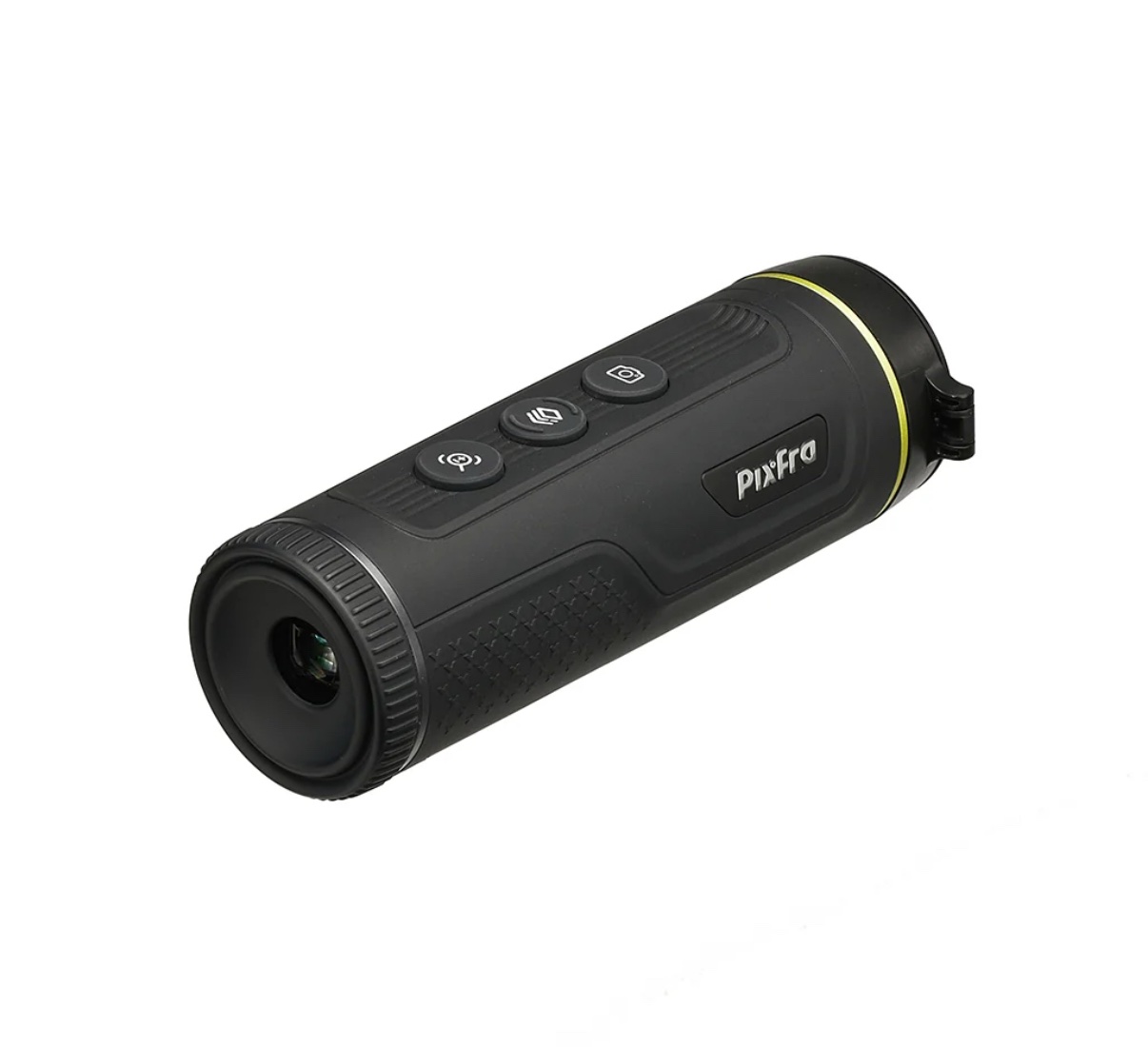

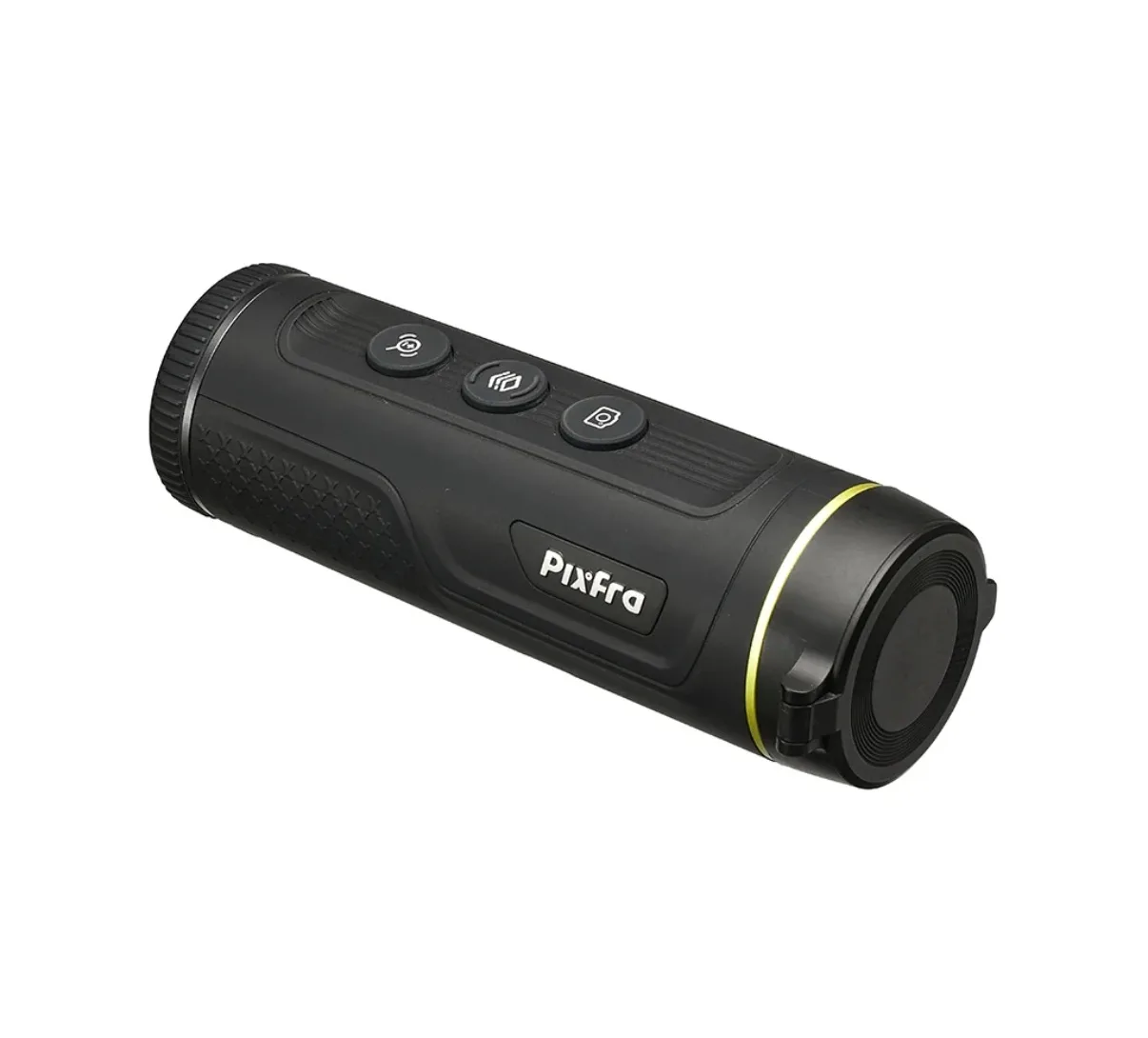

Pixfra MILE 2 M215 Thermal Monocular

Pixfra MILE 2 M215 Thermal Monocular

The Pixfra MILE 2 M215 is a compact, high-performance thermal monocular designed for professionals and outdoor enthusiasts who need precision in detecting heat signatures at long distances. With its advanced features and rugged design, the M215 provides exceptional thermal imaging in even the harshest environments.

High-Resolution Thermal Imaging

The M215 features a 256×192 resolution thermal sensor with a 12μm pixel pitch and a <35mK NETD (Noise Equivalent Temperature Difference), ensuring that even the faintest temperature variations are clearly detected. Whether you’re tracking wildlife or conducting a search-and-rescue mission, this monocular excels in offering fine detail at extended ranges. The powerful 15mm f1.0 objective lens captures optimal light, ensuring crisp, clear thermal images even in low-light or no-light conditions.

Slim, Lightweight Design for Maximum Portability

With a streamlined design, the M215 is not only visually appealing but also lightweight and easy to carry. Its compact form fits comfortably in your hand, making it ideal for long observation sessions without causing fatigue. The integrated power button within the Pixfra logo contributes to a minimalist aesthetic, reducing clutter and simplifying operation.

Built for Tough Conditions

The IP67 rating of the M215 ensures that it is both dustproof and waterproof, capable of withstanding extreme environmental conditions such as heavy rain, fog, and temperatures ranging from -30°C to +55°C. Whether you’re hiking through rough terrain or caught in an unexpected downpour, the M215 will perform reliably, ensuring that you don’t miss a moment of critical observation.

Long Battery Life for Extended Use

The M215 is equipped with a rechargeable lithium battery, offering up to 8.5 hours of continuous use on a single charge, making it perfect for long excursions or night-time operations. This extended battery life ensures you stay powered through your activities without interruption.

Seamless Connectivity and Group Viewing

With built-in Wi-Fi, the M215 allows you to connect to up to four smartphones or tablets at once, enabling simultaneous viewing of the thermal feed from a distance of up to 40 meters. This feature is perfect for group activities, whether it’s a wildlife observation expedition or a collaborative search-and-rescue operation.

Capture Critical Moments

The M215 allows you to record video and capture still images, making it easy to document important moments for later analysis. The device also includes digital zoom (up to 8x) and offers six customizable color palettes to suit different viewing preferences and environments.

Key Features

The Pixfra MILE 2 M215 is equipped with a high-resolution thermal sensor (256×192, 12μm) that offers precise detection of even the faintest temperature variations with a <35mK NETD. It features a 15mm f1.0 objective lens, delivering clear, sharp thermal images in various lighting conditions. With a long detection range of up to 800 meters, you can effectively monitor heat signatures from significant distances.

This monocular also includes a vivid OLED display with a resolution of 800×600, providing clear and detailed imagery. Its slim, lightweight design makes it easy to carry and use for extended periods. The M215 is built to withstand tough conditions, with an IP67 rating that ensures it remains fully operational in extreme weather, including rain and fog, and operates in temperatures from -30°C to +55°C.

For prolonged use, the 8.5-hour battery life allows you to stay in the field without frequent recharging. The M215 also features Wi-Fi connectivity, enabling up to four devices to view the thermal feed simultaneously from a distance of up to 40 meters, ideal for group activities like search-and-rescue or wildlife observation. The monocular is capable of video recording and still image capture, letting you document key moments, while the digital zoom (1x, 2x, 4x, 8x) and six color palettes allow for a customizable viewing experience.

The device also features hot spot tracking, which automatically detects and tracks the hottest object in the field of view, and FFC calibration for maintaining optimal image quality. Additionally, the defective pixel correction (DPC)technology ensures high-quality imagery by fixing any defective pixels.

Technical Specifications

• Thermal Sensor: 256×192, 12μm, <35mK NETD
• Objective Lens: 15mm f1.0
• Spectral Range: 8 μm–14 μm
• Field of View: Horizontal
• Focus Control: Fixed-focal
• Close Focus Distance: 2.6 m (8.53 ft)
• Detection Range: Up to 800 m
• Magnification: 2.33x
• Frame Rate: 50 Hz
• Display: 800 × 600, 0.32-inch OLED
• Color Palettes: 6 (White Hot, Black Hot, Iron Red, Alarm, Emerald, Amber)
• Video Compression: H.264
• Diopter: –3 D to +1 D
• Eye Relief: 13 mm (0.51 inch)
• Exit Pupil: 5 mm (0.20 inch)
• Digital Zoom: 1×, 2×, 4×, 8×
• Video Recording: Yes
• Still Image Capture: Yes
• Wi-Fi Hotspot: Yes
• Hot Spot Tracking: Yes
• Video Distance Measurement: Yes
• FFC Calibration: Auto, Manual, External Correction
• Standby Mode: Yes
• DPC (Defective Pixel Correction): Yes
• Storage: Built-in 16GB
• Battery Type: Rechargeable Lithium Battery
• Battery Life: 8.5 hours (@ 25°C)
• Power Supply: 5 VDC/2 A
• Port: USB Type-C
• Overvoltage Protection: Yes
• Operating Temperature: –30 to +55 °C (–22 to +131 °F)
• Operating Humidity: ≤95%
• Protection Grade: IP67 (Dustproof, Waterproof)
• Product Dimensions: 149.0 mm × 56.6 mm × 50.3 mm (5.87″ × 2.23″ × 1.98″)
• Gross Weight: 760 g (1.68 lb)
• Net Weight: 270 g (0.60 lb)

What’s in the Box

• Pixfra MILE 2 M215 Handheld Thermal Monocular
• USB Type-C Charging Cable
• Wristband
• Lanyard
• Lens Cloth
• Camera Pouch
• Eyeshade
• Quick Start Guide

Warranty

The Pixfra MILE 2 M215 comes with a 3-year warranty, ensuring durability and peace of mind.
