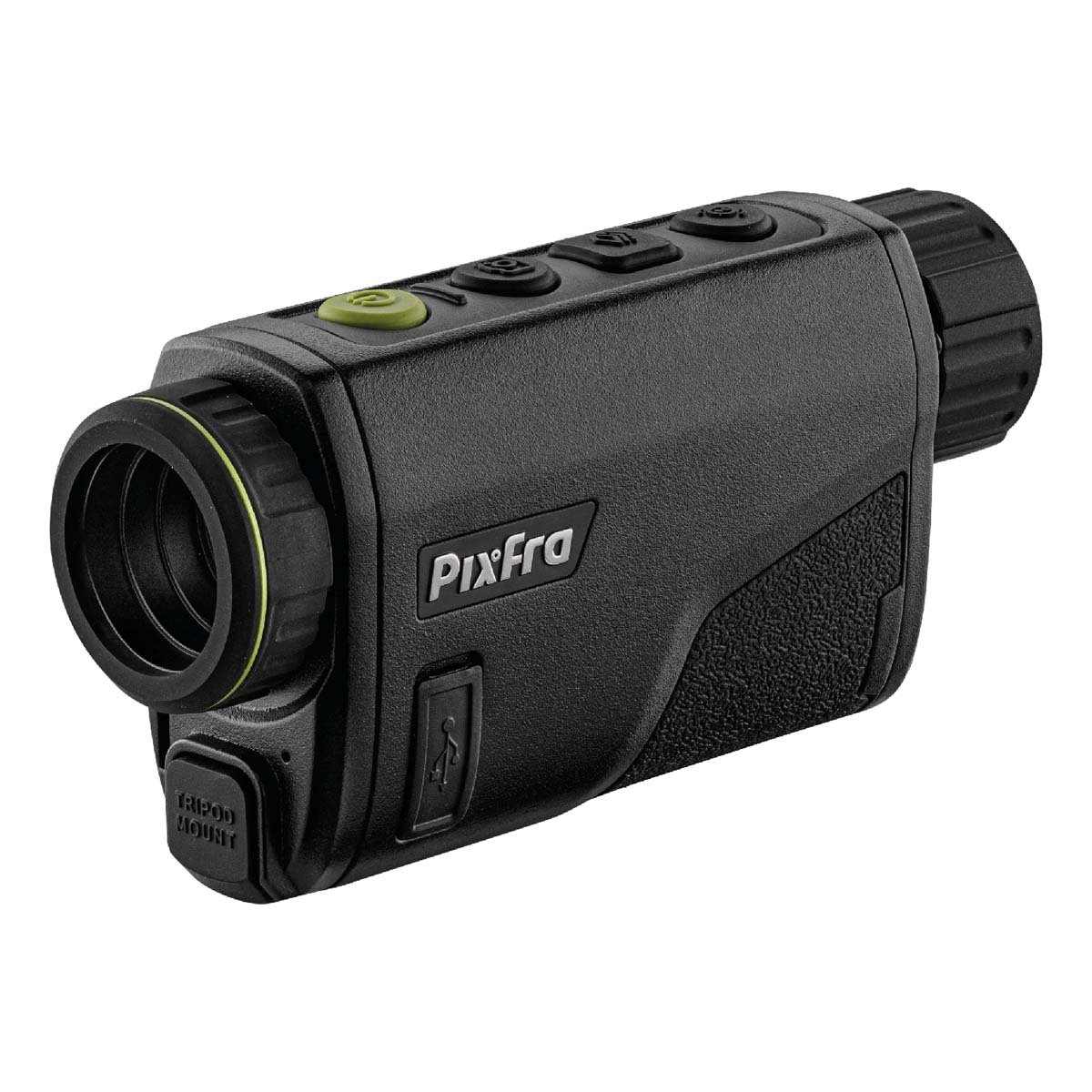

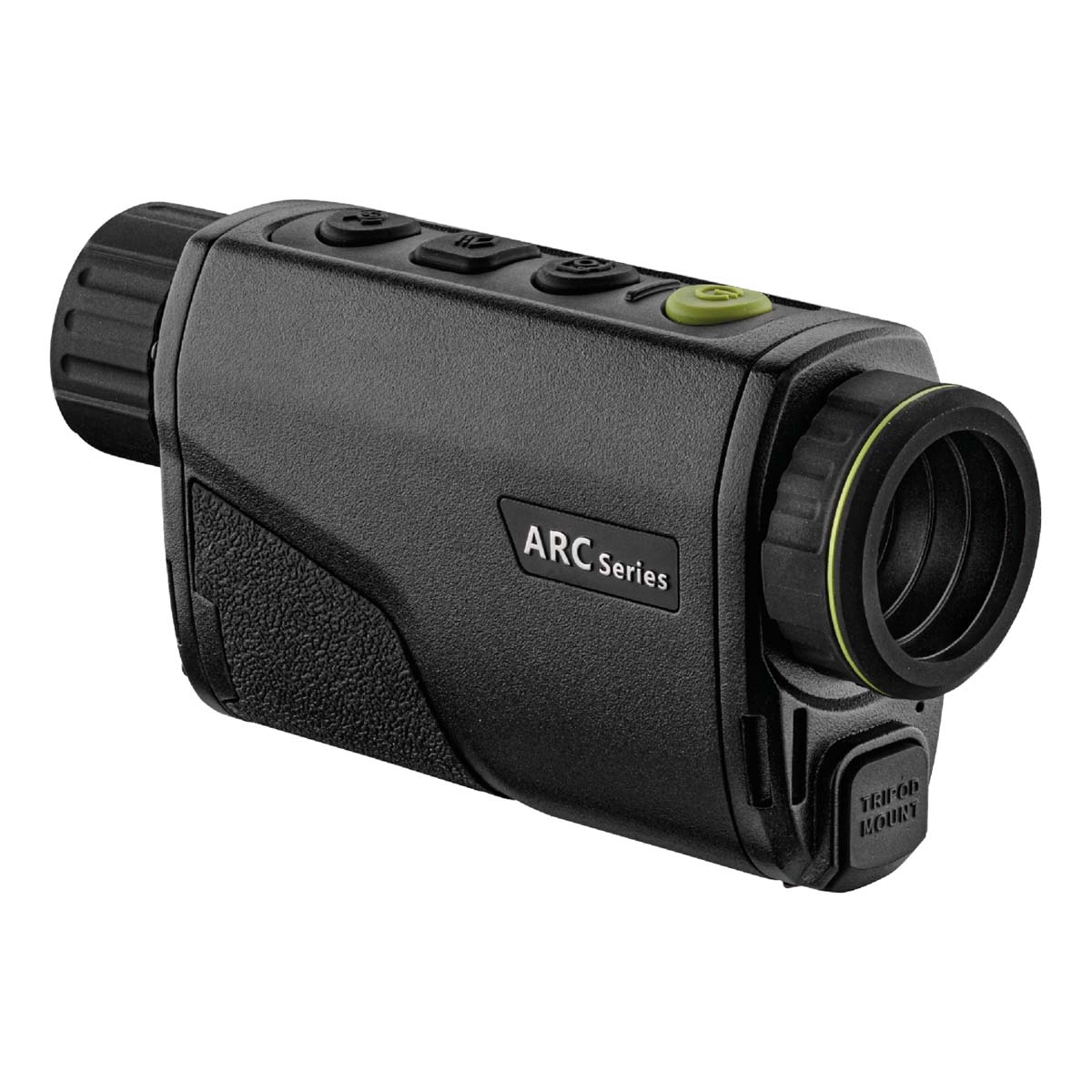

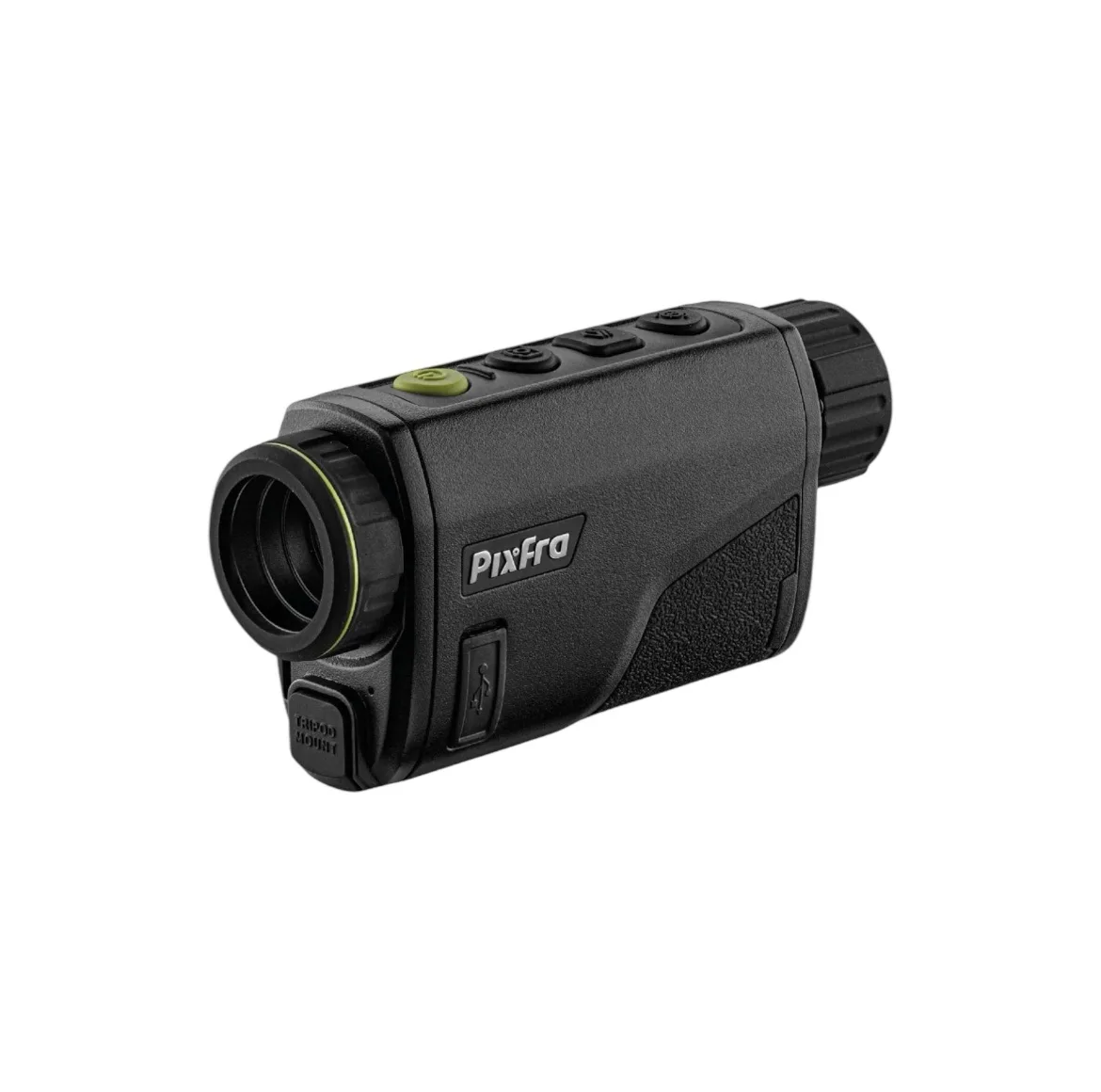

Pixfra Arc A419 Thermal Monocular

Pixfra Arc A419 (384×288/12µm) Thermal Imager – 19mm (PIX-PFI-A419)

Featuring a sensitive 384×288, 12µm, <30mK NETD thermal sensor and a powerful 19mm f1.0 objective lens, the NEW Pixfra Arc A419 will achieve a detection range of up to 900m, spotting even the smallest heat signature at long-range and presenting a stunning thermal picture on to a full colour 1440×1080 OLED display. The Arc A419 is packed with a range of features designed to enhance your observation experience, including a built-in video recorder, multiple colour palettes, and even screen sharing through the Pixfra app.

Key Features:

Powerful Thermal Optics
The Pixfra Arc A419 features a 384×288, 12µm, <30mK NETD thermal sensor, 19mm f1.0 lens, and 900m detection range.

Hours of Effective Observation
The Arc A419 offers up to 14 hours of operation with two replaceable, rechargeable batteries.

Share the View
The Arc A419 can connect to four smart devices via the free Pixfra app for shared viewing within 20m.

Comfort & Portability
Weighing less than 350g, the Arc A419 is lightweight, ergonomic, and easy to carry.

Durable & Waterproof
The Arc A419 has a magnesium alloy casing with an IP67 waterproof rating for all-weather use.

Extreme Temperature Resistance
The Arc A419 operates in temperatures ranging from –30 °C to +50 °C.

Specifications:

• Thermal Sensor: 384×288, 12μm, <30mK NETD
• Detector Type: Vanadium oxide uncooled focal plane detector
• Spectral Range: 8μm?14μm
• Frame Rate: 50 Hz
• Objective Lens: 19mm f1.0
• Field of View: H: 14.4°; V: 10.8°
• Detection Range: 900m
• Magnification: 2.1x
• Colour Palettes: 6 (white hot/black hot /iron red/ alarm/amber/emerald)
• Close Focus Distance: 2m
• Digital Zoom: 1x, 2x, 4x, 8x
• Display Screen Dimensions: 0.41 inch, OLED
• Screen Resolution: 1440 x 1080
• Diopter: -4D ~ +5D
• Eye Relief: 15mm
• Uniformity Correction: Auto; Manual
• Storage: Built-in EMMC (32 GB)
• Audio Recording: Yes
• Hot Spot Trace: Yes
• Wi-Fi: Yes
• Power Supply: 5 V Type-C
• Battery Type: 1 rechargeable Lithium batteries
• Battery Capacity: 3,200 mAh
• Battery Operating Life: Up to 7.5h
• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Storage Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
• Protection: IP67
• Product Dimensions: 148.5 mm × 42.3 mm × 74.3 mm (5.85″ × 1.67″ × 2.93″) (L × W × H)
• Packaging Dimensions: 245 mm × 150 mm × 144 mm (9.65″ × 5.91″ × 5.67″) (L × W × H)
• Net Weight: ≤330 g (0.73 lb)(battery excluded)
• SKU: PIX-PFI-A419
