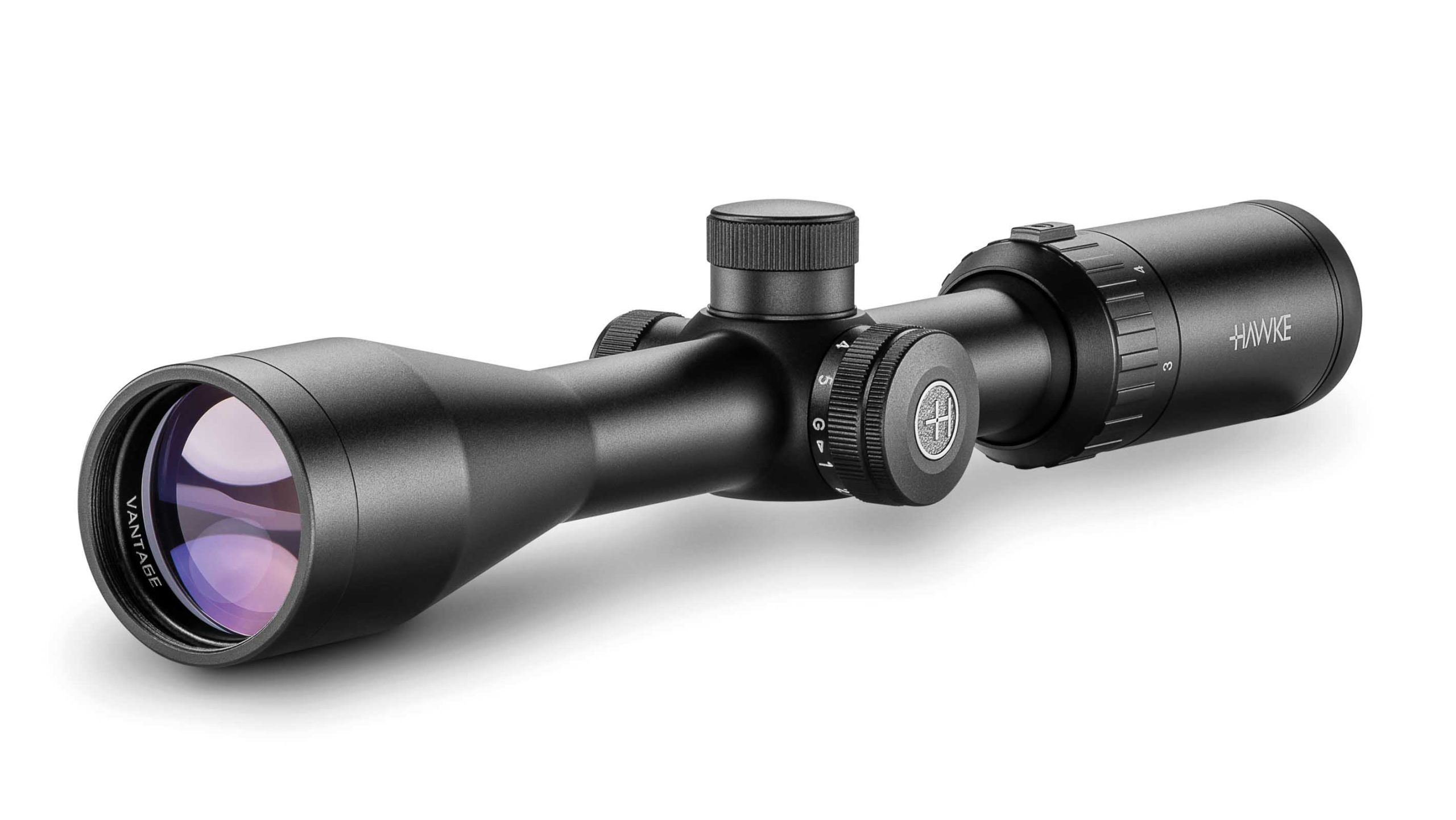

Hawke Vantage IR 3-9×40 L4A Dot Reticle

Hawke Vantage IR 3-9×40 L4A Dot Reticle (14218)

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

Key Features:

• Optical System: H2 optics, designed to provide exceptional clarity and performance across a range of configurations.
• Turrets: Capped low-profile turrets, which offer precision adjustments while maintaining a sleek, unobtrusive design.
• Chassis: 1-inch mono-tube construction, ensuring durability, strength, and resistance to recoil.
• Illumination: Offers illumination for better visibility of the reticle in low-light conditions.
• Lens Coating: 11 layers of fully multi-coated lenses, improving light transmission, minimizing glare, and enhancing image clarity.
• Zoom Ring: High-torque zoom ring for smooth and accurate magnification adjustments, even under stress.
• Eyebell: Fast-focus eyebell, enabling quick adjustments for optimal reticle clarity.
• Durability: Nitrogen purged to be fog-proof, and shockproof and waterproof, making it ideal for all weather conditions and rugged environments.
• Caliber Rated: Suitable for use with all calibers, making it a versatile choice for various shooting needs.
• Warranty: Comes with the Hawke No-Fault Lifetime Warranty, ensuring reliable performance and peace of mind for the long term.

Specifications:

• Model: 14 218
• Bar Code: 5054492142187
• Magnification: 3 – 9x
• Reticle: L4A Dot
• Optical System: System H2
• Objective Lens: 40mm
• Parallax: Fixed
• Focal Plane: SFP (Second Focal Plane)
• Scope Tube: 1 Inch
• Illumination: 5 Levels (Red/Green)
• Field of View:
  • 39 – 12.7ft @100yds
  • 13 – 4.2m @100m
• Field of View (Angle): 7.4 – 2.4°
• Eye Relief: 3.5in / 90mm
• PX/Focus: 100 / 91
• Exit Pupil:
  • 0.52 – 0.17″
  • 13.3 – 4.4mm
• Turret Caps: YES
• Click Value: 1⁄ 4MOA
• Elevation Turret Clicks (max): 100 MOA
• Windage Turret Clicks (max): 100 MOA
• Ocular Type: Fast Focus
• Power Selector: Knurled Posi-Grip
• Lens Coating: Fully Multi-Coated – 11 Layers
• Length: 12.4″ / 315mm
• Weight: 15.2oz / 430g
