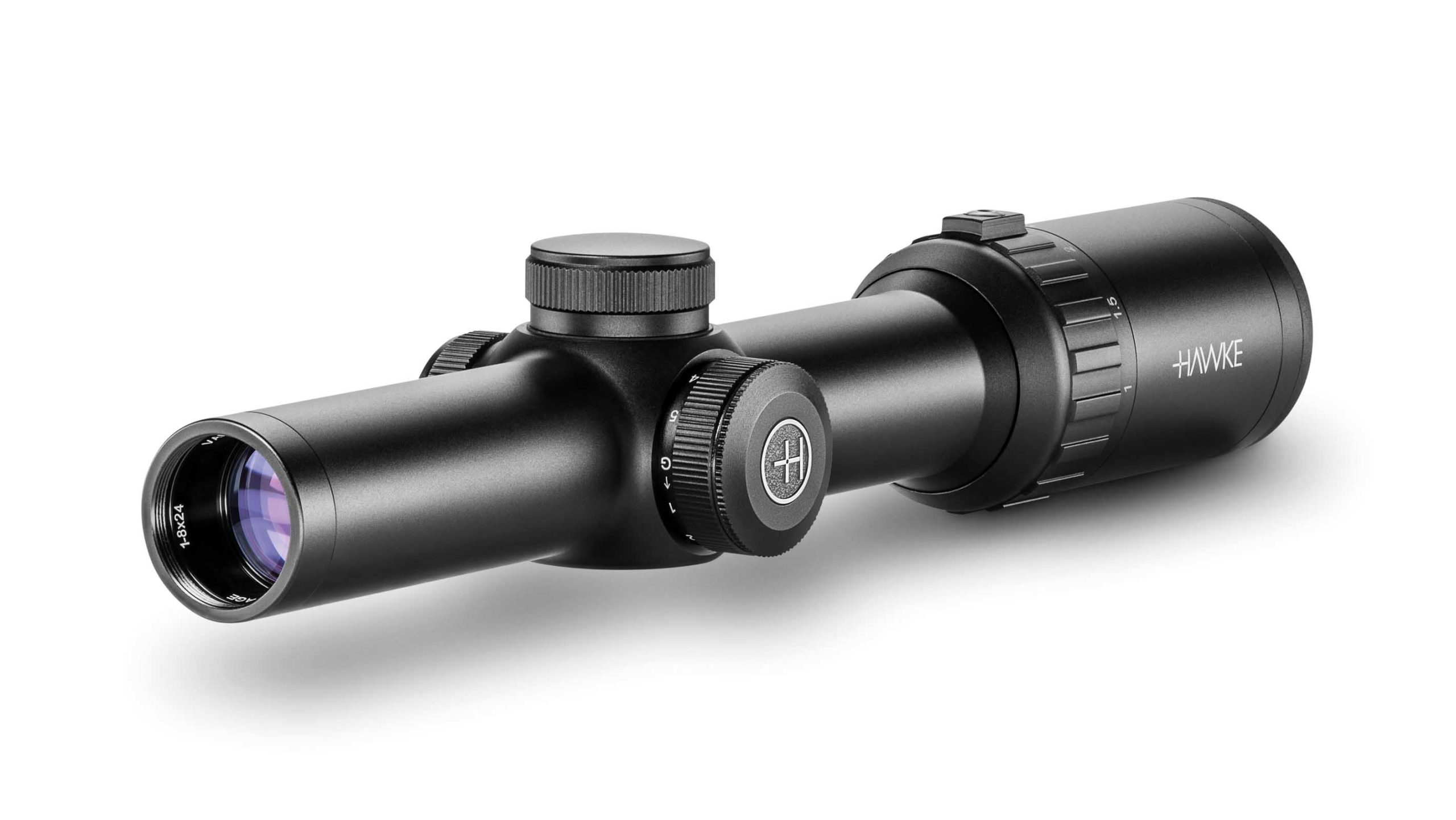

Hawke Vantage 30 WA 1-8×24 Circle Dot Reticle

Hawke Vantage 30 WA 1-8×24 Circle Dot Reticle (14401)

Designed specifically to help fast target acquisition during Battue and driven hunt. Features a bright red centre dot and illuminated circle for instant aim.

Key Features:

• H2 Optics in a variety of configurations
• IR Models feature precision glass etched reticles with multi-stage illumination in both red and green
• Capped Low-Profile Turrets
• 30mm Mono-Tube Chassis
• Wide Angle
• Illumination
• 11-Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell
• Supplied with Removable Zoom Lever
• Nitrogen Purged – Shockproof, Waterproof, Fog Proof
• All Calibre Rated
• Hawke No-Fault Lifetime Warranty

Specifications:

• Model: 14 401
• Bar Code: 5054492144013
• Magnification: 1 – 8x
• Reticle: Circle Dot (8x)
• Optical System: System H2
• Objective Lens: 24mm
• Parallax: Fixed
• Focal Plane: SFP (Second Focal Plane)
• Scope Tube: 30mm
• Illumination: 5 Levels – Red/Green
• Field of View:
  • 115 – 14.4ft @ 100yds
  • 38.3 – 4.8m @ 100m
  • 21.7–2.7°
• Eye Relief:
  • 3.8in / 97mm
• PX/Focus: 100/91
• Exit Pupil:
  • 0.94 – 0.12″ / 24 – 3mm
• Turret Type: Capped
• Turret Caps: YES
• Click Value: 1⁄2 MOA
• Elevation Turret Clicks (max): 210 MOA
• Windage Turret Clicks (max): 210 MOA
• Ocular Type: Fast Focus
• Power Selector: Knurled Posi-Grip with Removable Zoom Lever
• Lens Coating: Fully Multi-Coated – 11 Layers
• Length:
  • 10.5″ / 267mm
• Weight:
  • 16.5oz / 468g
