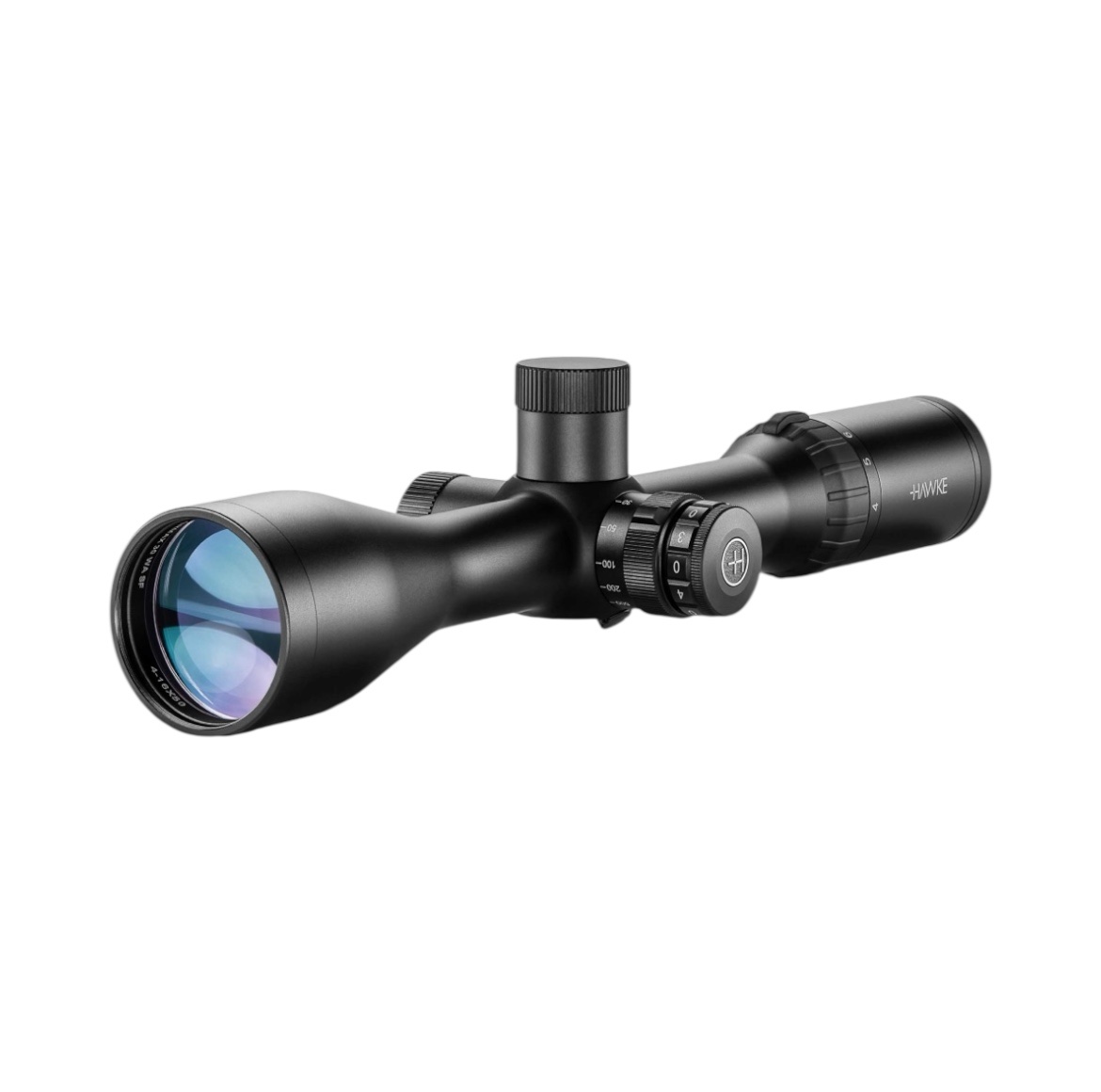

Hawke Airmax 30 WA SF 4-16×50 AMX IR Reticle

Hawke Airmax 30 WA SF 4-16×50 AMX IR Reticle (13311)

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Key Features:

• H2 Optics designed for airguns
• Capped Target Turrets
• 30mm Mono-Tube Chassis
• Wide Angle
• Side Focus
• Illumination
• 16-Layer Fully Multi-Coated Lenses
• High Torque Zoom Ring
• Fast Focus Eyebell
• AMX Reticle Designed for Airguns
• Nitrogen Purged – Shockproof, Waterproof, Fog Proof
• All Calibre Rated
• Hawke No-Fault Lifetime Warranty

Specifications:

• Model: 13 311
• Bar Code: 5054492133116
• Magnification: 4 – 16x
• Reticle: AMX IR
• Optical System: System H2
• Objective Lens: 50mm
• Parallax: Side Focus
• Focal Plane: SFP (Second Focal Plane)
• Scope Tube: 30mm
• Illumination: 6 Levels with Off Positions In-between – Red
• Field of View:
  • 30.7 – 7.7ft @ 100yds
  • 10.2 – 2.6m @ 100m
  • 5.8 – 1.5°
• Eye Relief:
  • 4in / 102mm
• PX/Focus:
  • 10yds – ∞ / 9m – ∞
• Exit Pupil:
  • 0.49 – 0.12″ / 12.5 – 3.1mm
• Turret Caps: YES
• Click Value: 1⁄10 MRAD
• Elevation Turret Clicks (max): 27 MRAD
• Windage Turret Clicks (max): 27 MRAD
• Ocular Type: Fast Focus
• Power Selector: Rubber Coated Posi-Grip
• Lens Coating: Fully Multi-Coated – 16 Layers
• Length:
  • 13.7″ / 348mm
• Weight:
  • 26.8oz / 760g
