Guide TE Series Handheld Thermal Imaging Monocular

Guide TE Series Handheld Thermal Imaging Monocular ( GUIDE-TE-SERIES )

The TE Series Monoculars have a sensitive infrared detector that supports multiple resolutions and lens options. They have a quick charging feature that allows for an hour of continuous use with just a 10-minute charge.

An integrated single-button and single-ring design simplifies operation, and the rechargeable battery provides up to 6 hours of runtime. The TE Series have a 0.32-inch AMOLED screen and a 25mm eye relief.

Additionally, the TE Series supports photos, videos, and audio recordings, with 16GB of built-in storage. Upgrade package downloads in 10 seconds and a maximum transmission distance of 26.5 metres with dual-band WiFi connectivity.

Key Features:

• 12μm infrared detector
• Multiple resolutions and lens options
• Weight: Over 200 grams
• Runtime: Up to 6 hours
• Charging: 20W quick charge
• 10-minute charge = 1 hour use
• Screen: 0.32-inch AMOLED
• Resolution: 800 x 600
• Eye relief: 25mm
• Built-in storage: 16GB
• WiFi: Dual-band with 26.5 meters max range
• Download speed: Upgrade packages in 10 seconds

Specifications:

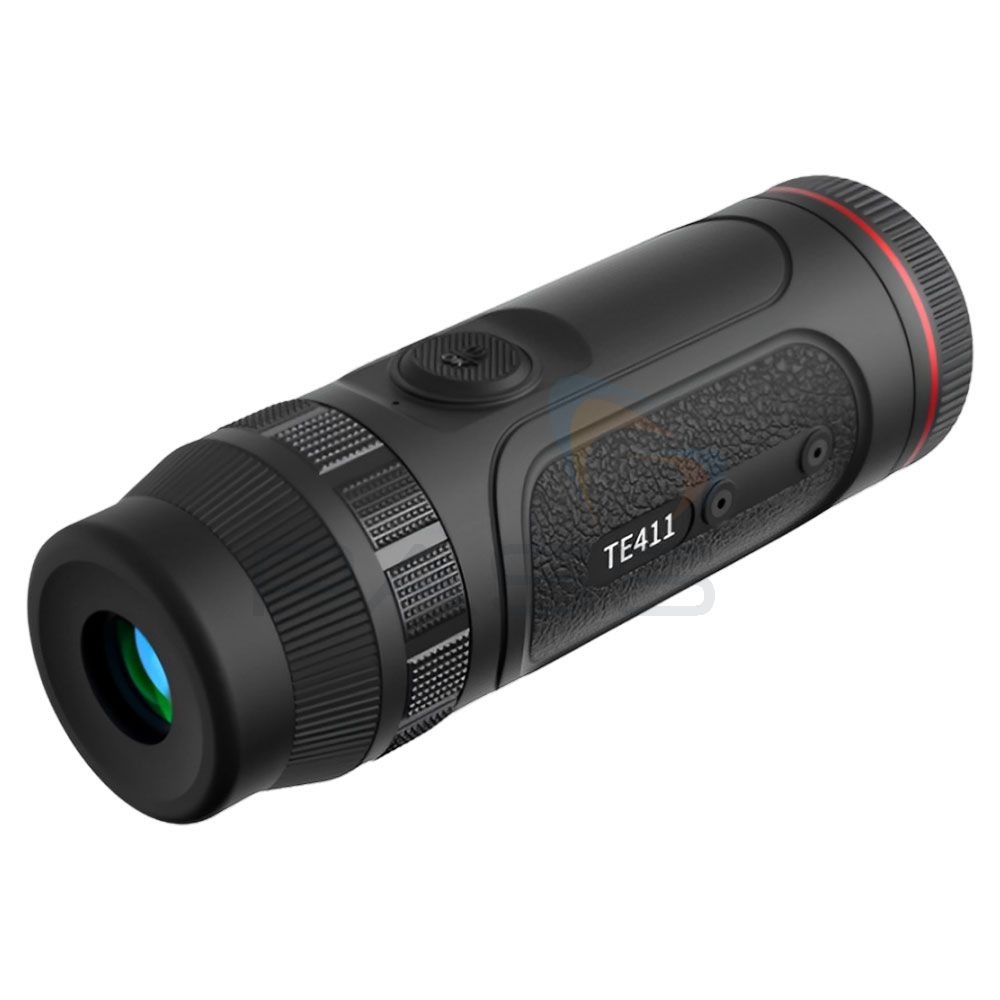

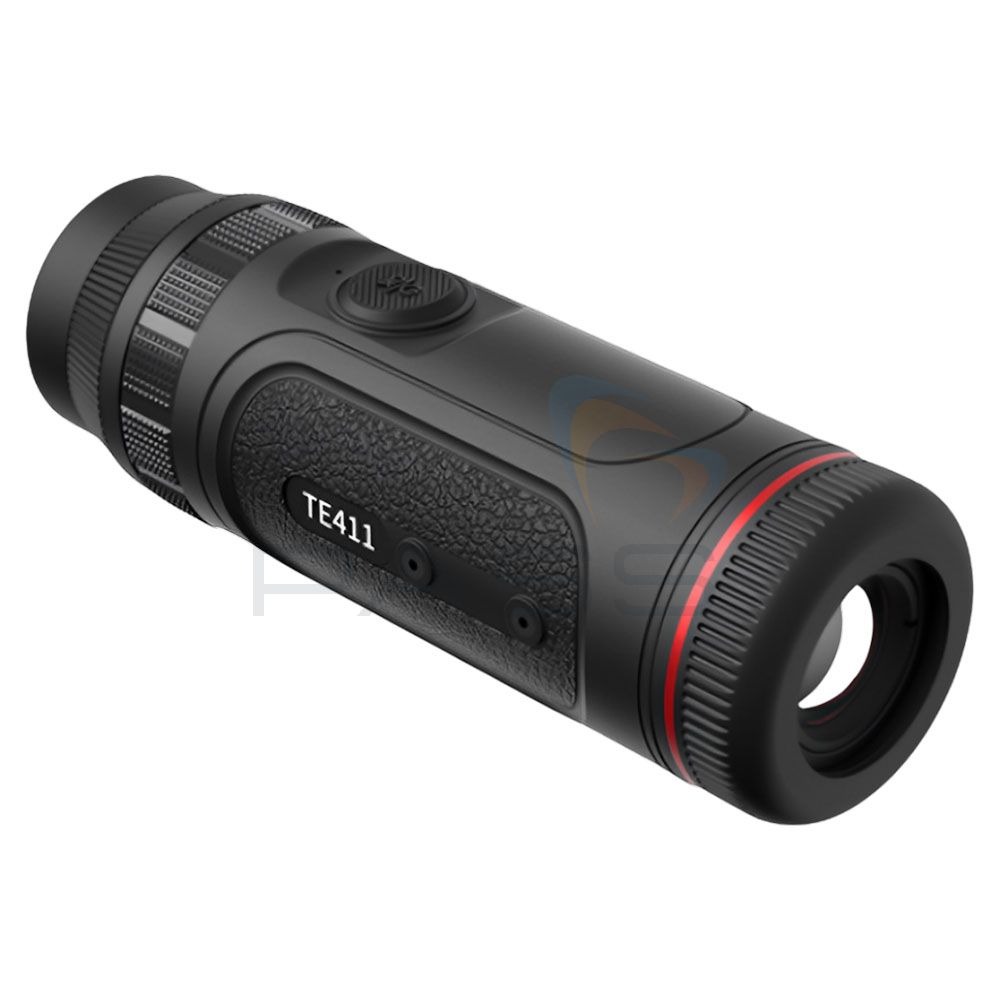

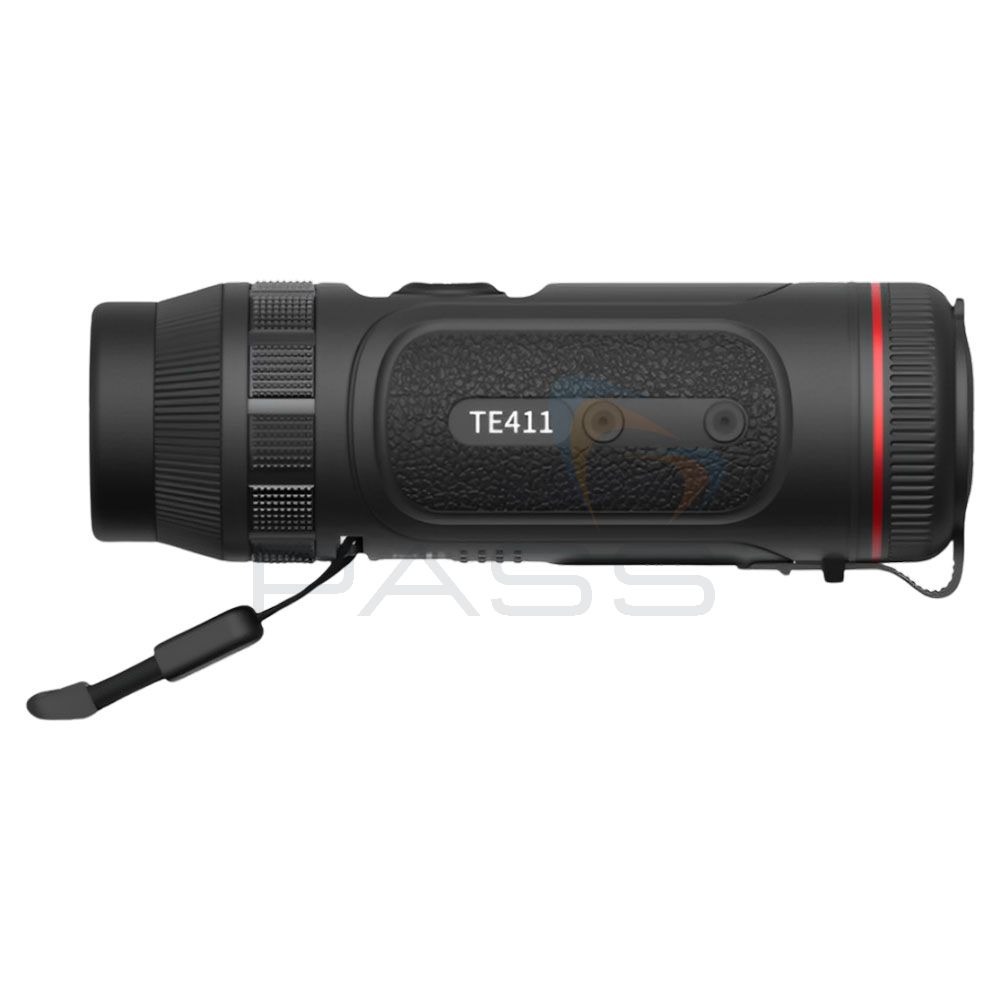

TE411

• Sensor

  • Type: Uncooled VOx Infrared Detector (8–14μm)

  • Resolution: 400 × 300 @ 12μm

  • NETD: 25mK

  • Frame Rate: 50Hz

• Lens

  • Objective Lens: 19mm, F1.0

  • Field of View: 14.4° × 10.8°

  • FOV @ 100m: 25m × 19m

  • Magnification: 1.4x – 5.6x

  • Detection Range: 1000m / 1090yd

  • Focus: Manual

• Display

  • Type: 0.32″ AMOLED, 800 × 600

  • Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

  • Eyepiece: Eye relief 25mm, Diopter -5 to +5, Zoom: 14x

• Hardware & System

  • WiFi: 2.4G / 5G

  • Interface: USB Type-C (supports charging)

  • Additional Features: Microphone, Bluetooth

  • Recording: Photo / Video with audio

  • Memory: 16GB built-in

• Power

  • Battery: Built-in, supports 20W quick charging

  • Operating Time: 5 hours

• Environmental

  • Operating Temperature: -20°C to 50°C / -4°F to +122°F

  • Encapsulation: IP67

• Physical

  • Weight: 308g / 10.86oz

  • Size: 47 × 47 × 148mm / 1.85 × 1.85 × 5.83in

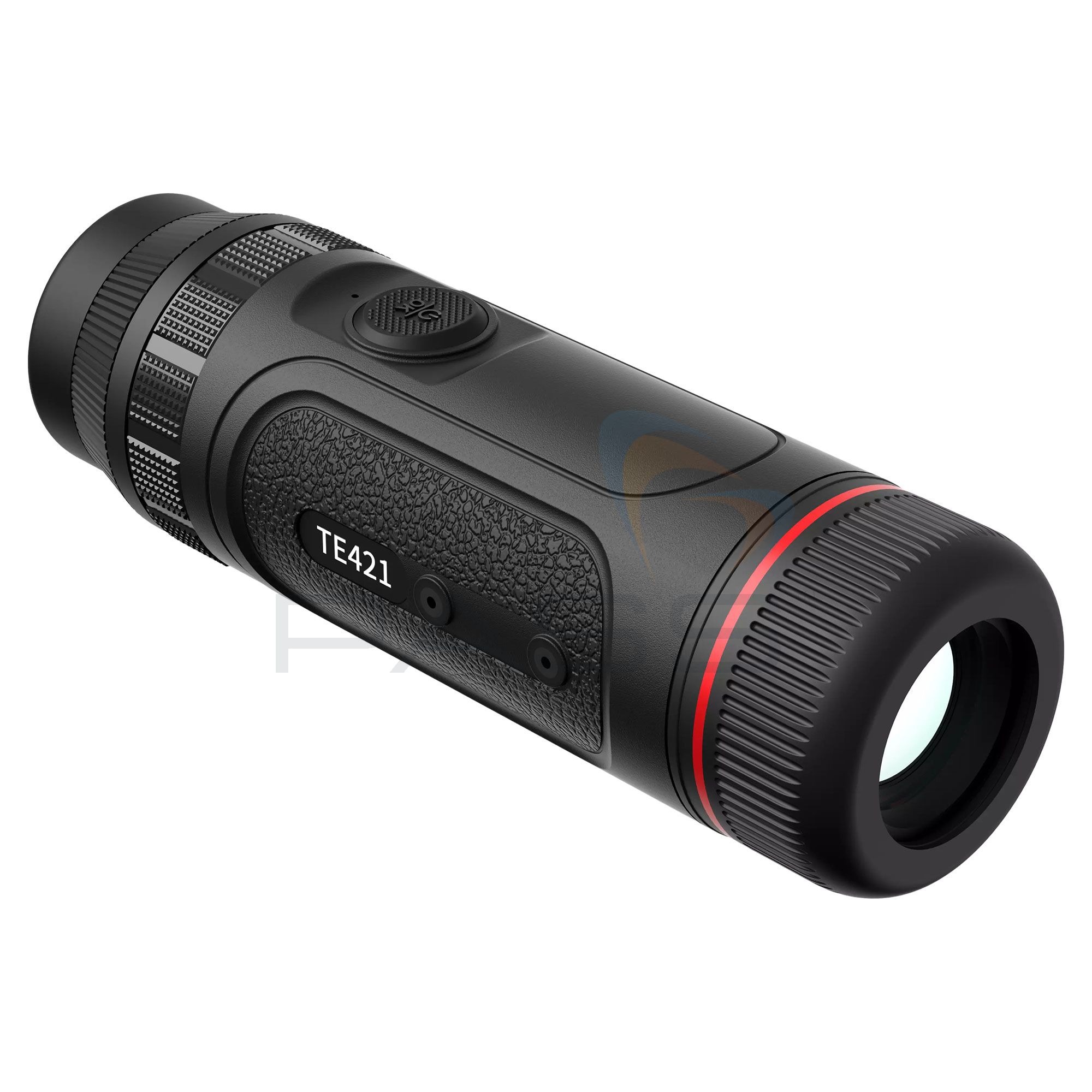

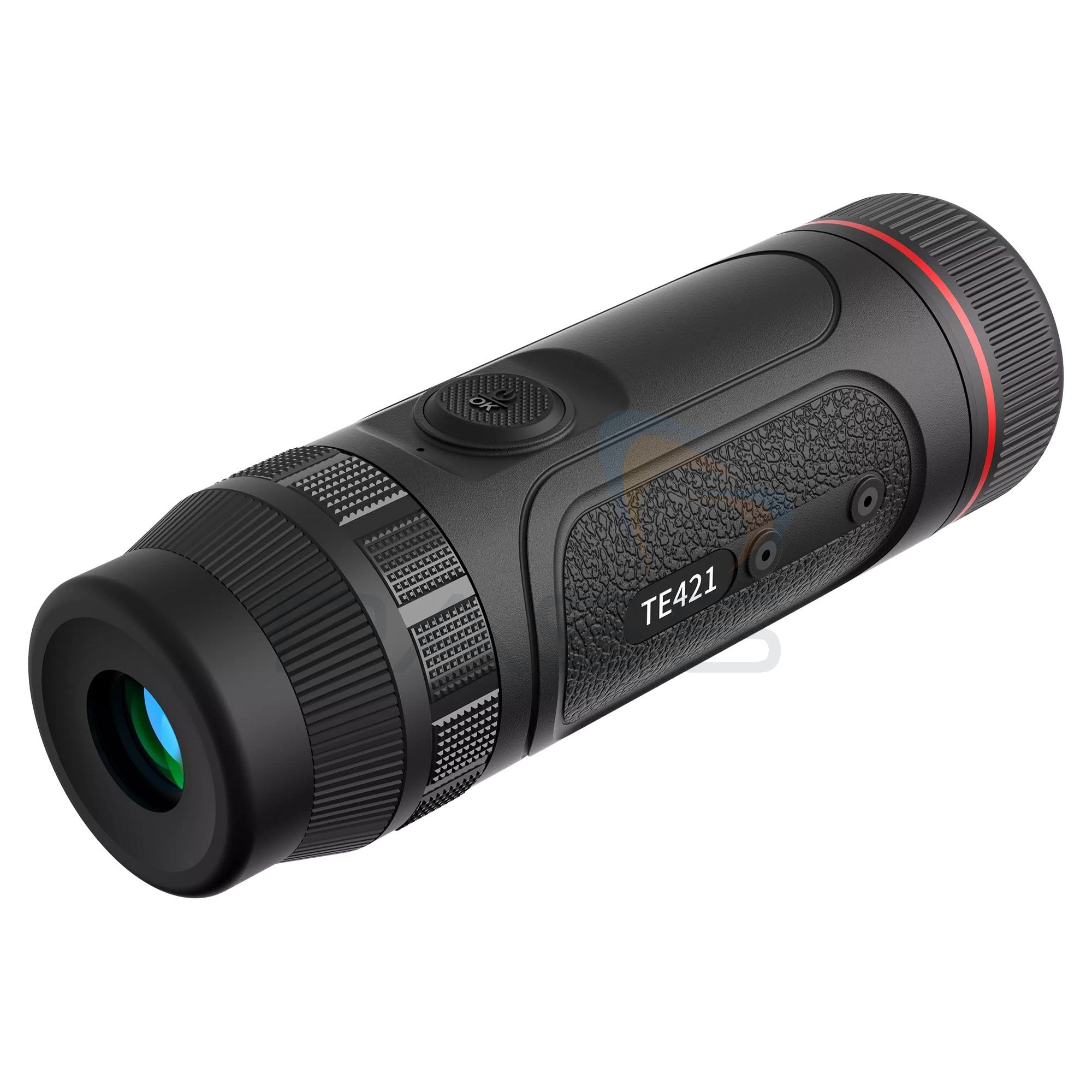

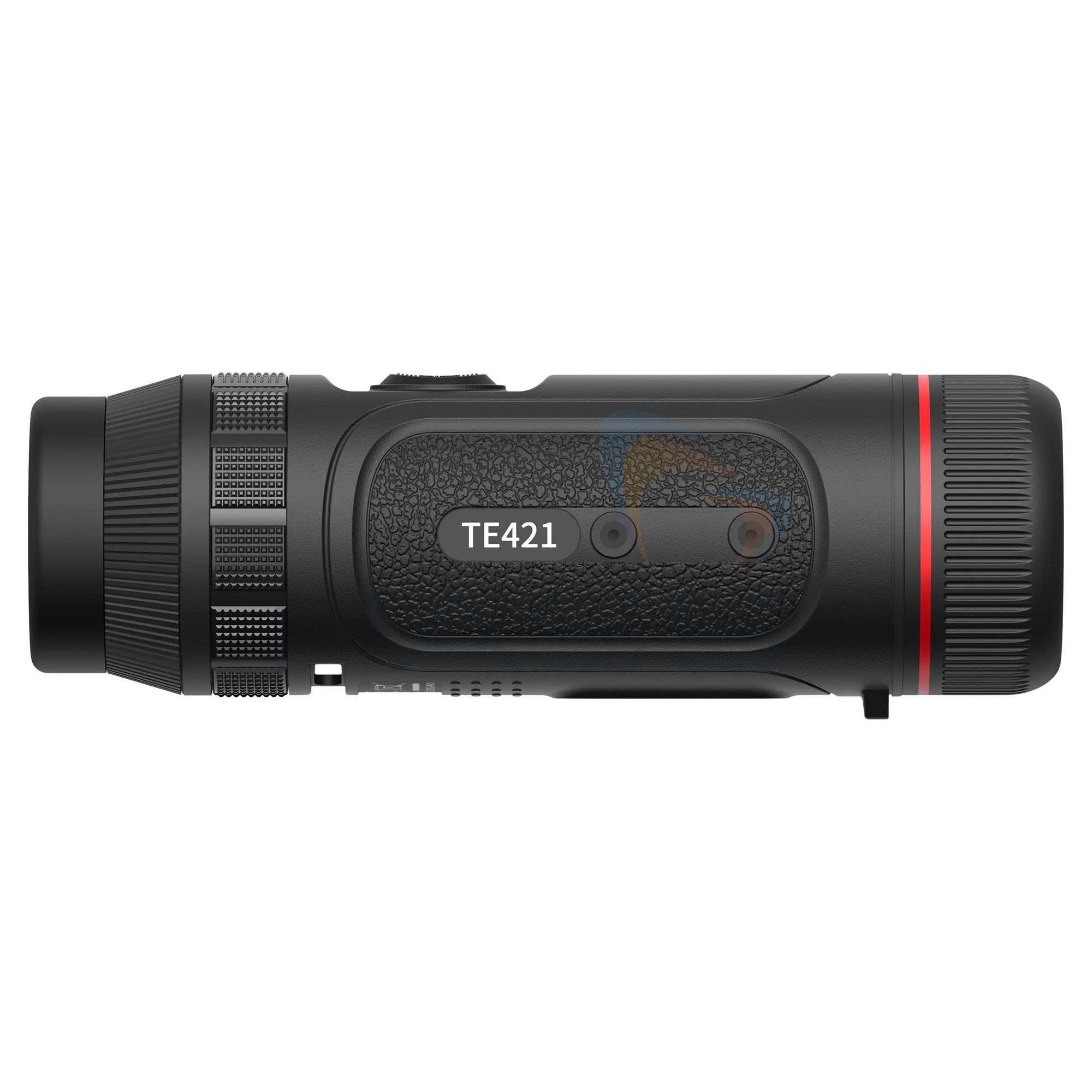

TE421

• Sensor

  • Type: Uncooled VOx Infrared Detector (8–14μm)

  • Resolution: 400 × 300 @ 12μm

  • NETD: 25mK

  • Frame Rate: 50Hz

• Lens

  • Objective Lens: 25mm, F1.0

  • Field of View: 11° × 8.2°

  • FOV @ 100m: 19m × 14m

  • Magnification: 1.9x – 7.6x

  • Detection Range: 1300m / 1400yd

  • Focus: Manual

• Display

  • Type: 0.32″ AMOLED, 800 × 600

  • Colour Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

  • Eyepiece: Eye relief 25mm, Diopter -5 to +5, Zoom: 14x

• Hardware & System

  • WiFi: 2.4G / 5G

  • Interface: USB Type-C (supports charging)

  • Additional Features: Microphone, Bluetooth

  • Recording: Photo / Video with audio

  • Memory: 16GB built-in

• Power

  • Battery: Built-in, supports 20W quick charging

  • Operating Time: 5 hours

• Environmental

  • Operating Temperature: -20°C to 50°C / -4°F to +122°F

  • Encapsulation: IP67

• Physical

  • Weight: 315g / 11.11oz

  • Size: 47 × 47 × 155mm / 1.85 × 1.85 × 6.10in

• SKU: GUIDE-TE-SERIES

What’s Included?

• Device
• Lens cover
• Eye mask
• Wrist strap
• USB Type-C cable
• Quick use guide
• Safety Information Manual
• Warranty card
• Quick charging adapter (TE411 & TE421 only)

Product Range

• Guide TE211 Handheld Thermal Imaging Monocular, 10mm, F1.0
• Guide TE411 Handheld Thermal Imaging Monocular, 19mm, F1.0
• Guide TE421 Handheld Thermal Imaging Monocular, 25mm, F1.0
