DJI Mavic 3 Thermal Drone

DJI Mavic 3 Thermal Drone: The New Standard for Portable Commercial Drones

Introduction

The DJI Mavic 3 Thermal sets a new benchmark for portable commercial drones, offering advanced multi-sensor capabilities in a lightweight and compact design. Tailored for industries such as emergency services and inspection missions, the Mavic 3T delivers powerful imaging, extended flight time, and a versatile range of features that make it a must-have for professionals.

Key Features

• Versatile Data Collection: Capture thermal, wide, and hybrid zoom images.
• Advanced Imaging: Equipped with a 48MP wide camera and a 12MP tele camera with 56x hybrid zoom.
• Thermal Sensor: High-resolution thermal imaging with a 640 x 512 sensor at 30Hz.
• Lightweight and Portable: Compact design with a 920g airframe.
• Extended Flight Time: Up to 45 minutes of maximum flight time.
• Enhanced Safety: Omnidirectional obstacle sensing and advanced Return to Home (RTH) features.
• Exclusive Controller: DJI RC Pro Enterprise smart controller with a high-brightness screen.
• Comprehensive Software Suite: Compatibility with DJI Pilot 2, FlightHub 2, and DJI Terra for seamless operations.

---

Unmatched Imaging Capabilities

Wide Camera

• Sensor: ½ inch CMOS, 48MP
• Focal Length: 24mm Equivalent

Tele Camera

• Sensor: ½ inch CMOS, 12MP
• Zoom: 56x hybrid zoom, 162mm equivalent focal length

Thermal Camera

• Sensor: Uncooled VOx Microbolometer
• Resolution: 640 x 512 @ 30Hz
• Focal Length: 40mm Equivalent
• Field of View: 61° Display Field of View (DFOV)

The Mavic 3T’s thermal and zoom cameras work side-by-side, enabling simultaneous split-screen zoom for easy comparisons. This feature makes it ideal for public safety operations, night inspections, and critical missions where visibility and detail are essential.

---

Next-Generation Transmission and Safety Features

Superior Flight Control and Safety

Fly with confidence, thanks to the Mavic 3 Thermal’s robust transmission system and enhanced safety features:

• DJI O3 Enterprise Transmission: Enjoy a control range of up to 8km (CE), transmitting live feeds at 1080p/30fps with high stability.
• DJI AirSense: Receive ADS-B signals from nearby aircraft for increased air traffic awareness.
• DJI APAS System 5.0: Enhanced obstacle sensing with six omnidirectional fish-eye sensors to eliminate blind spots.
• Advanced Return to Home (RTH): The drone calculates the optimal route back to its home point for safe and efficient return.

---

Mavic 3 Thermal Data Security

Protect Your Sensitive Data

The Mavic 3T offers cutting-edge security to protect flight data, ensuring that sensitive information remains secure.

• Local Data Mode: Prevents the DJI Pilot 2 app from sending or receiving data over the internet, adding extra layers of security for critical infrastructure or governmental operations.
• AES-256 Encryption: Robust encryption secures the radio link between the drone and its controller, protecting the integrity of your data during flight.

---

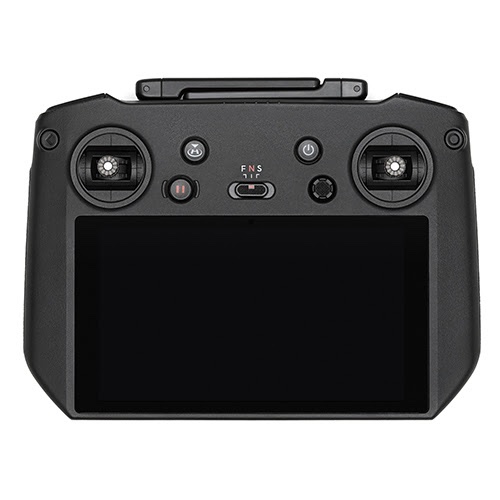

Mavic 3T Controller: Built for Professional Missions

The Mavic 3T is controlled via the new DJI RC Pro Enterprise, a professional-grade remote that elevates mission performance.

• Screen: 5.5-inch display with 1,000-nit brightness for clear visibility in sunlight.
• Microphone: Built-in for clear communication, compatible with the loudspeaker module.
• Battery Life: 1.5-hour charging time and 3 hours of operational use.
• Enhanced Performance: Upgraded CPU and GPU for faster processing.
• Route Planning: Supports waypoint mapping, oblique, and linear route planning with DJI Pilot 2.

---

Expand Your Capabilities with DJI Accessories

Accessory Ecosystem

The Mavic 3 Thermal integrates with a range of enterprise accessories to enhance mission performance. These add-ons are available separately and include:

• RTK Module: Provides high-accuracy georeferencing for precise data collection.
• Loudspeaker: Broadcast messages via text-to-speech or audio storage, ideal for public safety and search-and-rescue missions.
• D-RTK 2 Mobile Station: Enhances GPS precision with support for all major global satellite navigation systems.

---

Complete Software Suite for Enterprise-Level Operations

DJI Software Ecosystem

Maximize the Mavic 3T’s potential with a comprehensive software suite designed for efficient drone operations:

• DJI Pilot 2: Streamlined flight interface that improves pilot efficiency and safety.
• DJI FlightHub 2: All-in-one cloud-based operations management software.
• DJI Terra: Advanced mapping software for mission planning and data analysis.
• DJI Thermal Analysis Tool 3.0: Analyze thermal data for in-depth insights.

The Mavic 3 Thermal integrates seamlessly with DJI’s growing ecosystem, making it the ultimate tool for data collection, mapping, fleet management, and more.

Learn More: Senopex DOT S10 Thermal Scope

---

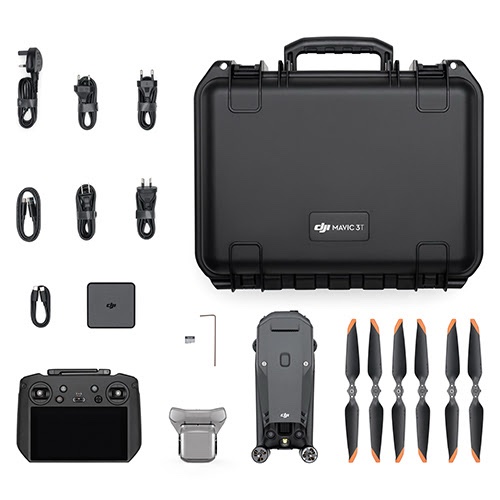

What’s in the box?

• 1x DJI Mavic 3 Thermal Drone
• 1x Flight Battery
• 1x 64GB Micro SD Card
• 1x Gimbal Cover
• 3x Propeller (Pairs)
• 1x DJI RC Pro Enterprise Smart Controller
• 1x Standard Charger (100W)
• 5x AC Cable (For different plug types)
• 1x USB to USB-C Cable
• 1x Dual USB-C Cable

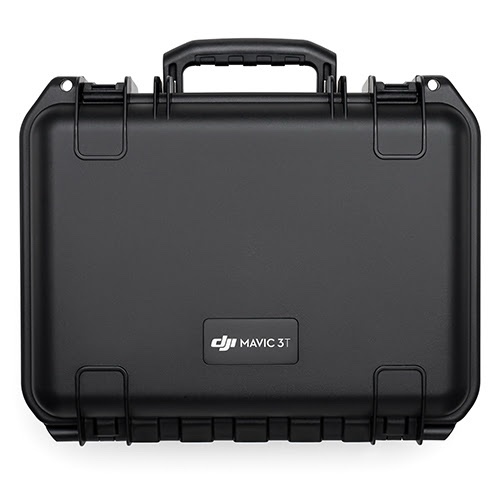

• 1x Protective Carry Case
• 1x Screwdriver Tool
• 1x User Manual

---

FAQs

What is the difference between the DJI Mavic 3E and the DJI Mavic 3T?

The DJI Mavic 3E is equipped with a 20MP wide-angle camera with a 4/3 CMOS and a tele camera to deliver powerful imaging capability ideal for surveying. The M3T is equipped with a 48MP wide-angle camera with a 1/2 CMOS, a tele camera, and a thermal camera for thermal imaging and identification of hot spots.

DJI Mavic 3 Thermal Specifications

Aircraft

• Weight (with propellers, without accessories):
  • Mavic 3E: 915 g
  • Mavic 3T: 920 g
• Max Takeoff Weight: 1,050 g
• Dimensions:
  • Folded: 221×96.3×90.3 mm
  • Unfolded: 347.5×283×107.7 mm
• Diagonal Distance: 380.1 mm
• Max Ascent Speed:
  • Normal Mode: 6 m/s
  • Sport Mode: 8 m/s
• Max Descent Speed: 6 m/s
• Max Flight Speed (no wind, at sea level):
  • Normal Mode: 15 m/s
  • Sport Mode:
    • Forward: 21 m/s
    • Side: 20 m/s
    • Backward: 19 m/s
• Max Wind Speed Resistance: 12 m/s
• Max Takeoff Altitude: 6,000 m (without payload)
• Max Flight Time: 45 mins
• Max Hover Time: 38 mins
• Max Flight Distance: 32 km
• Max Tilt Angle:
  • Normal Mode: 30°
  • Sport Mode: 35°
• Max Angular Velocity: 200°/s
• GNSS: GPS, Galileo, BeiDou, GLONASS (with RTK enabled)
• Hovering Accuracy:
  • Vertical: ±0.1 m (Vision System), ±0.5 m (GNSS), ±0.1 m (RTK)
  • Horizontal: ±0.3 m (Vision System), ±0.5 m (GNSS), ±0.1 m (RTK)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Propeller Model: 9453F Propellers for Enterprise
• Motor Model: 2008
• Beacon: Built-in

---

Wide Camera (Mavic 3T)

• Sensor: 1/2-inch CMOS, 48 MP
• FOV: 84°
• Format Equivalent: 24 mm
• Aperture: f/2.8
• Focus Range: 1 m to ∞
• ISO Range: 100-25600
• Shutter Speed: Electronic Shutter, 8-1/8000 s
• Max Image Size: 8000 x 6000
• Photo Modes:
  • Single: 12 MP or 48 MP
  • Timed: 12 MP or 48 MP (2s – 60s intervals)
  • Panorama: 12 MP (raw), 100 MP (stitched)
  • Smart Low-light Shooting: 12 MP
• Video Resolution:
  • 4K: 3840×2160 @ 30fps
  • FHD: 1920×1080 @ 30fps
• Bitrate:
  • 4K: 85 Mbps
  • FHD: 30 Mbps
• Photo Format: JPEG
• Video Format: MP4 (MPEG-4 AVC/H.264)

---

Tele Camera

• Sensor: 1/2-inch CMOS, 12 MP
• FOV: 15°
• Format Equivalent: 162 mm
• Aperture: f/4.4
• Focus Range: 3 m to ∞
• ISO Range: 100-25600
• Shutter Speed: Electronic Shutter, 8-1/8000 s
• Max Image Size: 4000 x 3000
• Photo Modes:
  • Single: 12 MP
  • Timed: 12 MP (2s – 60s intervals)
  • Smart Low-light Shooting: 12 MP
• Video Resolution:
  • 4K: 3840×2160 @ 30fps
  • FHD: 1920×1080 @ 30fps
• Bitrate:
  • 4K: 85 Mbps
  • FHD: 30 Mbps
• Digital Zoom: 8x (56x hybrid zoom)
• Photo Format: JPEG
• Video Format: MP4 (MPEG-4 AVC/H.264)

---

Thermal Camera (Mavic 3T)

• Thermal Imager: Uncooled VOx Microbolometer
• Pixel Pitch: 12 μm
• Frame Rate: 30 Hz
• FOV: 61°
• Format Equivalent: 40 mm
• Aperture: f/1.0
• Focus Range: 5 m to ∞
• Sensitivity: ≤50 mK @ F1.1
• Temperature Measurement Range:
  • High Gain Mode: -20° to 150°C (-4° to 302°F)
  • Low Gain Mode: 0° to 500°C (32° to 932°F)
• Palette Options: White Hot, Black Hot, Iron Red, Arctic, Medical, Rainbow, etc.
• Photo Format: JPEG (8-bit), R-JPEG (16-bit)
• Video Resolution: 640 x 512 @ 30fps
• Bitrate: 6 Mbps
• Video Format: MP4 (MPEG-4 AVC/H.264)
• Still Photography Modes:
  • Single: 640×512
  • Timed: 640×512 (2s – 60s intervals)
• Infrared Wavelength: 8-14 μm
• Temperature Measurement Accuracy: ±2° C or ±2%

---

Gimbal

• Stabilization: 3-axis (tilt, roll, pan)
• Mechanical Range:
  • Tilt: -135° to 45°
  • Roll: -45° to 45°
  • Pan: -27° to 27°
• Controllable Range:
  • Tilt: -90° to 35°
  • Pan: Not controllable
• Max Control Speed (tilt): 100°/s
• Angular Vibration Range: ±0.007°

---

These specifications outline the key features and performance capabilities of the DJI Mavic 3 Thermal drone, making it an ideal choice for professionals in various industries.
