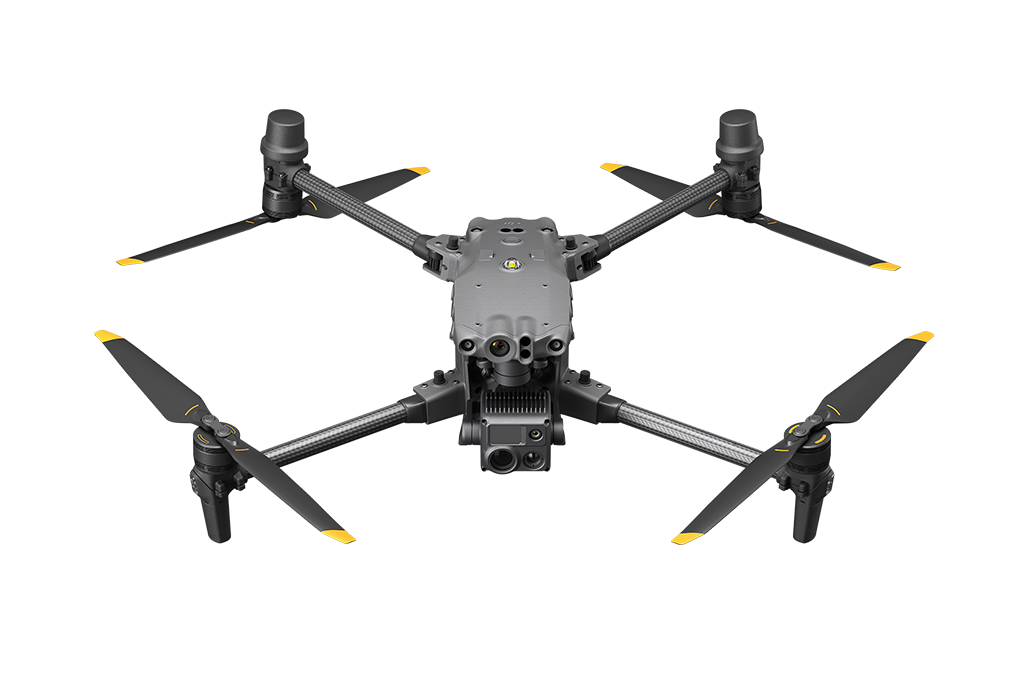

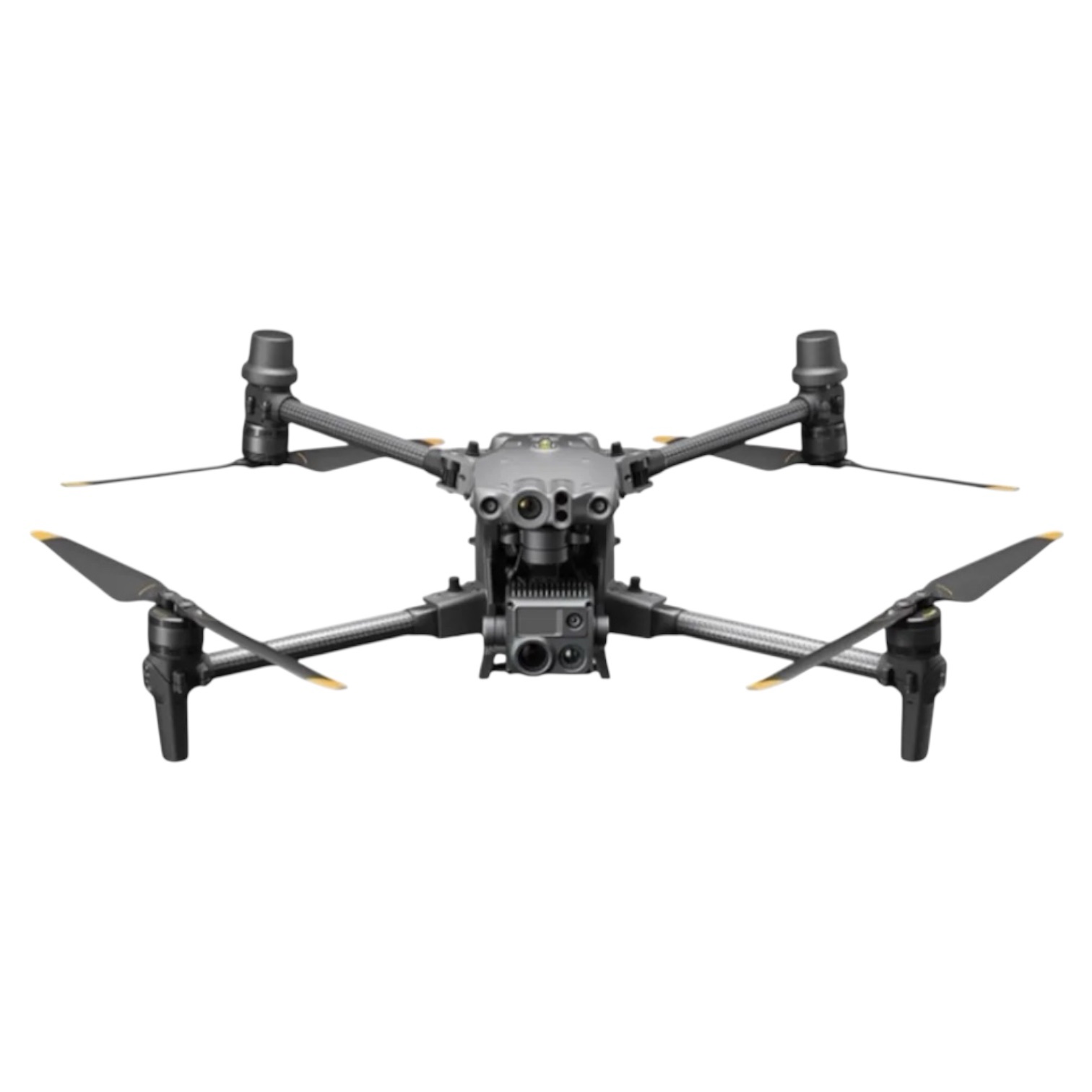

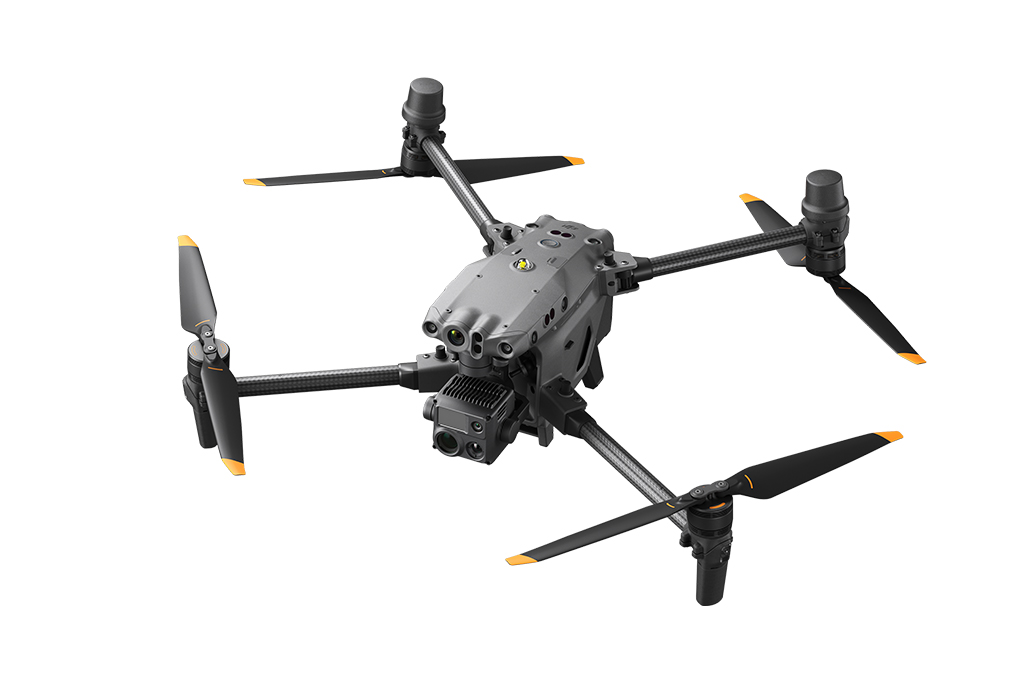

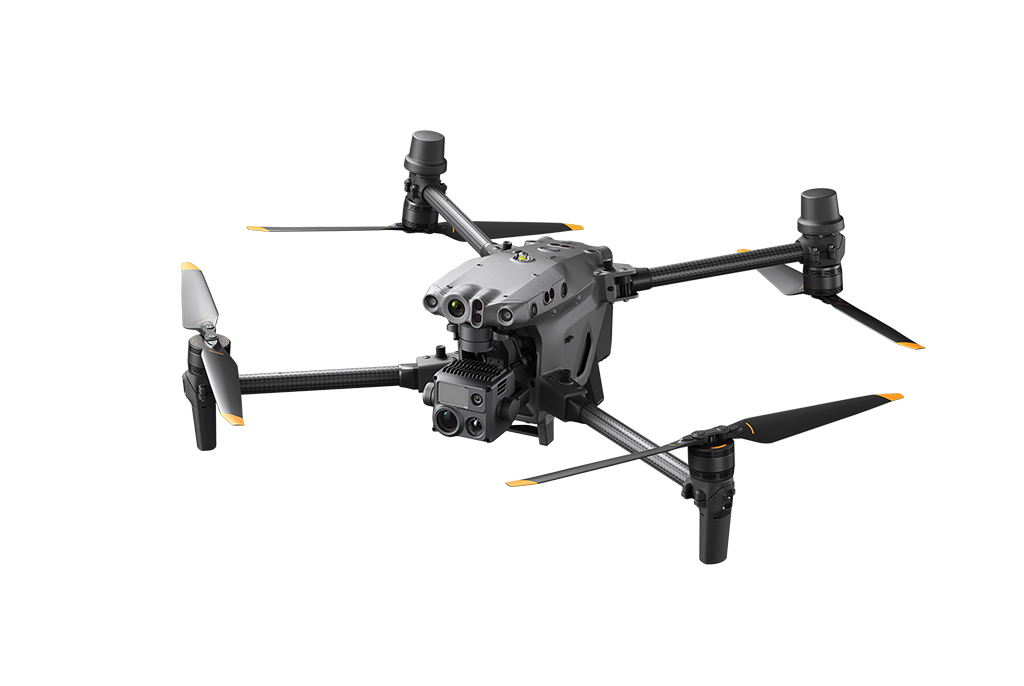

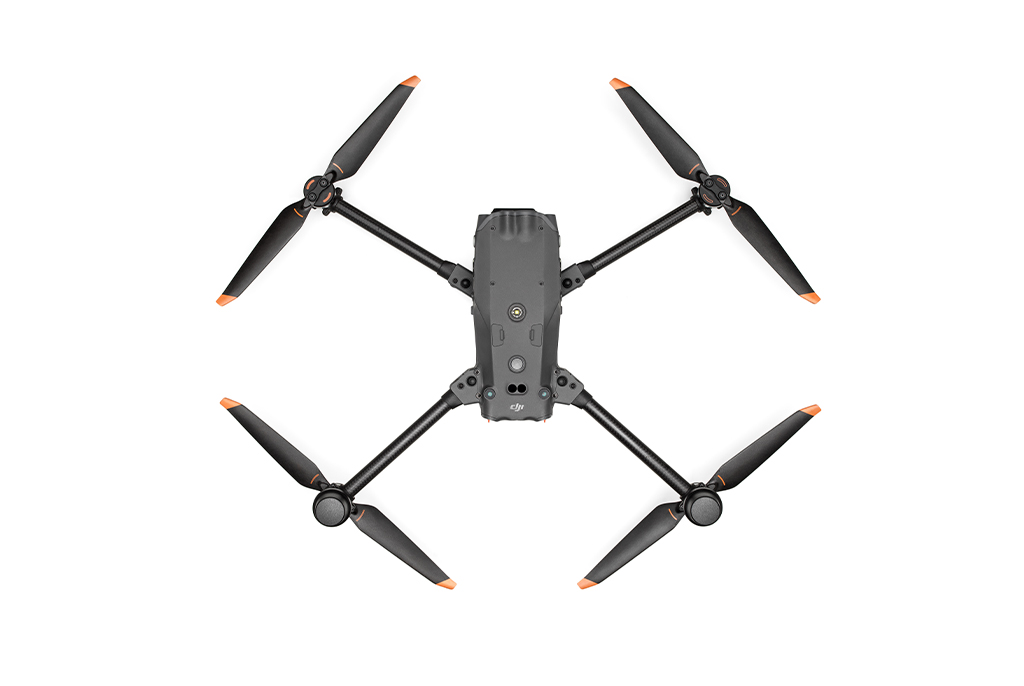

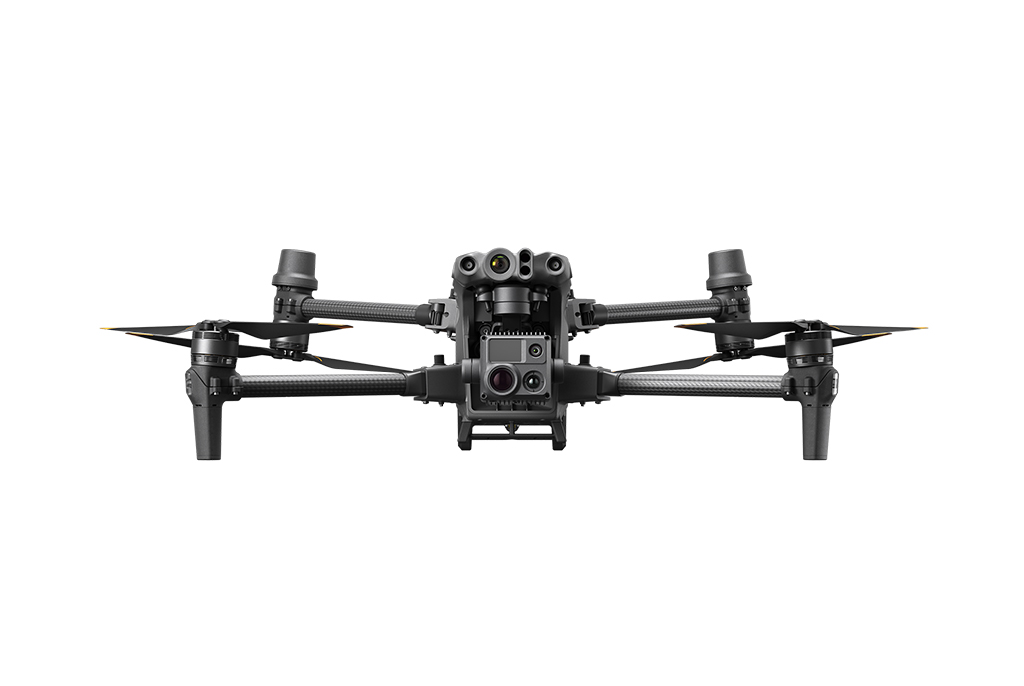

DJI Matrice 30T Thermal Imaging Drone

DJI Matrice 30T Thermal Imaging Drone ( DJIEMT30TBTCB1Y )

The DJI Matrice 30T is a powerful and versatile thermal imaging drone designed for industrial, environmental, and public safety applications. Equipped with an advanced thermal camera featuring a 640×512 resolution, the Matrice 30T delivers precise thermal imaging capabilities that are ideal for a wide range of uses.

This makes it an excellent tool for animal habitat surveying, where it can track wildlife activity in low light or dense cover without disturbing natural environments. The drone’s thermal camera detects heat signatures from animals, making it invaluable for tracking species, monitoring migration patterns, and assessing the health of wildlife populations.

It’s robust design ensures it operates in all weather conditions, including heavy rain, low light, and extreme temperatures. This resilience makes the Matrice 30T especially suitable for operations in harsh environments, where thermal detection is critical for identifying heat sources, finding people, or conducting damage assessments in disaster zones.

The DJI Matrice 30T thermal drone also features advanced mapping capabilities. With RTK support, it provides centimetre-level accuracy, making it ideal for land surveying, construction inspections, and environmental monitoring. The integration of high-resolution thermal imaging with precise mapping technology enables comprehensive data collection, even in large or complex areas.

Additionally, the Matrice 30T seamlessly integrates with DJI FlightHub 2, DJI’s cloud-based management platform. This compatibility allows for efficient fleet management, mission planning, and real-time monitoring of drone operations, enhancing collaboration and operational efficiency.

Key Features:

• Dual Imaging System: High-resolution visuals and thermal camera integration
• Weather Resistance: Operates in rain, snow, and harsh conditions
• 41-Minute Flight Time: Reliable for extended industrial and professional missions
• Compact and Foldable: Portable design for quick deployment and transport
• Wide Temperature Range: Performs in extreme hot and cold environments
• Laser Rangefinder: Accurate target pinpointing up to 1,200 meters
• OcuSync 3 Enterprise: Real-time transmission up to 15 km range
• Payload Versatility: Supports additional accessories like spotlights and speakers
• Flight Hub 2: Enables efficient mission planning and coordination

Specifications:

Aircraft

• General
  • Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
  • Dimensions (folded): 365×215×195 mm (L×W×H)
  • Diagonal Wheelbase: 668 mm
  • Weight (incl. two batteries): 3770 ± 10 g
  • Max Takeoff Weight: 3998 g
  • Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
  • Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
    • 5.8 GHz: <33 dBm (FCC/CE/SRRC);
    • <14 dBm (CE)
  • Hovering Accuracy (windless or breezy): Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
    • Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
  • RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal)
    • 1.5 cm+1 ppm (vertical)
  • Max Angular Velocity: Pitch: 150°/s; Yaw: 100°/s
  • Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)
  • Max Ascent/Descent Speed: 6 m/s; 5 m/s
  • Max Tilt Descent Speed: 7 m/s
  • Max Horizontal Speed: 23 m/s
  • Max Service Ceiling Above Sea Level: 5,000 m (with 1671 propellers)
    • (without other payload): 7,000 m (with 1676 propellers)
  • Max Wind Resistance: 15 m/s
    • 12 m/s during taking off and landing
  • Max Hover Time: 36 min
  • Max Flight Time: 41 min
  • Motor Model: 1671
  • Propeller Model: 1676 High Altitude (not included)
  • Ingress Protection Rating: IP55
  • GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)
  • Operating Temperature: -20° to 50° C (-4° to 122° F)

Gimbal

• Angular Vibration Range: ±0.01°
• Controllable Range: Pan: ±90°, Tilt: -120° to +45°
• Mechanical Range: Pan: ±105°, Tilt: -135° to +60°, Roll:±45°

Zoom Camera

• Sensor: 1/2″ CMOS, Effective pixels: 48M
• Lens: Focal length: 21.75 mm (equivalent: 113-405 mm)
  • Aperture: f/2.8-f/4.2
  • Focus: 5 m to ∞
• Exposure Compensation: ±3 ev (using 1/3 ev as step length)
• Electronic Shutter Speed: Auto Mode: 1/8000-1/2 s; Video: 1/8000-1/30 s
  • M Mode: Photo: 1/8000-8 s; Video: 1/8000 -1/30 s
• ISO Range: 100-25600
• Max. Video Resolution: 3840×2160
• Max Photo Size: 8000×6000

Wide Camera

• Sensor: 1/2″ CMOS, Effective pixels: 12M
  • DFOV: 84°
• Lens: Focal length: 4.5 mm (equivalent: 24 mm)
  • Aperture: f/2.8
  • Focus: 1 m to ∞
• Exposure Compensation: ±3 ev (using 1/3 ev as step length)
• Electronic Shutter Speed: Auto Mode: 1/8000-1/2 s; Video: 1/8000-1/30 s
  • M Mode: Photo: 1/8000-8 s; Video: 1/8000-1/30 s
• ISO Range: 100-25600
• Max. Video Resolution: 3840×2160
• Photo Size: 4000×3000

Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
  • DFOV: 61°
• Lens: Focal length: 9.1 mm (equivalent: 40 mm)
  • Aperture: f/1.0
  • Focus: 5 m to ∞
• Infrared Temperature Measurement Accuracy: $\pm$$2$∘$\text{C or }$$\pm$$2\%$$\text{ (using the larger value)}$
• Video Resolution: Infrared Image Super-resolution Mode: 1280×1024
  • Normal Mode: 640×512
• Photo Size: Infrared Image Super-resolution Mode: 1280×1024
  • Normal Mode: 640×512
• Pixel Pitch: 12 um

Thermal Camera

• Temperature Measurement Method: Spot Meter, Area Measurement
• Temperature Measurement Range: High Gain Mode: -20° to 150° C (-4° to 302° F)
  • Low Gain Mode: 0° to 500° C (32° to 932° F)
• Temperature Alert: Supported
• Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

• Resolution: 1920×1080
• DFOV: 161°
• Frame Rate: 30 fps

Laser Module

• Wavelength: 905 nm
• Max Laser Power: 3.5 mW
• Single Pulse Width: 6 ns
• Measurement Accuracy: $\pm$$($$0.2$$\text{ m }$$+$$\text{ D}$$\times$$0.15\%$$)$
  • D is the distance to a vertical surface
• Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

• Obstacle Sensing Range: Forward: 0.6-38 m
  • Upward/Downward/Backward/Sideward: 0.5-33 m
• FOV: 65° (H), 50° (V)
• Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

• Obstacle Sensing Range: 0.1-10 m
• FOV: 30°
• Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

• Capacity: 5880 mAh
• Voltage: 26.1 V
• Battery Type: Li-ion 6S
• Energy: 131.6 Wh
• Net Weight: Approx. 685 g
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Storage Temperature: 20° to 30° C (68° to 86° F)
• Charging Temperature: -20° to 40° C (-4° to 104° F)
  • (When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
• Chemical System: LiNiMnCoO2

• SKU: DJIEMT30TBTCB1Y
